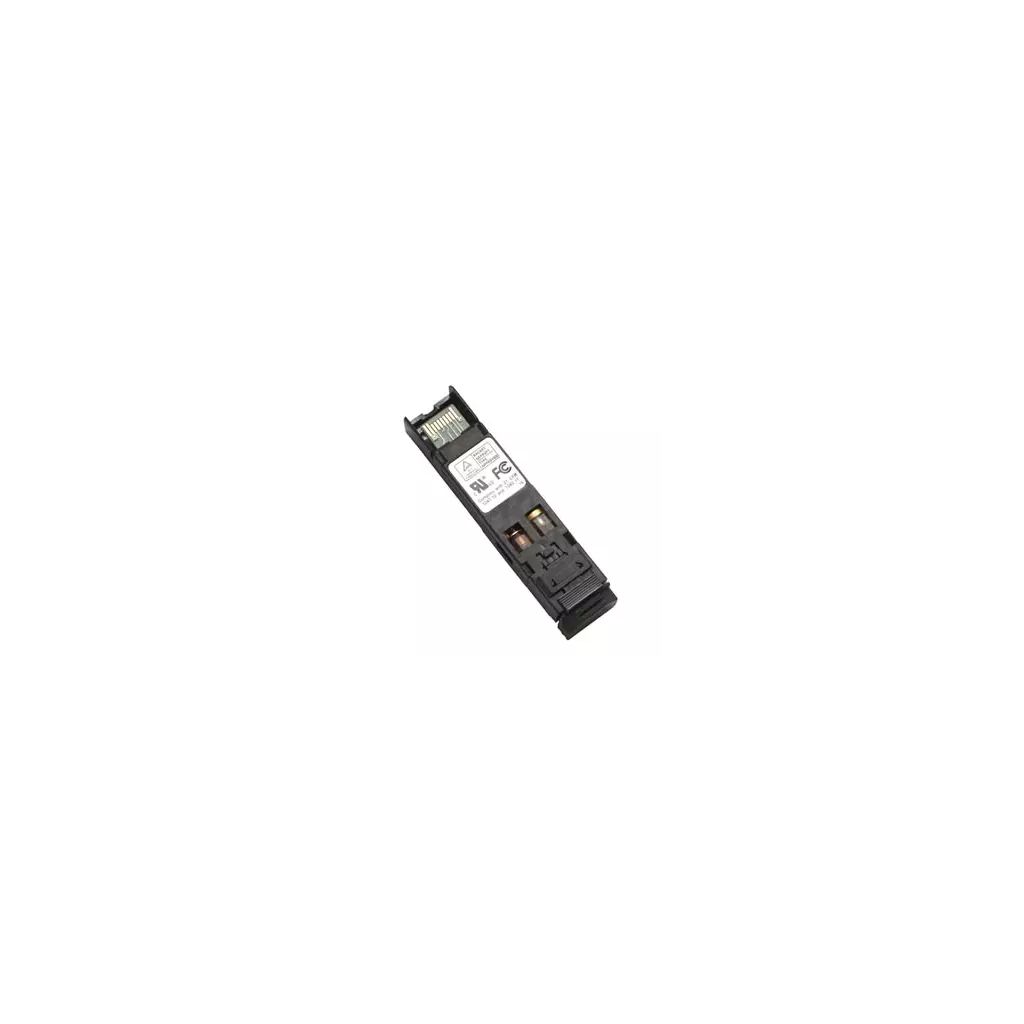

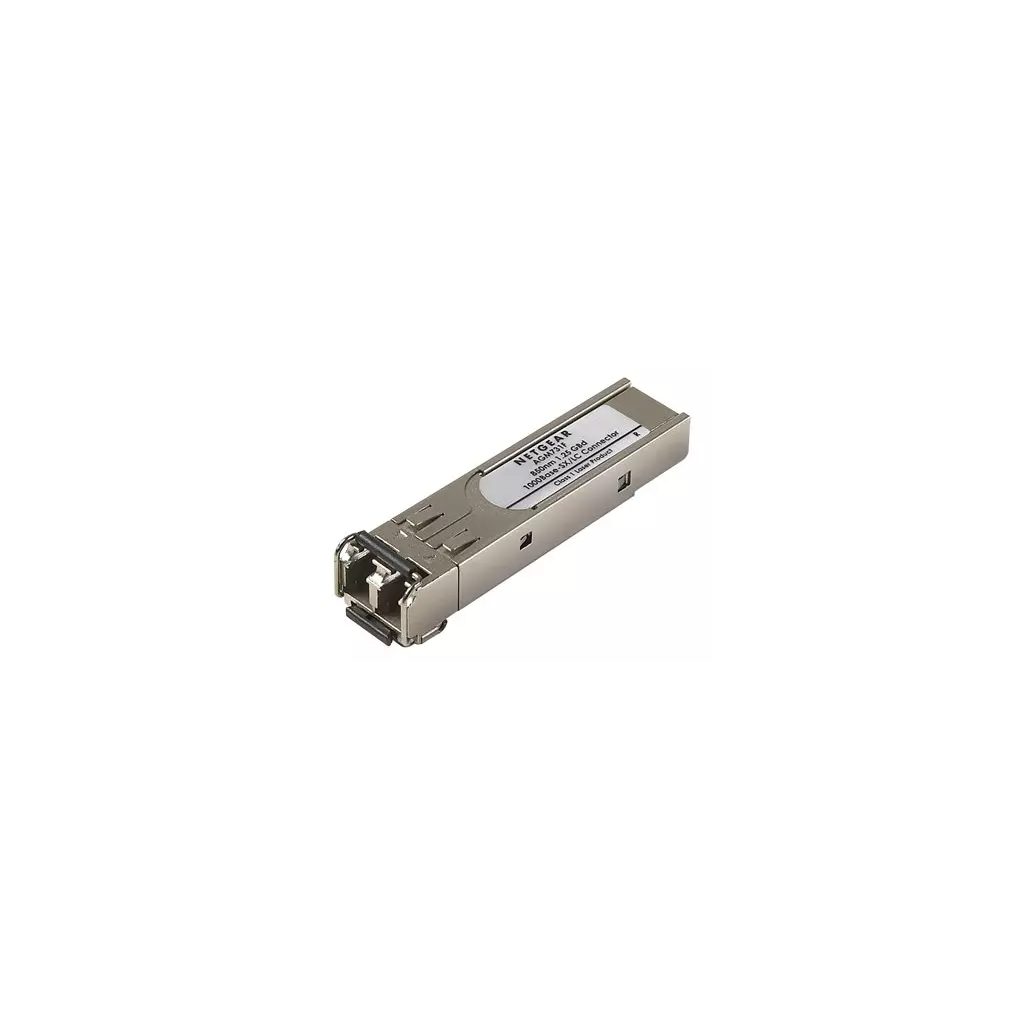

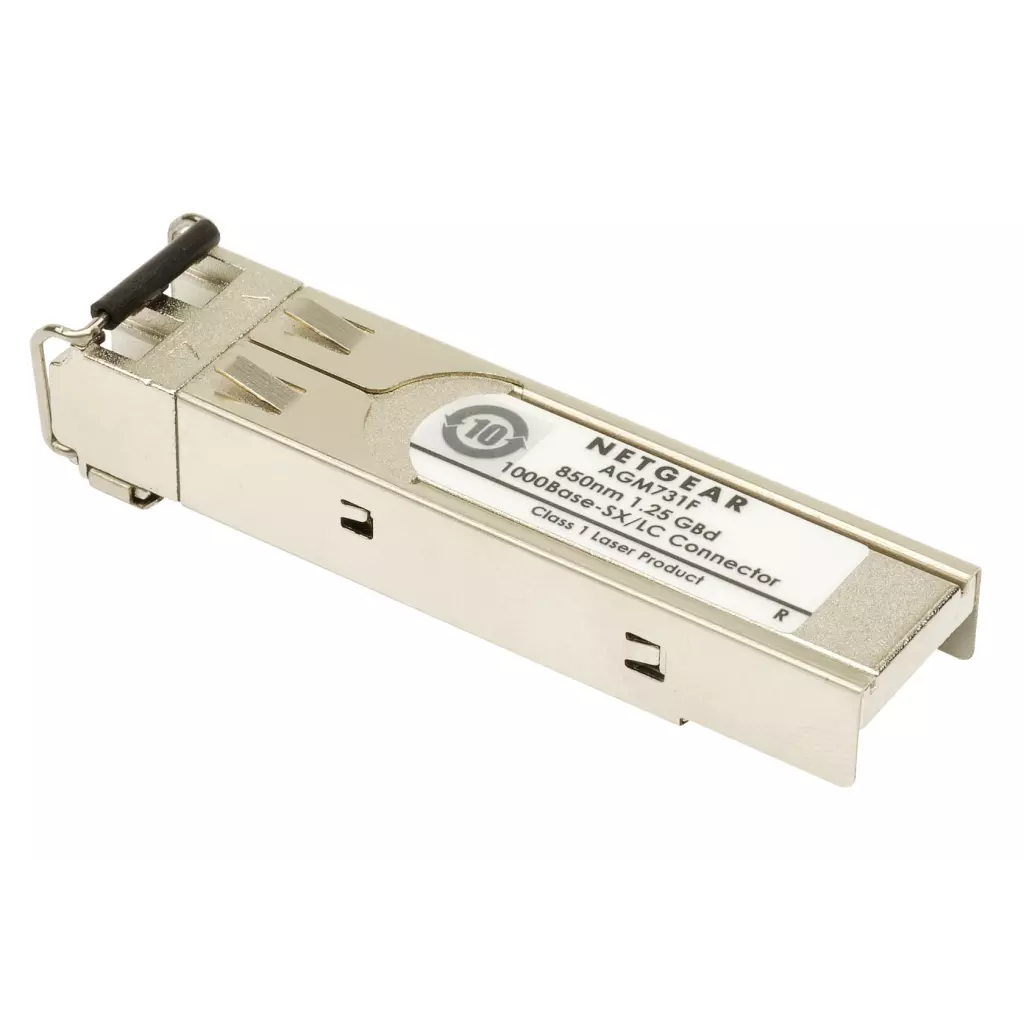

NETGEAR Mini GBIC Module 1000BASE-SX Fiber SFP

OVERVIEW Get Gigabit Ethernet “short-reach” fiber connectivity. The ProSAFE® GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot. NETGEAR Warranty *This product is backed by a NETGEAR limited 5-year Hardware Warranty. http://www.netgear.com/about/warranty/ TECH SPECS *Gigabit Ethernet “short-reach” fiber connectivity *LC duplex connector *Fits into SFP interfaces of all Fully Managed Switches *Fits into SFP interfaces of all Smart Switches *Fits into SFP interfaces of JGS524F *Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables *Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables *Drives Gigabit Ethernet up to 275 m distances with 62.5/125im OM1 multimode fiber cables *Ordering part number: AGM731F WEBSITE *Technical specification: http://www.netgear.com/business/products/switches/modules-accessories/agm731f.aspx#tab-overview

Transceiver modul SFP (mini-GBIC) - 1GbE - 1000Base-SX - multirežim LC - pro NETGEAR M4300-28G-PoE+

NETGEAR AGM731F. Typ SFP vysílače: Optické vlákno, Maximální přenosová rychlost: 1250 Mbit/s, Rozhraní: SFP. Barva: Stříbrná, Základní materiál: Kov, Střední doba mezi poruchami (MTBF): 87658 h. Vstupní napětí: 3.3 V, Spotřeba elektrické energie: 0,5 W. Certifikáty shody: CE, RoHS, Bezpečnost: UL 1950, CSA 22.2 No.60 950. Šířka: 57 mm, Hloubka: 13,8 mm, Výška: 8,5 mm

NETGEAR-ProSafe GBIC Module 1000BASE-SX Fiber SFP PROSAFE™ GBIC MODULE 1000BASE-SX FIBER SFP AGM731F Small size for high density fiber connections Meets SFP GBIC standard for use with any SFP GBIC compliant slot 1000BASE-SX connectivity - Small size for high density fiber connections - Meets SFP GBIC standard for use with any SFP GBIC compliant slot - 1000BASE-SX connectivity - LC connectors - Supports both 50um and 62.5um multimode fiber cables - Adds fiber connectivity to GSM7328S, GSM7352S, GSM7324, GSM7312, - - - - GSM7248, GSM7212, FSM7352S, FSM7328S, FSM7326P, GS748T, GS724T, GS716T, FS750T2, FS726TP, FS726T and JGS524F
