ARCTIC Freezer 7 X

ARCTIC Freezer 7 X vícekompatibilní CPU chladič, Socket Intel 115x/1200/755 & AMD FM1/FM1+/FM2/FM2+/AM3/AM3+/AM4 Super tichý chladič pro téměř jakýkoliv procesor, za nepřekonatelnou cenu – to je novinka v podobě chladiče Freezer 7 X, který je přímým nástupcem legendárnícho Freezer 7 Pro. O kvalitní chlazení se stará 92mm ventilátor, který žene vzduch přes hliníkový radiátor se 44 žebry. Velkou výhodou je i široká podpora procesorových patic Intel a AMD a již od výrobce předinstalovaná teplovodivá pasta Arctic MX-2. Kompatibilní se sloty Intel® a AMD® • Předem nanesená tepelná pasta MX-2 • Prodloužená životnost díky nízké teplotě cívky • Nižší spotřeba energie a menší vibrace díky nové technologie motoru • Ofsetová tepelná potrubí zajišťují optimální odvod tepla Kompatiblní s AMD® FM1/2(+), AM3(+), AM4 a Intel® 115x, 1200, 775 Ventilátor: 92 mm Hlučnost: 0.3 sonu (při maximálním výkonu) Počet Heat-pipe trubiček: 2 (z každé strany) Tloušťka Heat-pipe: 6mm Rychlost otáček: 300 – 2 000 ot./min (řízeno PWM) Typ ložiska: Fluid Dynamic Konektor: 4-pin Hmotnost: 425 g Rozměry: 74,3 x 110,5 x 132,5mm Kompatibilní se sockety: Intel 115x, 1200, 755 AMD FM1, FM1+, FM2, FM2+, AM3, AM3+, AM4 Freezer 7 X Compact Multi-Compatible CPU Cooler Compatible with Intel® & AMD® sockets • Pre-applied MX-2 thermal paste • Extended lifespan thanks to low coil temperature • Lower power consumption and less vibration with new motor technology • Offset heat pipes ensure optimal heat dissipation A worthy Freezer 7 Pro successor: better price, better performance The Freezer 7 X benefits from an improved heatsink design and a reworked heat pipe layout. In conjunction with the fan, which is optimized for high static pressure, we have been able to significantly improve the Freezer 7 X's cooling performance. Optimized and more effective manufacturing processes also allow us to offer it at a better MSRP. Compatibility Intel Socket: 1700 (since Rev. 3), 1200, 1156, 1155, 1151, 1150 AMD Socket: AM5, AM4, AM3(+), FM1, FM2(+) Ram Clearance: unlimited Warranty: 6 Years Operating Ambient Temperature: 0—40 °C Heatsink Heatpipes: 2 Fin Material: Aluminum Number of Fins: 44 Fin Thickness: 0.4 mm Thermal Paste: MX-4 pre-applied Fan Fan Size: 100 Fan Speed: 300—2000 rpm Fan Bearing: Fluid Dynamic Bearing Noise Level: 0.3 Sone Current: 0.07 A Connector: 4-Pin Size & Weight Length: 74.3 mm Width: 110.5 mm Height: 132.5 mm Weight: 425 Compatible with Intel & AMD sockets The Freezer 7 X is compatible with all current desktop sockets from Intel and AMD. By using the mounting frame, simple installation is possible without a need to remove the mainboard. Pre-applied MX-2 thermal paste Pre-applied, high-performing MX-2 thermal paste ensures quick and clean assembly. Longer lifespan thanks to its low coil temperature In theory, reducing the coil temperature by 10 °C can double the service life. With the use of new ARCTIC fan motors, we were able to lower the temperature by 20 °C, which quadrupled the lifespan of the fans. Offset heat pipes enable optimal heat dissipation The direct-touch heat pipes attached to the Freezer 7 X and an optimized design of the 44 cooling fins together ensure that the heat from the CPU can be ideally removed and released into the air. P-fan for Increased Performance Inspired by the P-series, the Freezer 7 X’s fan benefits from all of the advantages of P-fans: • High static pressure for increased cooling performance • Broad RPM range • Lower power consumption • Less vibration • PWM for synchronous fan control Hydrodynamic plain bearing Thanks to a combination of alloy and lubricant developed in Germany, the friction within the bearing is reduced, leading to greater efficiency. In this way, less heat is generated, there is less bearing noise and the life of the fan is extended. Direct Touch Heatpipes The Freezer 7 X uses direct-touch heatpipes. This ensures that the heat to be dissipated is transferred directly to the heatpipes without an additional material layer, and transported into the heatsink via the pipes.

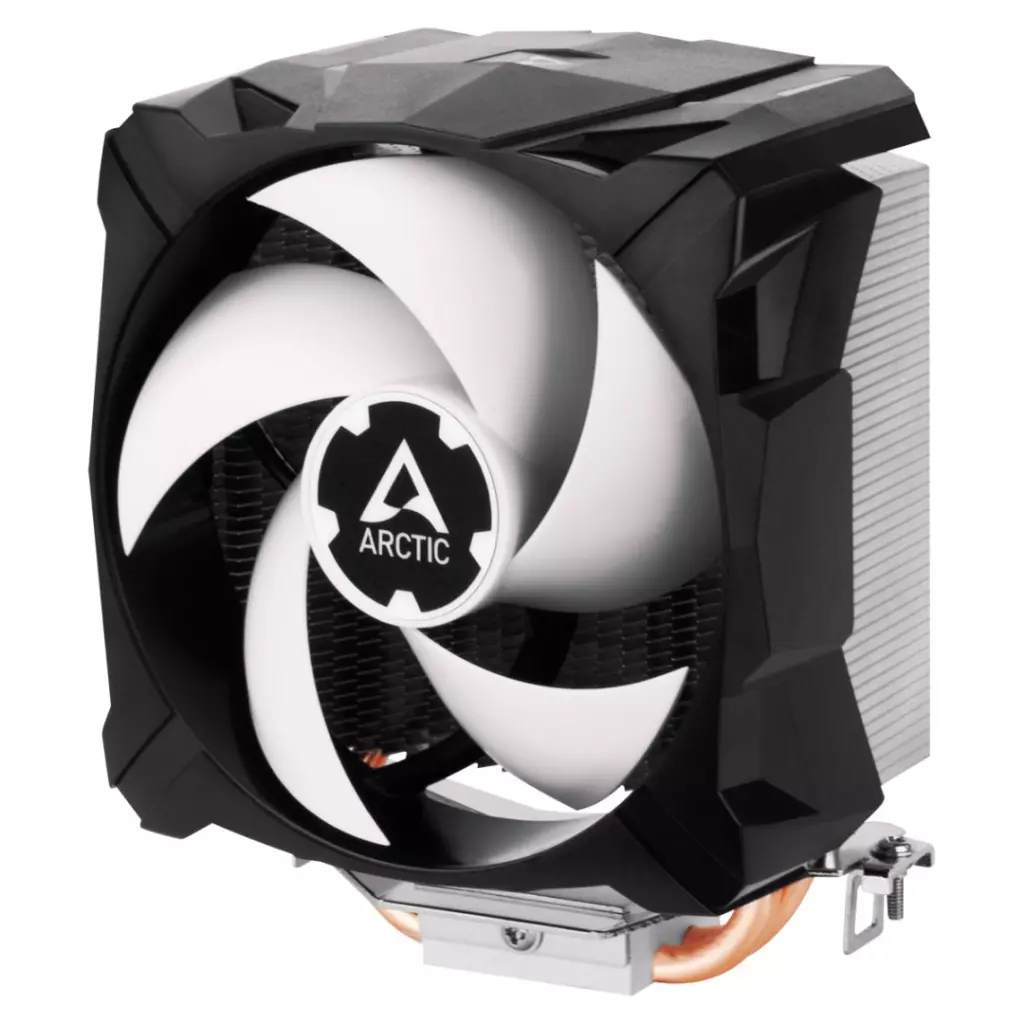

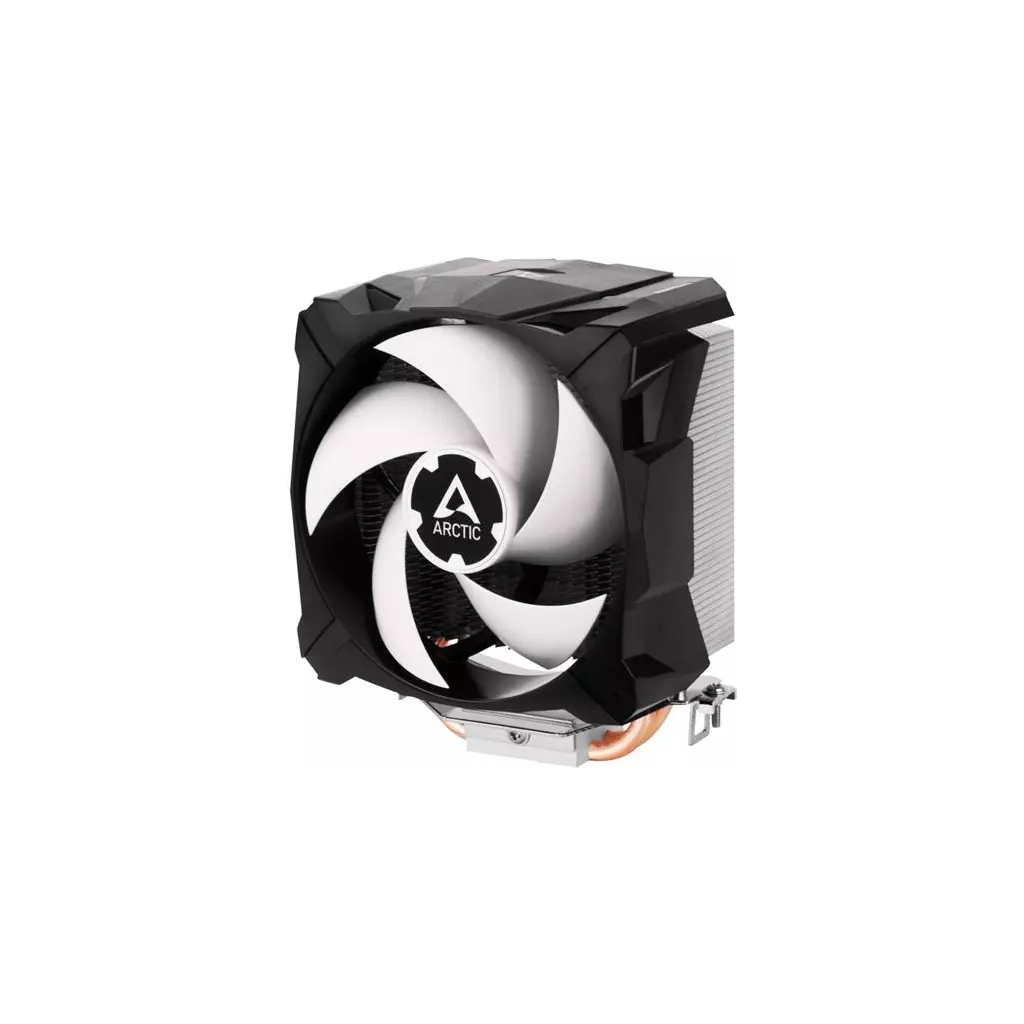

Freezer 7 X - Compact Multi-Compatible - CPU Cooler

The ARCTIC Freezer 7 X is a compact CPU cooler with one 92 mm fan. It is multi-compatible with common Intel and AMD sockets. It benefits from an improved heatsink design and a reworked heat pipe layout. In conjunction with the fan, which is optimised for high static pressure, ARCTIC has been able to significantly improve the cooling performance of Freezer 7 X.

Compatible with Intel & AMD Sockets The Freezer 7 X is compatible with all current desktop sockets from Intel and AMD. By using the mounting frame, simple installation is possible without a need to remove the mainboard.

Pre-applied MX-2 Thermal PastePre-applied, high-performing MX-2 thermal paste ensures quick and clean assembly.

Longer Lifespan Thanks to its Low Coil Temperature The Freezer 7 X uses a fan motor newly developed by ARCTIC. This runs less audibly and more efficiently, so that the temperature of the coils is 20 °C lower than with conventional motors. This increases the lifespan of the fans considerably, allowing ARCTIC to grant a 6-year warranty period for the Freezer 7 X.

Offset Heat Pipes Enable Optimal Heat Dissipation The direct touch heat pipes attached to the Freezer 7 X and an optimised design of the 44 cooling fins together ensure that the heat from the CPU can be ideally removed and released into the air.

More Efficient and Whisper Quiet In addition to operating more quietly, even at maximum speed, the Freezer 7 X built-in fan motor is also much more efficient. The power consumption was reduced from 0.25 A to 0.07 A, which corresponds to an effective savings of 72 % in power consumption. ARCTIC engineers were also able to reduce the volume by 40 %, allowing the Freezer 7 X to run at a whisper-quiet 0.3 sone when at maximum speed.

10 % More Cooling Capacity with Freezer 7 X The ARCTIC Freezer 7 X sets new standards in cooling. Compared to its predecessor, a performance increase of almost 10 % could be tested. The thermal resistance stands for the absolute performance of a CPU cooler by indicating the temperature increase per unit of performance. It also represents the cooling performance independent of the processor and is the more accurate alternative to a TDP specification.

P-fan for Increased Performance nspired by the P-series, the fan of the Freezer 7 X benefits from all of the advantages of P-fans: • High static pressure for increased cooling performance • Broad RPM range • Lower power consumption • Less vibration • PWM for synchronous fan control For additional information about the P-fans, we recommend our FAQ.

Fluid Dynamic Bearing Thanks to a combination of alloy and lubricant developed in Germany, the friction within the bearing is reduced, leading to greater efficiency. In this way, less heat is generated, there is less bearing noise and the life of the fan is extended.

Direct Touch Heat Pipes The Freezer 7 X uses direct touch heatpipes. This ensures that the heat to be dissipated is transferred directly to the heatpipes without an additional material layer, and transported into the heatsink via the pipes.

Multilingual Manuals We offer a regularly updated user manual in many languages conveniently at your fingertips anywhere and anytime. Put the QR code sticker in an easy-to-reach place and never again waste time searching for product instructions.

TECHNICAL SPECIFICATIONS

COMPATIBILITY
Intel Socket	1200 - Yes, 1151 - Yes, 1150 - Yes, 1155 - Yes, 1156 - Yes, 2066 - No, 1366 - No, 775 - Yes, 1700 - YES, 1851 - YES
AMD Socket	sTR4 - No, AM4 - Yes, AM3(+) - Yes, AM2(+) - No, AM1 - No, FM2(+) - Yes, FM1 - Yes
HEATSINK
Thermal Paste	MX-2 pre-applied
Ram Clearance	no limit
Info	Direct Touch O 6 mm x 2 Aluminium Fins x 44, Thickness: 0.4 mm
FAN
Fan	92 mm, 300 - 2.000 RPM (Controlled by PWM)
Bearing	Fluid Dynamic Bearing
Noise Level	0.3 Sone
Current/Voltage	0.07 A / 12 V DC
Connector	4-pin Plug
SIZE AND WEIGHT
Size	110.5 x 132.5 x 74.3mm
Weight	425g

ARCTIC Freezer 7 X

Tichý chladič pro procesory Intel i AMD je vybaven dvěma heatpipe a ventilátorem o velikosti 92 mm s PWM regulací, díky které je možné regulovat rychlost otáček za minutu. Ventilátor disponuje kvalitním FDB ložiskem, které zajišťuje dlouhotrvající bezproblémový chod. K připojení slouží 4pin PWM konektor.

Chladič je dodáván s předem nanesenou teplovodivou pastou ARCTIC MX-2 pro maximální odvod generovaného tepla.

ZÁKLADNÍ SPECIFIKACE

Určení chladiče: pro CPU

Patice: Intel: 1150, 1151, 1155, 1156, 1200 AMD: FM1, FM1+, FM2, FM2+, AM3, AM3+, AM4

Otáčky ventilátoru: 300–2000 ot./min

Hlučnost: 22,5 dB

Rozměry: 132,5 × 110,5 × 74,3 mm

Hmotnost: 425 g

Super tichý chladič pro téměř jakýkoliv procesor, za nepřekonatelnou cenu – to je novinka v podobě chladiče Freezer 7 X, který je přímým nástupcem legendárnícho Freezer 7 Pro. O kvalitní chlazení se stará 92mm ventilátor, který žene vzduch přes hliníkový radiátor se 44 žebry. Velkou výhodou je i široká podpora procesorových patic Intel a AMD a již od výrobce předinstalovaná teplovodivá pasta Arctic MX-2. Ventilátor: 92 mm Hlučnost: 0.3 sonu (při maximálním výkonu) Počet Heat-pipe trubiček: 2 (z každé strany) Tloušťka Heat-pipe: 6mm Rychlost otáček: 300 – 2 000 ot./min (řízeno PWM) Typ ložiska: Fluid Dynamic Konektor: 4-pin Hmotnost: 425 g Rozměry: 74,3 x 110,5 x 132,5mm Kompatibilní se sockety: Intel 1700, 115x, 1200 AMD FM1, FM1+, FM2, FM2+, AM3, AM3+, AM4, AM5

Freezer 7 X Kompaktní vícekompatibilní chladič CPU Kompatibilní se sloty Intel® a AMD® • Předem nanesená tepelná pasta MX-2 • Prodloužená životnost díky nízké teplotě cívky • Nižší spotřeba energie a menší vibrace díky nové technologie motoru • Ofsetová tepelná potrubí zajišťují optimální odvod tepla Kompatiblní s AMD® FM1/2(+), AM3(+), AM4 a Intel® 115x, 1200, 775 Freezer 7 X Compact Multi-Compatible CPU Cooler Compatible with Intel® & AMD® sockets • Pre-applied MX-2 thermal paste • Extended lifespan thanks to low coil temperature • Lower power consumption and less vibration with new motor technology • Offset heat pipes ensure optimal heat dissipation A worthy Freezer 7 Pro successor: better price, better performance The Freezer 7 X benefits from an improved heatsink design and a reworked heat pipe layout. In conjunction with the fan, which is optimized for high static pressure, we have been able to significantly improve the Freezer 7 X's cooling performance. Optimized and more effective manufacturing processes also allow us to offer it at a better MSRP. Specifications Heat Pipe Direct Touch Ř 6 mm x 2 Heatsink Aluminium Fins x 44 Thickness: 0.4 mm Thermal Compound MX-2 pre-applied Dimensions 74.3 (L) x 110.5 (W) x 132.5 (H) mm Weight 425 g Compatibility AMD® FM1/2(+), AM3(+), AM4 Intel® 115x, 1200, 775 RAM Clearance no limit Fan 1 x 92 mm, 300–2000 RPM (Controlled by PWM) Current/Voltage 0.07 A/12 V Bearings Fluid Dynamic Bearing Noise Level 0.3 Sone Connector 4-pin connector Compatible with Intel & AMD sockets The Freezer 7 X is compatible with all current desktop sockets from Intel and AMD. By using the mounting frame, simple installation is possible without a need to remove the mainboard. Pre-applied MX-2 thermal paste Pre-applied, high-performing MX-2 thermal paste ensures quick and clean assembly. Longer lifespan thanks to its low coil temperature In theory, reducing the coil temperature by 10 °C can double the service life. With the use of new ARCTIC fan motors, we were able to lower the temperature by 20 °C, which quadrupled the lifespan of the fans. Offset heat pipes enable optimal heat dissipation The direct-touch heat pipes attached to the Freezer 7 X and an optimized design of the 44 cooling fins together ensure that the heat from the CPU can be ideally removed and released into the air. P-fan for Increased Performance Inspired by the P-series, the Freezer 7 X’s fan benefits from all of the advantages of P-fans: • High static pressure for increased cooling performance • Broad RPM range • Lower power consumption • Less vibration • PWM for synchronous fan control Hydrodynamic plain bearing Thanks to a combination of alloy and lubricant developed in Germany, the friction within the bearing is reduced, leading to greater efficiency. In this way, less heat is generated, there is less bearing noise and the life of the fan is extended. Direct Touch Heatpipes The Freezer 7 X uses direct-touch heatpipes. This ensures that the heat to be dissipated is transferred directly to the heatpipes without an additional material layer, and transported into the heatsink via the pipes.

Chladič Arctic Freezer 7 X je kompaktní chladič CPU s 92mm větrákem. Je multi-kompatibilní s běžnými Intel a AMD paticemi a díky vylepšenému heatsinku a předělaným trubicím si dokáže poradit i v horkých situacích. Intel Socket: 1700, 1200, 1151, 1150, 1155, 1156 AMD Socket: sTR4, AM4, AM3(+), FM2(+), FM1 Žebra: 44x, Hliník Trubice: Měď Teplovodivá pasta: Arctic MX-2 (již aplikovaná) Větrák: 92 mm, 300 - 2000 RPM (Ovládáno PWM) Ložisko: Fluid Dynamic Hlučnost: 0,3 Sone Proud/Napětí: 0,07 A / 12 V DC Konektor: 4-pin PWM Rozměry: 110,5 x 132,5 x 74,3 mm Váha: 425 g
