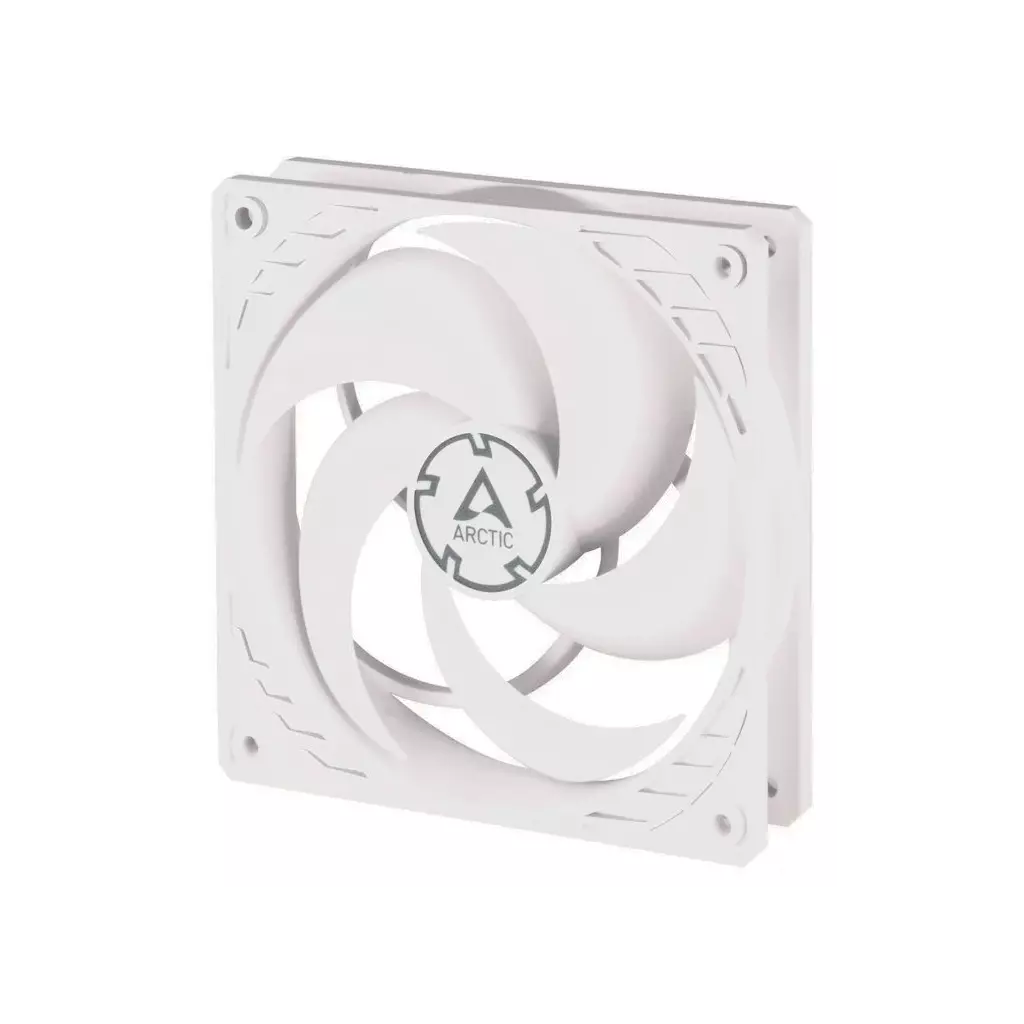

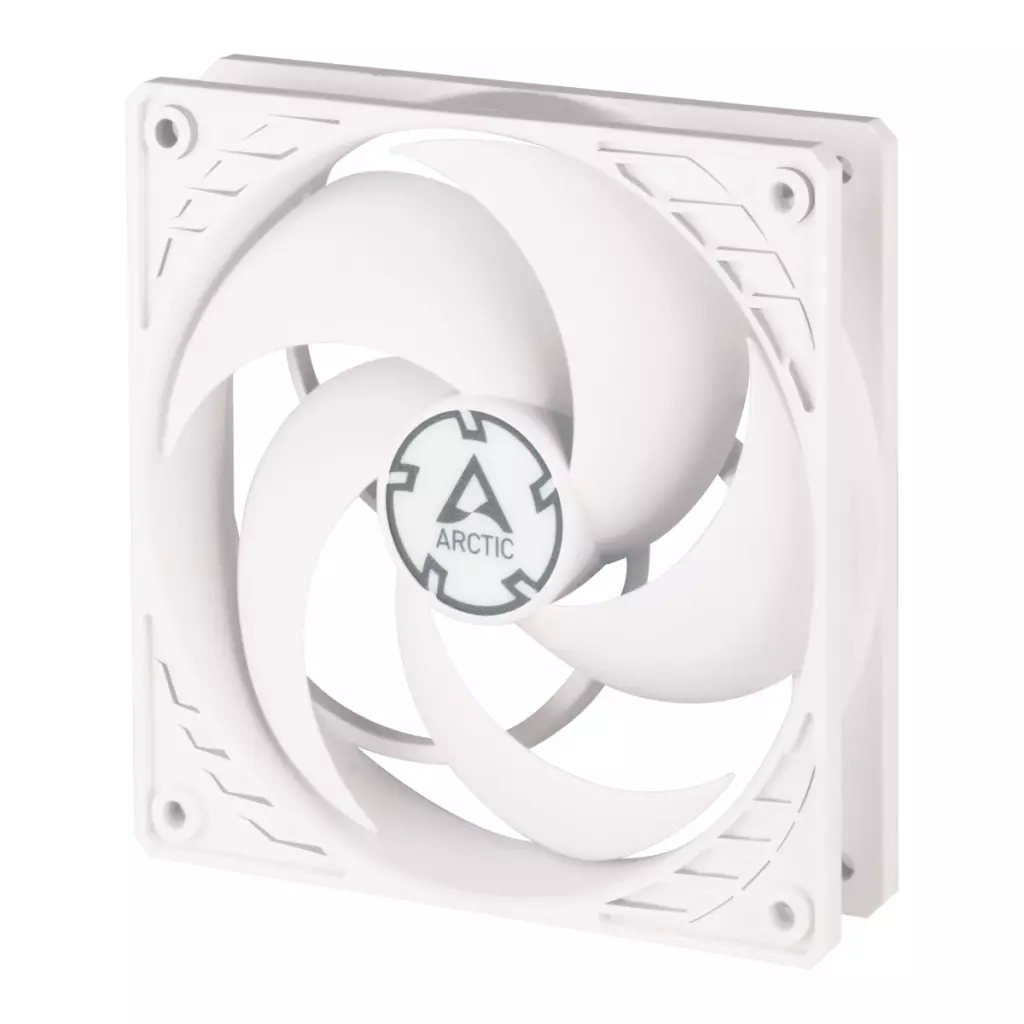

ARCTIC P12 PWM PST ventilátor 120mm / PWM / PST / bílý

ARCTIC P12 PWM PST (White/White) 120x120x25 mm ventilátor, 1800 RPM, 4-pin Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Specifikace: Rozměry: 120 x 120 x 25mm Rychlost otáček: 200 - 1 800 RPM (řízeno PWM PST) Průtok vzduchu: 56,3 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket

ARCTIC P12 PWM PST (White/White) 120x120x25 mm ventilátor, 1800 RPM, 4-pin Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Specifikace: Rozměry: 120 x 120 x 25mm Rychlost otáček: 200 - 1 800 RPM (řízeno PWM PST) Průtok vzduchu: 56,3 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket

ARCTIC P12 PWM PST

Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). FDB ložisko zajistí bezproblémový chod a dlouhou životnost ventilátoru. Pro napájení slouží 4pin konektor.

ZÁKLADNÍ SPECIFIKACE

Rychlost ventilátoru: 200–1800 ot./min Konektor: 4pin PWM + 4pin (F) Hlučnost: 22,5 dBA Průtok vzduchu: 56,3 CFM Rozměry: 120 × 120 × 25 mm Barva: bílá

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. 120mm ventilátor automaticky řízený PWM PST signálem z procesoru počítače do zbytku ventilačního systému. Celý systém je tak chlazen velmi tiše, nicméně nabízí vynikající výkon v situaci, kdy je to potřeba. Specifikace: Rozměry: 120 x 120 x 25mm Rychlost otáček: 200 - 1 800 RPM (řízeno PWM PST) Průtok vzduchu: 56,3 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin

Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket

ARCTIC P12 PWM PST (White/White) 120x120x25 mm ventilátor, 1800 RPM, 4-pin Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Specifikace: Rozměry: 120 x 120 x 25mm Rychlost otáček: 200 - 1 800 RPM (řízeno PWM PST) Průtok vzduchu: 56,3 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket

P12 PWM PST

P12 PWM PST je ventilátor s konektormi PWM PST. Má úplne prepracované lopatky ventilátora a je optimalizovaný pre vysoký statický tlak. Vďaka tomu je obzvlášť účinný pri použití na chladičoch a v situáciách s vyšším odporom vzduchu. Široký rozsah otáčok od 200 do 1800 otáčok za minútu možno regulovať plynule a synchrónne s ostatnými ventilátormi vďaka technológii zdieľania PWM (PST) spoločnosti ARCTIC. Novo vyvinutý motor s nízkou teplotou cievky výrazne zvyšuje životnosť ventilátora. Preto sme predĺžili záruku na 10 rokov.

• Optimalizované pre statický tlak
• Ideálna voľba na chladiče, radiátory a (čiastočne) zakryté vetracie otvory skrine
• Konfigurácia s tlakom alebo ťahom
• Technológia zdieľania PWM (PST) synchrónne reguluje otáčky ventilátora
• Novo vyvinutý, veľmi tichý motor
• Predĺžená životnosť
• K dispozícii v troch elegantných farbách

TECHNICKÉ ŠPECIFIKÁCIE

Výkon
Rýchlosť ventilátora	200 - 1800 otáčok za minútu
Prúdenie vzduchu	56.3 CFM/95.7 m3/h
Statický tlak	2.20 (mm/H2O)
Úroveň hluku	0.3 Sone
Ventilátor
Rám ventilátora	Štandard
Typ ovládania	PST
Konektor	4-kolíkový konektor + 4-kolíková zásuvka
Ložisko ventilátora	Fluidné dynamické ložisko
Elektrické charakteristiky
Typické napätie	12 V DC
Počiatočné napätie	3.9 V
Aktuálne	0.08 A
Dĺžka kábla	400 mm
Veľkosť a hmotnosť
Dĺžka	120 mm
Šírka	120 mm
Výška	25 mm
Hmotnosť	145 g

.

ARCTIC P12 PWM PST Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). FDB ložisko zajistí bezproblémový chod a dlouhou životnost ventilátoru. Pro napájení slouží 4pin konektor. ZÁKLADNÍ SPECIFIKACE Rychlost ventilátoru: 200–1800 ot./min Konektor: 4pin PWM + 4pin (F) Hlučnost: 22,5 dBA Průtok vzduchu: 56,3 CFM Rozměry: 120 × 120 × 25 mm Barva: bílá
