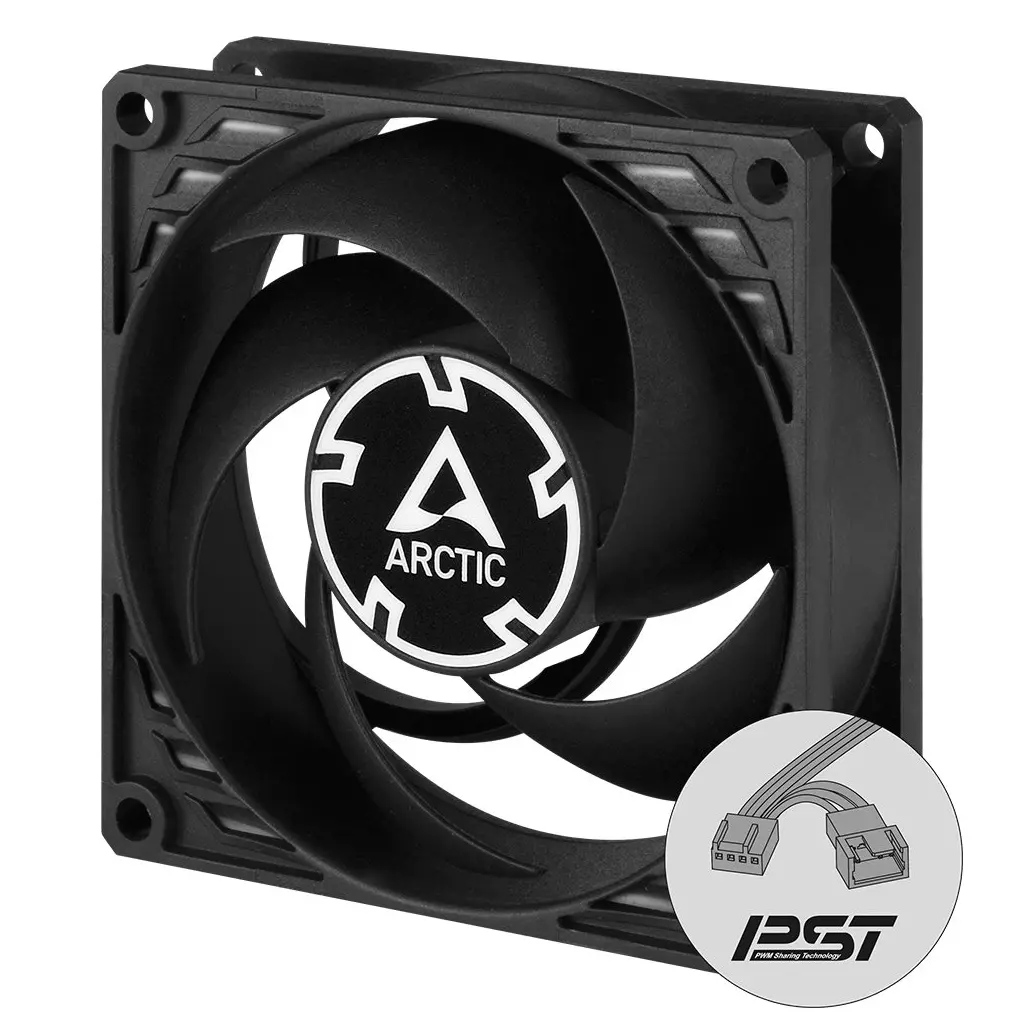

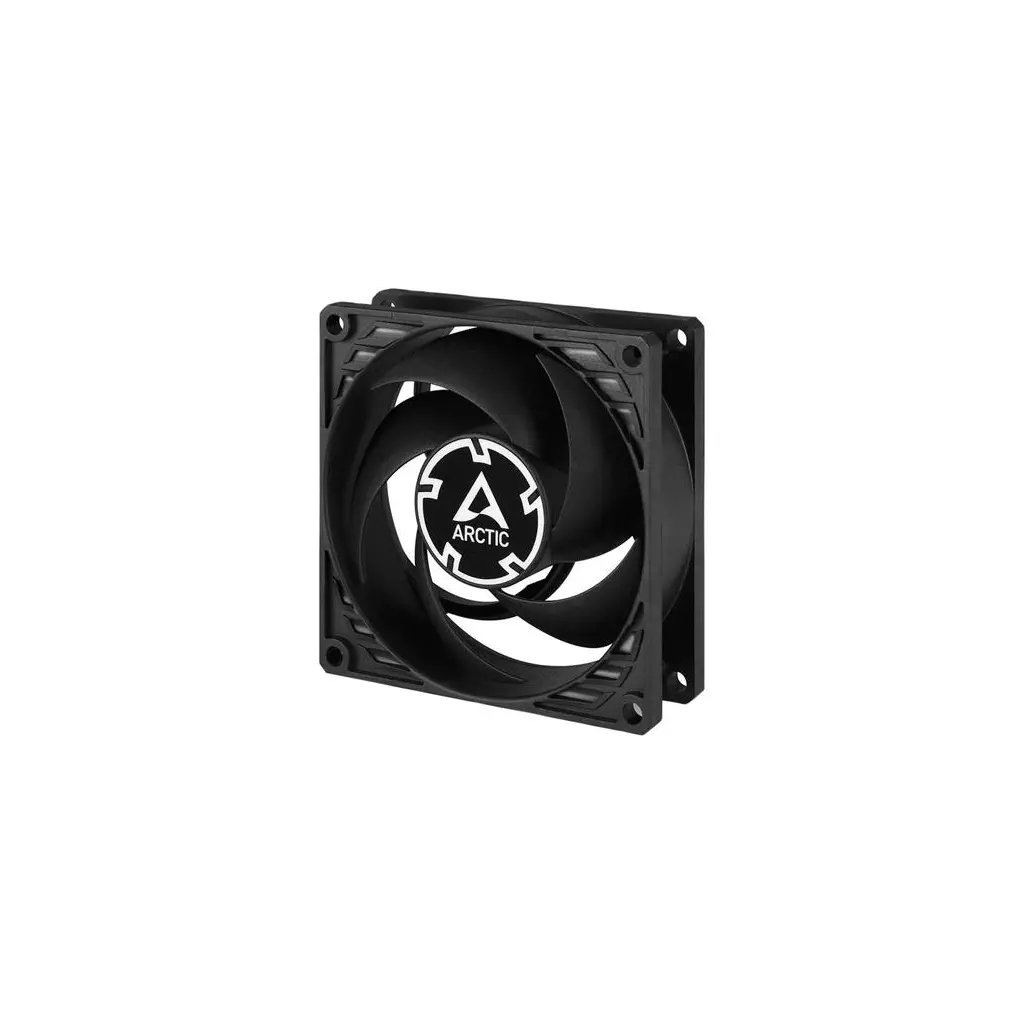

ARCTIC P8 PWM PST black ventilátor 80mm / PWM / PST / černý

ARCTIC P8 PWM PST, 80x80x25 mm case fan, 3000 RPM, 4-pin Fan: 80mm, 200 - 3.000 RPM (Controlled by PWM) Air Flow: 23.4 CFM / 40.3 m3/h (@ 3.000 RPM) Noise Level: 0.3 Sone (@ 3.000 RPM) Static Pressure: 1.9 mm H2O (@ 3000 RPM)) Typical Voltage: 12V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm Operation Requirements Motherboard: + 12 V DC PWM control signal 4-pin socket

ARCTIC P8 PWM PST, 80x80x25 mm case fan, 3000 RPM, 4-pin Fan: 80mm, 200 - 3.000 RPM (Controlled by PWM) Air Flow: 23.4 CFM / 40.3 m3/h (@ 3.000 RPM) Noise Level: 0.3 Sone (@ 3.000 RPM) Static Pressure: 1.9 mm H2O (@ 3000 RPM)) Typical Voltage: 12V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm Operation Requirements Motherboard: + 12 V DC PWM control signal 4-pin socket

Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:80x80; Barva podsvícení:bez podsvícení; Napájecí konektor:4pin

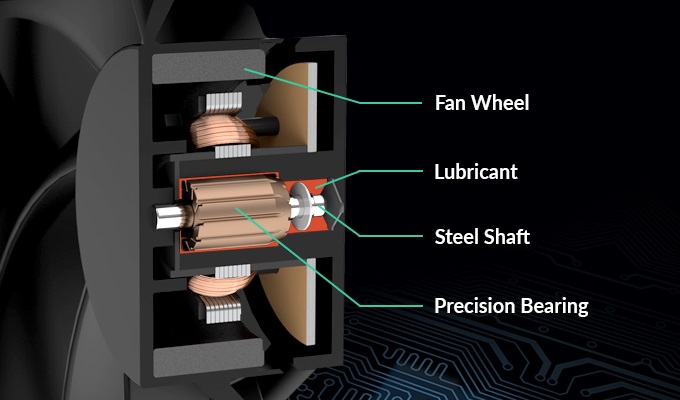

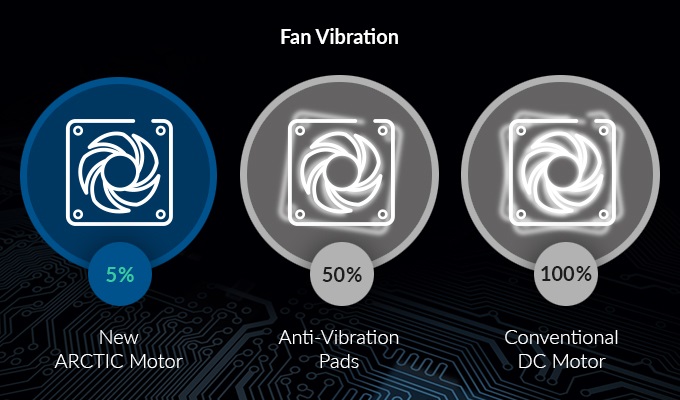

P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST OPTIMISED FOR STATIC PRESSURE During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators. MORE EFFICIENT TECHNOLOGY The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P8 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. MAXIMUM QUIETNESS, MINIMUM VIBRATION Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. EXTENDED LIFE SPAN A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. 200 TO 3000 RPM REGULATED VIA PWM PST Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. HIGH QUALITY BEARING Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. TWO WAY INSTALLATION - Push warm air out of the case - Pull cool air into your case TECHNICAL SPECIFICATIONS General data Performance Fan Speed: 200 - 3000 rpm Airflow: 23.4 CFM / 40.3 m3/h Static Pressure: 1 (mm/H2O) Noise Level: 0.3 Sone Fan Fan Frame: Standard Controll Typ: PST Connector: 4-Pin Connector + 4 Pin Socket Fan Bearing: Fluid Dynamic Bearing Electric Characteristics: Typical Voltage: 12 V DC Starting Voltage: 0 V Current: 0.09 A Cable Lenght: 400 mm Size & Weight Lenght: 80 mm Width: 80 mm Height: 25 mm Weight: 81 g Packaging Width: 82.5 mm Height: 82.5 mm Length: 26 mm Weight: 0.1 kg

ARCTIC P8 PWM PST

Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). FDB ložisko zajistí bezproblémový chod a dlouhou životnost ventilátoru. Pro napájení slouží 4pin konektor.

ZÁKLADNÍ SPECIFIKACE

Rychlost ventilátoru: 200–3000 ot./min Konektor: 4pin PWM + 4pin (F) Hlučnost: 0,3 sone (± 22,5 dBA) Průtok vzduchu: 23,4 CFM Rozměry: 80 × 80 × 25 mm Barva: černá

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Ventilátor automaticky řízený PWM PST signálem z procesoru počítače do zbytku ventilačního systému. Celý systém je tak chlazen velmi tiše, nicméně nabízí vynikající výkon v situaci, kdy je to potřeba. Specifikace: Rozměry: 80 x 80 x 25mm Rychlost otáček: 200 - 3 000 RPM (řízeno PWM PST) Průtok vzduchu: 23,4 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin + 4-pin

P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST OPTIMISED FOR STATIC PRESSURE During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators. MORE EFFICIENT TECHNOLOGY The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P8 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. MAXIMUM QUIETNESS, MINIMUM VIBRATION Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. EXTENDED LIFE SPAN A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. 200 TO 3000 RPM REGULATED VIA PWM PST Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. HIGH QUALITY BEARING Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. TWO WAY INSTALLATION - Push warm air out of the case - Pull cool air into your case TECHNICAL SPECIFICATIONS General data Performance Fan Speed: 200 - 3000 rpm Airflow: 23.4 CFM / 40.3 m3/h Static Pressure: 1 (mm/H2O) Noise Level: 0.3 Sone Fan Fan Frame: Standard Controll Typ: PST Connector: 4-Pin Connector + 4 Pin Socket Fan Bearing: Fluid Dynamic Bearing Electric Characteristics: Typical Voltage: 12 V DC Starting Voltage: 0 V Current: 0.09 A Cable Lenght: 400 mm Size & Weight Lenght: 80 mm Width: 80 mm Height: 25 mm Weight: 81 g Packaging Width: 82.5 mm Height: 82.5 mm Length: 26 mm Weight: 0.1 kg

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do skříně, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Ventilátor automaticky řízený PWM PST signálem z procesoru počítače do zbytku ventilačního systému. Celý systém je tak chlazen velmi tiše, nicméně nabízí vynikající výkon v situaci, kdy je to potřeba. Specifikace: Rozměry: 80 x 80 x 25mm Rychlost otáček: 200 - 3 000 RPM (řízeno PWM PST) Průtok vzduchu: 23,4 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin + 4-pin
