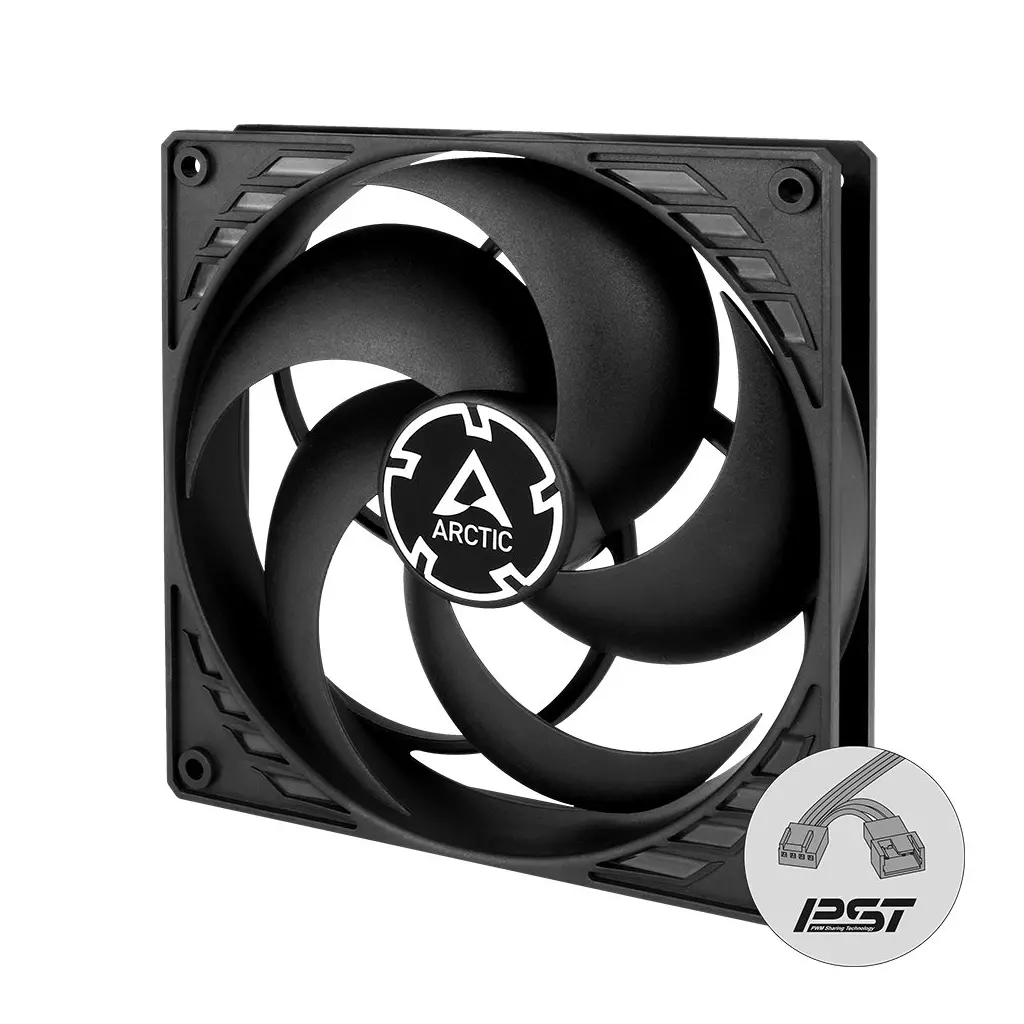

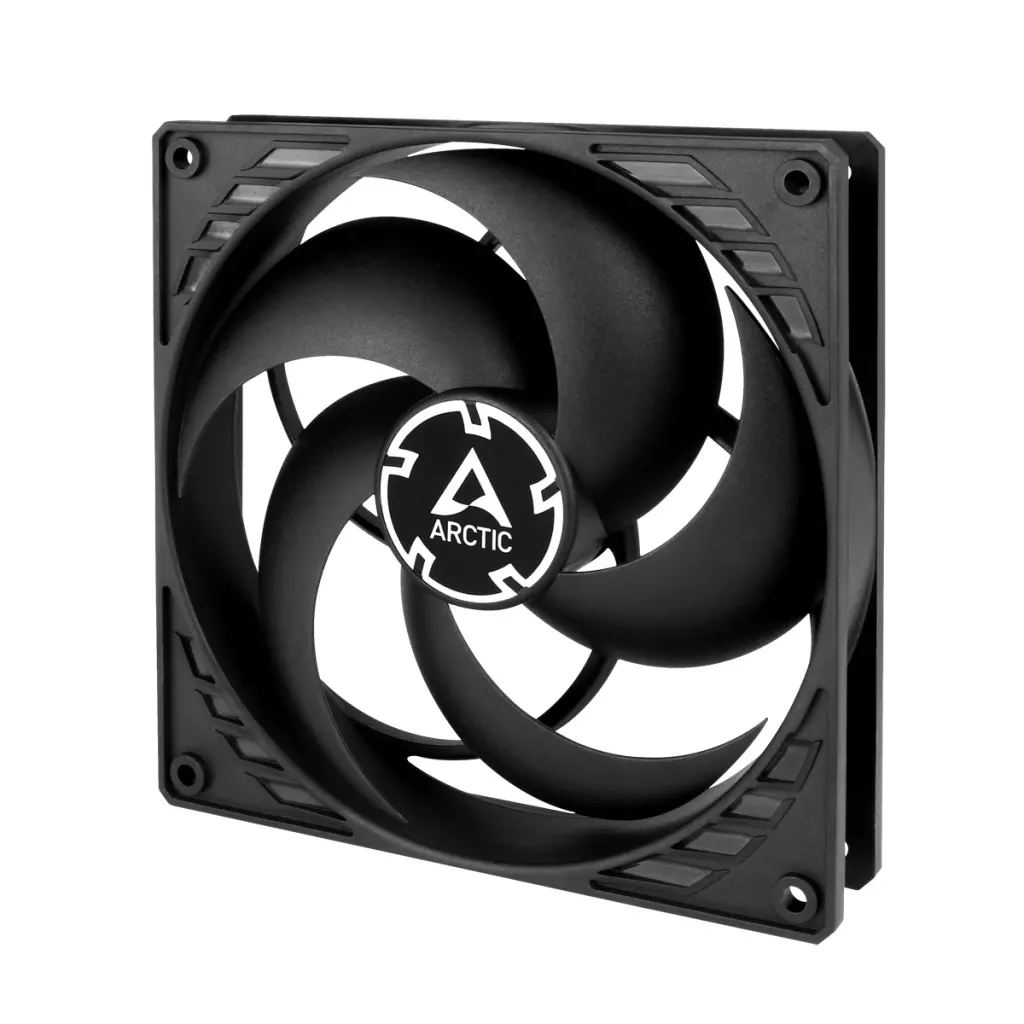

ARCTIC P14 PWM PST CO

Arctic P14 PWM PST CO, 140x140x25 mm ventilátor, černý, 4-pin Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 PWM PST CO je 140x140x25mm s 200-1700 otáčkami za minutu řízenými PWM 0 dB fan módem, vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Speciální ložisko a motor navržený pro nepřetržitý provoz. Optimised for Static Pressure During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators. More Efficient Technology The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. For Continuous Operation The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Maximum Quietness, Minimum Vibration Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1700 RPM regulated via PWM With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed. 0 dB Mode The P14 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. Performance: Fan: 140 mm, 200 – 1 700 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 72.8 CFM (123.76 m3/h) Noise Level: 0.3 Sone (@ 1 700 RPM) Static Pressure: 2.4 mm H2O Electrical Characteristics: Typical Voltage: 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Sub PST Cable Length: 50 mm Voltage Current 12 V DC (Norminal) 0.12 A Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket

Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 PWM PST CO je 140x140x25mm s 200-1700 otáčkami za minutu řízenými PWM 0 dB fan módem, vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Speciální ložisko a motor navržený pro nepřetržitý provoz. Optimised for Static Pressure During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators. More Efficient Technology The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. For Continuous Operation The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Maximum Quietness, Minimum Vibration Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1700 RPM regulated via PWM With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed. 0 dB Mode The P14 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. Performance Fan: 140 mm, 200 – 1 700 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 72.8 CFM (123.76 m3/h) Noise Level: 0.3 Sone (@ 1 700 RPM) Static Pressure: 2.4 mm H2O Electrical Characteristics Typical Voltage: 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Sub PST Cable Length: 50 mm Voltage Current 12 V DC (Norminal) 0.12 A Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Ventilátor automaticky řízený PWM PST signálem z procesoru počítače do zbytku ventilačního systému. Celý systém je tak chlazen velmi tiše, nicméně nabízí vynikající výkon v situaci, kdy je to potřeba. Zkratka "CO" (Continuous Operation - nepřetržitý provoz) znamená, že je ventilátor vybavený duálními kuličkovými ložisky a je tak ideální pro počítače, které jsou v non-stop režimu, jako například servery nebo pracovní stanice. Specifikace: Rozměry: 140 x 140 x 27mm Rychlost otáček: 200 - 1 700 RPM (řízeno PWM PST) Průtok vzduchu: 72,8 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin + 4-pin

Nová série ventilátorů P optimalizovaná na statický tlak.
