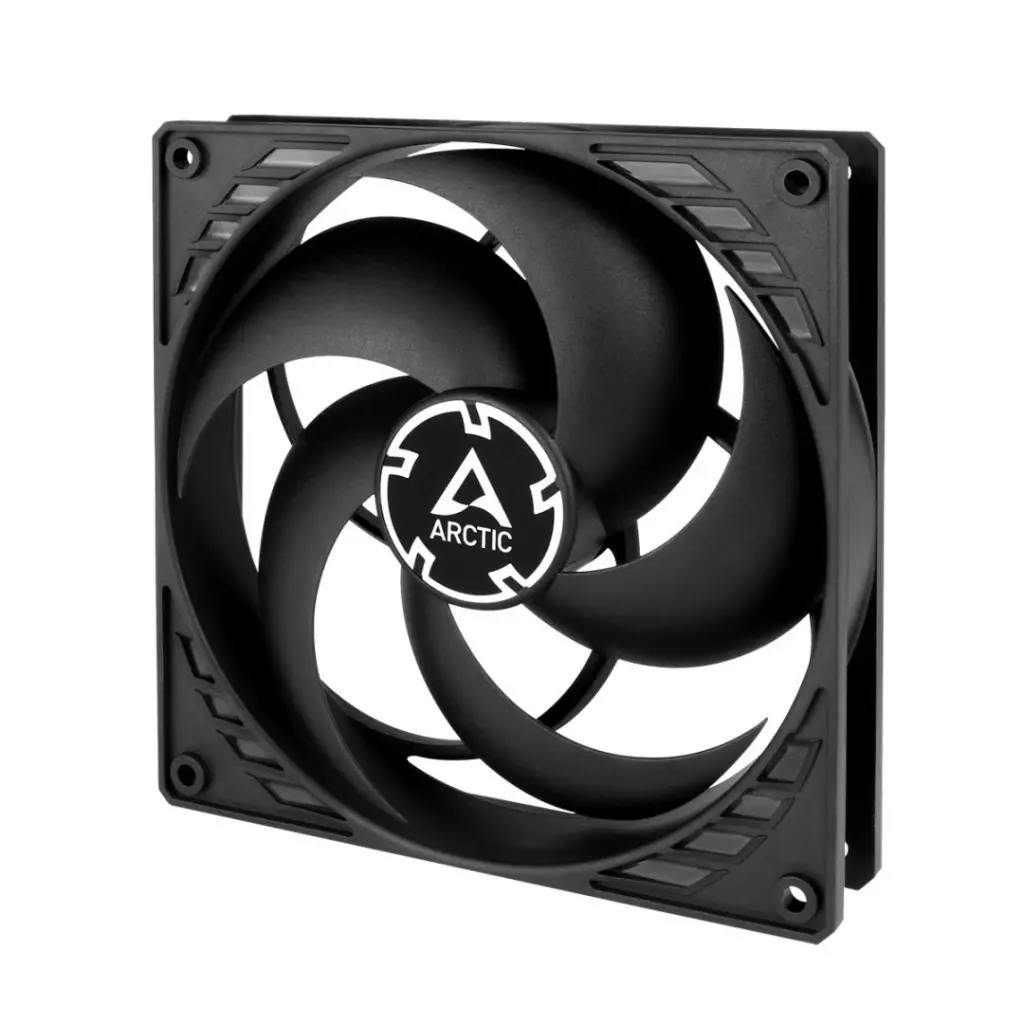

ARCTIC P14 ventilátor - 140mm

Arctic P14, 140x140x25 mm ventilátor, černý, 3-pin Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 je 140x140x25mm s 1700 RPM a vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Optimised for Static Pressure During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators. High Quality Bearing Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance: Fan: 140 mm, 1 700 RPM (@ 12 V DC) Air Flow: 72.8 CFM (123.76 m3/h) Noise Level: 0.3 Sone (@ 1 700 RPM) Static Pressure: 2.4 mm H2O Electrical Characteristics: Typical Voltage: + 12 V DC Start-up Voltage: 2.1 V Cable Length: 400 mm Voltage Current: 12 V DC (Norminal) 0.15 A 7 V DC 0.08 A 5V DC 0.05 A Connection Motherboard: + 12 V DC 3-pin Connector

Arctic P14, 140x140x25 mm ventilátor, černý, 3-pin Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 je 140x140x25mm s 1700 RPM a vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Optimised for Static Pressure During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators. High Quality Bearing Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance: Fan: 140 mm, 1 700 RPM (@ 12 V DC) Air Flow: 72.8 CFM (123.76 m3/h) Noise Level: 0.3 Sone (@ 1 700 RPM) Static Pressure: 2.4 mm H2O Electrical Characteristics: Typical Voltage: + 12 V DC Start-up Voltage: 2.1 V Cable Length: 400 mm Voltage Current: 12 V DC (Norminal) 0.15 A 7 V DC 0.08 A 5V DC 0.05 A Connection Motherboard: + 12 V DC 3-pin Connector

Arctic P14

Specifikace

Ventilátor
Velikost	140 mm
Rychlost	1700 RPM
Statický tlak	2,4 mm H20
Proud vzduchu	72,8 CFM
Konektory	3-pin
Typ ložiska	Fluid Dynamic

Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 je 140x140x25mm s 1700 RPM a vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Optimised for Static Pressure During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators. High Quality Bearing Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 140 mm, 1 700 RPM (@ 12 V DC) Air Flow: 72.8 CFM (123.76 m3/h) Noise Level: 0.3 Sone (@ 1 700 RPM) Static Pressure: 2.4 mm H2O Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.1 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.15 A 7 V DC 0.08 A 5V DC 0.05 A Connection Motherboard: + 12 V DC 3-pin Connector

ARCTIC P14

Kvalitní tichý ventilátor bez PWM regulace. FDB ložisko zajistí bezproblémový chod a dlouhou životnost ventilátoru. Pro napájení slouží 3-pin konektor.

ZÁKLADNÍ SPECIFIKACE

Rychlost ventilátoru: 1700 ot./min

Konektor: 3-pin

Hlučnost: 22,5 dBA

Průtok vzduchu: 72,8 CFM

Rozměry: 140 x 140 x 27 mm

Barva: černá

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Rozměry: 140 x 140 x 27mm Otáčky: 1 700 ot/min Průtok vzduchu: 72.8 CFM / 123.76 m3/h Statický tlak: 2.4 mm H2O (@ 1 700 U/min) Úroveň hluku: 0.3 Sone Konektor: 3-pin Hmotnost: 191g

Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 je 140x140x25mm s 1700 RPM a vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Optimised for Static Pressure During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators. High Quality Bearing Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 140 mm, 1 700 RPM (@ 12 V DC) Air Flow: 72.8 CFM (123.76 m3/h) Noise Level: 0.3 Sone (@ 1 700 RPM) Static Pressure: 2.4 mm H2O Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.1 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.15 A 7 V DC 0.08 A 5V DC 0.05 A Connection Motherboard: + 12 V DC 3-pin Connector

Nová série ventilátorů P optimalizovaná na statický tlak.
