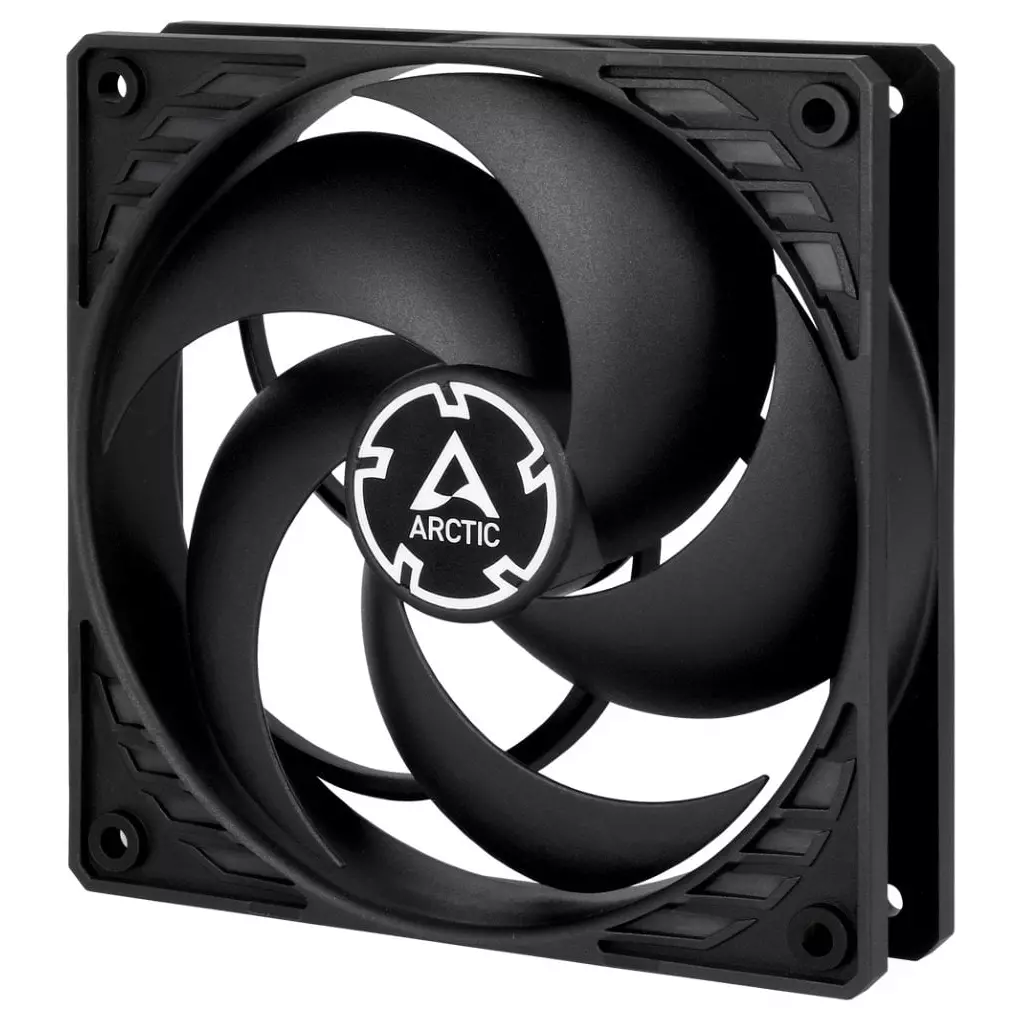

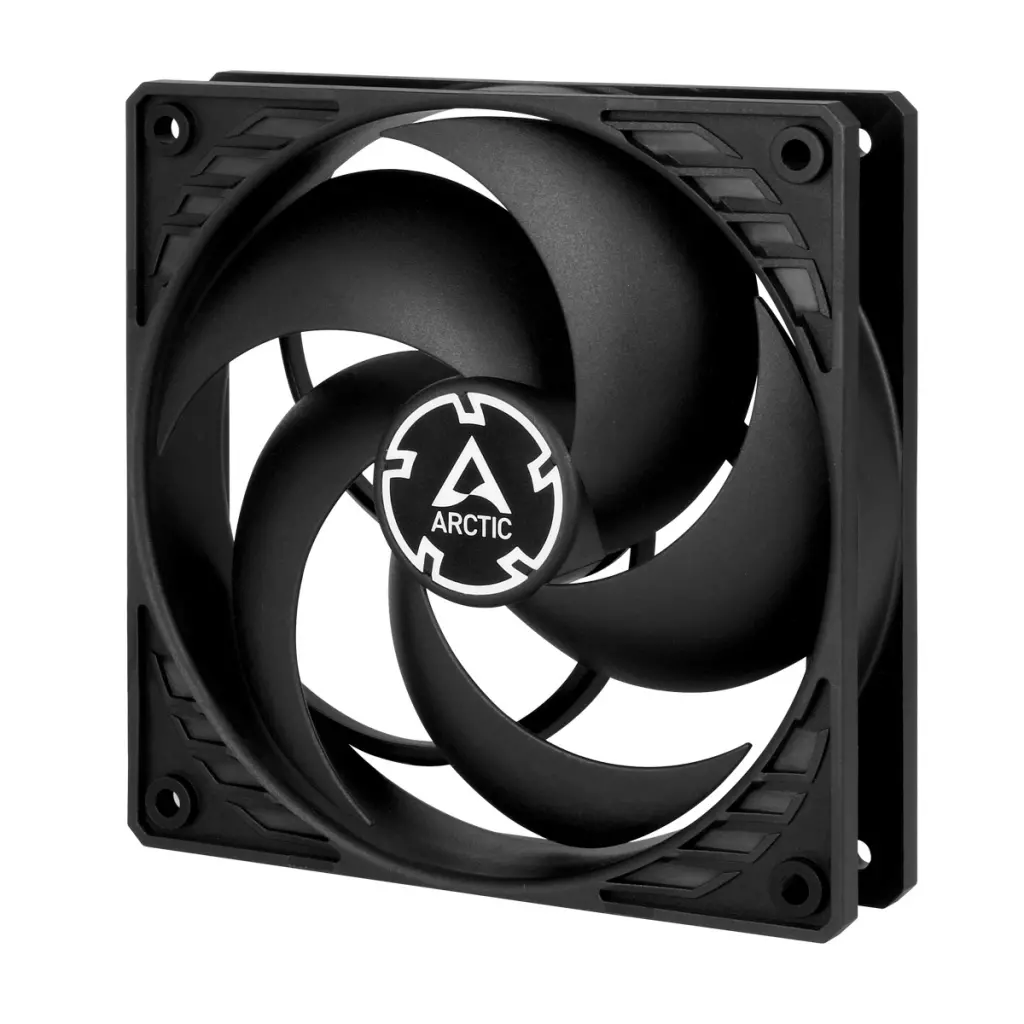

ARCTIC P12 PWM (black/black)

Arctic P12 PWM PST CO, 120x120x25 mm, černý, 4-pin Nová série ventilátorů ARCTIC P s optimalizací pro statický tlak. ARCTIC P12 PWM PST CO (black/black) je venilátor 120x120x25mm s 200 - 1 800 RPM (řízenými PWM) s 0 dB fan módem a vzduchovým transferem 56.3 CFM / 95.65 m3/h. Hlučnost: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm P12 PWM PST CO - Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation Optimised for Static Pressure - During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. For Continuous Operation - The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 0 dB Mode - The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. Performance: Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics: Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket

Arctic P12 PWM PST CO, 120x120x25 mm, černý, 4-pin Nová série ventilátorů ARCTIC P s optimalizací pro statický tlak. ARCTIC P12 PWM PST CO (black/black) je venilátor 120x120x25mm s 200 - 1 800 RPM (řízenými PWM) s 0 dB fan módem a vzduchovým transferem 56.3 CFM / 95.65 m3/h. Hlučnost: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm P12 PWM PST CO - Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation Optimised for Static Pressure - During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. For Continuous Operation - The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 0 dB Mode - The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. Performance: Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics: Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket

P12 PWM PST CO

120 mm ventilátor s optimalizovaným tlakom a PWM PST na nepretržitú prevádzku

TECHNICKÉ ŠPECIFIKÁCIE

performace
rýchlosť ventilátora	200 - 1800 OTÁČOK ZA MINÚTU
Prúdenie vzduchu	56.3 CFM/95.7 m3/h
Statický tlak	2,20 (mm/H2O)
Úroveň hluku	0.3 Sone
ventilátor
rám ventilátora	Štandard
Typ ovládania	PWM
Konektor	4-kolíkový konektor + 4-kolíková zásuvka
Ložisko ventilátora	Duálne dynamické ložisko
elektrické charakteristiky
Typické napätie	12 V DC
Počiatočné napätie	3.9 V
Aktuálne	0.08 A/12 V
Dĺžka kábla	400 mm
veľkosť a hmotnosť
rozmery (D x Š x V)	120 x 120 x 25 mm
Hmotnosť	139 g
balenie
Rozmery (D x Š x V)	120x120x25 mm
Hmotnosť	145g

.

Nová série ventilátorů ARCTIC P s optimalizací pro statický tlak. ARCTIC P12 PWM PST CO (black/black) je venilátor 120x120x25mm s 200 - 1 800 RPM (řízenými PWM) s 0 dB fan módem a vzduchovým transferem 56.3 CFM / 95.65 m3/h. Hlučnost: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm P12 PWM PST CO - Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation Optimised for Static Pressure - During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. For Continuous Operation - The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 0 dB Mode - The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket

ARCTIC P12 PWM PST CO

Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). Dvojité kuličkové ložisko zajistí bezproblémový chod a dlouhou životnost, která je až 5x delší než u ventilátorů s klasickým generickým ložiskem. Pro napájení slouží 4-pin konektor.

ZÁKLADNÍ SPECIFIKACE

Rychlost ventilátoru: 200 - 1800 ot./min

Konektor: 4-pin PWM + 4-pin (F)

Hlučnost: 22,5 dBA

Průtok vzduchu: 56,3 CFM

Rozměry: 120 x 120 x 25 mm

Barva: černá

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Ventilátor automaticky řízený PWM PST signálem z procesoru počítače do zbytku ventilačního systému. Celý systém je tak chlazen velmi tiše, nicméně nabízí vynikající výkon v situaci, kdy je to potřeba. Zkratka "CO" (Continuous Operation - nepřetržitý provoz) znamená, že je ventilátor vybavený duálními kuličkovými ložisky a je tak ideální pro počítače, které jsou v non-stop režimu, jako například servery nebo pracovní stanice. Specifikace: Rozměry: 120 x 120 x 25mm Rychlost otáček: 200 - 1 800 RPM (řízeno PWM PST) Průtok vzduchu: 56,3 CFM Úroveň hluku: 0.3 Sone Konektor: 4-pin + 4-pin

Nová série ventilátorů ARCTIC P s optimalizací pro statický tlak. ARCTIC P12 PWM PST CO (black/black) je venilátor 120x120x25mm s 200 - 1 800 RPM (řízenými PWM) s 0 dB fan módem a vzduchovým transferem 56.3 CFM / 95.65 m3/h. Hlučnost: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm P12 PWM PST CO - Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation Optimised for Static Pressure - During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. For Continuous Operation - The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 0 dB Mode - The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Cable Length: 400 mm Sub PST Cable Length: 50 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket

ARCTIC P12 PWM PST CO Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). Dvojité kuličkové ložisko zajistí bezproblémový chod a dlouhou životnost, která je až 5x delší než u ventilátorů s klasickým generickým ložiskem. Pro napájení slouží 4-pin konektor. ZÁKLADNÍ SPECIFIKACE Rychlost ventilátoru: 200 - 1800 ot./min. Konektor: 4-pin PWM + 4-pin (F) Hlučnost: 22,5 dBA Průtok vzduchu: 56,3 CFM Rozměry: 120 x 120 x 25 mm Barva: černá

ARCTIC P12 PWM PST CO Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). Dvojité kuličkové ložisko zajistí bezproblémový chod a dlouhou životnost, která je až 5x delší než u ventilátorů s klasickým generickým ložiskem. Pro napájení slouží 4-pin konektor. ZÁKLADNÍ SPECIFIKACE Rychlost ventilátoru: 200 - 1800 ot./min. Konektor: 4-pin PWM + 4-pin (F) Hlučnost: 22,5 dBA Průtok vzduchu: 56,3 CFM Rozměry: 120 x 120 x 25 mm Barva: černá
