ARCTIC P12 PWM (black/black)

Kód zboží (ID): 3595264 vytisknout

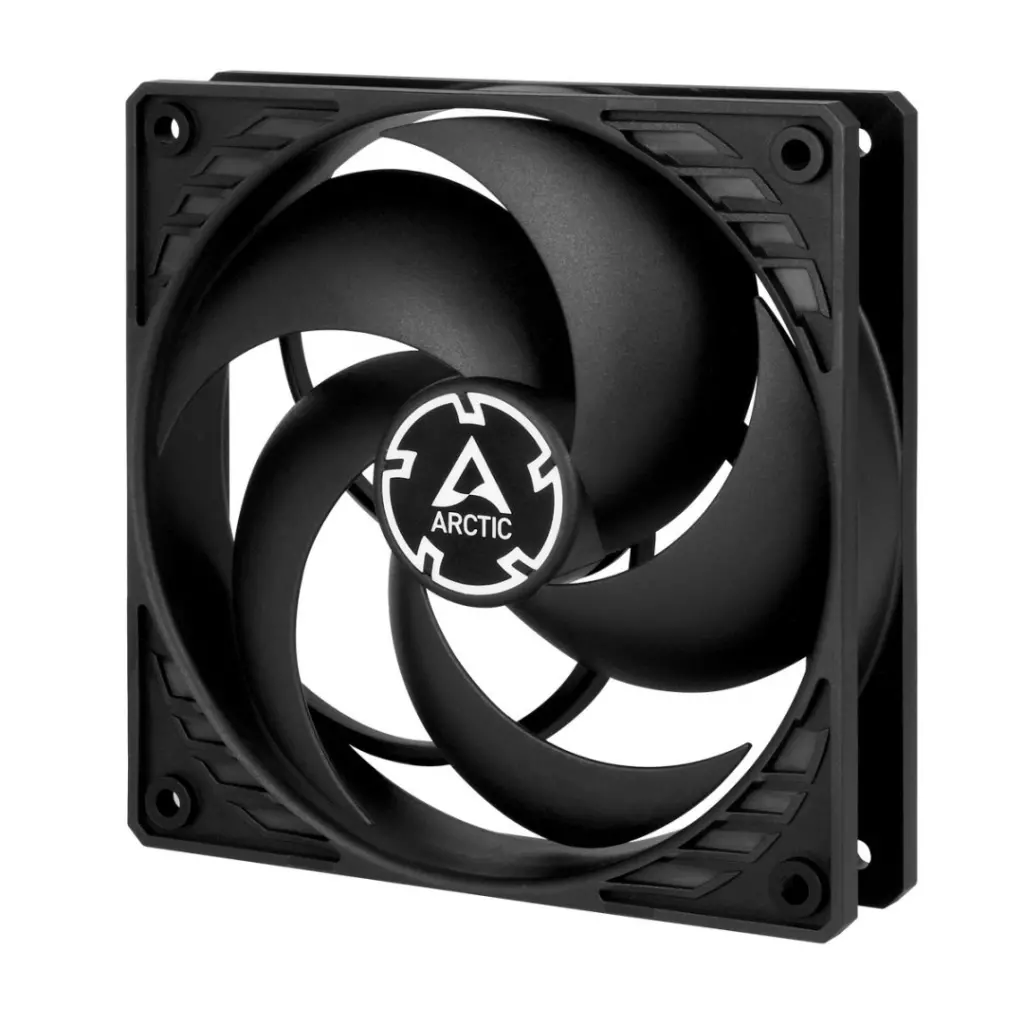

Obrázek produktu ARCTIC P12 PWM (black/black)

již se neprodává

Popis produktu:

Arctic P12 PWM, 120x120x25 mm, černý, 4-pin Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance: Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics: Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket
Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket
ARCTIC P12 PWM

Kvalitní tichý ventilátor s PWM regulací. FDB ložisko zajistí bezproblémový chod a dlouhou životnost ventilátoru. Pro napájení slouží 4-pin konektor.

ZÁKLADNÍ SPECIFIKACE

Rychlost ventilátoru: 200 - 1800 ot./min

Konektor: 4-pin PWM

Hlučnost: 22,5 dBA

Průtok vzduchu: 56,3 CFM

Rozměry: 120 x 120 x 25 mm

Barva: černá

Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Ventilátor je automaticky řízený PWM signálem z procesoru počítače do zbytku ventilačního systému. Celý systém je tak chlazen velmi tiše, nicméně nabízí vynikající výkon v situaci, kdy je to potřeba. Rozměry: 120 x 120 x 25mm Otáčky: 200 - 1 800 ot/min Průtok vzduchu: 56.3 CFM / 95.65 m3/h Statický tlak: 2.2 mm H2O (@ 1 800 U/min) Úroveň hluku: 0.3 Sone Konektor: 4-pin Hmotnost: 139g
Nové ventilátory řady Arctic P PWM s optimalizovaným statickým tlakem a automatickou regulací otáček v závislosti na teplotě procesoru pomocí PWM pulzů vynikají nízkou hlučností a vysokým výkonem.
Nová generace ventilátprů ARCTIC optimalizovaná pro statický tlak. P12PWM je ventilátor s rozměry 120x120x25mm, otáčkami 200 - 1 800 RPM (Řízenými před PWM) s 0 dB fan módem, vzduchovým transférem 56.3 CFM / 95.65 m3/h. Hlučnost 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators. More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 to 1800 RPM regulated via PWM - Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. 0 dB Mode - The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM Air Flow: 56.3 CFM / 95.65 m3/h Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.08 A Connection Motherboard: + 12 V DC PWM control signal 4-pin socket

P12 PWM

Pri vývoji nového modelu P12 PWM sa kládol osobitný dôraz na sústredený prúd vzduchu, a tým aj na vysoký statický tlak. Ventilátor zaručuje mimoriadne účinné chladenie aj pri zvýšenom odpore vzduchu. Preto je P12 PWM obzvlášť vhodný na použitie na chladičoch a radiátoroch.

TECHNICKÉ ŠPECIFIKÁCIE

performace
rýchlosť ventilátora 200 - 1800 OTÁČOK ZA MINÚTU
Prúdenie vzduchu 56.3 CFM/95.7 m3/h
Statický tlak 2,20 (mm/H2O)
Úroveň hluku 0.3 Sone
ventilátor
rám ventilátora Štandard
Typ ovládania PWM
Konektor 4-kolíkový konektor
Ložisko ventilátora Fluidné dynamické ložisko
elektrické charakteristiky
Typické napätie 12 V DC
Počiatočné napätie 3.9 V
Aktuálne 0.08 A
Dĺžka kábla 400 mm
veľkosť a hmotnosť
rozmery (D x Š x V) 120 x 120 x 25 mm
Hmotnosť 139 g
balenie
Rozmery (D x Š x V) 27 x 123 x 123 mm
Hmotnosť 0.17 kg

.

ikonka infobloku
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění. Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
