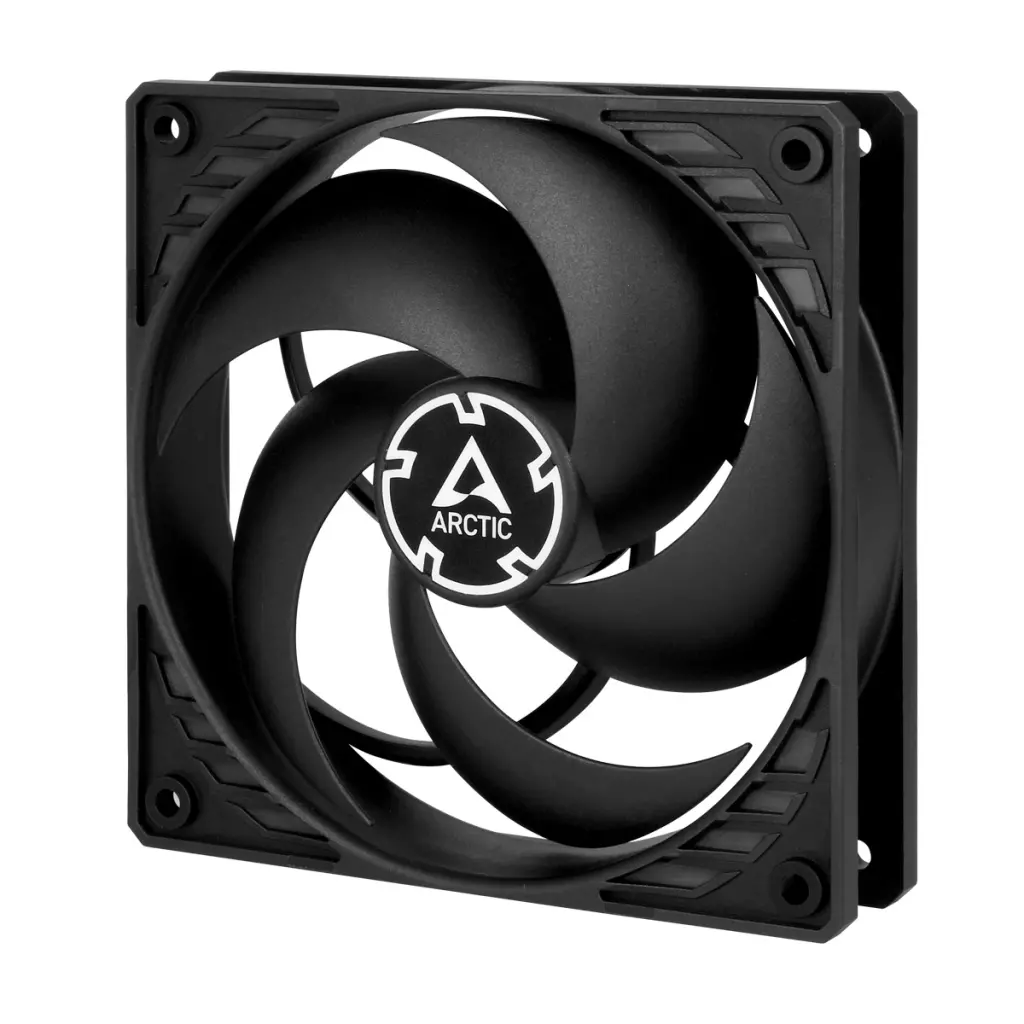

ARCTIC P12
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 1.8.
Výrobce:
ARCTIC
Kód zboží:
3797562
Číslo zboží (PN):
ACFAN00118A
EAN:
4895213701372
Záruka koncový zákazník:
72 měsíců
Záruka při koupi na IČO:
72 měsíců
Cena bez DPH: *
144 Kč
Cena vč. DPH: *
174 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
Arctic P12, 120x120x25 mm, černý, 3-pin Nová generace ARCTIC větráčků s optimalizovaných pro maximální statický tlak. ARTIC P12 je větráček o rozměru 120x120x25mm, s 1 800 otáčkami při 12V a vzduchovým tranferem: 56.3 CFM (95.65 m3/h), Hlučnost: 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 1 800 RPM (@12 V DC) Air Flow: 56.3 CFM (95.65 m3/h) Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.8 V DC Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.20 A 7 V DC 0.08 A 5V DC 0.06 A Connection Motherboard: + 12 V DC 3-pin Connector
Arctic P12, 120x120x25 mm, černý, 3-pin Nová generace ARCTIC větráčků s optimalizovaných pro maximální statický tlak. ARTIC P12 je větráček o rozměru 120x120x25mm, s 1 800 otáčkami při 12V a vzduchovým tranferem: 56.3 CFM (95.65 m3/h), Hlučnost: 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 1 800 RPM (@12 V DC) Air Flow: 56.3 CFM (95.65 m3/h) Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.8 V DC Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.20 A 7 V DC 0.08 A 5V DC 0.06 A Connection Motherboard: + 12 V DC 3-pin Connector
P12
Pri vývoji nového modelu P12 sa kládol osobitný dôraz na sústredený prúd vzduchu, a tým aj na vysoký statický tlak
. Ventilátor zaručuje mimoriadne účinné chladenie aj pri zvýšenom odpore vzduchu.
Preto je P12 obzvlášť vhodný na použitie na chladičoch a radiátoroch
TECHNICKÉ ŠPECIFIKÁCIE
performace |
rýchlosť ventilátora |
1800 OTÁČOK ZA MINÚTU |
Prúdenie vzduchu |
56.3 CFM/95.7 m3/h |
Statický tlak |
2,20 (mm/H2O) |
Úroveň hluku |
0.3 Sone |
ventilátor |
rám ventilátora |
Štandard |
Typ ovládania |
Pevná rýchlosť |
Konektor |
3-kolíkový konektor |
Ložisko ventilátora |
Fluidné dynamické ložisko |
elektrické charakteristiky |
Typické napätie |
12 V DC |
Počiatočné napätie |
2.8 V |
Aktuálne |
0.20 A |
Dĺžka kábla |
400 mm |
veľkosť a hmotnosť |
rozmery (D x Š x V) |
120 x 120 x 25 mm |
Hmotnosť |
139 g |
balenie |
Rozmery (D x Š x V) |
27 x 123 x 123 mm |
Hmotnosť |
0.17 kg |
.
Nová generace ARCTIC větráčků s optimalizovaných pro maximální statický tlak. ARTIC P12 je větráček o rozměru 120x120x25mm, s 1 800 otáčkami při 12V a vzduchovým tranferem: 56.3 CFM (95.65 m3/h), Hlučnost: 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 1 800 RPM (@12 V DC) Air Flow: 56.3 CFM (95.65 m3/h) Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.8 V DC Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.20 A 7 V DC 0.08 A 5V DC 0.06 A Connection Motherboard: + 12 V DC 3-pin Connector
ARCTIC P12
Kvalitní tichý ventilátor bez PWM regulace. FDB ložisko zajistí bezproblémový chod a dlouhou životnost ventilátoru. Pro napájení slouží 3-pin konektor.
ZÁKLADNÍ SPECIFIKACE
Rychlost ventilátoru: 1800 ot./min
Konektor: 3-pin
Hlučnost: 22,5 dBA
Průtok vzduchu: 56,3 CFM
Rozměry: 120 x 120 x 25 mm
Barva: černá
Extra účinný ventilátor ze série Arctic "P" – high pressure. Tedy model optimalizovaný pro maximální statický tlak, ideální pro věžové chladiče, pro radiátory vodního chlazení, do kejsu, kde je málo místa a v cestě stojí další komponenty a všude, kde je potřeba, aby vzduch prošel přes překážky v podobě dalších komponentů. Rozměry: 120 x 120 x 25mm Otáčky: 1 800 ot/min Průtok vzduchu: 56.3 CFM / 96.8 m3/h Statický tlak: 2.2 mm H2O (@ 1 800 U/min) Úroveň hluku: 0.3 Sone Konektor: 3-pin Hmotnost: 139g
Nová generace ARCTIC větráčků s optimalizovaných pro maximální statický tlak. ARTIC P12 je větráček o rozměru 120x120x25mm, s 1 800 otáčkami při 12V a vzduchovým tranferem: 56.3 CFM (95.65 m3/h), Hlučnost: 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 1 800 RPM (@12 V DC) Air Flow: 56.3 CFM (95.65 m3/h) Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.8 V DC Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.20 A 7 V DC 0.08 A 5V DC 0.06 A Connection Motherboard: + 12 V DC 3-pin Connector
Nová generace ARCTIC větráčků s optimalizovaných pro maximální statický tlak. ARTIC P12 je větráček o rozměru 120x120x25mm, s 1 800 otáčkami při 12V a vzduchovým tranferem: 56.3 CFM (95.65 m3/h), Hlučnost: 0.3 Sone (@ 1 800 RPM) Optimised for Static Pressure - During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators. High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. Performance Fan: 120 mm, 1 800 RPM (@12 V DC) Air Flow: 56.3 CFM (95.65 m3/h) Noise Level: 0.3 Sone (@ 1 800 RPM) Electrical Characteristics Typical Voltage: + 12 V DC Start-up Voltage: 2.8 V DC Cable Length: 400 mm Voltage Current 12 V DC (Norminal) 0.20 A 7 V DC 0.08 A 5V DC 0.06 A Connection Motherboard: + 12 V DC 3-pin Connector
