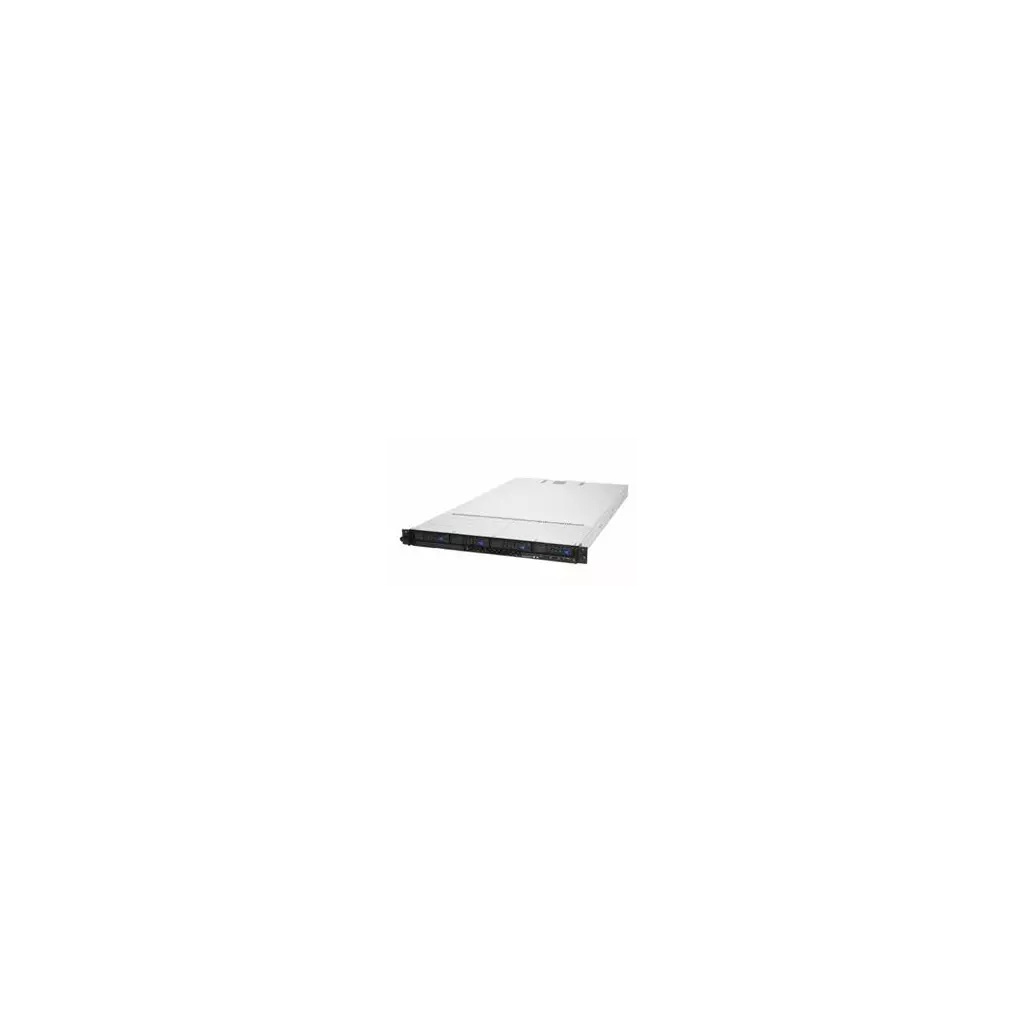

ASUS 1U Intel Icelake LGA 4189 2x CPU 32x DDR4 3200/2933 4 3.5"/2.5" SATA/SAS/4xNVMe Intel X710-AT2 10Gb x 2 2x800W PLAT

rocessor / System Bus 2 x Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable Processors Family(270w) *Refer to support page for more information UPI (11.2 GT/s) Generation E10 Core Logic Intel® C621A Chipset Memory Total Slots : 32 (8-channel per CPU, 16 DIMM per CPU) Capacity : Maximum up to 6TB per socket Memory Type : DDR4 3200/2933 RDIMM DDR4 3200/2933 LRDIMM DDR4 3200/2933 RDIMM 3DS Dual Channel 3200/2933 Memory Size : 64GB, 32GB, 16GB, 8GB RDIMM 256GB, 128GB, 64GB RDIMM 3DS 128GB LRDIMM/LR-DIMM 3DS 512GB, 256GB, 128GBIntel® Optane™ DC persistent memory 200 Series (DCPMM) * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Expansion Slots Up to 3 x Expansion slots + 1 x Internal PIKE slot 1 x PCIe Gen4 x16, FHFL (CPU1) 1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2) 1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2) *Installing GPU cards will occupied expansion slots. Storage Storage Controller : Intel C621A Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Broadcom MegaRAID 9560-16i (Optional) Drive Bays 4 x 3.5" hot-swap bays (4 x NVMe/SAS*/SATA) 2 x M.2 connector (NGFF 2280/2260. PCIe Gen4x4 link) *SAS support only from SAS HBA/RAID card System Fan 9 (if support GPU SKU, it will have external fan) Networking Option 1 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN or Option 2 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN or None x + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM Multi-GPU Support Please find the latest GPU support from https://servers.asus.com/support/gpu Front I/O Ports 2 x USB 3.2 Gen1 ports 1 x VGA port Rear I/O Ports 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 4/2 x NIC ports* * The number of NIC ports available depends on the LAN Controller card installed. Switch/LED Front Switch/LED: 1 x Power Switch (w/ LED) 1 x Reset Switch 1 x Location Switch (w/ LED) 1 x HDD Access LED* 1 x Message LED LAN 1-4 LED (on NIC module)** * The HDD Access LED is only functional when an ASUS PIKE II card is installed and connected. ** The number of LAN LEDs available depends on the LAN Controller card installed. Rear Switch/LED: 1 x Port 80 LED (Q-Code) 1 x Power Switch w/ LED 1 x Location Switch w/ LED OS Support Please find the latest OS support from https://servers.asus.com/support/os Management Solution ASUS Control Center(Classic) On-Board ASMB10-iKVM for KVM-over-IP Regulatory Compliance BSMI, CE, FCC(Class A) Dimensions 842.5mm x 449mm x 44mm (1U) 33.17” x 17.68” x 1.73” Form Factor 1U Weight Net Weight : 13.7KG Power Supply 1+1 Redundant 1600W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac, 13A/9.5A (for each inlet), 50-60Hz, Class I 1+1 Redundant 1200W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac, 10A/8A (for each inlet), 50/60Hz, Class I 1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac, 10A/5A (for each inlet), 50/60Hz, Class I Environment Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 60? Non operation humidity: 20% ~ 90% ( Non condensing) Note If only 1 CPU is installed, some functions might be not available. *SAS support only from SAS HBA/RAID Card CPU Heatsink/ Cooler 2 Fan 1 (For supporting GPU SKU, it will have external fan)
