Popis produktu:
ASUS PRIME H810M-A-CSM
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů Intel Core Ultra série 2
Patice LGA1851
Čipová sada
Intel H810
Paměť
2× DDR5 paměťový slot, podpora až 128 GB
Podpora DDR5 až 6400 MT/s
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora funkce On-Die ECC
Podpora Intel Extreme Memory Profile (XMP) a ASUS Enhanced Memory Profile II (AEMP II)
Podpora CUDIMM
SlotyIntel CPU
1× PCIe 4.0 x16 slot
Intel H810 čipová sada
1× PCIe 4.0 x1 slot
ÚložištěIntel H810 čipová sada
1× M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim)
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x2 režim)
4× SATA 6Gb/s port
USB
2× USB 3.2 Gen2 port na zadním panelu
1× USB-C 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor
2× USB 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor
6× USB 2.0 port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
Audio
Realtek Audio Codec
7.1kanálové Surround Sound High Definition Audio
LAN
1× Intel Gigabit LAN řadič
Podpora ASUS LANGuard
Interní konektory
1× 24pin hlavní napájecí konektor
1× 8pin 12V napájecí konektor
4× SATA 6Gb/s konektor
2× M.2 slot, M Key
1× M.2 slot, E key pro Wi-Fi modul (není součástí)
1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port)
1× USB-C 3.2 Gen1 (USB 3.0) konektor předního panelu
2× USB 2.0 konektor (podporuje 2× USB 2.0 port)
1× 4pin konektor ventilátoru CPU
2× 4pin konektor ventilátoru skříně
3× konektor adresovatelného RGB LED pásku
1× audio konektor předního panelu
1× konektor systémového panelu
1× SPI TPM konektor
1× propojka Clear CMOS
1× konektor S/PDIF výstupu
1× konektor sériového portu
Porty na zadním panelu
1× PS/2 combo port klávesnice a myši
1× HDMI
1× DisplayPort
2× USB 3.2 Gen2 (USB 3.1 Gen2)
4× USB 2.0
1× RJ-45
3× audio jack
Rozměry
24,4 × 22,2 cm
Micro ATX formát
ASUS PRIME H810M-A * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® H810 Chipset Paměť: 2 x DIMM slots, max. 128GB, DDR5 *Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dual channel memory architecture *DIMM Fit *Supports Intel® Extreme Memory Profile (XMP) memory module *ASUS Enhanced Memory Profile II (AEMP II) Grafické porty: *1 x DisplayPort *1 x HDMI™ port Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 4.0 x16 slot Intel® H810 Chipset *1 x PCIe 4.0 x1 slot Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 1Gb Ethernet port *ASUS LANGuard Připojení a Bluetooth: V-M.2 slot only (Key E, CNVi & PCIe) - Wi-Fi module is sold separately. USB: Zadní USB (Total 7 ports) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Podporuje: Detekce konektorů, Multi-streaming, Přepínání konektorů na předním panelu *Podpora přehrávání až 24 bitů/192 kHz Zvukové funkce *Stínění zvuku *Prvotřídní zvukové kondenzátory *Vyhrazené zvukové vrstvy na desce plošných spojů Vstupy/výstupy zadního panelu: *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Vertical M.2 slot (Key E) *1 x Intel® 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 keyboard/mouse combo port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Různé: *3 x Addressable Gen2 headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front Panel System header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x I/O shield *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
ASUS PRIME H810M-A * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® H810 Chipset Paměť: 2 x DIMM slots, max. 128GB, DDR5 *Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dual channel memory architecture *DIMM Fit *Supports Intel® Extreme Memory Profile (XMP) memory module *ASUS Enhanced Memory Profile II (AEMP II) Grafické porty: *1 x DisplayPort *1 x HDMI™ port Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 4.0 x16 slot Intel® H810 Chipset *1 x PCIe 4.0 x1 slot Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 1Gb Ethernet port *ASUS LANGuard Připojení a Bluetooth: V-M.2 slot only (Key E, CNVi & PCIe) - Wi-Fi module is sold separately. USB: Zadní USB (Total 7 ports) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Podporuje: Detekce konektorů, Multi-streaming, Přepínání konektorů na předním panelu *Podpora přehrávání až 24 bitů/192 kHz Zvukové funkce *Stínění zvuku *Prvotřídní zvukové kondenzátory *Vyhrazené zvukové vrstvy na desce plošných spojů Vstupy/výstupy zadního panelu: *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Vertical M.2 slot (Key E) *1 x Intel® 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 keyboard/mouse combo port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Různé: *3 x Addressable Gen2 headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front Panel System header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x I/O shield *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
ASUS PRIME H810M-A * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® H810 Chipset Paměť: 2 x DIMM slots, max. 128GB, DDR5 *Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dual channel memory architecture *DIMM Fit *Supports Intel® Extreme Memory Profile (XMP) memory module *ASUS Enhanced Memory Profile II (AEMP II) Grafické porty: *1 x DisplayPort *1 x HDMI™ port Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 4.0 x16 slot Intel® H810 Chipset *1 x PCIe 4.0 x1 slot Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 1Gb Ethernet port *ASUS LANGuard Připojení a Bluetooth: V-M.2 slot only (Key E, CNVi & PCIe) - Wi-Fi module is sold separately. USB: Zadní USB (Total 7 ports) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Podporuje: Detekce konektorů, Multi-streaming, Přepínání konektorů na předním panelu *Podpora přehrávání až 24 bitů/192 kHz Zvukové funkce *Stínění zvuku *Prvotřídní zvukové kondenzátory *Vyhrazené zvukové vrstvy na desce plošných spojů Vstupy/výstupy zadního panelu: *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Vertical M.2 slot (Key E) *1 x Intel® 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 keyboard/mouse combo port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Různé: *3 x Addressable Gen2 headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front Panel System header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x I/O shield *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
ASUS PRIME H810M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
CPU
Support Intel Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H810 Chipset
Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture

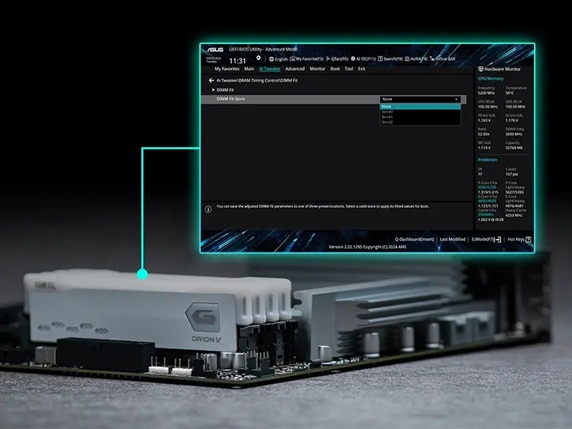

DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel H810 Chipset

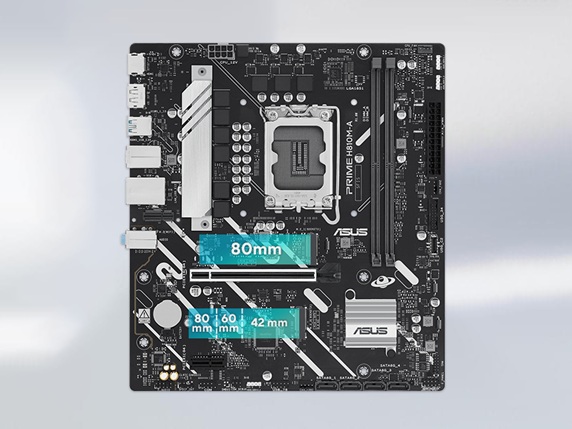

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet port*
ASUS LANGuard
*With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth
"V-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately."
USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express activation key card
1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Základné dosky radu ASUS PRIME sú odborne navrhnuté tak, aby naplno využili potenciál najnovších procesorov Intel® Core™ Ultra (séria 2). Základná doska PRIME H810M-A-CSM, ktorá sa môže pochváliť robustnou konštrukciou napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a tvorcom osobných počítačov rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúkal výkon a konektivitu potrebnú pre náročné aplikácie AI. Špecifikácia: CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H810 Chipset Memory 2 x DIMM slots, max. 96GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Intel® 1Gb Ethernet port ASUS LANGuard Wireless & Bluetooth® "V-M.2 slot only (Key E, CNVi & PCIe)* Wi-Fi module is sold separately." USB Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide Operating System Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) Form Factor micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm) Dimension Product (mm)_ L*W*H 244mm*222mm*37mm
