ASUS PRO H810M-C-CSM
Kód zboží (ID): 6698642
vytisknout
Stav zboží:
Nové
Dostupnost:
není skladem
Datum odeslání:
Neznámé
Výrobce:
ASUS
Kód zboží:
6698642
Číslo zboží (PN):
90MB1KHP-M0EAYC
EAN:
4711387856512
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
2880.72 Kč
Cena vč. DPH: *
3486 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů Intel Core Ultra série 2 Patice LGA1851
Čipová sada Intel H810
Paměť 2× DDR5 paměťový slot, podpora až 128 GB Podpora DDR5 až 6400 MT/s Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti Podpora funkce On-Die ECC Podpora Intel Extreme Memory Profile (XMP) a ASUS Enhanced Memory Profile II (AEMP II) Podpora CUDIMM
Sloty Intel CPU 1× PCIe 5.0 x16 slot Intel H810 čipová sada 2× PCIe 4.0 x1 slot
Grafika 1× HDMI port, podporující max. rozlišení 4K při 60 Hz 1× DisplayPort port, podporující max. rozlišení 4K při 60 Hz 1× VGA port 1× DVI-D port
Úložiště Intel H810 čipová sada 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x2 režim) 4× SATA 6Gb/s port
USB 1× USB 3.2 Gen2 port na zadním panelu 1× USB-C 3.2 Gen2 port na zadním panelu 4× USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 7.1kanálové Surround Sound High Definition Audio
LAN 1× Intel Gigabit LAN řadič Podpora ASUS LANGuard
Interní konektory 1× 24pin hlavní napájecí konektor 1× 8pin 12V napájecí konektor 4× SATA 6Gb/s konektor 2× M.2 slot, M Key 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port) 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 1× 4pin konektor ventilátoru CPU 2× 4pin konektor ventilátoru skříně 1× audio konektor předního panelu 1× konektor systémového panelu 1× SPI TPM konektor 1× propojka Clear CMOS 1× konektor sériového portu 1× konektor pro COM Debug kartu 1× konektor paralelního portu 1× konektor interního reproduktoru (Mono-Out Audio) 1× konektor reproduktoru 1× konektor detekce otevření skříně 1× SMBus konektor
Porty na zadním panelu 1× PS/2 combo port klávesnice a myši 1× HDMI 1× DisplayPort 1× VGA 1× DVI-D 1× USB 3.2 Gen2 (USB 3.1 Gen2) 1× USB-C 3.2 Gen2 (USB 3.1 Gen2) 2× USB 3.0 2× USB 2.0 1× RJ-45 1× sériový port 3× audio jack
Rozměry 24,4 × 22,2 cm Micro ATX formát
ASUS PRO H810M-C-CSM * mATX Form Factor CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel H810 Chipset Paměť: 2 x DIMM slots, max. 128GB, DDR5 *Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) *Dual channel memory architecture *DIMM Fit *Supports Intel® Extreme Memory Profile (XMP) memory module *ASUS Enhanced Memory Profile II (AEMP II) Grafické porty: *1 x DisplayPort *1 x VGA port *1 x DVI-D port *1 x HDMI™ port Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 5.0 x16 slot Intel® H810 Chipset *2 x PCIe 4.0 x1 slots Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 1Gb Ethernet port *ASUS LANGuard USB: Zadní USB (Total 7 ports) *2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) *2 x USB 5Gbps ports (2 x Type-A) *2 x USB 2.0 ports (2 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Vstupy/výstupy zadního panelu: *2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) *2 x USB 5Gbps ports (2 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x VGA port *1 x DVI-D port *1 x HDMI™ port *1 x Intel® 1Gb Ethernet port *3 x Audio jacks *1 x COM port *1 x PS/2 keyboard/mouse combo port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé: *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x COM Debug header *1 x LPT header *1 x Mono-Out Audio header (with Amp IC) *1 x SMBUS header *1 x Speaker header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front Panel System header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x I/O shield *1 x M.2 anchor package Dokumenty: *1 x ACC Express activation key card *1 x Quick start guide

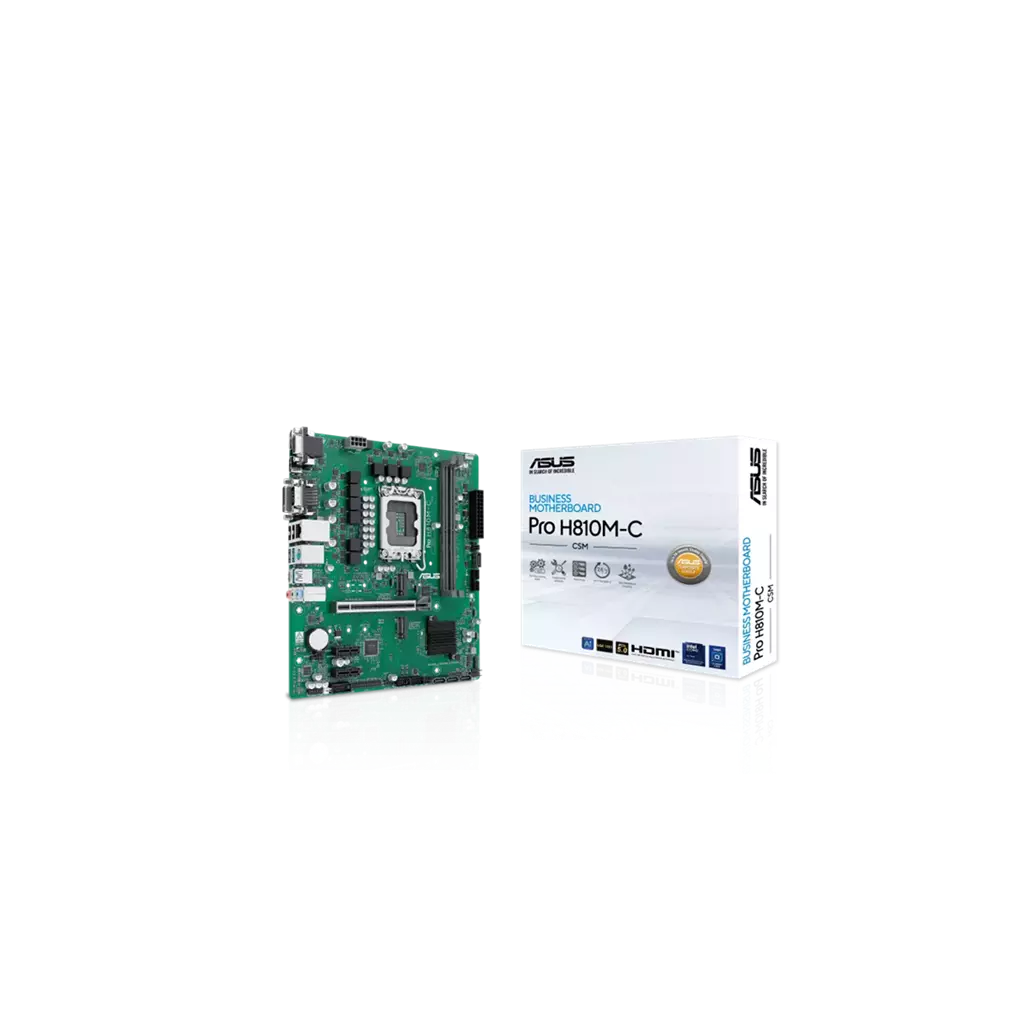

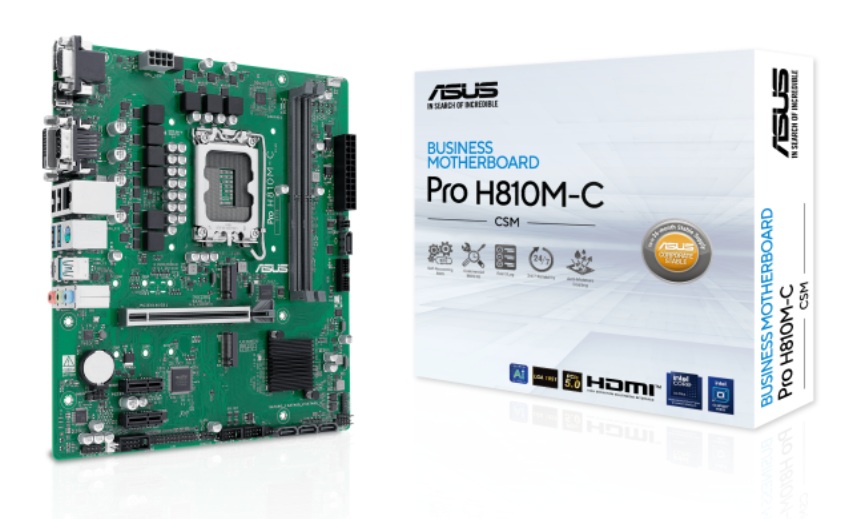

ASUS Pro H810M-C-CSM
Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: Self-recovering BIOS to safeguard PCs
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
CPU
Supports Intel Core™ Ultra Processors (Series 2), LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H810 Chipset
Memory

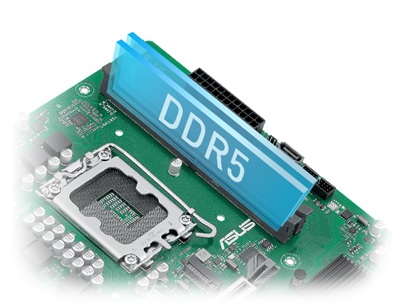

2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort** 1 x VGA port 1 x DVI-D port 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports up to 3 displays simultaneously.
Expansion Slots

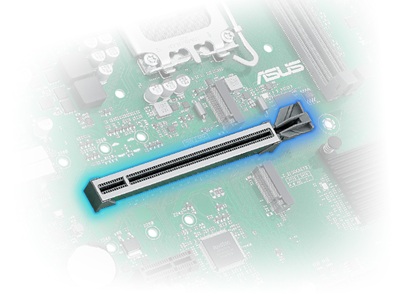

Intel Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel H810 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet port* ASUS LANGuard * With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
USB
Rear USB (Total 6 ports) 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x DVI-D port 1 x HDMI™ port 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x COM Debug header 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features
ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - Anti-moisture coating - 24/7 reliability - Overcurrent protection * Please contact local FAE for Commercial BIOS kit.
Software Features
ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey
Remote Management Features
IT Management software supported - ASUS Control Center Express (ACCE) Ready for ASUS DASH LAN Card* 1 x SMBUS header * ASUS DASH LAN Card is sold separately.
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x ACC Express activation key card 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
