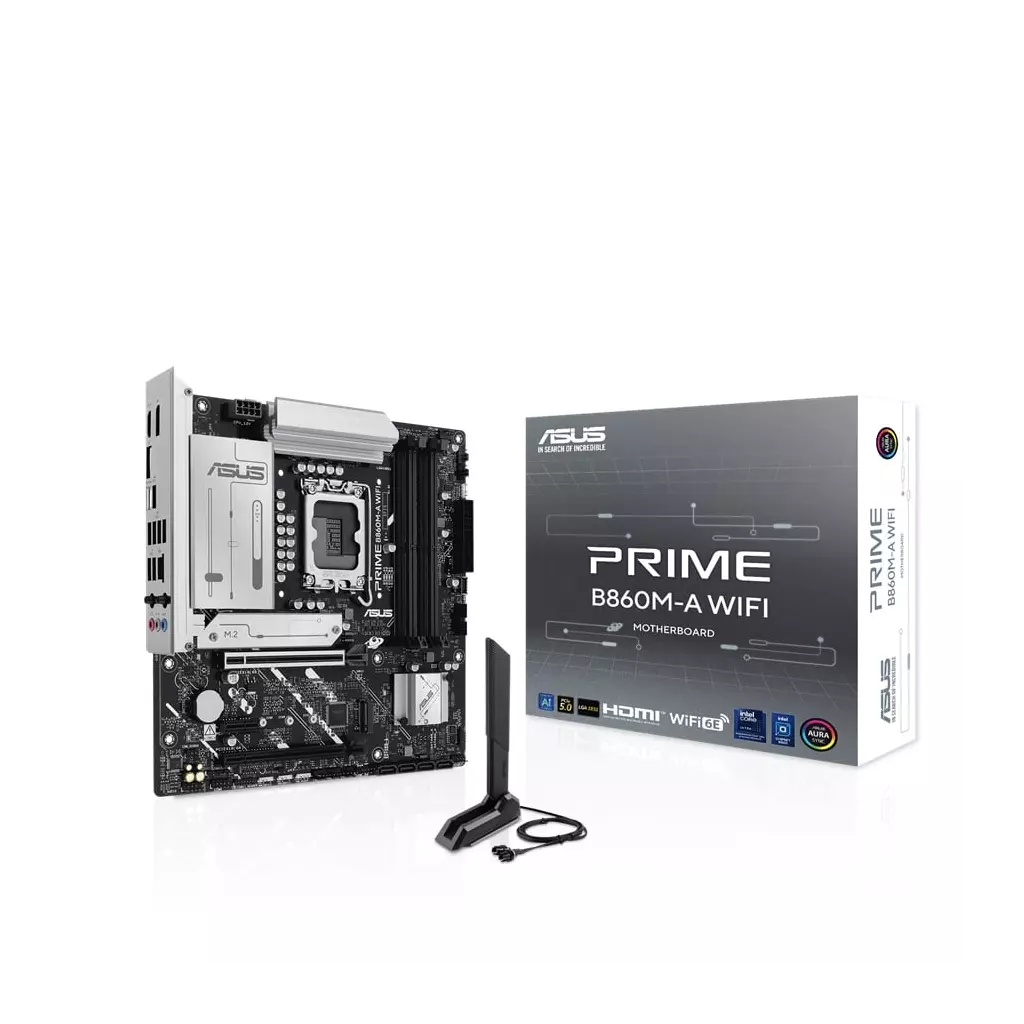

ASUS PRIME B860M-A WIFI
Popis produktu:
ASUS PRIME B860M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

CPU
Support Intel Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *Refer to https://www.asus.com/support/download-center/ for CPU support list. **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
Intel Core™ Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) IntelB860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports *USB Type-C power delivery output: max. 5V/3A **USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4) header
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers
Software Features
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
ASUS PRIME B860M-A WIFI
Micro-ATX základní deska pro Intel LGA1851 s DDR5, PCIe 5.0, Wi-Fi 6E a USB 20Gbps Type-C ASUS PRIME B860M-A WIFI je základní deska formátu micro-ATX postavená na čipsetu Intel® B860 a socketu LGA1851. Je určena pro Intel® Core™ Ultra Processors (Series 2) a nabízí moderní platformu pro pracovní, domácí i univerzální PC sestavy. Deska podporuje DDR5 paměti až do kapacity 256 GB, rychlosti až 8666+ MT/s OC, grafický slot PCIe 5.0 x16, dvojici M.2 slotů včetně jednoho PCIe 5.0 x4 a čtyři SATA 6 Gb/s porty.
Výbava zahrnuje Realtek 2.5Gb Ethernet s ASUS LANGuard, bezdrátovou konektivitu Wi-Fi 6E s podporou pásem 2,4/5/6 GHz a Bluetooth 5.3. Pro připojení periferií je k dispozici zadní USB 20Gbps Type-C® s podporou DisplayPort Alt Mode, zadní USB 10Gbps, USB 5Gbps a USB 2.0 porty, přední USB 10Gbps Type-C® konektor, obrazové výstupy 2× DisplayPort 1.4 a HDMI 2.1. Nechybí Aura Sync, Fan Xpert 2+, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, pre-mounted I/O shield a ASUS 5X Protection III.
| Kategorie | Specifikace |
|---|---|
| Model |
ASUS PRIME B860M-A WIFI
|
| Produktová řada | |
| Typ produktu |
Základní deska / micro-ATX motherboard
|
| Platforma a procesory |
Intel® LGA1851
Podpora Intel® Core™ Ultra Processors (Series 2)
Podpora Intel® Turbo Boost Technology 2.0
Podpora Intel® Turbo Boost Max Technology 3.0 podle typu CPU
Aktuální seznam podporovaných CPU je dle ASUS CPU support listu
|
| Čipset |
Intel® B860 Chipset
|

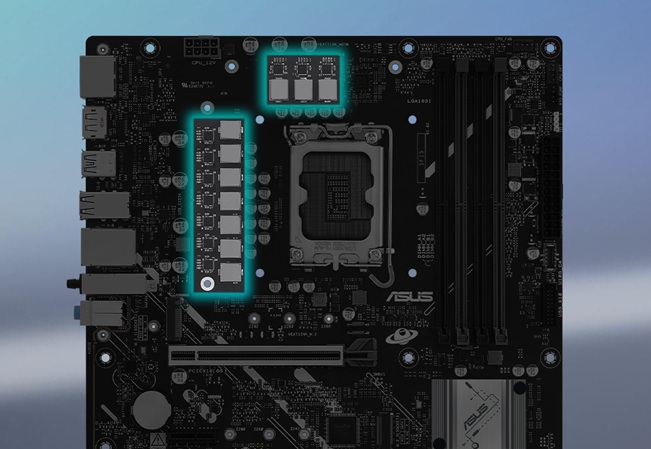

| Napájení a konstrukce |
Digital power design with DrMOS
DIGI+ VRM
ProCool napájecí konektor
VRM heatsink design pro stabilnější provoz
1× 24pin Main Power connector
1× 8pin +12V CPU Power connector
Návrh desky je určený pro platformu Intel Core Ultra Series 2
|

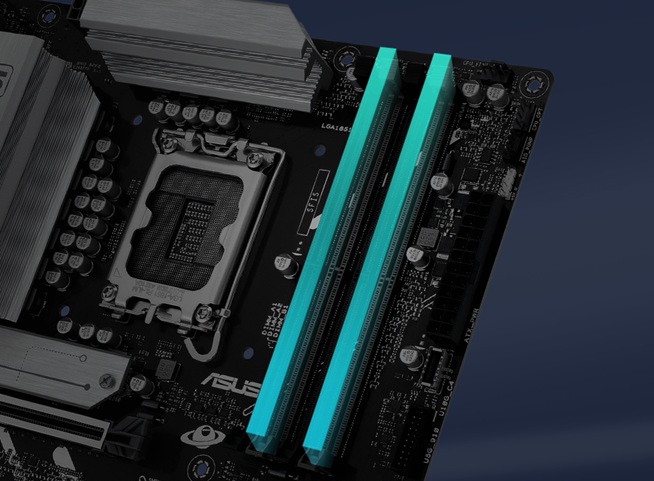

| Paměť |
4× DIMM, maximálně 256 GB DDR5
Podpora DDR5 až 8666+ MT/s OC
Non-ECC, Un-buffered DIMM
Podpora Clocked Unbuffered DIMM, CUDIMM
Dual channel memory architecture
DIMM Fit
Podpora Intel® Extreme Memory Profile, XMP
ASUS Enhanced Memory Profile III, AEMP III
Non-ECC un-buffered DDR5 paměť podporuje On-Die ECC funkci
Podporované rychlosti a konfigurace pamětí se mohou lišit podle CPU a ASUS Memory Support listu
|
| Grafické výstupy |
2× DisplayPort, HDMI a USB-C DP Alt Mode
2× DisplayPort s podporou až 4K při 60 Hz dle DisplayPort 1.4
1× HDMI™ port s podporou až 4K při 60 Hz dle HDMI 2.1
1× USB 20Gbps Type-C® s podporou DisplayPort video výstupu
USB Type-C® DP Alt Mode podporuje až 4K při 120 Hz dle DisplayPort 1.4
Grafické specifikace se mohou lišit podle použitého CPU
|
| Rozšiřující sloty |
1× PCIe 5.0 x16
Intel® Core™ Ultra Processors (Series 2): 1× PCIe 5.0 x16 slot
Intel® B860 Chipset: 1× PCIe 4.0 x16 slot v režimu x4
Intel® B860 Chipset: 1× PCIe 4.0 x1 slot
SafeSlot pro pevnější uchycení rozšiřující karty
Kompatibilita zařízení se řídí ASUS support listem
|
| Úložiště |
2× M.2 slot a 4× SATA 6 Gb/s
Intel® Core™ Ultra Processors (Series 2): M.2_1 slot Key M, typ 2242/2260/2280, PCIe 5.0 x4
Intel® B860 Chipset: M.2_2 slot Key M, typ 2242/2260/2280, PCIe 4.0 x4
4× SATA 6 Gb/s porty
Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10
|
| Síťová konektivita |
1× Realtek 2.5Gb Ethernet
Realtek 2.5Gb Ethernet port
ASUS LANGuard
Vhodné pro rychlé kabelové připojení ve firemním, domácím i herním prostředí
|
| Bezdrátová konektivita |
Wi-Fi 6E 2×2
Wi-Fi 6E, 802.11ax
Podpora pásem 2,4 GHz, 5 GHz a 6 GHz
Bluetooth® v5.3
Podpora 6GHz pásma se může lišit podle regionální regulace a je podporována ve Windows 11 nebo novějším
ASUS WiFi Q-Antenna v balení
|
| USB konektivita |
Zadní USB: celkem 8 portů
1× USB 20Gbps Type-C® s DP Alt Mode na zadním panelu
1× USB 10Gbps Type-A na zadním panelu
2× USB 5Gbps Type-A na zadním panelu
4× USB 2.0 Type-A na zadním panelu
Přední USB: celkem podpora až 5 portů
1× USB 10Gbps connector s podporou USB Type-C®
1× USB 5Gbps header s podporou dalších 2 USB 5Gbps portů
1× USB 2.0 header s podporou dalších 2 USB 2.0 portů
USB Type-C® power delivery output: maximálně 5 V / 3 A
USB_E1, USB_E2, USB_E3 a USB_E4 sdílejí propustnost
|
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Podpora Jack-detection
Podpora Multi-streaming
Podpora Front Panel Jack-retasking
Podpora přehrávání až 24-bit / 192 kHz
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
Pro 7.1 Surround Sound výstup je vyžadována skříň s HD audio modulem na předním panelu
|
| Zadní I/O porty |
USB-C 20Gbps, Wi-Fi 6E, 2× DisplayPort, HDMI a 2.5Gb LAN
1× USB 20Gbps Type-C® s DP Alt Mode
1× USB 10Gbps Type-A
2× USB 5Gbps Type-A
4× USB 2.0 Type-A
2× DisplayPort
1× HDMI™ port
1× Wi-Fi modul
1× Realtek 2.5Gb Ethernet port
3× audio jacky
|
| Interní konektory – napájení |
1× 24pin Main Power connector
1× 8pin +12V CPU Power connector
ProCool dle ASUS EZ DIY výbavy
|
| Interní konektory – chlazení |
1× 4pin CPU Fan header
1× 4pin CPU OPT Fan header
1× 4pin AIO Pump header
3× 4pin Chassis Fan headers
Fan Xpert 2+
Hybrid fan headers pro flexibilní řízení chlazení
|
| Interní konektory – USB |
1× USB 10Gbps Type-C® connector
1× USB 5Gbps header s podporou dalších 2 USB 5Gbps portů
1× USB 2.0 header s podporou dalších 2 USB 2.0 portů
Vhodné pro moderní skříně s předním USB-C portem
|
| Interní konektory – RGB a další |
3× Addressable Gen 2 headers
1× Aura RGB header
1× Clear CMOS header
1× Chassis Intrusion header
1× COM Port header
1× Front Panel Audio header, F_AUDIO
1× S/PDIF Out header
1× SPI TPM header, 14-1 pin
1× 10-1 pin Front System Panel header
1× Thunderbolt™ USB4® header
|
| ASUS ochranné technologie |
ASUS 5X Protection III
DIGI+ VRM
ESD Guards
LANGuard
Overvoltage Protection
SafeSlot
Stainless-steel back I/O
|
| Chlazení desky |
VRM heatsink design
M.2 heatsink
VRM heatsink design
Fan Xpert 2+
AIO Pump header
Chlazení je navrženo pro stabilní provoz s Intel Core Ultra platformou
|
| Aura Sync a RGB |
Aura Sync
1× Aura RGB header
3× Addressable Gen 2 headers
Aura Creator
Nastavení osvětlení přes Armoury Crate
|
| Software |
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe, 60denní zkušební verze
WinRAR, 40denní zkušební verze
|
| BIOS a správa |
UEFI AMI BIOS
256 Mb, 128 + 128 Mb Flash ROM
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
Manageability: WOL by PME, PXE
|
| Q-Design |
Q-Antenna
Q-Dashboard
Q-DIMM
Q-LED Core
Q-Slot
Pre-mounted I/O shield
Prvky Q-Design usnadňují montáž, diagnostiku a orientaci při stavbě PC
|
| Příslušenství v balení |
2× SATA 6 Gb/s kabely
1× ASUS WiFi Q-Antenna
1× M.2 rubber package
1× Screw package for M.2 SSD
1× Quick start guide
|
| Operační systém |
Windows 11 a Windows 10 64-bit
Intel® Core Ultra 200S Series: Windows 10 verze 21H2 a novější, Windows 11 verze 22H2 a novější
Intel® Core Ultra 200S Plus Series: Windows 11 verze 25H2 a novější pro plnou kompatibilitu
|
| Formát |
micro-ATX
9,6 × 9,6 palce
24,4 × 24,4 cm
|
| Klíčové vlastnosti |
Intel B860 platforma se socketem LGA1851
Podpora Intel Core Ultra Processors Series 2
4× DDR5 DIMM až 256 GB
DDR5 až 8666+ MT/s OC
Podpora Intel XMP a ASUS AEMP III
1× PCIe 5.0 x16 slot
1× PCIe 4.0 x16 slot v režimu x4
1× PCIe 4.0 x1 slot
2× M.2 sloty včetně PCIe 5.0 M.2_1
4× SATA 6 Gb/s porty
Realtek 2.5Gb Ethernet s ASUS LANGuard
Wi-Fi 6E a Bluetooth 5.3
USB 20Gbps Type-C® s DisplayPort Alt Mode
Přední USB 10Gbps Type-C® konektor
2× DisplayPort 1.4 a HDMI 2.1
Aura Sync
Fan Xpert 2+
Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core a Q-Slot
ASUS 5X Protection III
Pre-mounted I/O shield
micro-ATX formát 24,4 × 24,4 cm
|
