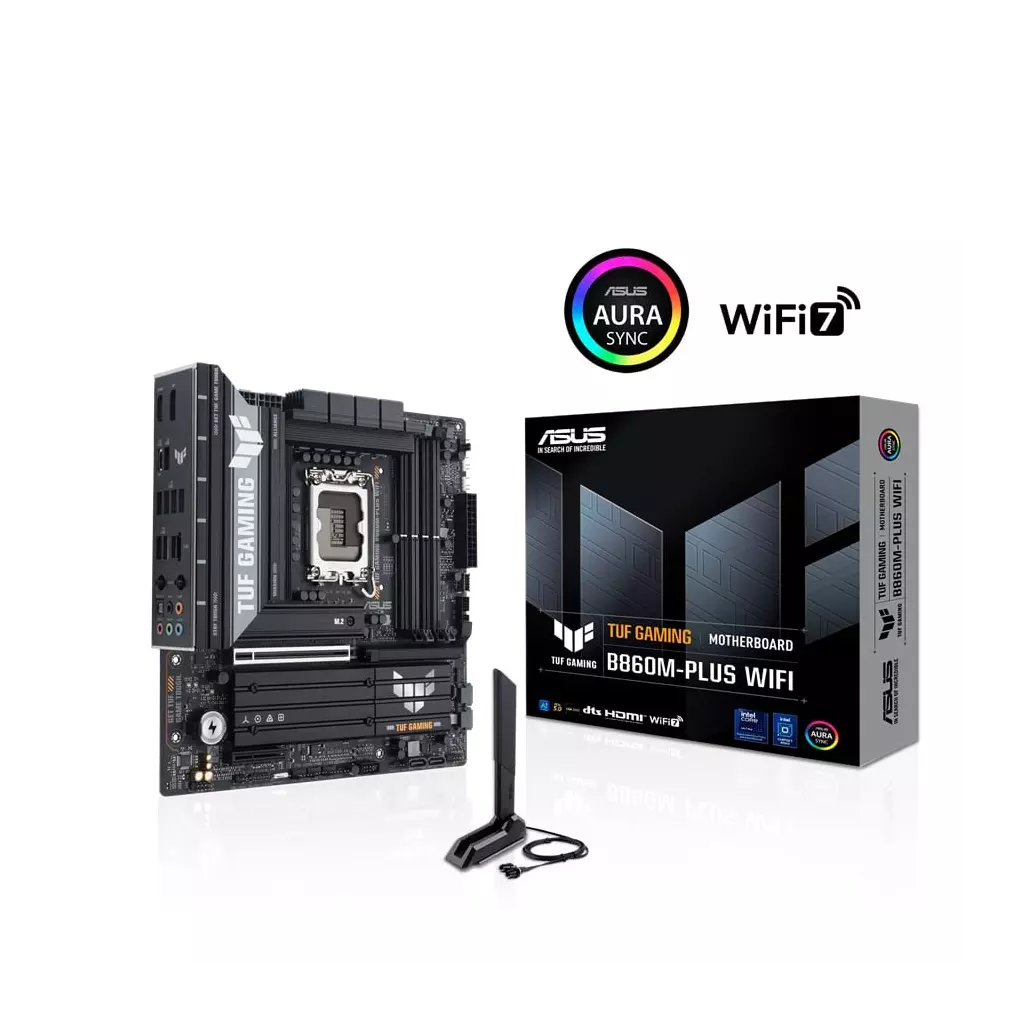

ASUS TUF GAMING B860M-PLUS WIFI

ASUS TUF GAMING B860M-PLUS WIFI * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) - LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Osazení DIMM *Podporuje paměťový modul Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Intel® B860 Chipset *1 x PCIe 4.0 x4 slot Úložný prostor: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Realtek 2.5Gb Ethernet *TUF LANGuard Připojení a Bluetooth: *Wi-Fi 7* *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x USB 20Gbps port (1 x USB Type-C®) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *1 x USB 2.0 port (1 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 headers support 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Audio Features *Audio Shielding *Rear optical S/PDIF out port *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadního panelu: *1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *1 x USB 2.0 port (1 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi Module *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors Úložiště: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 port Různé: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x Front panel audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thunderbolt™ (USB4®) header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *2 x M.2 Rubber Packages *1 x TUF Gaming sticker *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide

ASUS TUF GAMING B860M-PLUS WIFI

ASUS TUF GAMING B860M-PLUS WIFI

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů Intel Core Ultra série 2 Patice LGA1851

Čipová sada Intel B860

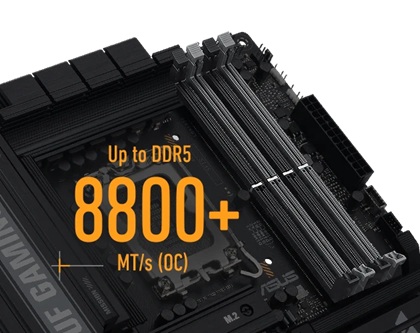

Paměť 4× DDR5 paměťový slot, podpora až 256 GB Podpora DDR5 až 8800+ MT/s (OC) Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti Podpora On-Die ECC funkce Podpora ASUS Enhanced Memory Profile III (AEMP III) Podpora Intel Extreme Memory Profile (XMP) Podpora CUDIMM

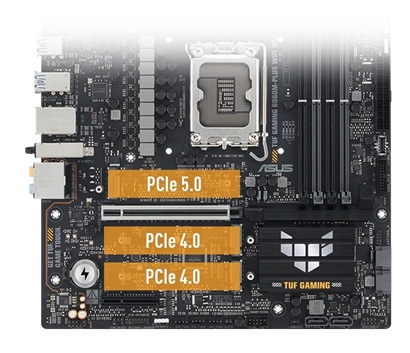

Sloty Intel CPU 1× PCIe 5.0 x16 slot Intel B860 čipová sada 1× PCIe 4.0 x16 slot

Grafika 1× DisplayPort, podporující max. rozlišení 4K při 60 Hz (dle DP 1.4) 1× HDMI, podporující max. rozlišení 4K při 60 Hz (dle HDMI 2.1) 1× USB-C 3.2 Gen2x2 port, podporující max. rozlišení 4K při 60 Hz (dle DisplayPort 1.4)

Úložiště Intel CPU 1× M.2 slot, M Key, pro jednotky typu 2280 (PCIe 5.0 x4 režim) Intel B860 čipová sada 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) 1× M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim) 4× SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky Podpora Intel Rapid Storage technologie

USB 1× USB-C 3.2 Gen2x2 port na zadním panelu 2× USB 3.2 Gen2 (USB 3.1) port na zadním panelu 1× USB-C 3.2 Gen2 (USB 3.1) port dostupný přes interní USB konektor 6× USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 3× USB 2.0 port (1 port na zadním panelu, 2 porty dostupné přes interní USB konektor)

Audio Realtek Audio Codec 7.1kanálové Surround Sound High Definition Audio Podpora S/PDIF výstupu

LAN 1× Realtek 2,5Gigabit LAN řadič TUF LANGuard

WLAN/ Bluetooth 2×2 Wi-Fi 7 (802.11be) Triple Band (2,4 GHz, 5 GHz, 6 GHz) Přenosová rychlost až 2,9 Gb/s Bluetooth 5.4

Interní konektory 1× 24pin ATX hlavní napájecí konektor 2× 8pin +12V napájecí konektor 4× SATA 6Gb/s 3× M.2 slot, M Key 1× USB-C 3.2 Gen2 (USB 3.1) 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1) 1× USB 2.0 konektor (podporuje 2× USB 2.0) 1× 4pin konektor ventilátoru CPU 1× 4pin konektor volitelného ventilátoru CPU 1× 4pin konektor pumpy vodního chlazení 3× 4pin konektor ventilátoru skříně 3× konektor adresovatelného RGB LED pásku 1× konektor Clear CMOS 1× konektor detekce otevření skříně 1× audio konektor předního panelu 1× konektor systémového panelu 1× Thunderbolt (USB4) konektor

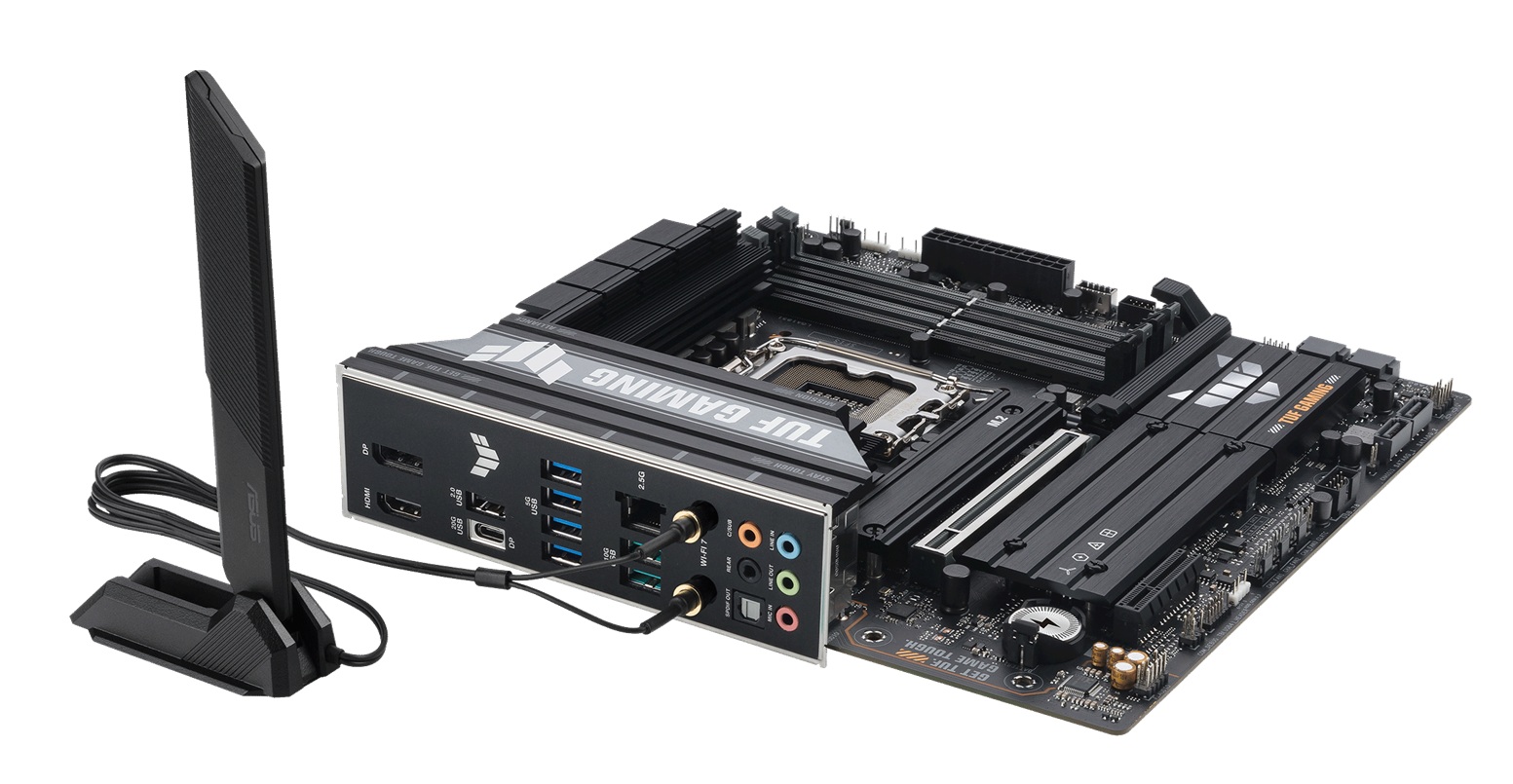

Porty na zadním panelu 1× HDMI 1× DisplayPort 1× USB-C 3.2 Gen2×2 2× USB 3.2 Gen2 (USB 3.1 Gen2) 4× USB 3.2 Gen1 (USB 3.0) 1× USB 2.0 1× RJ-45 1× optický S/PDIF výstup 2× konektor Wi-Fi antény 5× audio jack

Rozměry 24,4 × 24,4 cm Micro ATX formát

ASUS TUF GAMING B860M-PLUS WIFI * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) - LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Osazení DIMM *Podporuje paměťový modul Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Intel® B860 Chipset *1 x PCIe 4.0 x4 slot Úložný prostor: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Realtek 2.5Gb Ethernet *TUF LANGuard Připojení a Bluetooth: *Wi-Fi 7* *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x USB 20Gbps port (1 x USB Type-C®) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *1 x USB 2.0 port (1 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 headers support 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Audio Features *Audio Shielding *Rear optical S/PDIF out port *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadního panelu: *1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *1 x USB 2.0 port (1 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi Module *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors Úložiště: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 port Různé: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x Front panel audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thunderbolt™ (USB4®) header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *2 x M.2 Rubber Packages *1 x TUF Gaming sticker *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide

ASUS TUF GAMING B860M-PLUS WIFI využíva všetky základné prvky najnovších procesorov Intel® Core™ Ultra (séria 2) a kombinuje ich s funkciami pripravenými na hry a overenou odolnosťou. Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie. Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať. Táto platforma poskytuje výkon a konektivitu, ktoré vyžadujú pokročilé AI PC aplikácie. Špecifikácia: CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.  Chipset Intel® B860 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*" Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® Core™ Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A)  Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A)  1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks  1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber Packages 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide Operating System Windows 11, Windows 10 64-bit Form Factor micro-ATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
