Popis produktu:
ASUS ROG STRIX B860-G GAMING WIFI * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Podpora paměťového modulu Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Úložný prostor: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 2.5Gb Ethernet Připojení a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port(s) (1 x USB Type-C®) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x Thunderbolt™ 4 USB Type-C® port(s) *1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header(s) *1 x 4-pin CPU OPT Fan header(s) *1 x 4-pin AIO Pump header(s) *2 x 4-pin Chassis Fan header(s) Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connector Úložiště: *4 x M.2 slots (Key M) *1 x M.2 Vertical slot (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (support(s) USB Type-C® ) *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 header(s) *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 Q-Latch package(s) *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix sticker *3 x M.2 rubber package(s) *1 x M.2 backplate rubber package(s) Dokumenty: *1 x Quick start guide

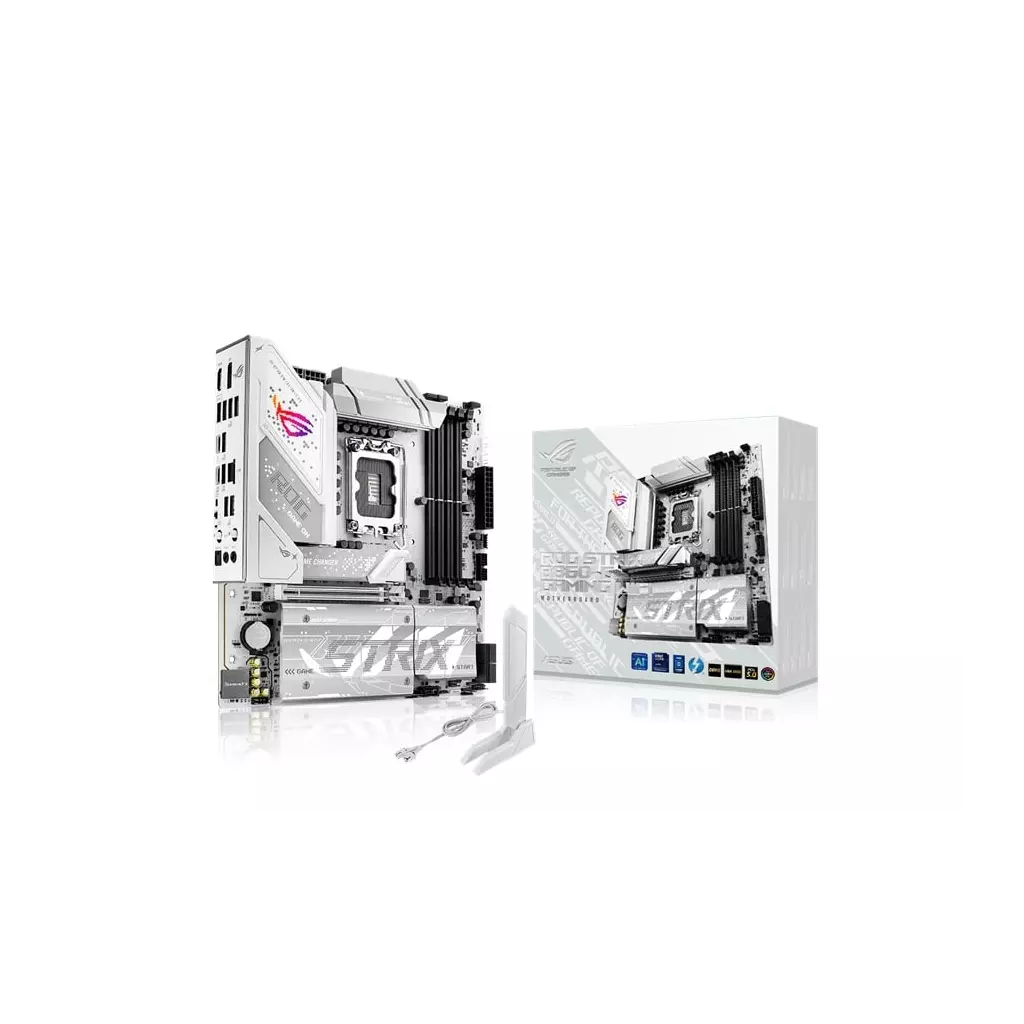

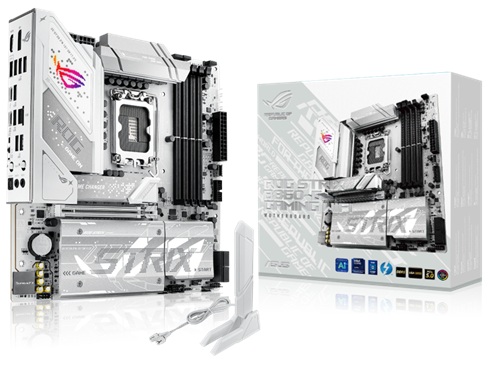

ASUS ROG STRIX B860-G GAMING WIFI
Featuring Thunderbolt™ 4, PCIe 5.0, and Aura Sync lighting, the ROG Strix B860-G offers blazing-fast data transfers, outstanding connectivity, and a flexible aesthetic that adapts to bold or subtle preferences. Designed to meet the demands of elite gaming and advanced AI PC applications, it delivers the performance and speed you need.
CPU
Support Intel Core™ Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5

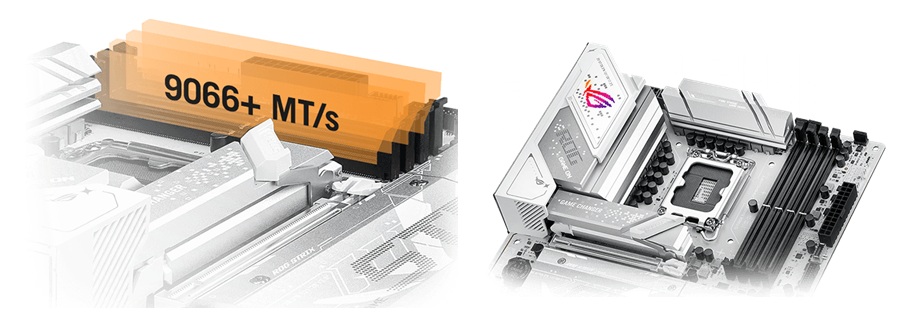

Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
1 x Intel Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
Storage

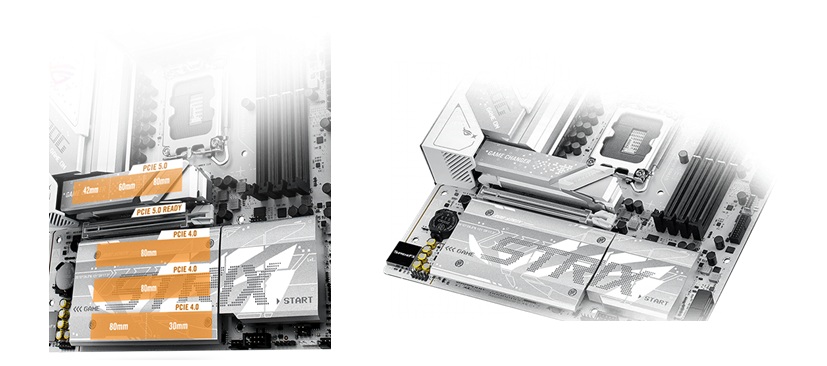

Total supports 4 x M.2 slots and 4 x SATA6Gb/s ports*Intel Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2230/2280 (supports
PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C)
1 x USB 20Gbps ports (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector (supports USB
Type-C)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 header supports 3 additional
USB 2.0 ports
* USB Type-C power delivery output: max.
5V/3A
Audio
Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x Thunderbolt™ 4 USB Type-C port(s)
1 x USB 20Gbps port(s) (1 x USB Type-C with DP Alt mode)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header supports 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud 30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, UEFI PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch
1 x M.2 Q-Slide
1 x ROG key chain
1 x ROG Strix stickers
3 x M.2 rubbers
1 x M.2 backplate rubber package(s)
Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
ASUS ROG STRIX B860-G GAMING WIFI
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů Intel Core Ultra série 2
Patice LGA1851
Čipová sada
Intel B860
Paměť
4× DDR5 paměťový slot, podpora až 256 GB
Podpora DDR5 až 9066+ MT/s (OC)
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora On-Die ECC funkce
Podpora ASUS Enhanced Memory Profile III (AEMP III)
Podpora Intel Extreme Memory Profile (XMP)
Podpora CUDIMM
ÚložištěIntel CPU
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 5.0 x4 režim)
Intel B860 čipová sada
2× M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim)
1× M.2 slot, M Key, pro jednotky typu 2230/2280 (PCIe 4.0 x4 režim)
4× SATA 6Gb/s port
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
Podpora Intel Rapid Storage technologie
USB
1× Thunderbolt 4 (USB-C) port na zadním panelu
1× USB-C 3.2 Gen2x2 port na zadním panelu
1× USB 3.2 Gen2 (USB 3.1) port na zadním panelu
1× USB-C 3.2 Gen2 (USB 3.1) port dostupný přes interní USB konektor
5× USB 3.2 Gen1 (USB 3.0) port (3 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
7× USB 2.0 port (4 porty na zadním panelu, 3 porty dostupné přes interní USB konektory)
Audio
Realtek ALC1220P Codec
7.1kanálové Surround Sound High Definition Audio
SupremeFX Shielding technologie
Savitech SV3H712 AMP
120 dB SNR přehrávání, 113 dB SNR záznam
Podpora S/PDIF výstupu
LAN
1× Intel 2,5Gigabit LAN řadič
ASUS LANGuard
WLAN/ Bluetooth
2×2 Wi-Fi 7 (802.11be)
Triple Band (2,4 GHz, 5 GHz, 6 GHz)
Přenosová rychlost až 2,9 Gb/s
Bluetooth 5.4
Interní konektory
1× 24pin ATX hlavní napájecí konektor
2× 8pin +12V napájecí konektor
4× SATA 6Gb/s
4× M.2 slot, M Key
1× USB-C 3.2 Gen2 (USB 3.1)
1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1)
2× USB 2.0 konektor (podporuje 3× USB 2.0)
1× 4pin konektor ventilátoru CPU
1× 4pin konektor volitelného ventilátoru CPU
1× 4pin konektor pumpy vodního chlazení
2× 4pin konektor ventilátoru skříně
3× konektor adresovatelného RGB LED pásku
1× audio konektor předního panelu
1× konektor systémového panelu
1× konektor teplotního čidla
Porty na zadním panelu
1× HDMI
1× DisplayPort
1× Thunderbolt 4
1× USB-C 3.2 Gen2×2
1× USB 3.2 Gen2 (USB 3.1 Gen2)
3× USB 3.2 Gen1 (USB 3.0)
4× USB 2.0
1× RJ-45
1× optický S/PDIF výstup
2× konektor Wi-Fi antény
1× tlačítko Clear CMOS
1× tlačítko BIOS Flashback
2× audio jack
Rozměry
24,4 × 24,4 cm
Micro ATX formát
ASUS ROG STRIX B860-G GAMING WIFI * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Podpora paměťového modulu Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Úložný prostor: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 2.5Gb Ethernet Připojení a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port(s) (1 x USB Type-C®) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x Thunderbolt™ 4 USB Type-C® port(s) *1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header(s) *1 x 4-pin CPU OPT Fan header(s) *1 x 4-pin AIO Pump header(s) *2 x 4-pin Chassis Fan header(s) Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connector Úložiště: *4 x M.2 slots (Key M) *1 x M.2 Vertical slot (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (support(s) USB Type-C® ) *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 header(s) *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 Q-Latch package(s) *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix sticker *3 x M.2 rubber package(s) *1 x M.2 backplate rubber package(s) Dokumenty: *1 x Quick start guide
ASUS ROG STRIX B860-G GAMING WIFI * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Podpora paměťového modulu Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Úložný prostor: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 2.5Gb Ethernet Připojení a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port(s) (1 x USB Type-C®) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x Thunderbolt™ 4 USB Type-C® port(s) *1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header(s) *1 x 4-pin CPU OPT Fan header(s) *1 x 4-pin AIO Pump header(s) *2 x 4-pin Chassis Fan header(s) Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connector Úložiště: *4 x M.2 slots (Key M) *1 x M.2 Vertical slot (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (support(s) USB Type-C® ) *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 header(s) *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 Q-Latch package(s) *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix sticker *3 x M.2 rubber package(s) *1 x M.2 backplate rubber package(s) Dokumenty: *1 x Quick start guide
ROG Strix B860-G, ktorý obsahuje Thunderbolt™ 4, PCIe® 5.0 a osvetlenie Aura Sync, ponúka bleskovo rýchle dátové prenosy, vynikajúcu konektivitu a flexibilnú estetiku, ktorá sa prispôsobí odvážnym alebo jemným preferenciám. Je navrhnutý tak, aby spĺňal požiadavky elitných hier a pokročilých AI PC aplikácií, a poskytuje výkon a rýchlosť, ktoré potrebujete. ASUS AI ADVISOR Pomocou technológie AI na pochopenie otázok alebo popisov scenárov v prirodzenom jazyku umožňuje ASUS AI Advisor užívateľom preskúmať funkčnosť a pokročilé funkcie základných dosiek ASUS jednoduchým a priamočiarym spôsobom. AI NETWORKING II AI Networking II kombinuje inteligentné technológie na nepretržitú optimalizáciu výkonu siete, poskytovanie dôveryhodného a bezproblémového pripojenia a uvoľnenie plnej rýchlosti WiFi 7*. NPU BOOST Integrovaný NPU v procesoroch Intel® Core™ Ultra (séria 2) efektívne urýchľuje pracovné postupy AI – a NPU Boost vám umožní urobiť viac. Táto funkcia BIOS pretaktuje NPU jediným kliknutím, čím sa zvýši výkon až o 24 %. Asynchrónne hodiny Pre ďalšiu úroveň frekvenčnej flexibility je ROG Strix B860-A vybavený vstavaným generátorom hodín, ktorý izoluje základné hodiny CPU od pamäte, NPU, D2D a NGU. Posúvajte výkon pamäte, NPU a ďalších na ich absolútnu hranicu pri zachovaní stability domén hodín CPU. Oddeľte CPU BCLK od ostatných domén pre neobmedzené pretaktovanie. AEMP III ASUS Enhanced Memory Profile III (AEMP III) je pokročilá funkcia firmvéru, ktorá používateľom umožňuje dosiahnuť bezkonkurenčný výkon pamäte vďaka špičkovej pamäti CUDIMM. DIMM FIT DIMM Fit je exkluzívna funkcia BIOS od spoločnosti ASUS, ktorá presne analyzuje jednotlivé pamäťové moduly s cieľom optimalizovať výkon a určiť potenciálne problémy. DDR5 DOMINATION Vylepšené smerovanie signálu môže posunúť súpravy pre nadšencov ďaleko za hranicu 9 GT/s na Strix B860. Špecifikácia: CPU Support Intel® Core™ Ultra Processors(Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B860 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. "** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. ***** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots Intel® Core™ Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot*** - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset** M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 Ethernet 1 x Intel® 2.5Gb Ethernet Wireless & Bluetooth® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." USB Rear USB (Total 10 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 1 x USB 10Gbps port(s) (1 x Type-A) 3 x USB 5Gbps port(s) (3 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C® port(s) 1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port(s) (1 x Type-A) 3 x USB 5Gbps port(s) (3 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 1 x M.2 Vertical slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (support(s) USB Type-C® ) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 header(s) Software Features ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix sticker 3 x M.2 rubber package(s) 1 x M.2 backplate rubber package(s) Documentation 1 x Quick start guide Operating System Windows 11 (22H2 later) Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
