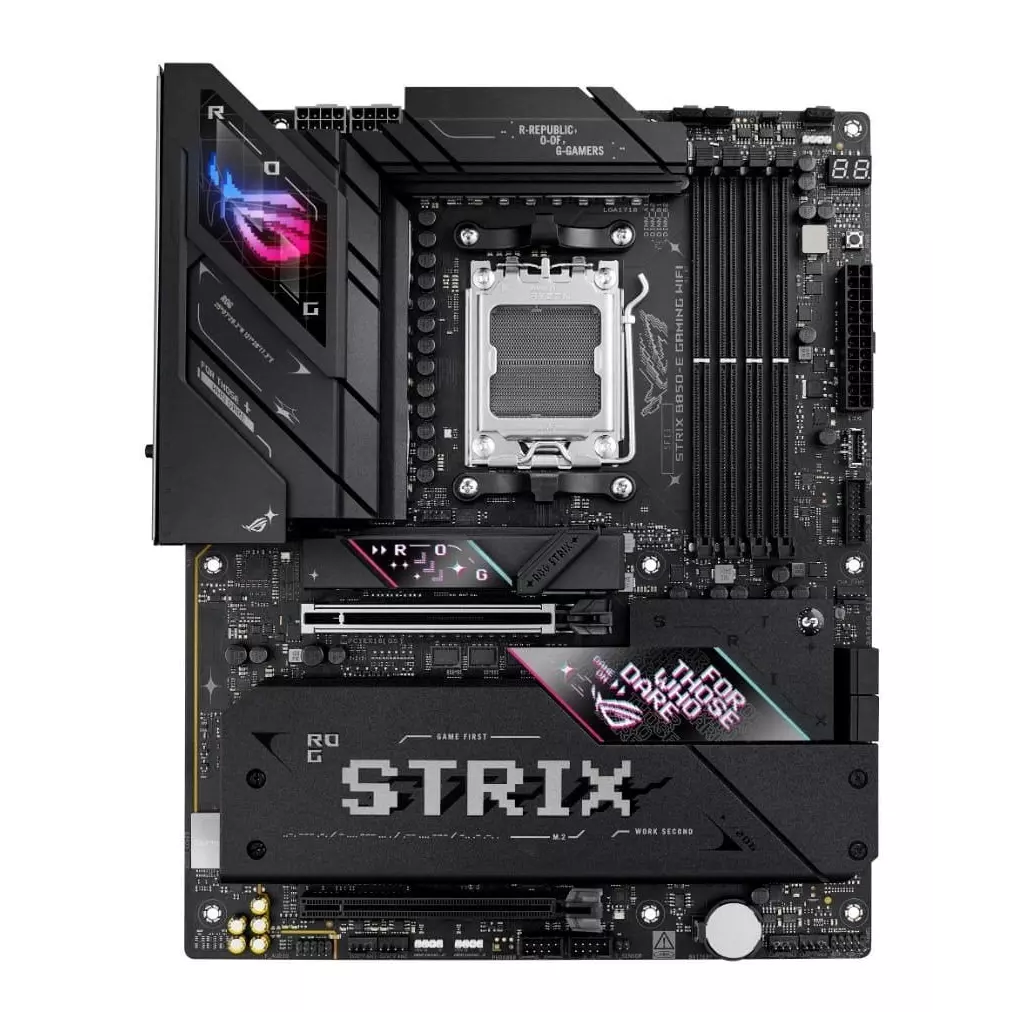

ASUS ROG Strix B850-E Gaming WiFi

Kód zboží (ID): 6695258 vytisknout
Obrázek produktu ASUS ROG Strix B850-E Gaming WiFi
Stav zboží: Nové
Dostupnost: není skladem
Datum odeslání: Neznámé
Výrobce: ASUS
Kód zboží: 6695258
Číslo zboží (PN): 90MB1J60-M0EAY0
EAN: 4711387769300
Záruka koncový zákazník: 36 měsíců
Záruka při koupi na IČO: 36 měsíců
Cena bez DPH: * 7799.27 Kč
Cena vč. DPH: * 9437 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.

Popis produktu:

ROG STRIX B850-E Gaming WIFI * ATX Form Factor CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Paměť: * 4x DIMM slot. max 192GB, DDR5 - Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnaný DIMM* * Dvoukanálová paměťová architektura * Podporuje rozšířené profily AMD pro přetaktování (EXPO™) * Profil ASUS Enhanced Memory Profile (AEMP) Grafické porty: * 1 x DisplayPort * 1 x HDMI™ port * 1 x USB4® (40Gbps) port podporující USB Type-C® display výstupy Rozšiřující sloty: * AMD Ryzen™ 9000 & 7000 Series Desktop Processors - 1x 1 x PCIe 5.0 x16 slot s Q-Release Slim * AMD Ryzen™ 8000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot s Q-Rlease Slim * AMD B850 Chipset - 1 x PCIe 4.0 x16 slot Úložný prostor: * celkem podporuje 5 x M.2 slot and 4 x SATA 6Gb/s port AMD Ryzen™ 9000 & 7000 Series Desktop Processors *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) *M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) *M.2_3 slot (Key M), type 2280 (Not supports) AMD B850 Chipset *M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: * 1 x Realtek 5Gb Ethernet * ASUS LANGuard Připojení a bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Podporuje 2.4/5/6GHz frequency band** *Podporuje Wi-Fi 7 320MHz bandwidth, až na 6.5Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Celkově 12 portů) *1 x USB4® (40Gbps) port (1 x USB Type-C®)* *1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)** *6 x USB 10Gbps port (6 x Type-A) *4 x USB 2.0 port (4 x Type-A) Přední USB (Celkově 7 portů) *1 x USB 10Gbps konektor (1 x USB Type-C®) *1 x USB 5Gbps header podporuje 2 přídavné USB 5Gbps porty *2 x USB 2.0 headers podporuje 4 přídavné USB 2.0 porty Audio: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Pozlacený audio jack *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x USB4® (40Gbps) (1 x USB Type-C®) *1 x USB 20Gbps port (podporuje USB Type-C® až s 30W PD/PPS Fast-charge) *6 x USB 10Gbps port (6 x Type-A) *4 x USB 2.0 port (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Realtek 5Gb Ethernet port *2 x Pozlacený audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *5 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power konektor *2 x 8-pin +12V CPU Power konektor Úložiště: *5 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: 1 x USB 10Gbps konektor (podporuje USB Type-C® ) 1 x USB 5Gbps header podporuje 2 přídavné USB 5Gbps porty 2 x USB 2.0 headers podporuje 4 přídavné USB 2.0 porty Různé: 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Příslušenství: Kabely: *2 x SATA 6Gb/s Přídavná chladící sada: *1 x Thermal pad for M.2 22110 Různé: *1 x ASUS WiFi Q-Anténa *1 x Kabelové vazby *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix nálepky *5 x M.2 gumy Dokumenty: *1 x Quick start návod
ROG STRIX B850-E Gaming WIFI ATX Form Factor CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Paměť: 4x DIMM slot. max 192GB, DDR5 - Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnaný DIMM* Dvoukanálová paměťová architektura Podporuje rozšířené profily AMD pro přetaktování (EXPO™) Profil ASUS Enhanced Memory Profile (AEMP) Grafické porty: 1 x DisplayPort 1 x HDMI™ port 1 x USB4® (40Gbps) port podporující USB Type-C® display výstupy Rozšiřující sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors - 1x 1 x PCIe 5.0 x16 slot s Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot s Q-Rlease Slim AMD B850 Chipset - 1 x PCIe 4.0 x16 slot Úložný prostor: celkem podporuje 5 x M.2 slot and 4 x SATA 6Gb/s port AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) M.2_3 slot (Key M), type 2280 (Not supports) AMD B850 Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Ethernet: 1 x Realtek 5Gb Ethernet ASUS LANGuard Připojení a bluetooth: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Podporuje 2.4/5/6GHz frequency band** Podporuje Wi-Fi 7 320MHz bandwidth, až na 6.5Gbps transfer rate. Bluetooth® v5.4 USB: Zadní USB (Celkově 12 portů) 1 x USB4® (40Gbps) port (1 x USB Type-C®)* 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)** 6 x USB 10Gbps port (6 x Type-A) 4 x USB 2.0 port (4 x Type-A) Přední USB (Celkově 7 portů) 1 x USB 10Gbps konektor (1 x USB Type-C®) 1 x USB 5Gbps header podporuje 2 přídavné USB 5Gbps porty 2 x USB 2.0 headers podporuje 4 přídavné USB 2.0 porty Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 SupremeFX Shielding Technology Savitech SV3H712 AMP Pozlacený audio jack Rear optical S/PDIF out port Premium audio capacitors Audio cover Vstupy/výstupy zadního panelu: 1 x USB4® (40Gbps) (1 x USB Type-C®) 1 x USB 20Gbps port (podporuje USB Type-C® až s 30W PD/PPS Fast-charge) 6 x USB 10Gbps port (6 x Type-A) 4 x USB 2.0 port (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Pozlacený audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Napájení: 1 x 24-pin Main Power konektor 2 x 8-pin +12V CPU Power konektor Úložiště: 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 10Gbps konektor (podporuje USB Type-C® ) 1 x USB 5Gbps header podporuje 2 přídavné USB 5Gbps porty 2 x USB 2.0 headers podporuje 4 přídavné USB 2.0 porty Různé: 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Příslušenství: Kabely: 2 x SATA 6Gb/s Přídavná chladící sada: 1 x Thermal pad for M.2 22110 Různé: 1 x ASUS WiFi Q-Anténa 1 x Kabelové vazby 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix nálepky 5 x M.2 gumy

ASUS ROG STRIX B850-E GAMING WIFI

The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4 Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD B850 Chipset

Memory

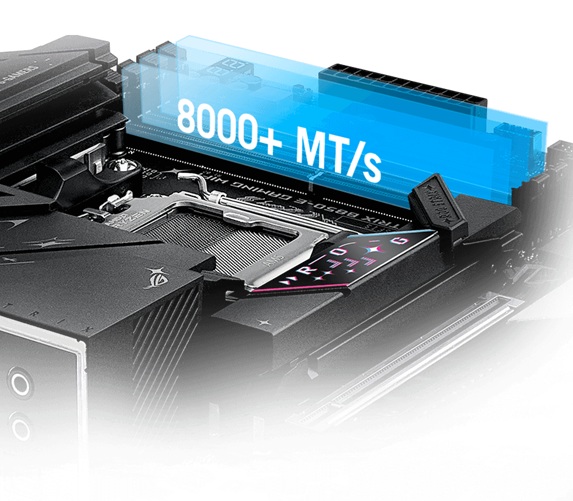

4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort* 1 x HDMI™ port** 1 x USB4 (40Gbps) port supports USB Type-C display outputs*** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a ***** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8. *** Specifications vary by CPU types. **** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

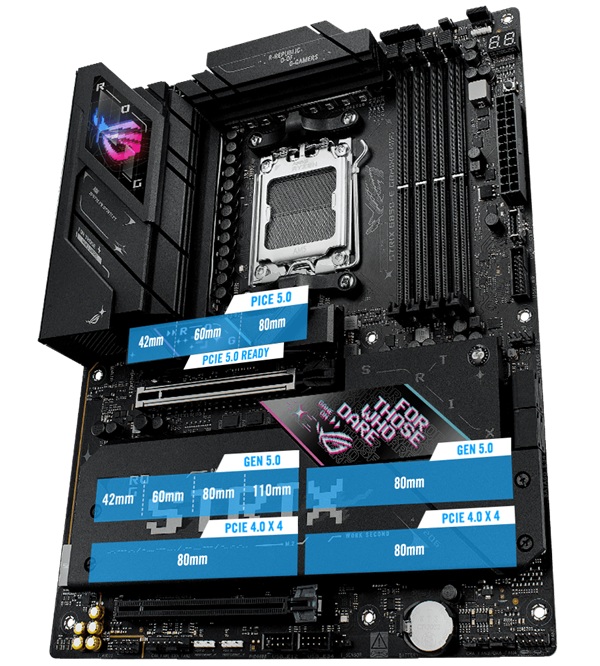

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)** M.2_3 slot (Key M), type 2280 (Not supports)*** AMD B850 Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8. ** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors. *** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

1 x Realtek 5Gb Ethernet ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 12 ports) 1 x USB4 (40Gbps) port(1 x USB Type-C)* 1 x USB 20Gbps port (supports USB Type-C with up to 30W PD/PPS Fast-charge)** 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (1 x USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

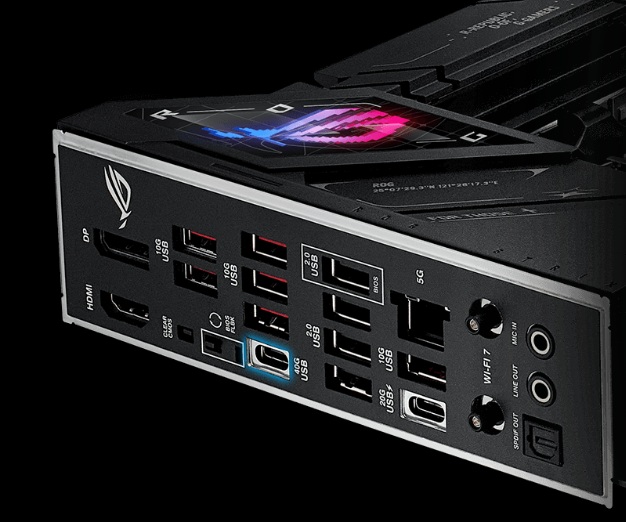

1 x USB4 (40Gbps)(1 x USB Type-C) 1 x USB 20Gbps port (supports USB Type-C with up to 30W PD/PPS Fast-charge) 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header

Special Features

Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 header(s) Rear USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0

Software Features

ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - GameFirst - Fan Xpert 4 - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher Core Flex

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 rubbers Documentation 1 x Quick start guide

Operating System

Windows 11

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ROG STRIX B850-E Gaming WIFI * ATX Form Factor CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Paměť: * 4x DIMM slot. max 192GB, DDR5 - Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnaný DIMM* * Dvoukanálová paměťová architektura * Podporuje rozšířené profily AMD pro přetaktování (EXPO™) * Profil ASUS Enhanced Memory Profile (AEMP) Grafické porty: * 1 x DisplayPort * 1 x HDMI™ port * 1 x USB4® (40Gbps) port podporující USB Type-C® display výstupy Rozšiřující sloty: * AMD Ryzen™ 9000 & 7000 Series Desktop Processors - 1x 1 x PCIe 5.0 x16 slot s Q-Release Slim * AMD Ryzen™ 8000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot s Q-Rlease Slim * AMD B850 Chipset - 1 x PCIe 4.0 x16 slot Úložný prostor: * celkem podporuje 5 x M.2 slot and 4 x SATA 6Gb/s port AMD Ryzen™ 9000 & 7000 Series Desktop Processors *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) *M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) *M.2_3 slot (Key M), type 2280 (Not supports) AMD B850 Chipset *M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: * 1 x Realtek 5Gb Ethernet * ASUS LANGuard Připojení a bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Podporuje 2.4/5/6GHz frequency band** *Podporuje Wi-Fi 7 320MHz bandwidth, až na 6.5Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Celkově 12 portů) *1 x USB4® (40Gbps) port (1 x USB Type-C®)* *1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)** *6 x USB 10Gbps port (6 x Type-A) *4 x USB 2.0 port (4 x Type-A) Přední USB (Celkově 7 portů) *1 x USB 10Gbps konektor (1 x USB Type-C®) *1 x USB 5Gbps header podporuje 2 přídavné USB 5Gbps porty *2 x USB 2.0 headers podporuje 4 přídavné USB 2.0 porty Audio: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Pozlacený audio jack *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x USB4® (40Gbps) (1 x USB Type-C®) *1 x USB 20Gbps port (podporuje USB Type-C® až s 30W PD/PPS Fast-charge) *6 x USB 10Gbps port (6 x Type-A) *4 x USB 2.0 port (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Realtek 5Gb Ethernet port *2 x Pozlacený audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *5 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power konektor *2 x 8-pin +12V CPU Power konektor Úložiště: *5 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: 1 x USB 10Gbps konektor (podporuje USB Type-C® ) 1 x USB 5Gbps header podporuje 2 přídavné USB 5Gbps porty 2 x USB 2.0 headers podporuje 4 přídavné USB 2.0 porty Různé: 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Příslušenství: Kabely: *2 x SATA 6Gb/s Přídavná chladící sada: *1 x Thermal pad for M.2 22110 Různé: *1 x ASUS WiFi Q-Anténa *1 x Kabelové vazby *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix nálepky *5 x M.2 gumy Dokumenty: *1 x Quick start návod
ASUS ROG STRIX B850-E GAMING WIFI

ASUS ROG STRIX B850-E GAMING WIFI

ATX základní deska AMD B850 pro AM5, Ryzen 9000/8000/7000, DDR5, PCIe 5.0, Wi-Fi 7, USB4 a Realtek 5Gb Ethernet ASUS ROG STRIX B850-E GAMING WIFI je základní deska formátu ATX postavená na čipsetu AMD B850 a socketu AMD AM5. Je určena pro desktopové procesory AMD Ryzen™ 9000 Series, Ryzen™ 8000 Series a Ryzen™ 7000 Series. Deska nabízí podporu DDR5 pamětí až do kapacity 256 GB, hlavní PCIe 5.0 x16 SafeSlot, pět M.2 slotů včetně tří PCIe 5.0 pozic, 4× SATA 6 Gb/s a robustní napájecí řešení 16 + 2 + 2 power solution s fázemi dimenzovanými až na 90 A.

Výbava zahrnuje Wi-Fi 7, Realtek® 5Gb Ethernet, USB4 Type-C, USB 20Gbps Type-C, HDMI 2.1, DisplayPort 1.4, ROG SupremeFX audio s kodekem ALC4080 a zesilovačem Savitech SV3H712. Pro ladění výkonu a jednodušší správu nabízí AI Overclocking, AI Cache Boost, ASUS AI Advisor, AI Networking II, AEMP, BIOS FlashBack, Clear CMOS, PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-LED a Aura Sync RGB.

ASUS
Kategorie Specifikace
Model
ASUS ROG STRIX B850-E GAMING WIFI
Produktová řada
Typ produktu
Základní deska / ATX motherboard
Čipset
AMD B850 Chipset
ASUS ROG
ASUS ROG STRIX B850-E GAMING WIFI. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5, Kompatibilní procesory: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 192 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 5, 10. Maximální rozlišení: 7680 x 4320 px. Typ rozhraní Ethernetu: 5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11be), Standardy Wi-Fi: Wi-Fi 7 (802.11be)
