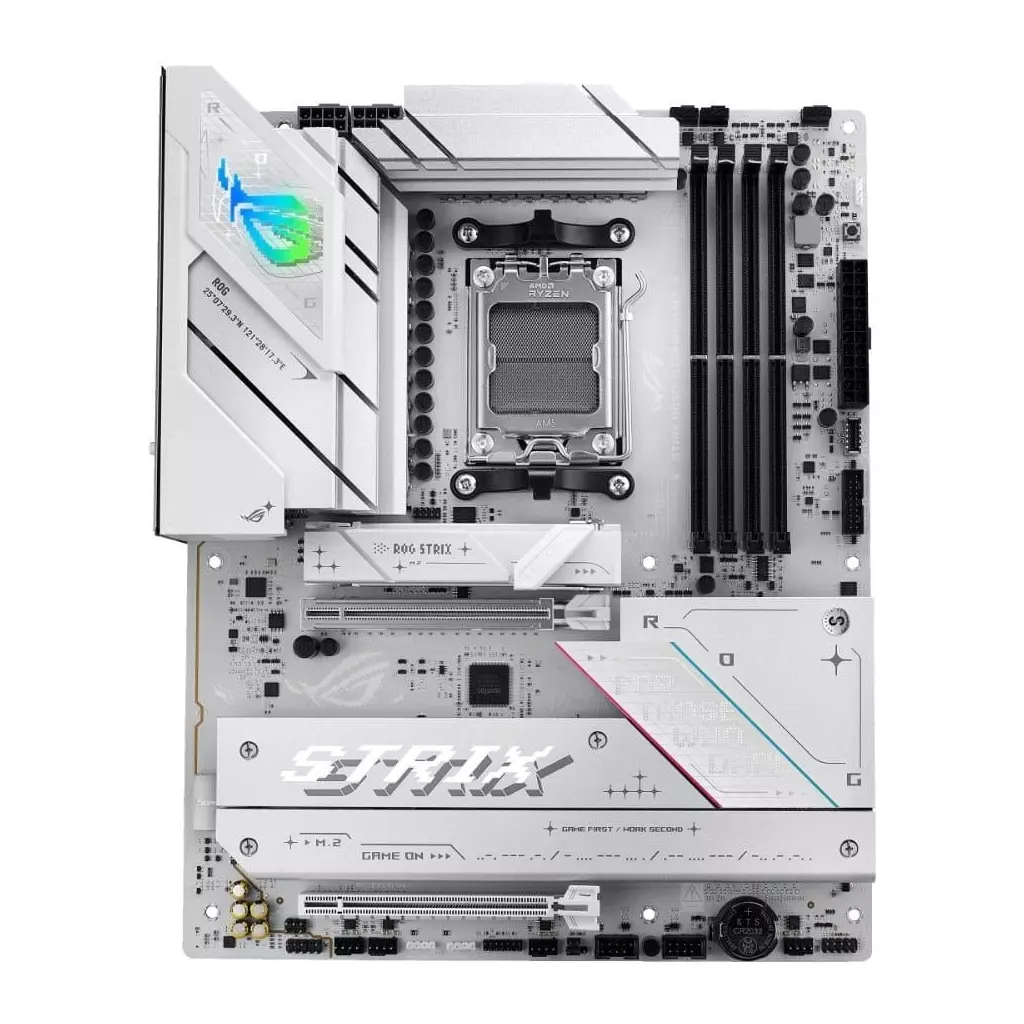

ASUS ROG Strix B850-A Gaming WiFi

ROG STRIX B850-A Gaming WIFI * ATX Form Factor CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Chipset Paměť: 4 x DIMM slots, max. 192GB, DDR5 *Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000 ECC a Non-ECC, nevyrovnaný modul DIMM Grafické porty: 1 x DisplayPort 1 x HDMI™ port Rozšiřující sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors *1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors *1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode) AMD B850 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) Úložný prostor: Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 7000 & 9000 Series Desktop Processors *M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) *M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors *M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) *M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B850 Chipset *M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)*** *M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) *2 x SATA 6Gb/s ports Ethernet: *1 x Intel® 2.5Gb Ethernet *ASUS LANGuard Připojení a bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band** *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4*** USB: Zadní USB (Celkově 10 portů) *1 x USB 20Gbps port (1 x USB Type-C®) *3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) *4 x USB 5Gbps ports (4 x Type-A) *2 x USB 2.0 ports (4 x Type-A) Přední USB (Celkově 7 portů) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x USB 20Gbps port (1 x USB Type-C®) *3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) *4 x USB 5Gbps ports (4 x Type-A) *2 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connector Úložiště: *4 x M.2 slots (Key M) *2 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 headers *1 x CPU Over voltage jumper *1 x Front Panel Audio header (F_AUDIO) *1 x Power button *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header *1 x Thunderbolt™ (USB4®) header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 Q-Latch package *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix stickers *4 x M.2 rubbers Instalační média: *1 x USB drive with utilities and drivers Dokumenty: *1 x Quick start guide

ROG STRIX B850-A Gaming WIFI ATX Form Factor CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Chipset Paměť: 4 x DIMM slots, max. 192GB, DDR5 Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000 ECC a Non-ECC, nevyrovnaný modul DIMM Grafické porty: 1 x DisplayPort 1 x HDMI™ port Rozšiřující sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) Úložný prostor: Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)*** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports Ethernet: 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Připojení a bluetooth: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** USB: Zadní USB (Celkově 10 portů) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (4 x Type-A) Přední USB (Celkově 7 portů) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Audio cover Vstupy/výstupy zadního panelu: 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Napájení: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Úložiště: 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB: 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé: 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Příslušenství: Kabely: 2 x SATA 6Gb/s cables Různé: 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers

ASUS ROG STRIX B850-A GAMING WIFI

ASUS ROG STRIX B850-A GAMING WIFI

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen série 9000/ 8000/ 7000 (patice AM5)

Čipová sada AMD B850

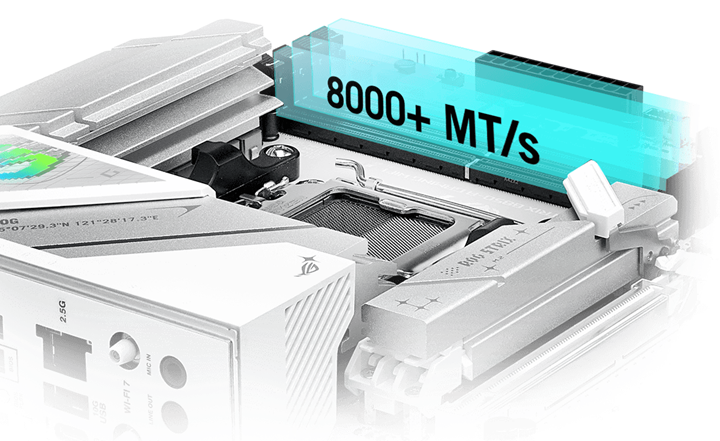

Paměť 4× DDR5 paměťový slot, podpora až 256 GB Podpora DDR5 až 8000+ MT/s (OC) Dvoukanálová architektura paměti Podpora ECC a non-ECC, bez vyrovnávací paměti Podpora On-Die ECC funkce Podpora AMD Extended Profiles for Overclocking (EXPO) Podpora ASUS Enhanced Memory Profile (AEMP)

Sloty AMD Ryzen série 9000 a 7000 1× PCIe 5.0 x16 slot AMD Ryzen série 8000 1× PCIe 4.0 x16 slot (podporuje x8/x4 režim) AMD B850 čipová sada 1× PCIe 4.0 x16 slot (podporuje x4 režim)

Grafika 1× DisplayPort, podporující max. rozlišení 8K při 30 Hz (dle DP 1.4) 1× HDMI, podporující max. rozlišení 4K při 60 Hz (dle HDMI 2.1)

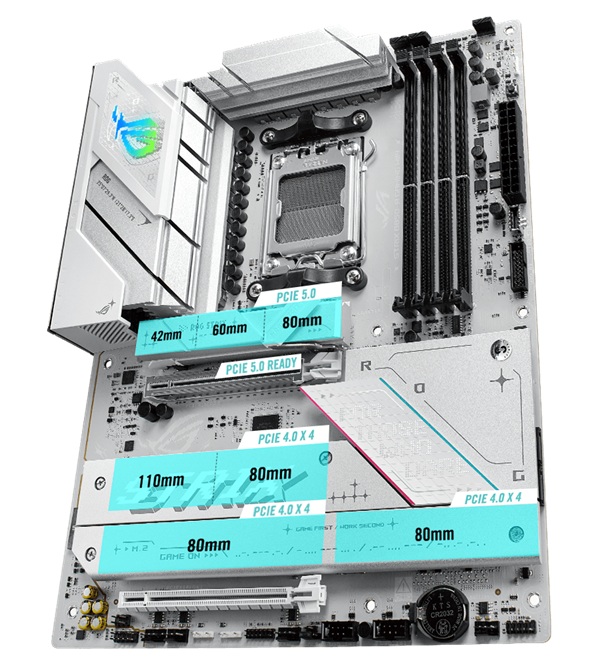

Úložiště AMD Ryzen série 9000 a 7000 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 5.0 x4 režim) 1× M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 4.0 x4 režim) AMD Ryzen série 8000 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) 1× M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 4.0 x4/x2 režim) AMD B850 čipová sada 2× M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim) 2× SATA 6 Gb/s Podpora AMD RAIDXpert2 AMD Ryzen série 9000 Podpora RAID 0, RAID 1, RAID 5 a RAID 10 AMD Ryzen série 8000 Podpora RAID 0, RAID 1 AMD Ryzen série 7000 Podpora RAID 0, RAID 1 a RAID 10

USB 1× USB-C 3.2 Gen2x2 port na zadním panelu 1× USB-C 3.2 Gen2 (USB 3.1) port na zadním panelu 2× USB 3.2 Gen2 (USB 3.1) port na zadním panelu 1× USB-C 3.2 Gen2 (USB 3.1) port dostupný přes interní USB konektor 6× USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio ROG SupremeFX ALC4080 Codec 7.1kanálové Surround Sound High Definition Audio SupremeFX Shielding technologie Savitech SV3H712 AMP 120 dB SNR přehrávání, 110 dB SNR záznam Podpora S/PDIF výstupu

LAN 1× Intel 2,5Gigabit LAN řadič ASUS LANGuard

WLAN/ Bluetooth 2×2 Wi-Fi 7 (802.11be) Triple Band (2,4 GHz, 5 GHz, 6 GHz) Přenosová rychlost až 2,9 Gb/s Bluetooth 5.4

Interní konektory 1× 24pin ATX hlavní napájecí konektor 2× 8pin +12V napájecí konektor 2× SATA 6Gb/s 4× M.2 slot, M Key 1× USB-C 3.2 Gen2 (USB 3.1) 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1) 2× USB 2.0 konektor (podporuje 4× USB 2.0) 1× 4pin konektor ventilátoru CPU 1× 4pin konektor volitelného ventilátoru CPU 1× 4pin konektor pumpy vodního chlazení 4× 4pin konektor ventilátoru skříně 3× konektor adresovatelného RGB LED pásku 1× propojka CPU Over Voltage 1× audio konektor předního panelu 1× tlačítko Power 1× 10-1pin konektor systémového panelu 1× konektor teplotního čidla 1× Thunderbolt (USB4) konektor

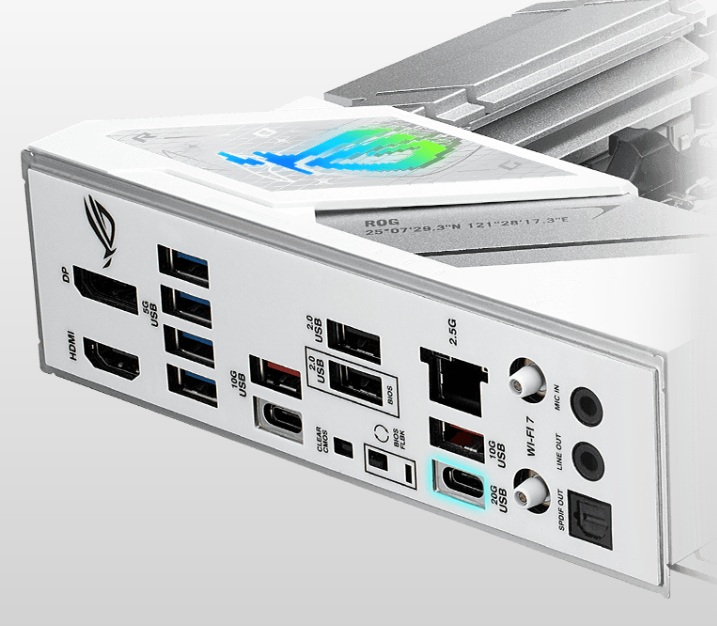

Porty na zadním panelu 1× USB-C 3.2 Gen2×2 1× USB-C 3.2 Gen2 2× USB 3.2 Gen2 (USB 3.1 Gen2) 4× USB 3.2 Gen1 port (USB 3.0) 2× USB 2.0 1× DisplayPort 1× HDMI 2× konektor Wi-Fi antény 1× RJ-45 2× audio jack 1× optický S/PDIF výstup 1× tlačítko BIOS Flashback 1× tlačítko Clear CMOS

Rozměry 30,5 × 24,4 cm ATX formát

Pozdvihnite svoju zostavu pomocou ROG Strix B850-A Gaming WiFi. Táto základná doska s elegantným bielym PCB a podporou pre procesory AMD Ryzen™ 9000 Series poskytuje výkon a konektivitu potrebnú pre pokročilé aplikácie AI. S podporou DDR5, plnými možnosťami PCIe 5.0, portom USB 20 Gbps a WiFi 7 je to dokonalá zmes štýlu a výkonu. Špecifikácia: CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD B850 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort* 1 x HDMI™ port** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Special Features Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Software Features ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick start guide Operating System Windows 11 Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
