* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H610 Chipset Memory 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 5 Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth® v5.0* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 5 ports) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x User guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
ASUS PRIME H610M-A WIFIChipset: Intel® H610 Rozměrový formát: mATX (244x216mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 2x DIMM, max. 96GB, DDR5 5600/5400/5200/5000/4800 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x VGA * 1x HDMI 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Intel® 1Gb WLAN + Bluetooth: Wi-Fi 5 (802.11 a/b/g/n/ac) + Bluetooth® v5.0 Rozšiřující sloty: * 1x PCIe 4.0 x16 * 1x PCIe 3.0 x1 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x2) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 5 portů) * 1x USB 3.2 Gen 2 (1x typ-A) * 4x USB 2.0 (4x typ-A) Přední USB (celkem 6 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 1x USB 2.0 header - podpora dalších 2 portů USB 2.0 * 1x USB 2.0 header - podpora dalšího 1 portu USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2 (1x typ-A) * 4x USB 2.0 (4x typ-A) * 1x DisplayPort * 1x HDMI® * 1x VGA * 1x modul Wi-Fi * 1x RJ-45 Intel® 1Gb * 3x audio jack * 1x PS/2 klávesnice (fialový) * 1x PS/2 myši (zelený) Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 2x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 1x USB 2.0 header - podpora dalších 2 portů USB 2.0 * 1x USB 2.0 header - podpora dalšího 1 portu USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 2x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x S/PDIF Out header * 1x Speaker header * 1x SPI TPM header (14-1pin) * 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 1x balení šroubků pro M.2 SSD * 1x Wi-Fi anténa * 1x uživatelská příručka Odkaz na stránku výrobce: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi/
Specifikace:
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H610 Chipset Memory 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth "Wi-Fi 5 Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth® v5.1*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
" USB Rear USB (Total 5 ports) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio "Realtek 7.1 Surround Sound High Definition Audio CODEC* -
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x VGA port 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package Documentation 1 x User guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
Základní deska, socket Intel 1700, čipset Intel H610, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 2x DDR5 až 5600 MHz, maximálně 96 GB; sloty: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1; konektory: 4x SATA 6Gb/s, 2x M.2, 7x USB 2.0, 3x USB 3.2 Gen1, 1x USB 3.2 Gen2, 2x PS/2, 1x GLAN, 1x DisplayPort, 1x HDMI, 1x VGA, 3x 3,5 mm audio jack; Wi-Fi 5, Bluetooth 5.0; formát mATX
Základní deska Intel ® H610 (LGA 1700) mATX s DDR5, PCIe 4.0, dvěma sloty M.2, Intel ® 1Gb Ethernet, WIFI 5, DisplayPort, HDMI™, VGA, porty USB 3.2 Gen 2, Aura Sync Chipset: Intel® H610 Rozměrový formát: mATX (244x216mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 2x DIMM, max. 96GB, DDR5 5600/5400/5200/5000/4800 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem II Grafické výstupy: 1x DisplayPort 1.4 1x VGA 1x HDMI 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Intel® 1Gb WLAN + Bluetooth: Wi-Fi 5 (802.11 a/b/g/n/ac) + Bluetooth® v5.0 Rozšiřující sloty: 1x PCIe 4.0 x16 1x PCIe 3.0 x1 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x2) 4x port SATA 6Gb/s USB: Zadní USB (celkem 5 portů) 1x USB 3.2 Gen 2 (1x typ-A) 4x USB 2.0 (4x typ-A) Přední USB (celkem 6 portů) 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 1x USB 2.0 header - podpora dalších 2 portů USB 2.0 1x USB 2.0 header - podpora dalšího 1 portu USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2 (1x typ-A) 4x USB 2.0 (4x typ-A) 1x DisplayPort 1x HDMI® 1x VGA 1x modul Wi-Fi 1x RJ-45 Intel® 1Gb 3x audio jack 1x PS/2 klávesnice (fialový) 1x PS/2 myši (zelený) Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 1x USB 2.0 header - podpora dalších 2 portů USB 2.0 1x USB 2.0 header - podpora dalšího 1 portu USB 2.0 Ostatní 3x adresovatelný Gen 2 header 2x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Příslušenství: 2x SATA 6Gb/s kabel 1x I/O záslepka 1x balení šroubků pro M.2 SSD 1x Wi-Fi anténa 1x uživatelská příručka

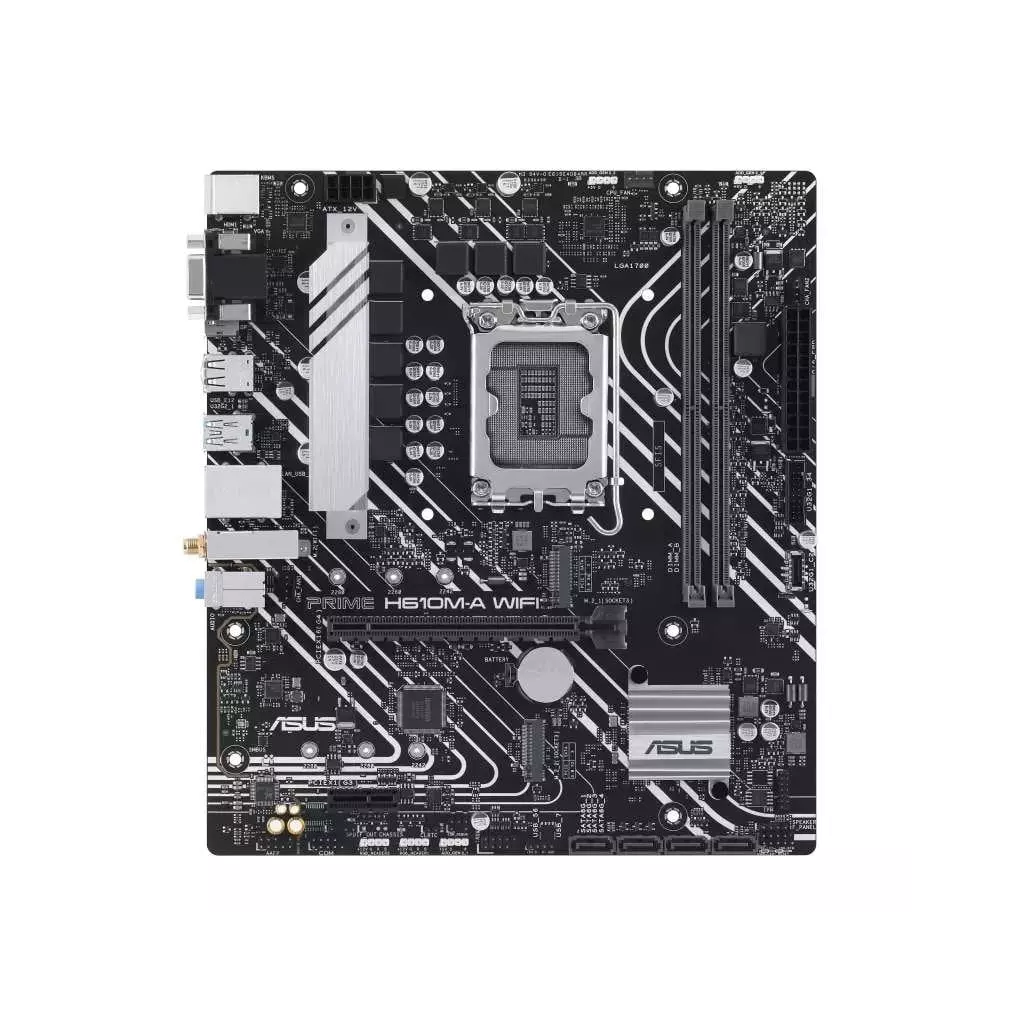

ASUS PRIME H610M-A WIFI
Intel H610 (LGA 1700) mATX motherboard with DDR5,PCIe 4.0, dual M.2 slots, Intel 1Gb Ethernet, WIFI 5, DisplayPort, HDMI™, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync
Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet ,WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C
Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
CPU
Intel Socket LGA1700 for 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 5 ports)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor
24.4 cm x 21.6 cm
ASUS PRIME H610M-A WIFI
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 12., 13. a 14. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada
Intel H610
Paměť
2× DDR5 paměťový slot, podpora až 96 GB
Podpora DDR5 5600/ 5400/ 5200/ 5000/ 4800 MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora On-Die ECC funkce
Podpora Intel Extreme Memory Profile (XMP)
SlotyIntel CPU
1× PCIe 4.0 x16 slot
Intel H610 čipová sada
1× PCIe 3.0 x1 slot
Grafika
1× HDMI port, podporující max. rozlišení 4K při 60 Hz
1× DisplayPort port, podporující max. rozlišení 4K při 60 Hz
1× VGA port
ÚložištěIntel H610 čipová sada
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 3.0 x4 režim)
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 3.0 x2 režim)
4× SATA 6Gb/s port
USB
1× USB 3.2 Gen2 port na zadním panelu
1× USB-C 3.2 Gen1 port dostupný přes interní USB konektor
2× USB 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor
7× USB 2.0 port (4 porty na zadním panelu, 3 porty dostupné přes interní USB konektory)
Audio
Realtek Audio Codec
7.1kanálové High Definition Audio
LAN
1× Intel Gigabit LAN řadič
ASUS LANGuard
WLAN/ Bluetooth
Wi-Fi 5
802.11a/b/g/n/ac
Dual Band (2,4 GHz, 5 GHz)
Bluetooth 5.0
Interní konektory
1× 24pin hlavní napájecí konektor
1× 8pin 12V napájecí konektor
4× SATA 6Gb/s konektor
2× M.2 slot, M Key
1× USB-C 3.2 Gen1 (USB-C 3.0) konektor
1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port)
2× USB 2.0 konektor (podporuje 3× USB 2.0 port)
1× 4pin konektor ventilátoru CPU
2× 4pin konektor ventilátoru skříně
3× konektor adresovatelného RGB LED pásku
2× konektor Aura RGB LED pásku
1× konektor Clear CMOS
1× audio konektor předního panelu
1× konektor sériového portu
1× konektor S/PDIF výstupu
1× konektor reproduktoru
1× SPI TPM konektor
1× konektor systémového panelu
Porty na zadním panelu
2× konektor Wi-Fi antény
1× PS/2 port klávesnice
1× PS/2 port myši
1× HDMI
1× DisplayPort
1× VGA
1× USB 3.2 Gen2 (USB 3.1 Gen2)
4× USB 2.0
1× RJ-45
3× audio jack
Rozměry
24,4 × 21,6 cm
Micro ATX formát
ASUS PRIME H610M-A WIFIChipset: Intel® H610 Rozměrový formát: mATX (244x216mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 2x DIMM, max. 96GB, DDR5 5600/5400/5200/5000/4800 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x VGA * 1x HDMI 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Intel® 1Gb WLAN + Bluetooth: Wi-Fi 5 (802.11 a/b/g/n/ac) + Bluetooth® v5.0 Rozšiřující sloty: * 1x PCIe 4.0 x16 * 1x PCIe 3.0 x1 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x2) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 5 portů) * 1x USB 3.2 Gen 2 (1x typ-A) * 4x USB 2.0 (4x typ-A) Přední USB (celkem 6 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 1x USB 2.0 header - podpora dalších 2 portů USB 2.0 * 1x USB 2.0 header - podpora dalšího 1 portu USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2 (1x typ-A) * 4x USB 2.0 (4x typ-A) * 1x DisplayPort * 1x HDMI® * 1x VGA * 1x modul Wi-Fi * 1x RJ-45 Intel® 1Gb * 3x audio jack * 1x PS/2 klávesnice (fialový) * 1x PS/2 myši (zelený) Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 2x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 1x USB 2.0 header - podpora dalších 2 portů USB 2.0 * 1x USB 2.0 header - podpora dalšího 1 portu USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 2x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x S/PDIF Out header * 1x Speaker header * 1x SPI TPM header (14-1pin) * 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 1x balení šroubků pro M.2 SSD * 1x Wi-Fi anténa * 1x uživatelská příručka Odkaz na stránku výrobce: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi/
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
