ASUS MB Sc LGA1700 PROART B760-CREATOR D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 30.9.
Výrobce:
Asus
Kód zboží:
5551905
Číslo zboží (PN):
90MB1DU0-M0EAY0
EAN:
4711387017852
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
4466 Kč
Cena vč. DPH: *
5404 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:

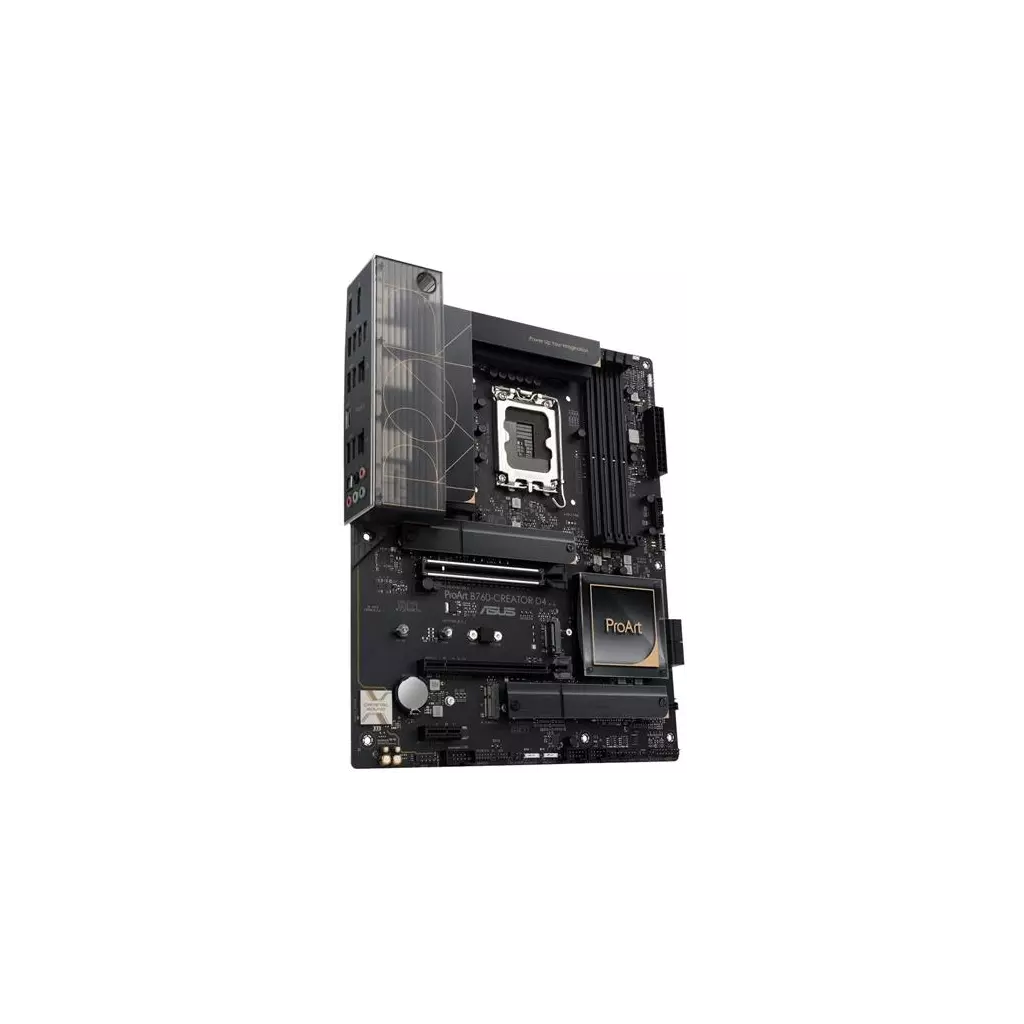

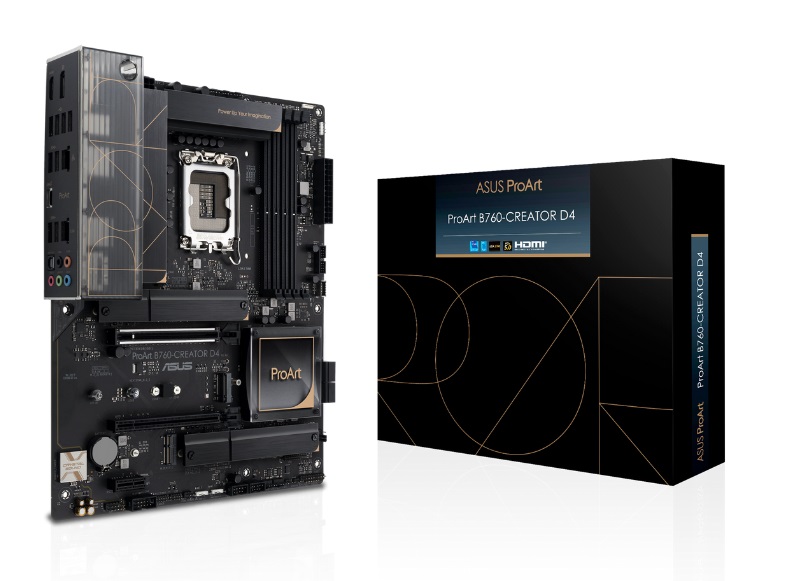

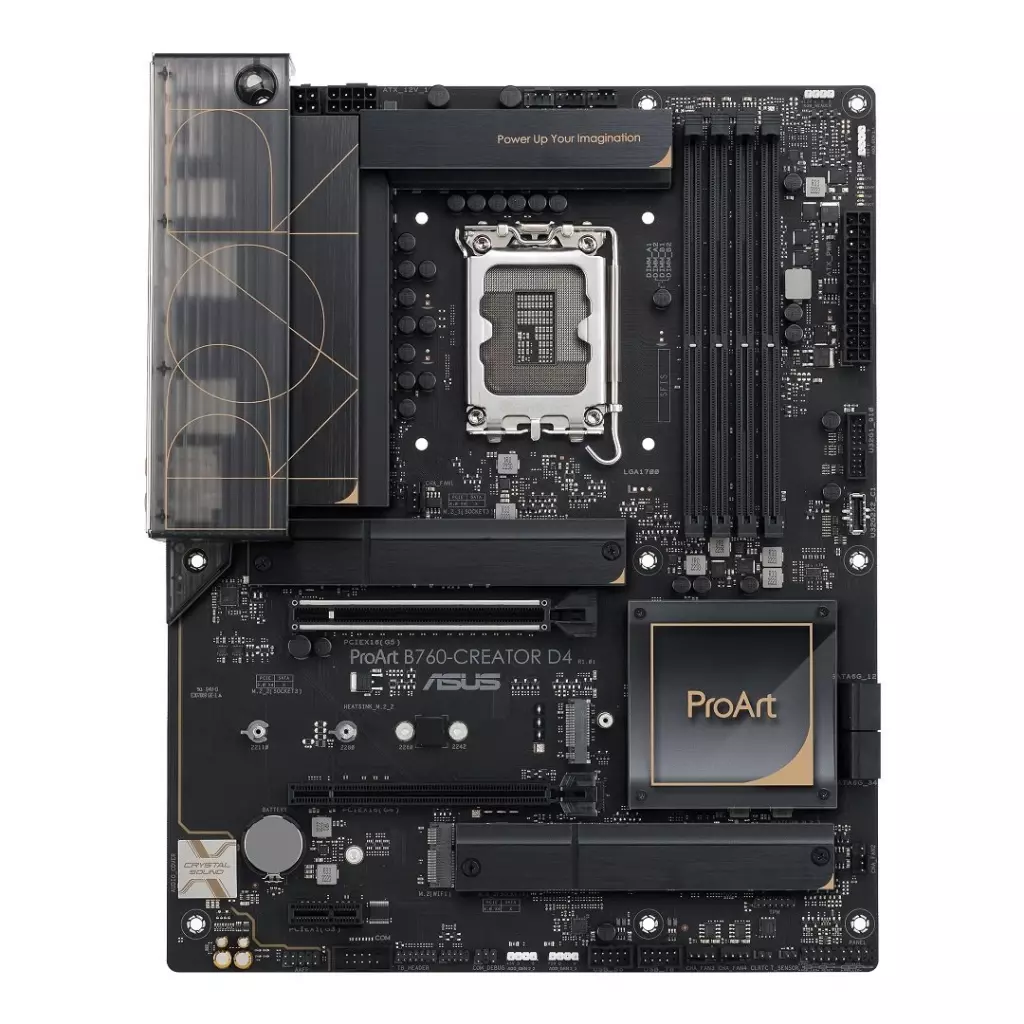

ProArt B760-CREATOR D4
CPU |
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors |
Supports Intel 10 nm CPU |
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
* Refer to www.asus.com for CPU support list. |
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel B760 |

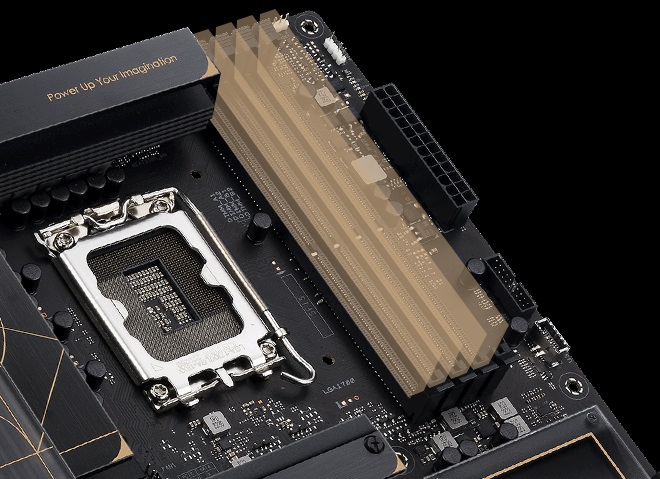

Memory |
4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture |
Supports Intel Extreme Memory Profile (XMP) |
OptiMem II |
* Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. |
Graphics |
1 x HDMI port** |
1 x DisplayPort port*** |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
** Support 4K@60Hz as specified in HDMI 2.1. |
*** Support max. 8K@60Hz as specified in DisplayPort 1.4. |
Expansion Slots |
Intel 13th & 12th Gen Processors |
1 x PCIe 5.0/4.0/3.0 x16 slot |
Intel B760 Chipset* |
1 x PCIe 4.0 x16 slot (supports x4 mode) |
1 x PCIe 3.0 x1 slot** |
** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
Storage |
Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* |
Intel 13th & 12th Gen Processors |
M.2_1 slot (Key M), type 2242/2260/2280/22110 |
- Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode. |
Intel B760 Chipset** |
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
4 x SATA 6Gb/s ports*** |
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
1 x Intel 1Gb Ethernet |
ASUS LANGuard |
Wireless & Bluetooth |
M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately. |
USB |
Rear USB (Total 9 ports) |
1 x USB 3.2 Gen 2 Type-C port |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
4 x USB 2.0 ports (4 x Type-A) |
Front USB (Total 7 ports) |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
Audio Features |
- Premium audio capacitors |
- Dedicated audio PCB layers |
- Audio cover |
- Unique de-pop circuit |

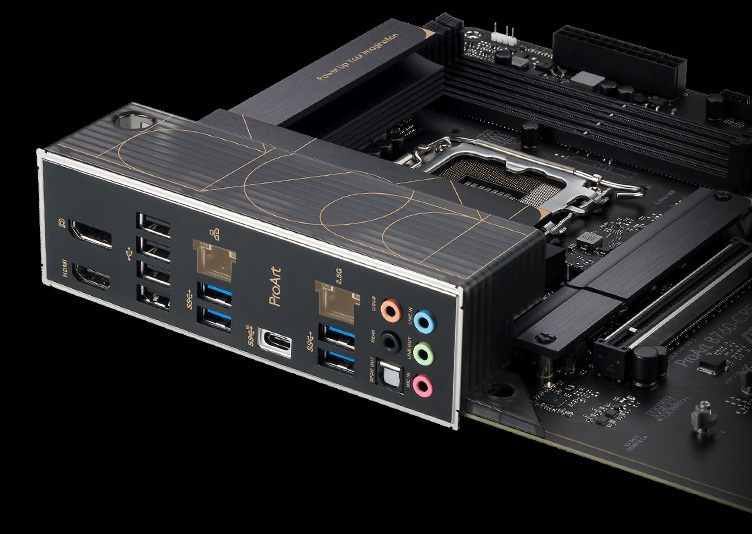

Back Panel I/O Ports |
1 x USB 3.2 Gen 2 port (1 x USB Type-C) |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
4 x USB 2.0 ports (4 x Type-A) |
1 x DisplayPort |
1 x HDMI port |
1 x Realtek 2.5Gb Ethernet port |
1 x Intel 1Gb Ethernet port |
5 x Audio jacks |
1 x Optical S/PDIF out port |
Internal I/O Connectors |
Fan and Cooling related |
1 x 4-pin CPU Fan header |
1 x 4-pin CPU OPT Fan header |
1 x 4-pin AIO Pump header |
4 x 4-pin Chassis Fan headers |
Power related |
1 x 24-pin Main Power connector |
1 x 8-pin +12V Power connector |
1 x 4-pin +12V Power connector |
Storage related |
3 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
1 x AURA RGB header |
1 x Clear CMOS header |
1 x COM Port header |
1 x Front Panel Audio header (AAFP) |
1 x M.2 slot (Key E) |
1 x SPI TPM header (14-1pin) |
1 x 20-5 pin System Panel header |
1 x Thermal Sensor header |
1 x Thunderbolt™ header |
Special Features |
ASUS 5X PROTECTION III |
- DIGI+ VRM (- Digital power design with DrMOS) |
- Enhanced DRAM Overcurrent Protection |
- ESD Guards |
- LANGuard |
- Overvoltage Protection |
- SafeSlot |
- Stainless-Steel Back I/O |
ASUS Q-Design |
- M.2 Q-Latch |
- Q-Connector |
- Q-DIMM |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
- Q-Slot |
ASUS Thermal Solution |
- Flexible M.2 heatsink |
- VRM heatsink design |
ASUS EZ DIY |
- ProCool |
- Pre-mounted I/O shield |
AURA Sync |
- AURA RGB header |
- Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
Armoury Crate |
- AURA Creator |
- AURA Sync |
- Fan Xpert 4 |
- Power Saving |
- Two-Way AI Noise Cancelation |
AI Suite 3 |
- Performance And Power Saving Utility |
DIGI+ VRM |
Turbo app |
ASUS CPU-Z |
IT Management software supported |
- ASUS Control Center Express(ACCE) |
ProArt Creator Hub |
CreationFirst |
Norton 360 Deluxe (60 Days Free Trial) |
WinRAR |
UEFI BIOS |
ASUS EZ DIY |
- ASUS CrashFree BIOS 3 |
- ASUS EZ Flash 3 |
- ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
2 x M.2 Rubber packages |
1 x Screw package for M.2 Key E |
1 x ProArt ruler |
1 x Q-connector |
Documentation |
1 x ACC Express Activation Key Card |
1 x User guide |
Operating System |
Windows 11 64-bit, Windows 10 64-bit |
Form Factor |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ProArt B760-CREATOR D4
CPU |
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors |
Supports Intel 10 nm CPU |
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
* Refer to www.asus.com for CPU support list. |
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel B760 |
Memory |
4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture |
Supports Intel Extreme Memory Profile (XMP) |
OptiMem II |
* Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. |
Graphics |
1 x HDMI port** |
1 x DisplayPort port*** |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
** Support 4K@60Hz as specified in HDMI 2.1. |
*** Support max. 8K@60Hz as specified in DisplayPort 1.4. |
Expansion Slots |
Intel 13th & 12th Gen Processors |
1 x PCIe 5.0/4.0/3.0 x16 slot |
Intel B760 Chipset* |
1 x PCIe 4.0 x16 slot (supports x4 mode) |
1 x PCIe 3.0 x1 slot** |
** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
Storage |
Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* |
Intel 13th & 12th Gen Processors |
M.2_1 slot (Key M), type 2242/2260/2280/22110 |
- Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode. |
Intel B760 Chipset** |
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
4 x SATA 6Gb/s ports*** |
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
1 x Intel 1Gb Ethernet |
ASUS LANGuard |
Wireless & Bluetooth |
M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately. |
USB |
Rear USB (Total 9 ports) |
1 x USB 3.2 Gen 2 Type-C port |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
4 x USB 2.0 ports (4 x Type-A) |
Front USB (Total 7 ports) |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
Audio Features |
- Premium audio capacitors |
- Dedicated audio PCB layers |
- Audio cover |
- Unique de-pop circuit |
Back Panel I/O Ports |
1 x USB 3.2 Gen 2 port (1 x USB Type-C) |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
4 x USB 2.0 ports (4 x Type-A) |
1 x DisplayPort |
1 x HDMI port |
1 x Realtek 2.5Gb Ethernet port |
1 x Intel 1Gb Ethernet port |
5 x Audio jacks |
1 x Optical S/PDIF out port |
Internal I/O Connectors |
Fan and Cooling related |
1 x 4-pin CPU Fan header |
1 x 4-pin CPU OPT Fan header |
1 x 4-pin AIO Pump header |
4 x 4-pin Chassis Fan headers |
Power related |
1 x 24-pin Main Power connector |
1 x 8-pin +12V Power connector |
1 x 4-pin +12V Power connector |
Storage related |
3 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
1 x AURA RGB header |
1 x Clear CMOS header |
1 x COM Port header |
1 x Front Panel Audio header (AAFP) |
1 x M.2 slot (Key E) |
1 x SPI TPM header (14-1pin) |
1 x 20-5 pin System Panel header |
1 x Thermal Sensor header |
1 x Thunderbolt™ header |
Special Features |
ASUS 5X PROTECTION III |
- DIGI+ VRM (- Digital power design with DrMOS) |
- Enhanced DRAM Overcurrent Protection |
- ESD Guards |
- LANGuard |
- Overvoltage Protection |
- SafeSlot |
- Stainless-Steel Back I/O |
ASUS Q-Design |
- M.2 Q-Latch |
- Q-Connector |
- Q-DIMM |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
- Q-Slot |
ASUS Thermal Solution |
- Flexible M.2 heatsink |
- VRM heatsink design |
ASUS EZ DIY |
- ProCool |
- Pre-mounted I/O shield |
AURA Sync |
- AURA RGB header |
- Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
Armoury Crate |
- AURA Creator |
- AURA Sync |
- Fan Xpert 4 |
- Power Saving |
- Two-Way AI Noise Cancelation |
AI Suite 3 |
- Performance And Power Saving Utility |
DIGI+ VRM |
Turbo app |
ASUS CPU-Z |
IT Management software supported |
- ASUS Control Center Express(ACCE) |
ProArt Creator Hub |
CreationFirst |
Norton 360 Deluxe (60 Days Free Trial) |
WinRAR |
UEFI BIOS |
ASUS EZ DIY |
- ASUS CrashFree BIOS 3 |
- ASUS EZ Flash 3 |
- ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
2 x M.2 Rubber packages |
1 x Screw package for M.2 Key E |
1 x ProArt ruler |
1 x Q-connector |
Documentation |
1 x ACC Express Activation Key Card |
1 x User guide |
Operating System |
Windows 11 64-bit, Windows 10 64-bit |
Form Factor |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ASUS ProArt B760-CREATOR D4
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 12. a 13. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada
Intel B760
Paměť
4x DDR4 paměťový slot, podpora až 128 GB
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP)
Podpora OptiMem II
Sloty
Intel CPU
1x PCIe 5.0 x16 slot
Intel B760 čipová sada
1x PCIe 4.0 x16 slot (podporuje x4 režim)
1x PCIe 3.0 x1 slot
Grafika
1x HDMI port, podporující max. rozlišení 4K při 60 Hz
1x DisplayPort port, podporující max. rozlišení 8K při 60 Hz
Úložiště
Intel CPU
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim)
Intel B760 čipová sada
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 3.0 x4 režim)
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim)
4x SATA 6Gb/s port
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
Podpora Intel Rapid Storage technologie
USB
4× USB 4.0 řadiče Intel JHL8540
1x USB 3.2 Gen2x2 typ C port dostupný přes interní USB konektor
1x USB 3.2 Gen2 typ C port na zadním panelu
6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio
Realtek Audio Codec
7.1kanálové High Definition Audio
Podpora S/PDIF výstupu
LAN
1x Realtek 2,5Gigabit LAN řadič
1x Intel Gigabit LAN řadič
Interní konektory
1x 24-pin hlavní napájecí konektor
1x 8-pin 12V napájecí konektor
1x 4-pin 12V napájecí konektor
4x SATA 6Gb/s konektor
3x M.2 slot, M Key
1x M.2 slot, E key pro Wi-Fi modul (není součástí)
1x USB 3.2 Gen2x2 typ C konektor
1x USB 3.2 Gen1 (USB 3.0) typ A konektor (podporuje 2x USB 3.2 Gen1 port)
2x USB 2.0 konektor (podporuje 4x USB 2.0 port)
1x 4-pin konektor ventilátoru CPU
1x 4-pin konektor volitelného ventilátoru CPU
1x 4-pin konektor pumpy vodního chlazení
4x 4-pin konektor ventilátoru skříně
3x konektor adresovatelného RGB LED pásku
1x konektor Aura RGB LED pásku
1x konektor Clear CMOS
1x konektor sériového portu
1x audio konektor předního panelu
1x SPI TPM konektor
1x konektor systémového panelu
1x konektor teplotního senzoru
1x Thunderbolt konektor
Porty na zadním panelu
1x HDMI
1x DisplayPort
1x USB 3.2 Gen2 typ C
4x USB 3.2 Gen1 (USB 3.0)
4x USB 2.0
2x RJ-45
5x audio jack
1x optický S/PDIF výstup
Rozměry
30,5 x 24,4 cm
ATX formát
Základní deska, socket Intel 1700, čipset Intel B760, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 4x DDR4 až 3200 MHz (až 5066 MHz OC), maximálně 128 GB; sloty: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1; konektory: 4x SATA 6Gb/s, 3x M.2, 8x USB 2.0, 6x USB 3.2 Gen1, 1x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, 1x 2,5G LAN, 1x GLAN, 1x DisplayPort, 1x HDMI, 1x optický S/PDIF out, 5x 3,5 mm audio jack; formát ATX.
ASUS ProArt B760-CREATOR D4 ProArt B760-Creator D4 je vylepšená základní deska navržená pro práci s tvorbou obsahu, jako je virtuální produkce, 3D vykreslování a střih videa 4K/8K. Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM, Max. 128GB, DDR4 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb Ethernet + 1x Intel® 1Gb Ethernet WLAN + Bluetooth: pouze slot M.2 (Key E, PCIe) Rozšiřující sloty: 1x PCIe 5.0/4.0/3.0 x16 1x PCIe 4.0 x16 (podporuje režim x4) 1x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 3.0 x4) 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 4x port SATA 6Gb/s USB: Zadní USB (celkem 9 portů) 1x USB 3.2 Gen 2 (1x typ-C®) 4x USB 3.2 Gen 1 (4x typ-A) 4x USB 2.0 (4x typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2 (1x typ-C®) 4x USB 3.2 Gen 1 (4x typ-A) 4x USB 2.0 (4x typ-A) 1x DisplayPort 1x HDMI® 1x Realtek 2,5Gb Ethernet 1x Intel® 1Gb Ethernet 5x audio jack 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x M.2 slot (Key E) 1x SPI TPM header (14-1pin) 1x 20-5pin System Panel header 1x header teplotního senzoru 1x Thunderbolt™ header BIOS: 128Mb Příslušenství: 2x SATA 6Gb/s kabel 1x ProArt pravítko 1x Q-konektor 1x balení šroubů pro M.2 Key E 2x balení podložek pro M.2 1x ACC Express Activation Key Card 1x uživatelská příručka
ASUS ProArt B760-CREATOR D4 ProArt B760-Creator D4 je vylepšená základní deska navržená pro práci s tvorbou obsahu, jako je virtuální produkce, 3D vykreslování a střih videa 4K/8K. Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb Ethernet + 1x Intel® 1Gb Ethernet WLAN + Bluetooth: pouze slot M.2 (Key E, PCIe) Rozšiřující sloty: * 1x PCIe 5.0/4.0/3.0 x16 * 1x PCIe 4.0 x16 (podporuje režim x4) * 1x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 3.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 9 portů) * 1x USB 3.2 Gen 2 (1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 4x USB 2.0 (4x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2 (1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 4x USB 2.0 (4x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 1x Intel® 1Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 4x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x M.2 slot (Key E) * 1x SPI TPM header (14-1pin) * 1x 20-5pin System Panel header * 1x header teplotního senzoru * 1x Thunderbolt™ header BIOS: 128Mb Příslušenství: * 2x SATA 6Gb/s kabel * 1x ProArt pravítko * 1x Q-konektor * 1x balení šroubů pro M.2 Key E * 2x balení podložek pro M.2 * 1x ACC Express Activation Key Card * 1x uživatelská příručka Odkaz na stránky výrobce: https://www.asus.com/motherboards-components/motherboards/proart/proart-b760-creator-d4/
ASUS ProArt B760-CREATOR D4 ProArt B760-Creator D4 je vylepšená základní deska navržená pro práci s tvorbou obsahu, jako je virtuální produkce, 3D vykreslování a střih videa 4K/8K. Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb Ethernet + 1x Intel® 1Gb Ethernet WLAN + Bluetooth: pouze slot M.2 (Key E, PCIe) Rozšiřující sloty: * 1x PCIe 5.0/4.0/3.0 x16 * 1x PCIe 4.0 x16 (podporuje režim x4) * 1x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 3.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 9 portů) * 1x USB 3.2 Gen 2 (1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 4x USB 2.0 (4x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2 (1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 4x USB 2.0 (4x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 1x Intel® 1Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 4x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x M.2 slot (Key E) * 1x SPI TPM header (14-1pin) * 1x 20-5pin System Panel header * 1x header teplotního senzoru * 1x Thunderbolt™ header BIOS: 128Mb Příslušenství: * 2x SATA 6Gb/s kabel * 1x ProArt pravítko * 1x Q-konektor * 1x balení šroubů pro M.2 Key E * 2x balení podložek pro M.2 * 1x ACC Express Activation Key Card * 1x uživatelská příručka Odkaz na stránky výrobce: https://www.asus.com/motherboards-components/motherboards/proart/proart-b760-creator-d4/
ASUS ProArt B760-CREATOR D4 ProArt B760-Creator D4 je vylepšená základní deska navržená pro práci s tvorbou obsahu, jako je virtuální produkce, 3D vykreslování a střih videa 4K/8K. Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM, Max. 128GB, DDR4 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb Ethernet + 1x Intel® 1Gb Ethernet WLAN + Bluetooth: pouze slot M.2 (Key E, PCIe) Rozšiřující sloty: 1x PCIe 5.0/4.0/3.0 x16 1x PCIe 4.0 x16 (podporuje režim x4) 1x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 3.0 x4) 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 4x port SATA 6Gb/s USB: Zadní USB (celkem 9 portů) 1x USB 3.2 Gen 2 (1x typ-C®) 4x USB 3.2 Gen 1 (4x typ-A) 4x USB 2.0 (4x typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2 (1x typ-C®) 4x USB 3.2 Gen 1 (4x typ-A) 4x USB 2.0 (4x typ-A) 1x DisplayPort 1x HDMI® 1x Realtek 2,5Gb Ethernet 1x Intel® 1Gb Ethernet 5x audio jack 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x M.2 slot (Key E) 1x SPI TPM header (14-1pin) 1x 20-5pin System Panel header 1x header teplotního senzoru 1x Thunderbolt™ header BIOS: 128Mb Příslušenství: 2x SATA 6Gb/s kabel 1x ProArt pravítko 1x Q-konektor 1x balení šroubů pro M.2 Key E 2x balení podložek pro M.2 1x ACC Express Activation Key Card 1x uživatelská příručka
ASUS ProArt B760-CREATOR D4 ProArt B760-Creator D4 je vylepšená základní deska navržená pro práci s tvorbou obsahu, jako je virtuální produkce, 3D vykreslování a střih videa 4K/8K. Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb Ethernet + 1x Intel® 1Gb Ethernet WLAN + Bluetooth: pouze slot M.2 (Key E, PCIe) Rozšiřující sloty: * 1x PCIe 5.0/4.0/3.0 x16 * 1x PCIe 4.0 x16 (podporuje režim x4) * 1x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 3.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 9 portů) * 1x USB 3.2 Gen 2 (1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 4x USB 2.0 (4x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2 (1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 4x USB 2.0 (4x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 1x Intel® 1Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 4x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x M.2 slot (Key E) * 1x SPI TPM header (14-1pin) * 1x 20-5pin System Panel header * 1x header teplotního senzoru * 1x Thunderbolt™ header BIOS: 128Mb Příslušenství: * 2x SATA 6Gb/s kabel * 1x ProArt pravítko * 1x Q-konektor * 1x balení šroubů pro M.2 Key E * 2x balení podložek pro M.2 * 1x ACC Express Activation Key Card * 1x uživatelská příručka Odkaz na stránky výrobce: https://www.asus.com/motherboards-components/motherboards/proart/proart-b760-creator-d4/
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
