ASUS MB Sc LGA1700 PRIME B760M-K DDR4, Intel B760, 2xDDR4, 1xHDMI, 1xVGA, mATX
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 30.9.
Výrobce:
Asus
Kód zboží:
5551904
Číslo zboží (PN):
90MB1DS0-M1EAY0
EAN:
4711387006917
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
2609 Kč
Cena vč. DPH: *
3157 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:

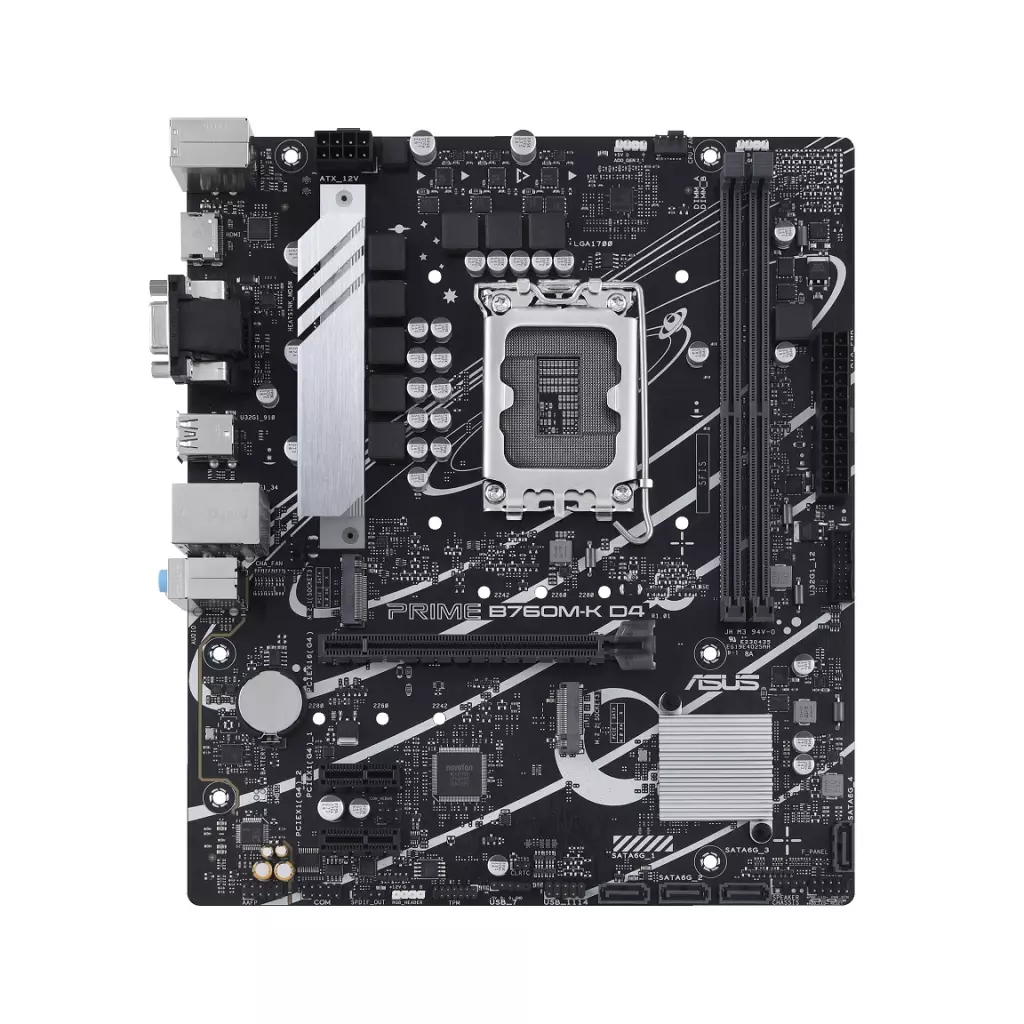

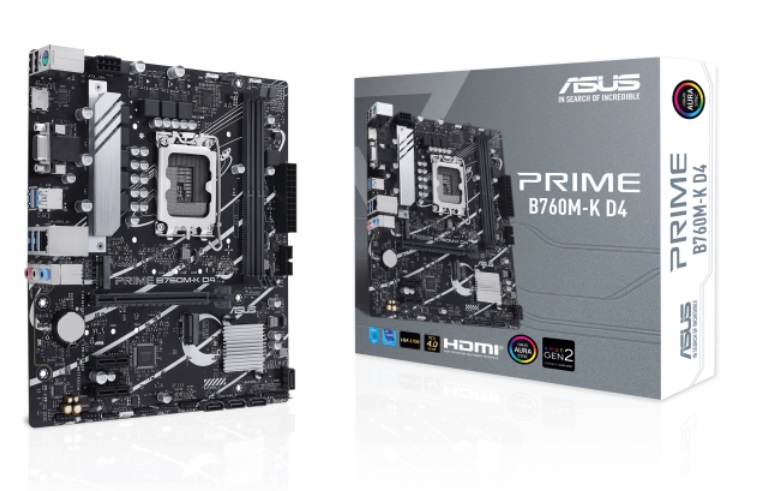

ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Model PRIME B760M-K D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x VGA port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet USB Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Model PRIME B760M-K D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x VGA port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet USB Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
PRIME B760M-K D4
TECHNICAL SPECIFICATIONS
CPU |
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors* |
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
* Refer to www.asus.com for CPU support list. |
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel B760 Chipset |
Memory |

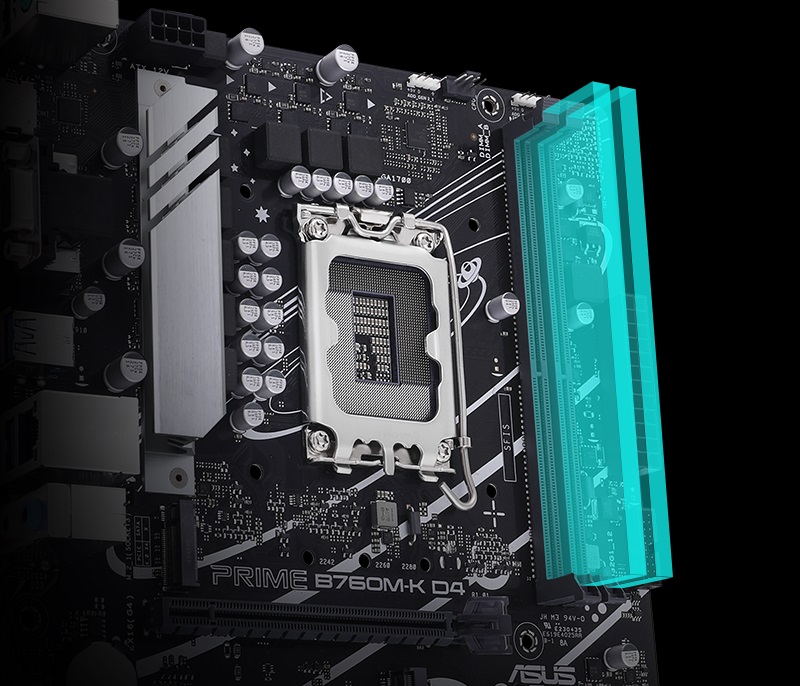

2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture |
Supports Intel Extreme Memory Profile (XMP) |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
Graphics |
1 x VGA port |
1 x HDMI port** |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots |
Intel 13th & 12th Gen Processors |
1 x PCIe 4.0 x16 slot |
Intel B760 Chipset |
2 x PCIe 4.0 x1 slots |
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel 13th & 12th Gen Processors |

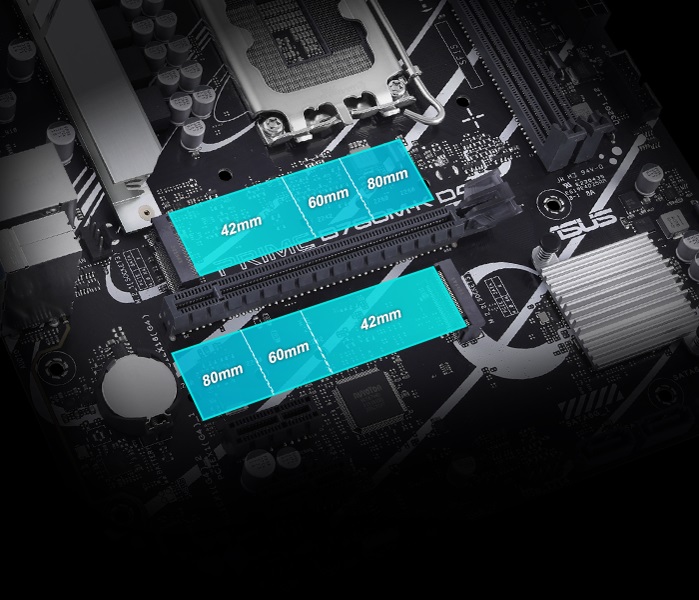

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
Intel B760 Chipset |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
4 x SATA 6Gb/s ports |
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
USB |
Rear USB (Total 6 ports) |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
2 x USB 2.0 ports (2 x Type-A) |
Front USB (Total 5 ports) |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support 3 additional USB 2.0 ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
Audio Features |
- Audio Shielding |
- Premium audio capacitors |
- Dedicated audio PCB layers |
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
2 x USB 2.0 ports (2 x Type-A) |
1 x VGA port |
1 x HDMI port |
1 x Realtek 2.5Gb Ethernet port |
3 x Audio jacks |
1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors |
Fan and Cooling related |
1 x 4-pin CPU Fan header |
1 x 4-pin Chassis Fan header |
Power related |
1 x 24-pin Main Power connector |
1 x 8-pin +12V Power connector |
Storage related |
2 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support 3 additional USB 2.0 ports |
Miscellaneous |
2 x Addressable Gen 2 headers |
1 x Aura RGB header |
1 x Clear CMOS header |
1 x COM Port header |
1 x Front Panel Audio header (AAFP) |
1 x S/PDIF Out header |
1 x Speaker header |
1 x SPI TPM header (14-1pin) |
1 x 10-1 pin System Panel header |
Special Features |
ASUS 5X PROTECTION III |
- DIGI+ VRM |
- LANGuard |
- Overvoltage Protection |
- SafeSlot Core |
- Stainless-Steel Back I/O |
ASUS Q-Design |
- Q-DIMM |
- Q-LED Core |
- Q-Slot |
ASUS EZ DIY |
- ProCool |
ASUS Thermal Solution |
- VRM heatsink design |
Aura Sync |
- Aura RGB header |
- Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
Armoury Crate |
- Aura Sync |
- Fan Xpert |
- Power Saving |
AI Suite 3 |
- DIGI+ VRM |
- PC Cleaner |
ASUS CPU-Z |
Norton 360 Deluxe (60 Days Free Trial) |
WinRAR |
UEFI BIOS |
ASUS EZ DIY |
- ASUS CrashFree BIOS 3 |
- ASUS EZ Flash 3 |
- ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
1 x I/O Shield |
2 x M.2 anchors |
Documentation |
1 x User guide |
Operating System |
Windows 11, Windows 10 64-bit |
Form Factor |
mATX Form Factor |
9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
ASUS PRIME B760M-K D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x211mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: * 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) Grafické výstupy: * 1x VGA * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 4.0 x16 * 2x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 5 portů) * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Porty na zadním panelu: * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) * 1x VGA * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 3x audio jack * 1x PS/2 dělený port klávesnice/myši Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Ostatní * 2x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x header pro reproduktor * 1x S/PDIF Out header * 1x SPI TPM header (14-1pin) * 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x211x36mm Hmotnost: 528g Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 2x M.2 "kotva" * 1x uživatelská příručka
ASUS PRIME B760M-K D4
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 12. a 13. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada
Intel B760
Paměť
2x DDR4 paměťový slot, podpora až 64 GB
Podpora DDR4 5333 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP)
Sloty
Intel CPU
1x PCIe 4.0 x16 slot
Intel B760 čipová sada
2x PCIe 4.0 x1 slot
Grafika
1x HDMI port, podporující max. rozlišení 4K při 60 Hz
1x VGA port
Úložiště
Intel CPU
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
Intel B760 čipová sada
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
4x SATA 6Gb/s port
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
Podpora Intel Rapid Storage technologie
USB
6x USB 3.2 Gen1 (USB 3.0) typ A port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
5x USB 2.0 port (2 porty na zadním panelu, 3 porty dostupné přes interní USB konektory)
Audio
Realtek Audio Codec
7.1kanálové High Definition Audio
LAN
1x Realtek 2,5Gigabit LAN řadič
Interní konektory
1x 24-pin hlavní napájecí konektor
1x 8-pin 12V napájecí konektor
4x SATA 6Gb/s konektor
2x M.2 slot, M Key
1x USB 3.2 Gen1 (USB 3.0) typ A konektor (podporuje 2x USB 3.2 Gen1 port)
2x USB 2.0 konektor (podporuje 3x USB 2.0 port)
1x 4-pin konektor ventilátoru CPU
1x 4-pin konektor ventilátoru skříně
2x konektor adresovatelného RGB LED pásku
1x konektor Aura RGB LED pásku
1x konektor Clear CMOS
1x konektor pro sériový port
1x audio konektor předního panelu
1x konektor S/PDIF výstupu
1x konektor reproduktoru
1x SPI TPM konektor
1x konektor systémového panelu
Porty na zadním panelu
1x HDMI
1x VGA
4x USB 3.2 Gen1 (USB 3.0)
2x USB 2.0
1x RJ-45
3x audio jack
1x PS/2 combo port klávesnice a myši
Rozměry
24,4 x 21,1 cm
Micro ATX formát
ASUS Prime B760M-K D4, základná doska Intel® B760 LGA 1700 mATX s PCIe 4.0, dva sloty PCIe 4.0 M.2, DDR4, Realtek 2,5 Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, predný USB 3.2 Gen 1, Aura Synchronizovať Ultrarýchle pripojenie: PCIe 4.0, dva sloty PCIe 4.0 M.2, Realtek 2,5 Gb Ethernet a predná podpora USB 3.2 Gen 1 Komplexné chladenie: chladič VRM, chladič PCH, hybridné hlavičky ventilátora a Fan Xpert Osvetlenie Aura Sync RGB: Integrované adresovateľné záhlavia Gen 2 a záhlavie Aura RGB pre RGB LED pásy, ľahko synchronizovateľné s hardvérom s podporou Aura Sync CPU Intel® Socket LGA1700 for 14th - 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x VGA port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet USB Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Základní deska, socket Intel 1700, čipset Intel B760, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 2x DDR4 až 3200 MHz (až 5333 MHz OC), maximálně 64 GB; sloty: 1x PCIe 4.0 x16, 2x PCIe 4.0 x1; konektory: 4x SATA 6Gb/s, 2x M.2, 5x USB 2.0, 6x USB 3.2 Gen1, 1x 2,5G LAN, 1x VGA, 1x HDMI, 1x PS/2, 3x 3,5 mm audio jack; formát mATX.
ASUS PRIME B760M-K D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x211mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) Grafická karta: 1x VGA 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: 1x PCIe 4.0 x16 2x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) 4x USB 3.2 Gen 1 (4x typ-A) 2x USB 2.0 (2x typ-A) Přední USB (celkem 5 portů) 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Porty na zadním panelu: 4x USB 3.2 Gen 1 (4x typ-A) 2x USB 2.0 (2x typ-A) 1x VGA 1x HDMI® 1x Realtek 2,5Gb Ethernet 3x audio jack 1x PS/2 dělený port klávesnice/myši Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin Chassis Fan header Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Ostatní 2x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x header pro reproduktor 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x211x36mm Hmotnost: 528g Příslušenství: 2x SATA 6Gb/s kabel 1x I/O záslepka 2x M.2 "kotva" 1x uživatelská příručka
ASUS PRIME B760M-K D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x211mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: * 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) Grafické výstupy: * 1x VGA * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 4.0 x16 * 2x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 5 portů) * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Porty na zadním panelu: * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) * 1x VGA * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 3x audio jack * 1x PS/2 dělený port klávesnice/myši Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Ostatní * 2x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x header pro reproduktor * 1x S/PDIF Out header * 1x SPI TPM header (14-1pin) * 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x211x36mm Hmotnost: 528g Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 2x M.2 "kotva" * 1x uživatelská příručka
ASUS PRIME B760M-K D4. Výrobce procesoru: Intel, Patice procesoru: LGA 1700, Kompatibilní procesory: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Podporované typy paměti: DDR4-SDRAM, Maximální vnitřní paměť: 64 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 5, 10. Konektor USB: USB Typ-A. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet
ASUS PRIME B760M-K D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x211mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: * 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) Grafické výstupy: * 1x VGA * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 4.0 x16 * 2x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 5 portů) * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Porty na zadním panelu: * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) * 1x VGA * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 3x audio jack * 1x PS/2 dělený port klávesnice/myši Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Ostatní * 2x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x header pro reproduktor * 1x S/PDIF Out header * 1x SPI TPM header (14-1pin) * 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x211x36mm Hmotnost: 528g Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 2x M.2 "kotva" * 1x uživatelská příručka
ASUS PRIME B760M-K D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x211mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) Grafická karta: 1x VGA 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: 1x PCIe 4.0 x16 2x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) 4x USB 3.2 Gen 1 (4x typ-A) 2x USB 2.0 (2x typ-A) Přední USB (celkem 5 portů) 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Porty na zadním panelu: 4x USB 3.2 Gen 1 (4x typ-A) 2x USB 2.0 (2x typ-A) 1x VGA 1x HDMI® 1x Realtek 2,5Gb Ethernet 3x audio jack 1x PS/2 dělený port klávesnice/myši Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin Chassis Fan header Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Ostatní 2x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x header pro reproduktor 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x211x36mm Hmotnost: 528g Příslušenství: 2x SATA 6Gb/s kabel 1x I/O záslepka 2x M.2 "kotva" 1x uživatelská příručka
ASUS PRIME B760M-K D4. Výrobce procesoru: Intel, Patice procesoru: LGA 1700, Kompatibilní procesory: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Podporované typy paměti: DDR4-SDRAM, Maximální vnitřní paměť: 64 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 5, 10. Konektor USB: USB Typ-A. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet
ASUS PRIME B760M-K D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x211mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: * 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) Grafické výstupy: * 1x VGA * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 4.0 x16 * 2x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 5 portů) * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Porty na zadním panelu: * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) * 1x VGA * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 3x audio jack * 1x PS/2 dělený port klávesnice/myši Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 3 portů USB 2.0 Ostatní * 2x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x header pro reproduktor * 1x S/PDIF Out header * 1x SPI TPM header (14-1pin) * 1x 10-1 pin System Panel header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x211x36mm Hmotnost: 528g Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 2x M.2 "kotva" * 1x uživatelská příručka
