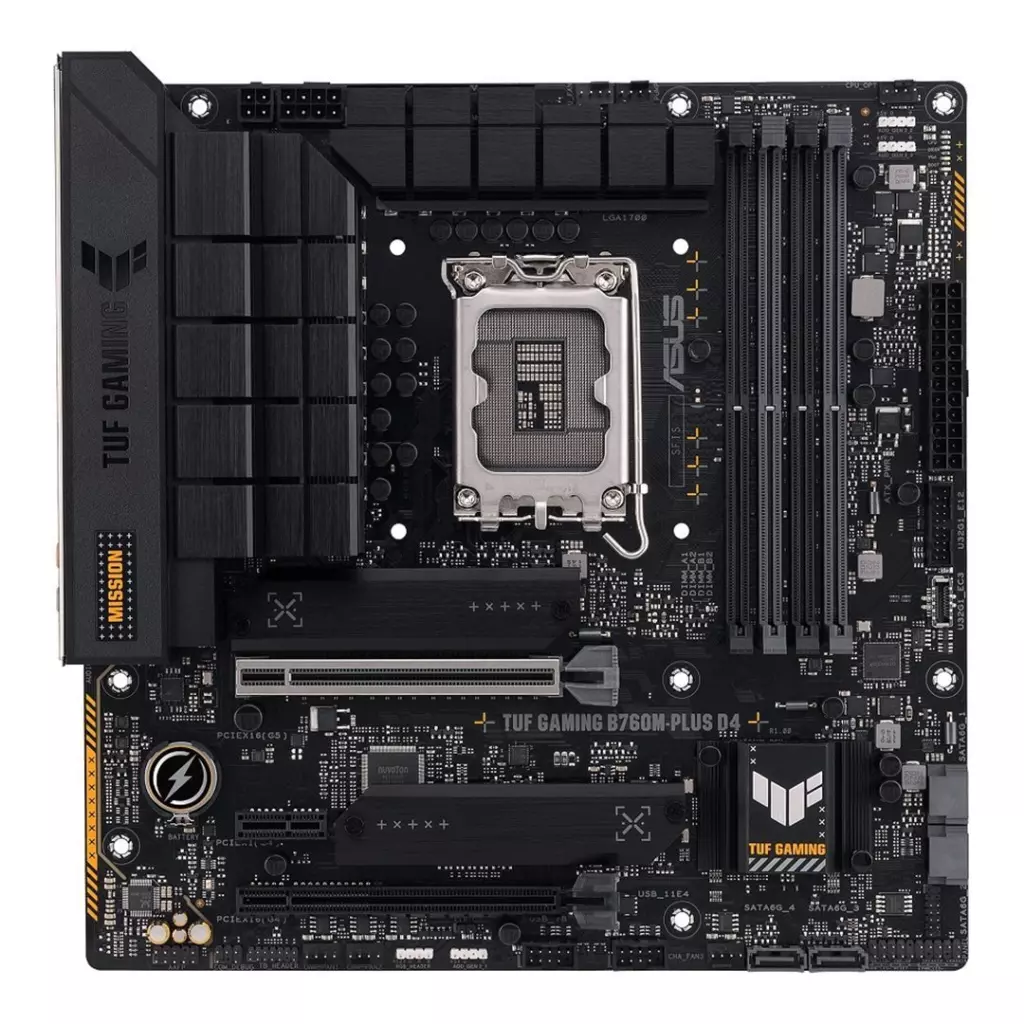

ASUS TUF GAMING B760M-PLUS D4/LGA 1700/mATX
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 30.9.
Výrobce:
ASUS
Kód zboží:
5551903
Číslo zboží (PN):
90MB1DI0-M0EAY0
EAN:
4711387005316
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
3248 Kč
Cena vč. DPH: *
3931 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
TUF GAMING B760M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. Model TUF GAMING B760M-PLUS D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x TUF Gaming sticker Documentation 1 x TUF Certification card 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
TUF GAMING B760M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. Model TUF GAMING B760M-PLUS D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x TUF Gaming sticker Documentation 1 x TUF Certification card 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
TUF GAMING B760M-PLUS D4
TECHNICAL SPECIFICATIONS
CPU |
Intel Socket LGA1700 for 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors* |
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
* Refer to www.asus.com for CPU support list. |
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel B760 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture |
Supports Intel Extreme Memory Profile (XMP) |
OptiMem II |
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ |
Graphics |
1 x DisplayPort** |
1 x HDMI port*** |
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
***Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots |
Intel 13th & 12th Gen Processors |
1 x PCIe 5.0 x16 slot |
Intel B760 Chipset |
1 x PCIe 4.0 x16 slot (supports x4 mode) |
1 x PCIe 4.0 x1 slot |
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel 13th & 12th Gen Processors |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
Intel B760 Chipset |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
4 x SATA 6Gb/s ports |
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
TUF LANGuard |
USB |
Rear USB (Total 8 ports) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
4 x USB 3.2 Gen 2 ports (4 x Type-A) |
1 x USB 3.2 Gen 1 port (1 x Type-A) |
2 x USB 2.0 ports (2 x Type-A) |
Front USB (Total 7 ports) |
1 x USB 3.2 Gen 1 connector (supports USB Type-C)* |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports * |
* USB_E4 and USB_EC3 can only be enabled/disabled simultaneously. |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
Audio Features |
- Audio Shielding |
- Rear optical S/PDIF out port |
- Premium audio capacitors |
- Dedicated audio PCB layers |
Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
4 x USB 3.2 Gen 2 ports (4 x Type-A) |
1 x USB 3.2 Gen 1 port (1 x Type-A) |
2 x USB 2.0 ports (2 x Type-A) |
1 x DisplayPort |
1 x HDMI port |
1 x Wi-Fi Module |
1 x Realtek 2.5Gb Ethernet port |
5 x Audio jacks |
1 x Optical S/PDIF out port |
Internal I/O Connectors |
Fan and Cooling related |
1 x 4-pin CPU Fan header |
1 x 4-pin CPU OPT Fan header |
1 x 4-pin AIO Pump header |
3 x 4-pin Chassis Fan headers |
Power related |
1 x 24-pin Main Power connector |
1 x 8-pin +12V Power connector |
1 x 4-pin +12V Power connector |
Storage related |
2 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
1 x USB 3.2 Gen 1 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
1 x AURA RGB header |
1 x Clear CMOS header |
1 x Front Panel Audio header (AAFP) |
1 x 20-3 pin System Panel header with Chassis intrude function |
1 x Thunderbolt™ (USB4) header |
Special Features |
ASUS TUF PROTECTION |
- DIGI+ VRM (- Digital power design with DrMOS) |
- ESD Guards |
- TUF LANGuard |
- Overvoltage Protection |
- SafeSlot Core+ |
- Stainless-Steel Back I/O |
ASUS Q-Design |
- M.2 Q-Latch |
- Q-DIMM |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
- Q-Slot |
ASUS Thermal Solution |
- M.2 heatsink |
- VRM heatsink design |
ASUS EZ DIY |
- CPU Socket lever protector |
- ProCool |
- Pre-mounted I/O shield |
- SafeDIMM |
AURA Sync |
- AURA RGB header |
- Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
Armoury Crate |
- AURA Creator |
- AURA Sync |
- Fan Xpert 2+ |
- Power Saving |
- Two-Way AI Noise Cancelation |
AI Suite 3 |
DIGI+ VRM |
- PC Cleaner |
TUF GAMING CPU-Z |
DTS Audio Processing |
Norton 360 for Gamers |
WinRAR |
UEFI BIOS |
ASUS EZ DIY |
- ASUS CrashFree BIOS 3 |
- ASUS EZ Flash 3 |
- ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
1 x M.2 Rubber Package |
1 x M.2 SSD screw package |
1 x TUF Gaming sticker |
Documentation |
1 x TUF Certification card |
1 x User guide |
Operating System |
Windows 11, Windows 10 64-bit |
Form Factor |
mATX Form Factor |
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
ASUS TUF GAMING B760M-PLUS D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 5.0 x16 * 1x PCIe 4.0 x16 (podpora režimu x4) * 1x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 3x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x244x50mm Hmotnost: 966,3g Příslušenství: * 2x SATA 6Gb/s kabel * 1x balení M.2 podložek * 1x balení šroubků pro M.2 SSD * 1x TUF herní nálepka * 1x karta s certifikátem TUF * 1x uživatelská příručka
ASUS TUF GAMING B760M-PLUS D4
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 12. a 13. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada
Intel B760
Paměť
4x DDR4 paměťový slot, podpora až 128 GB
Podpora DDR4 5333 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP)
Podpora OptiMem II
Sloty
Intel CPU
1x PCIe 5.0 x16 slot
Intel B760 čipová sada
1x PCIe 4.0 x16 slot (podporuje x4 režim)
1x PCIe 4.0 x1 slot
Grafika
1x HDMI port, podporující max. rozlišení 4K při 60 Hz
1x DisplayPort port, podporující max. rozlišení 4K při 60 Hz
Úložiště
Intel CPU
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
Intel B760 čipová sada
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
4x SATA 6Gb/s port
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
Podpora Intel Rapid Storage technologie
USB
1x USB 3.2 Gen2x2 typ C port na zadním panelu
4x USB 3.2 Gen2 typ A port na zadním panelu
3x USB 3.2 Gen1 (USB 3.0) typ A port (1 port na zadním panelu, 2 porty dostupné přes interní USB konektor)
1x USB 3.2 Gen1 (USB 3.0) typ C port dostupný přes interní USB konektor
6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio
Realtek Audio Codec
7.1kanálové High Definition Audio
Podpora S/PDIF výstupu
LAN
1x Realtek 2,5Gigabit LAN řadič
TUF LANGuard
Interní konektory
1x 24-pin hlavní napájecí konektor
1x 8-pin 12V napájecí konektor
1x 4-pin 12V napájecí konektor
4x SATA 6Gb/s konektor
2x M.2 slot, M Key
1x USB 3.2 Gen1 (USB 3.0) typ C konektor
1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port)
2x USB 2.0 konektor (podporuje 4x USB 2.0 port)
1x 4-pin konektor ventilátoru CPU
1x 4-pin konektor volitelného ventilátoru CPU
1x 4-pin konektor pumpy vodního chlazení
3x 4-pin konektor ventilátoru skříně
3x konektor adresovatelného RGB LED pásku
1x konektor Aura RGB LED pásku
1x konektor Clear CMOS
1x audio konektor předního panelu
1x konektor systémového panelu (s funkcí detekce otevření skříně)
1x Thunderbolt konektor
Porty na zadním panelu
1x HDMI
1x DisplayPort
1x USB 3.2 Gen2x2 typ C
4x USB 3.2 Gen2 typ A
1x USB 3.2 Gen1 (USB 3.0)
2x USB 2.0
1x RJ-45
5x audio jack
1x optický S/PDIF výstup
Rozměry
24,4 x 24,4 cm
Micro ATX formát
TUF GAMING B760M-PLUS D4 preberá všetky základné prvky najnovších procesorov Intel® a kombinuje ich s funkciami pripravenými na hry a overenou odolnosťou. Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným výkonom pre hranie maratónov. Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať. Esteticky tento model obsahuje vyrazený štítok a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING. CPU Intel® Socket LGA1700 for 14th - 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x TUF Gaming sticker Documentation 1 x TUF Certification card 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Základní deska, socket Intel 1700, čipset Intel B760, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 4x DDR4 až 3200 MHz (až 5333 MHz OC), maximálně 128 GB; sloty: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1; konektory: 4x SATA 6Gb/s, 2x M.2, 6x USB 2.0, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, 1x 2,5G LAN, 1x DisplayPort, 1x HDMI, 1x optický S/PDIF out, 5x 3,5 mm audio jack; formát mATX.
ASUS TUF GAMING B760M-PLUS D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (podpora režimu x4) 1x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 4x USB 3.2 Gen 2 (4x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 4x USB 3.2 Gen 2 (4x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) 1x DisplayPort 1x HDMI® 1x Realtek 2,5Gb Ethernet 5x audio jack 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header s funkcí Chassis intrude 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x244x50mm Hmotnost: 966,3g Příslušenství: 2x SATA 6Gb/s kabel 1x balení M.2 podložek 1x balení šroubků pro M.2 SSD 1x TUF herní nálepka 1x karta s certifikátem TUF 1x uživatelská příručka
ASUS TUF GAMING B760M-PLUS D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 5.0 x16 * 1x PCIe 4.0 x16 (podpora režimu x4) * 1x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 3x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x244x50mm Hmotnost: 966,3g Příslušenství: * 2x SATA 6Gb/s kabel * 1x balení M.2 podložek * 1x balení šroubků pro M.2 SSD * 1x TUF herní nálepka * 1x karta s certifikátem TUF * 1x uživatelská příručka
ASUS TUF GAMING B760M-PLUS D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 5.0 x16 * 1x PCIe 4.0 x16 (podpora režimu x4) * 1x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 3x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x244x50mm Hmotnost: 966,3g Příslušenství: * 2x SATA 6Gb/s kabel * 1x balení M.2 podložek * 1x balení šroubků pro M.2 SSD * 1x TUF herní nálepka * 1x karta s certifikátem TUF * 1x uživatelská příručka
ASUS TUF GAMING B760M-PLUS D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (podpora režimu x4) 1x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 4x USB 3.2 Gen 2 (4x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 4x USB 3.2 Gen 2 (4x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) 1x DisplayPort 1x HDMI® 1x Realtek 2,5Gb Ethernet 5x audio jack 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header s funkcí Chassis intrude 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x244x50mm Hmotnost: 966,3g Příslušenství: 2x SATA 6Gb/s kabel 1x balení M.2 podložek 1x balení šroubků pro M.2 SSD 1x TUF herní nálepka 1x karta s certifikátem TUF 1x uživatelská příručka
ASUS TUF GAMING B760M-PLUS D4 Chipset: Intel® B760 Rozměrový formát: mATX (244x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCIe 5.0 x16 * 1x PCIe 4.0 x16 (podpora režimu x4) * 1x PCIe 4.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 4x USB 3.2 Gen 2 (4x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 3x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 244x244x50mm Hmotnost: 966,3g Příslušenství: * 2x SATA 6Gb/s kabel * 1x balení M.2 podložek * 1x balení šroubků pro M.2 SSD * 1x TUF herní nálepka * 1x karta s certifikátem TUF * 1x uživatelská příručka
