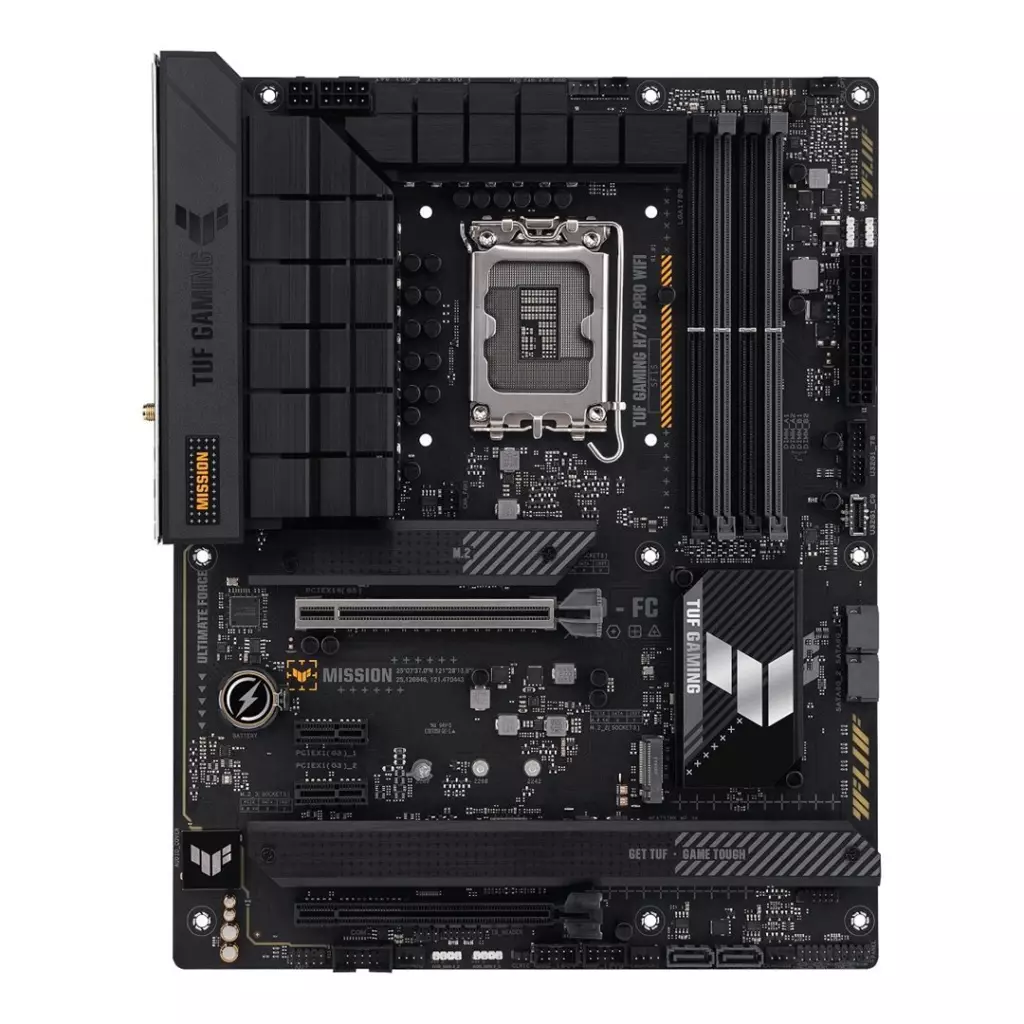

ASUS TUF GAMING H770-PRO WIFI
Kód zboží (ID): 5551897
vytisknout
Stav zboží:
Nové
Dostupnost:
není skladem
Datum odeslání:
Neznámé
Výrobce:
ASUS
Kód zboží:
5551897
Číslo zboží (PN):
90MB1D50-M0EAY0
EAN:
4711387008249
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
5063.82 Kč
Cena vč. DPH: *
6127 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
ASUS PRIME TUF GAMING H770-PRO WIFI Chipset: Intel® H770 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Intel® 2,5Gb Ethernet WLAN + Bluetooth: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth® v5.2 Rozšiřující sloty: * 1x PCIe 5.0 x16 * 1x PCIe 4.0 x16 (podpora režim x4) * 2x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 4 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ typ 2242/2260/2280 (podporuje PCIe 4.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1X M.2_4 (Key M), typ 2242/2260/2280 (podporuje režimy PCIe 4.0 x4 a SATA) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 7 portů) * 1x USB 3.2 Gen 2x2 (1x USB typ C®) * 2x USB 3.2 Gen 2 (2x typ A) * 4x USB 3.2 Gen 1 (4x typ A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB typ C®) * 2x USB 3.2 Gen 2 (2x typ A) * 4x USB 3.2 Gen 1 (4x typ A) * 1x DisplayPort * 1x HDMI® * 1x Wi-Fi modul * 1x Intel® 2,5Gb Ethernet * 5x audio jack * 1x optický S/PDIF out Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 4x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 4x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 192 (128+64)Mb Flash ROM, UEFI AMI BIOS Rozměry: 305x244x43mm Hmotnost: 1136g Příslušenství: * 2x SATA 6Gb/s kabel * 1x ASUS Wi-Fi anténa * 2x balení M.2 podložek * 2x balení šroubků pro M.2 SSD * 1x TUF herní nálepka * 1x karta s certifikátem TUF * 1x uživatelská příručka
TUF GAMING H770-PRO WIFI
TUF GAMING H770-PRO WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Supports 14th Gen Intel Core™ Processors
CPU
Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H770 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel H770 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) Intel H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet

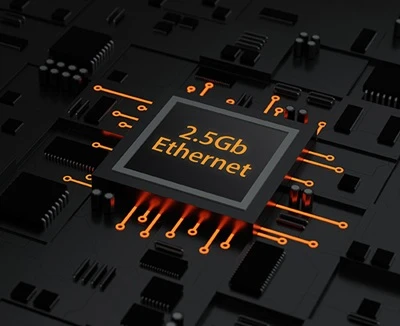

1 x Intel 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4) header
Special Features

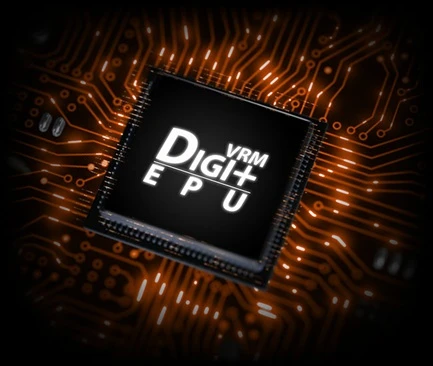

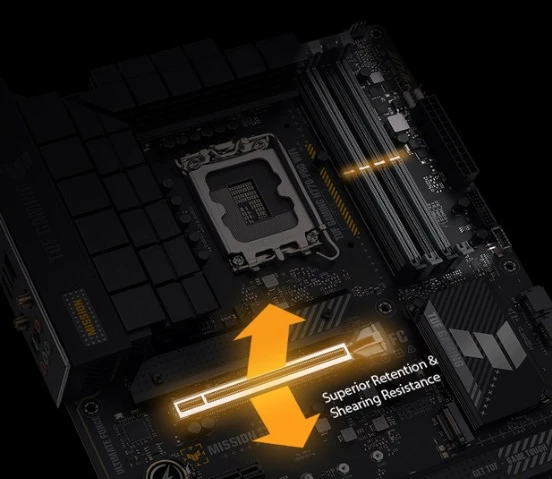

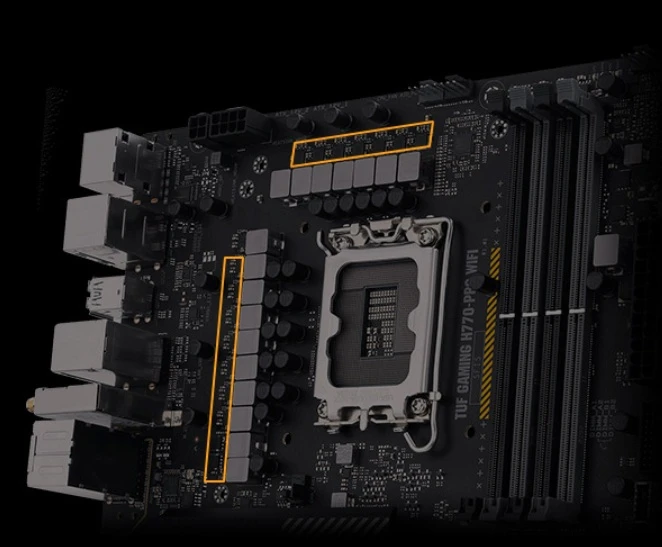

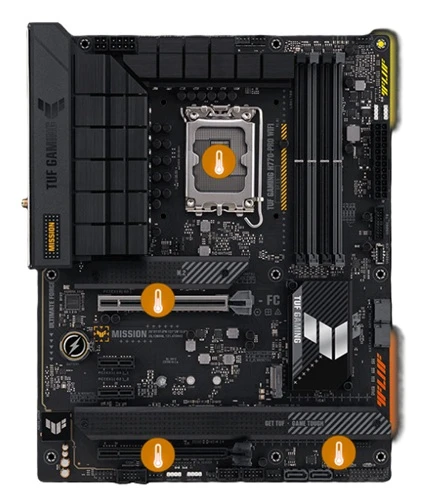

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers
Software Features
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 2 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
ATX Form Factor 30.5 cm x 24.4 cm
