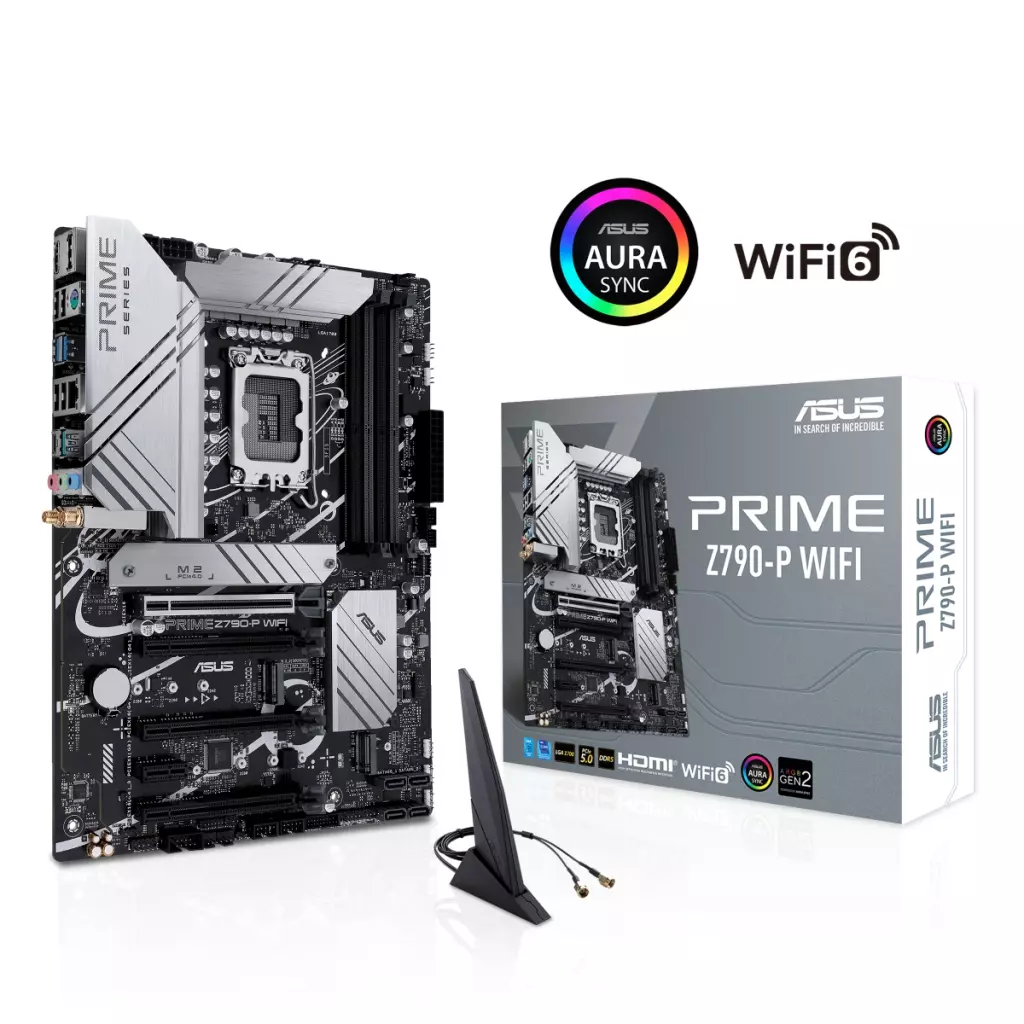

ASUS mb PRIME Z790-P WIFI (soc 1700 DDR5 Z790 ATX HDMI DP WIFI BT)
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 22.10.
Výrobce:
ASUS
Kód zboží:
6437683
Číslo zboží (PN):
90MB1CJ0-M1EAY0
EAN:
4711081937227
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
5149 Kč
Cena vč. DPH: *
6230 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
CPU Patice Intel® LGA1700 pro procesory Intel® Core™ 13. generace a procesory Intel® Core™ 12. generace, Pentium® Gold a Celeron®* Podporuje technologie Intel® Turbo Boost 2.0 a Intel® Turbo Boost Max 3.0** * Seznam podporovaných procesorů najdete na www.asus.com. ** Podpora technologie Intel® Turbo Boost Max 3.0 závisí na typu procesoru. Chipset Chipset Intel® Z790 Paměť 4 x DIMM, max. 128 GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, bez vyrovnávací paměti* Dual Channel Memory Architecture Podporuje Intel® Extreme Memory Profile (XMP) OptiMem II * Podporované typy pamětí, přenosová rychlost a počet modulů DRAM se liší v závislosti na konfiguraci procesoru a paměti. Další informace a seznam podporovaných pamětí naleznete na www.asus.com,. * DDR5 bez vyrovnávací paměti ECC podporuje funkci On-Die ECC. Grafika 1x DisplayPort** 1x port HDMI®*** *Grafické specifikace se mohou u různých typů procesorů lišit. Případné aktualizace naleznete na www.intel.com. ** Podporuje max. 4K@60Hz podle specifikace DisplayPort 1.4. *** Podporuje 4K@60Hz podle specifikace HDMI 2.1. Rozšiřující sloty Procesory Intel® 13. a 12. generace* 1x slot PCIe 5.0 x16 Chipset Intel® Z790 3x slot PCIe 4.0 x16 (podpora režimu x4) 1x slot PCIe 3.0 x1 * Zkontrolujte prosím tabulku PCIe na stránkách podpory (https://www.asus.com/support/FAQ/1037507/). - Pokud chcete ověřit kompatibilitu nainstalovaného zařízení, seznam podporovaných periferních zařízení naleznete na https://www.asus.com/support/. Úložiště Celkem podporuje 3x sloty M.2 a 4x porty SATA 6 Gb/s* Procesory Intel® 13. a 12. generace Slot M.2_1 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) Chipset Intel® Z790 M.2_2 slot (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) M.2_3 slot (Key M), typ 2242/2260/2280/22110 (podporuje režimy PCIe 4.0 x4 a SATA) 4x port SATA 6 Gb/s * Intel® Rapid Storage Technology podporuje PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Bezdrátové připojení a Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Podporuje frekvenční pásma 2,4/5 GHz Bluetooth® v5.2 USB Zadní USB (celkem 8 portů) 1x port USB 3.2 Gen 2x2 (1x USB Type-C®) 1x port USB 3.2 Gen 2 (1x Type-A) 2x port USB 3.2 Gen 1 (2x Type-A) 4x port USB 2.0 (4x Type-A) Přední USB (celkem 9 portů) 1x konektor USB 3.2 Gen 2 (podporuje USB Type-C®) 2x header USB 3.2 Gen 1 s podporou 4 další portů USB 3.2 Gen 1 2x header USB 2.0 s podporou 4 dalších portů USB 2.0 * Porty USB_E1, USB_E2, USB_E3 a USB_E4 sdílejí šířku pásma. * Porty USB_E5, USB_E6, USB_E7 a USB_E8 sdílejí šířku pásma. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Podporuje: Detekce konektorů, multi-streaming, přepínání konektorů na předním panelu - Podpora přehrávání až 24bit/192 kHz Audio funkce - Stínění zvuku - Špičkové zvukové kondenzátory - Vyhrazené zvukové vrstvy na PCB * Pro podporu zvukového výstupu 7.1 Surround Sound je nutné šasi s HD zvukovým modulem na předním panelu. Porty na zadním panelu 1x port USB 3.2 Gen 2x2 (1x USB Type-C®) 1x port USB 3.2 Gen 2 (1x Type-A) 2x port USB 3.2 Gen 1 (2x Type-A) 4x port USB 2.0 (4x Type-A) 1x DisplayPort 1x port HDMI® 1x modul Wi-Fi 1x port Realtek 2,5Gb Ethernet 3x audio konektor 1x kombinovaný port PS/2 klávesnice/myši Interní konektory Související s ventilátory a chlazením 1x 4-pinový header ventilátoru CPU 1x 4-pinová header ventilátoru CPU OPT 1x 4-pinový header AIO čerpadla 3x 4-pinový header ventilátoru šasi Související s napájením 1x 24-pinový konektor hlavního napájení 1x 8-pinový konektor napájení +12V 1x 4-pinový konektor napájení +12V Související s úložištěm 3x slot M.2 (Key M) 4x port SATA 6 Gb/s USB 1x konektor USB 3.2 Gen 2 (podporuje USB Type-C®) 2x header USB 3.2 Gen 1 s podporou 4 dalších portů USB 3.2 Gen 1 2x header USB 2.0 s podporou 4 dalších portů USB 2.0 Různé 3x adresovatelný header Gen 2 2x header Aura RGB 1x header Clear CMOS 1x header COM portu 1x audio header na předním panelu (AAFP) 1x header S/PDIF Out 1x header SPI TPM (14-1pin) 1x 20-5pin header systémového panelu 1x header Thunderbolt™ (USB4®) Speciální funkce ASUS 5X PROTECTION III - DIGI+ VRM (- Digitální napájení s DrMOS) - LANGuard - Ochrana proti přepětí - SafeSlot Core+ - Nerezová zadní strana I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexibilní chladič M.2 - chladič VRM ASUS EZ DIY - ProCool Aura Sync - headery Aura RGB - adresovatelné headery Gen 2 Softwarové funkce Exkluzivní software ASUS Armoury Crate - Aura Sync - Fan Xpert 4 (s AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z MyASUS Norton 360 Deluxe (60denní zkušební verze zdarma) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Správa WOL od PME, PXE Příslušenství Kabely 2x kabel SATA 6 Gb/s Různé 1x pohyblivá anténa ASUS Wi-Fi 1x I/O Shield 1x M.2 pryžová ochrana 2x sada šroubů pro M.2 SSD Dokumentace 1x uživatelská příručka Operační systém Windows® 11, Windows® 10 64-bit Velikost Formát ATX 12 palců x 9,2 palce (30,5 cm x 23,4 cm)
PRIME Z790-P WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Supports 14th Gen Intel Core™ Processors
CPU
Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z790 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4) Header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
ATX Form Factor
30.5 cm x 23.4 cm
Chipset: Intel Z790 Rozměrový formát: ATX Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Pozice na paměti: 4 x DIMM Podpora pro paměti: *4 x DIMM *Max. 128GB *DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture *Supports Intel Extreme Memory Profile (XMP) *OptiMem II Max. velikost operační paměti: 128 GB Grafické výstupy: ne (1x DisplayPort + 1x HDMI port) Zvuková karta: *Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *1 x Realtek 2.5Gb Ethernet *Wi-Fi 6 *2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Supports 2.4/5GHz frequency band *Bluetooth v5.2 Rozšiřujicí sloty: Intel 13th & 12th Gen Processors *1 x PCIe 5.0 x16 slot Intel Z790 Chipset *3 x PCIe 4.0 x16 slots (support x4 mode) *1 x PCIe 3.0 x1 slot RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 SATA: *4 x SATA 6Gb/s ports M.2: Intel 13th & 12th Gen Processors *M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) USB: zadní USB - celkem 8, přední USB - celkem 9 ZADNÍ *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *1 x USB 3.2 Gen 2 port (1 x Type-A) *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) PŘEDNÍ *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Interní porty: Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *1 x 4-pin +12V Power connector Storage related *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous *3 x Addressable Gen 2 headers *2 x Aura RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x SPI TPM header (14-1pin) *1 x 20-5pin System Panel header *1 x Thunderbolt (USB4) Header Externí porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *1 x USB 3.2 Gen 2 port (1 x Type-A) *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P-WIFI/
ASUS PRIME Z790-P WIFI
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 13. a 12. generace Intel Core/ Pentium Gold/ Celeron
Patice LGA1700
Čipová sada
Intel Z790
Paměť
4x DDR5 paměťový slot, podpora až 128 GB
Podpora DDR5 7200+ (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora On-Die ECC funkce
Podpora Intel Extreme Memory Profile (XMP)
Podpora OptiMem II
Sloty
Intel CPU
1x PCIe 5.0 x16 slot
Intel Z790 čipová sada
3x PCIe 4.0 x16 slot (podporuje x4 režim)
1x PCIe 3.0 x1 slot
Grafika
1x HDMI port, podporující max. rozlišení 4K při 60 Hz
1x DisplayPort port, podporující max. rozlišení 4K při 60 Hz
Úložiště
Intel CPU
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim)
Intel Z790 čipová sada
4x SATA 6Gb/s port
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (SATA a PCIe 4.0 x4 režim)
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro PCIe jednotky
Podpora Intel Rapid Storage technologie
USB
1x USB 3.2 Gen2x2 typ C port na zadním panelu
1x USB 3.2 Gen2 typ C port dostupný přes interní USB konektor
1x USB 3.2 Gen2 typ A port na zadním panelu
6x USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio
Realtek Audio Codec
7.1kanálové High Definition Audio
LAN
1x Realtek 2,5Gigabit LAN řadič
WLAN/ Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax
Dual Band (2,4 GHz, 5 GHz)
Bluetooth 5.2
Interní konektory
1x 24-pin ATX hlavní napájecí konektor
1x 8-pin 12V napájecí konektor
1x 4-pin 12V napájecí konektor
4x SATA 6Gb/s konektor
3x M.2 slot, M Key
1x USB 3.2 Gen2 typ C konektor předního panelu
2x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4x USB 3.2 Gen1 port)
2x USB 2.0 konektor (podporuje 4x USB 2.0 port)
1x 4-pin konektor ventilátoru CPU
1x 4-pin konektor volitelného ventilátoru CPU
1x 4-pin konektor pumpy vodního chlazení
3x 4-pin konektor ventilátoru skříně
3x konektor adresovatelného RGB LED pásku
2x konektor Aura RGB LED pásku
1x propojka Clear CMOS
1x konektor sériového portu
1x audio konektor předního panelu
1x konektor S/PDIF výstupu
1x SPI TPM konektor
1x konektor systémového panelu
1x Thunderbolt (USB4) konektor
Porty na zadním panelu
1x PS/2 combo port klávesnice a myši
1x HDMI
1x DisplayPort
4x USB 2.0
2x USB 3.2 Gen1 (USB 3.0)
1x USB 3.2 Gen2 (USB 3.1 Gen2)
1x USB 3.2 Gen2x2 typ C
1x RJ-45
2x konektor Wi-Fi antény
3x audio jack
Rozměry
30,5 x 23,4 cm
ATX formát
Základné dosky radu ASUS Prime sú odborne navrhnuté tak, aby naplno využili potenciál procesorov Intel® Core™ 13. -14. generácie. Môžu sa pochváliť robustným dizajnom napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a konštruktérom PC rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. CPU Intel® Socket LGA1700 for 14th - 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth® "Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2" USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. Audio "Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Základní deska, socket Intel 1700, čipset Intel Z790, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 4x DDR5 až 5600 MHz (7200+ MHz OC), maximálně 128 GB; sloty: 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1; konektory: 4x SATA 6Gb/s, 3x M.2, 8x USB 2.0, 6x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, 1x SP/2, 1x 2,5G LAN, 1x DisplayPort, 1x HDMI, 3x 3,5 mm audio jack; Wi-Fi 6, Bluetooth 5.2; formát ATX.
Základní deska Intel ® Z790 LGA 1700 ATX s 16 + 1 výkonovými stupni, podpora pamětí DDR5, čtyři sloty M.2, PCIe 5.0 x16 SafeSlot s Q-Release, WiFi 6E, zadní I/O port USB 3.2 Gen 2x2 Type-C ® a přídavný konektor na předním panelu s PD 3.0 až 30 W, přetaktováním AI, chlazením AI II a osvětlením Aura Sync RGB. Chipset: Intel Z790 Rozměrový formát: ATX Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Pozice na paměti: 4 x DIMM Podpora pro paměti: 4 x DIMM Max. 128GB DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Max. velikost operační paměti: 128 GB Grafická karta: ne (1x DisplayPort + 1x HDMI port) Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: 1 x Realtek 2.5Gb Ethernet Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 Rozšiřujicí sloty: Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 SATA: 4 x SATA 6Gb/s ports M.2: Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) USB: zadní USB - celkem 8, přední USB - celkem 9 ZADNÍ 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) PŘEDNÍ 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Interní porty: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header Externí porty: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
ASUS PRIME Z790-P WIFI. Výrobce procesoru: Intel, Patice procesoru: LGA 1700, Kompatibilní procesory: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 5, 10. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Standardy Wi-Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Komponent pro: PC, Typ základní desky: ATX, Řada čipsetu základní desky: Intel
