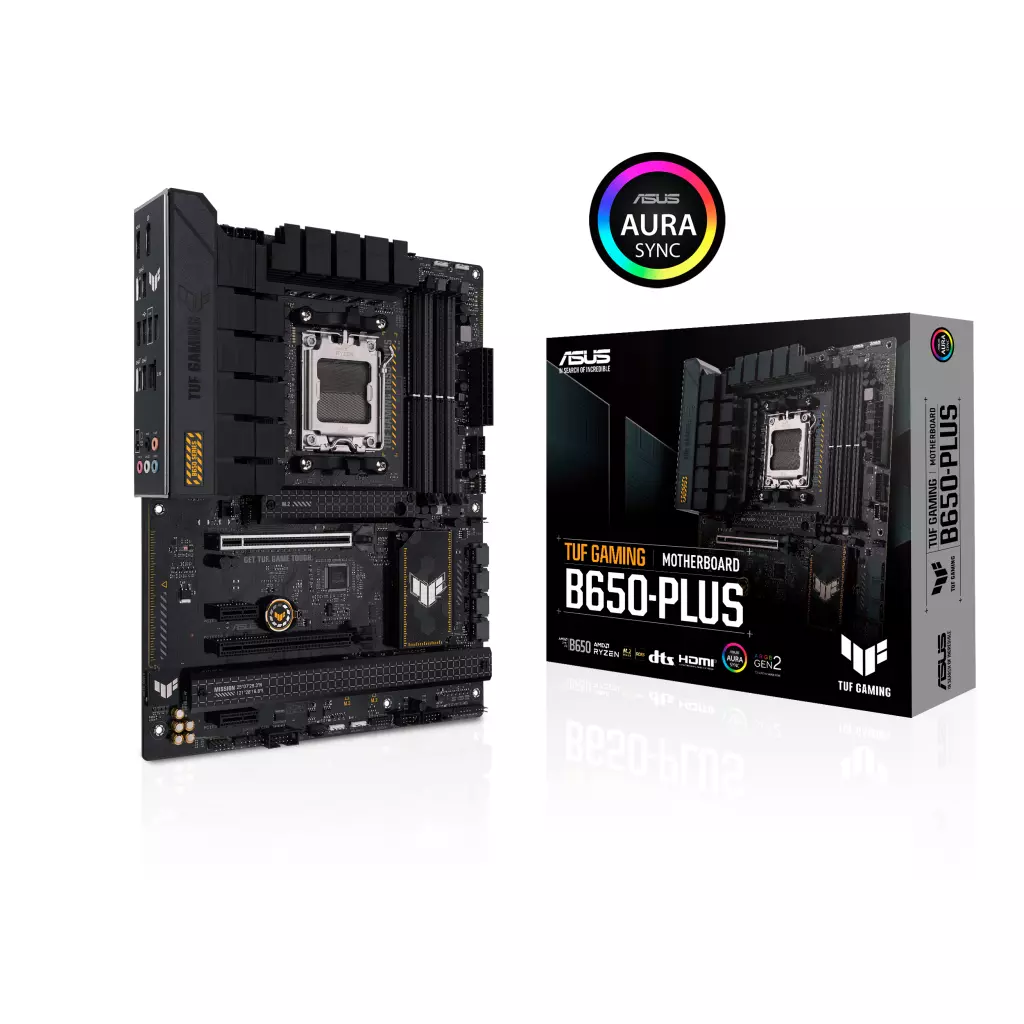

ASUS mb TUF GAMING B650-PLUS (soc AM5 DDR5 B650 ATX)

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Operating System Windows® 11 Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Operating System Windows® 11 Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS TUF GAMING B650-PLUS Chipset: AMD B650 Rozměrový formát: ATX (30,5x24,4cm) Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: * 4x DIMM, max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: Ne Rozšiřující sloty: * 1x PCIe 4.0/3.0 x16 slot * 1x PCIe 4.0/3.0 x16 slot (podporuje x4 režim) * 2x PCIe 4.0/3.0 x1 slot RAID řadič: technologie AMD RAID Xpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) * 3x USB 3.2 Gen 2 (2x Typ-A + 1x USB Typ-C®) * 4x USB 2.0 (2x Typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) * 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 * 2x USB 2.0 header - podporují další 4 porty USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) * 3x USB 3.2 Gen 2 (2x Typ-A + 1x USB Typ-C®) * 4x USB 2.0 (4x Type-A) * 1x DisplayPort * 1x HDMI® * 1x Realtek 2,5Gb ethernet * 5x audio konektor * 1x BIOS FlashBack™ tlačítko Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 4x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) * 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 * 2x USB 2.0 header - podporují další 4 porty USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude BIOS: 256Mb Flash ROM, UEFI AMI BIOS Hmotnost: 1,2kg Příslušenství: * 2x SATA 6Gb/s kabel * 2x balení podložek pro M.2 * 1x balení šroubů pro M.2 SSD * 1x instalační DVD * 1x certifikační karta TUF * 1x uživatelská příručka

ASUS TUF GAMING B650-PLUS

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen série 7000 (patice AM5)

Čipová sada AMD B650

Paměť 4x DDR5 paměťový slot, podpora až 128 GB Podpora DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz Dvoukanálová architektura paměti Podpora ECC a non-ECC, bez vyrovnávací paměti Podpora On-Die ECC funkce Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora OptiMem II

Sloty AMD CPU 1x PCIe 4.0 x16 slot AMD B650 čipová sada 1x PCIe 4.0 x16 slot (podporuje x4 režim) 2x PCIe 4.0 x1 slot

Grafika 1x HDMI port, podporující max. rozlišení 4K při 60 Hz 1x DisplayPort port, podporující max. rozlišení 8K při 60 Hz

Úložiště AMD B650 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) 4x SATA 6 Gb/s AMD CPU 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 5.0 x4 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim) Podpora AMD RAIDXpert2 Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro PCIe jednotky

USB 1x USB 3.2 Gen2x2 typ C port na zadním panelu 1x USB 3.2 Gen2 typ C port na zadním panelu 2x USB 3.2 Gen2 typ A port na zadním panelu 1x USB 3.2 Gen1 typ C port dostupný přes interní USB konektor 2x USB 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor 8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek Audio Codec 7.1kanálové High Definition Audio Audio Shielding

LAN 1x Realtek 2,5Gigabit LAN řadič Podpora TUF LANGuard

Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin 12V napájecí konektor 1x 4-pin 12V napájecí konektor 4x SATA 6Gb/s konektor 3x M.2 slot, M Key 1x USB 3.2 Gen1 typ C konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x 4-pin konektor ventilátoru CPU 1x 4-pin konektor volitelného ventilátoru CPU 1x 4-pin konektor pumpy vodního chlazení 4x 4-pin konektor ventilátoru skříně 3x konektor adresovatelného RGB LED pásku 1x konektor Aura RGB LED pásku 1x propojka Clear CMOS 1x konektor sériového portu 1x audio konektor předního panelu 1x konektor systémového panelu (včetně detekce otevření skříně) 1x Thunderbolt konektor

Porty na zadním panelu 1x HDMI 1x DisplayPort 4x USB 2.0 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x USB 3.2 Gen2 typ C 1x USB 3.2 Gen2x2 typ C 1x RJ-45 5x audio jack 1x tlačítko BIOS Flashback

Rozměry 30,5 x 24,4 cm ATX formát

ASUS TUF GAMING B650-PLUS preberá všetky základné prvky najnovších procesorov AMD Ryzen série 7000 a kombinuje ich s funkciami pripravenými na hru a overenou odolnosťou. Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie. Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať. Z estetického hľadiska tento model obsahuje robustné, tmavočierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING. CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*" Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 4K@60Hz as specified in DisplayPort 1.4. ** Supports 8K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A)  1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks  1 x BIOS FlashBack™  button  Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber Package(s) for M.2 1 x Screw package(s) for M.2 SSD Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide Operating System "Windows® 11, Windows® 10 64-bit" Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Základní deska, socket AMD AM5, čipset AMD B650, podpora procesorů AMD Ryzen řady 7000; podpora procesorů s integrovaným grafickým čipem, 4x DDR5 až 5200 MHz (6400+ MHz OC), maximálně 128 GB; sloty: 2x PCIe 4.0 x16 (x16, x4), 2x PCIe 4.0 x1; konektory: 4x SATA 6Gb/s, 3x M.2, 8x USB 2.0, 3x USB 3.2 Gen1, 3x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, 1x 2,5G LAN, 1x DisplayPort, 1x HDMI, 5x 3,5 mm audio jack; formát ATX

Parametr	Hodnota
Pro procesory	AMD
Socket (patice)	Socket AM5 (LGA 1718)
Chipset	AMD B650
Počet paměťových slotů	4
Technologie paměti RAM	DDR5
Formát základní desky	ATX
PCI Express x16	2
PCI Express x1	2
SATA 3	4
PCI	0
M.2 slot	3
3.5mm Jack	Ano
VGA	0
DVI	0
HDMI	1
DisplayPort	1
Bezdrátové připojení	bez
COM port	Ano
LPT port	Ne

Specifikace:

TUF GAMING B650-PLUS

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU

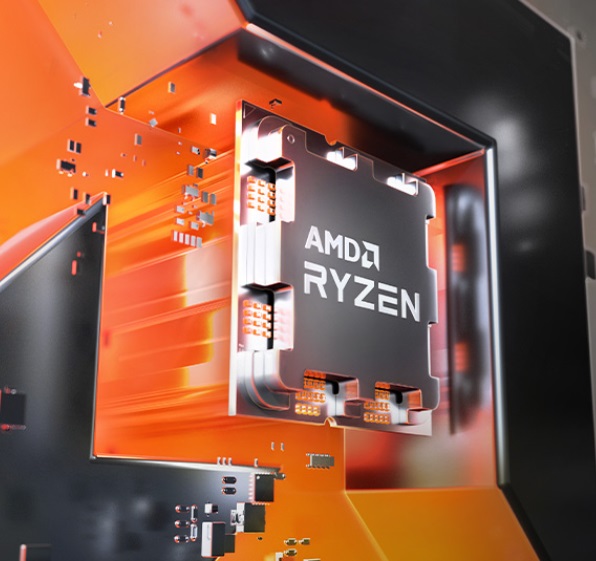

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).

Storage

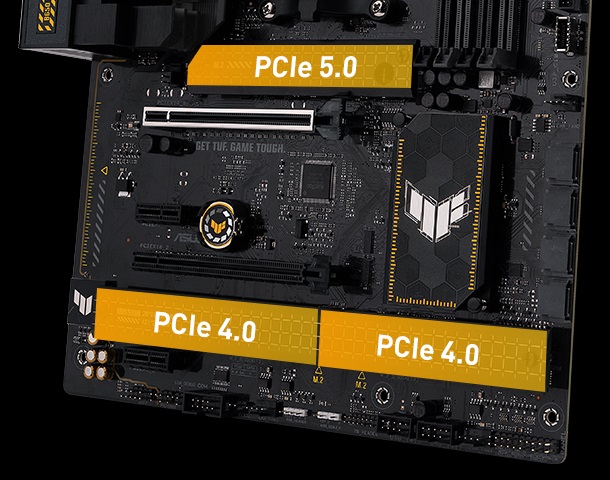

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

Ethernet

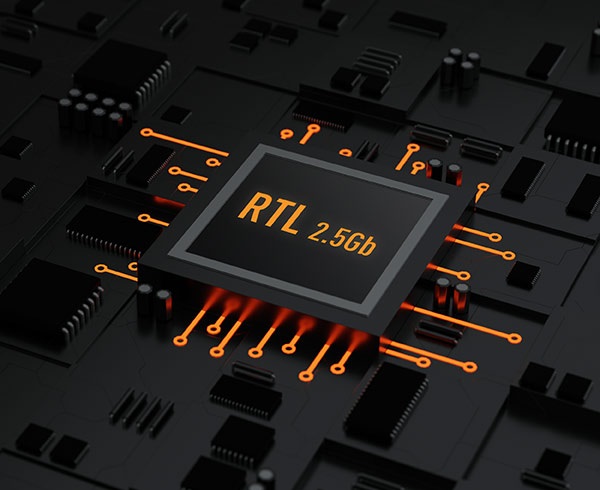

1 x Realtek 2.5Gb Ethernet TUF LANGuard

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4) header

Special Features

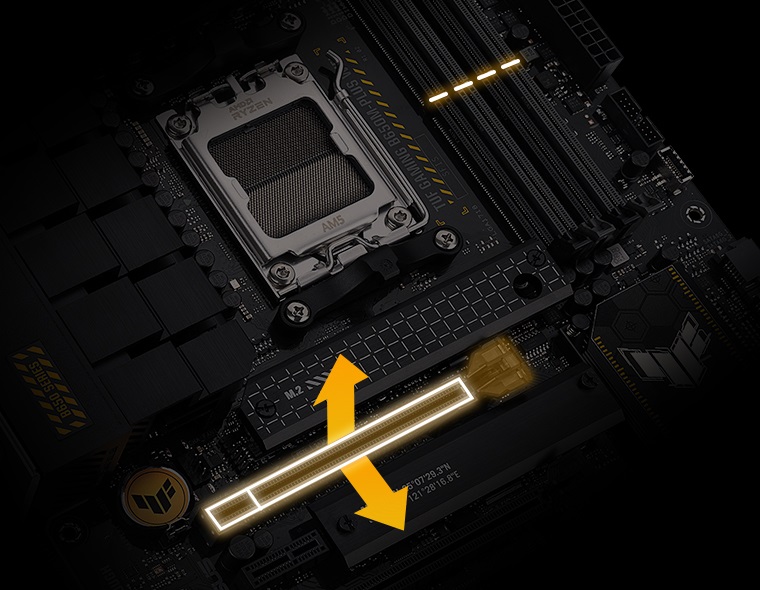

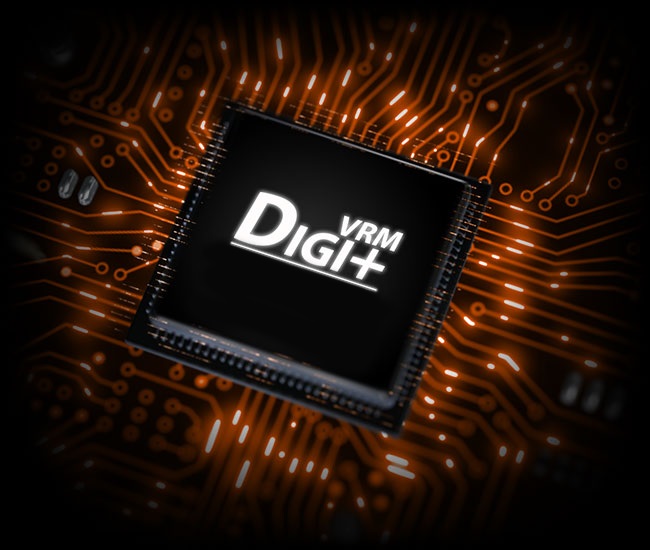

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s)

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows 11 Windows 10 64-bit

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS TUF GAMING B650-PLUS Chipset: AMD B650 Rozměrový formát: ATX (30,5x24,4cm) Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: 4x DIMM, max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: Ne Rozšiřující sloty: 1x PCIe 4.0/3.0 x16 slot 1x PCIe 4.0/3.0 x16 slot (podporuje x4 režim) 2x PCIe 4.0/3.0 x1 slot RAID řadič: technologie AMD RAID Xpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 1x M.2_3 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x SATA 6Gb/s USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 3x USB 3.2 Gen 2 (2x Typ-A + 1x USB Typ-C®) 4x USB 2.0 (2x Typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 3x USB 3.2 Gen 2 (2x Typ-A + 1x USB Typ-C®) 4x USB 2.0 (4x Type-A) 1x DisplayPort 1x HDMI® 1x Realtek 2,5Gb ethernet 5x audio konektor 1x BIOS FlashBack™ tlačítko Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan header Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header s funkcí Chassis intrude BIOS: 256Mb Flash ROM, UEFI AMI BIOS Hmotnost: 1,2kg Příslušenství: 2x SATA 6Gb/s kabel 2x balení podložek pro M.2 1x balení šroubů pro M.2 SSD 1x instalační DVD 1x certifikační karta TUF 1x uživatelská příručka

TUF GAMING B650-PLUS

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

Ethernet

1 x Realtek 2.5Gb Ethernet TUF LANGuard

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4) header

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s)

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows 11 Windows 10 64-bit

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS TUF GAMING B650-PLUS. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5, Kompatibilní procesory: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 10. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet. Komponent pro: PC, Typ základní desky: ATX, Řada čipsetu základní desky: AMD

ASUS TUF GAMING B650-PLUS Chipset: AMD B650 Rozměrový formát: ATX (30,5x24,4cm) Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: 4x DIMM, max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: Ne Rozšiřující sloty: 1x PCIe 4.0/3.0 x16 slot 1x PCIe 4.0/3.0 x16 slot (podporuje x4 režim) 2x PCIe 4.0/3.0 x1 slot RAID řadič: technologie AMD RAID Xpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 1x M.2_3 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x SATA 6Gb/s USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 3x USB 3.2 Gen 2 (2x Typ-A + 1x USB Typ-C®) 4x USB 2.0 (2x Typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 3x USB 3.2 Gen 2 (2x Typ-A + 1x USB Typ-C®) 4x USB 2.0 (4x Type-A) 1x DisplayPort 1x HDMI® 1x Realtek 2,5Gb ethernet 5x audio konektor 1x BIOS FlashBack™ tlačítko Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan header Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header s funkcí Chassis intrude BIOS: 256Mb Flash ROM, UEFI AMI BIOS Hmotnost: 1,2kg Příslušenství: 2x SATA 6Gb/s kabel 2x balení podložek pro M.2 1x balení šroubů pro M.2 SSD 1x instalační DVD 1x certifikační karta TUF 1x uživatelská příručka

ASUS TUF GAMING B650-PLUS. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5, Kompatibilní procesory: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 10. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet. Komponent pro: PC, Typ základní desky: ATX, Řada čipsetu základní desky: AMD
