ASUS ROG Strix X670E-A GAMING WiFi

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD X670 Memory 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0/4.0/3.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch packages for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD X670 Memory 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0/4.0/3.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch packages for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ROG STRIX X670E-A GAMING WIFI

CPU	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
	* Refer to www.asus.com for CPU support list.
Chipset	AMD X670
Memory	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO™)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x DisplayPort*
	1 x HDMI port**
	*Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	**Supports Supports 4K@60Hz as specified in HDMI 2.1.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors
	1 x PCIe 5.0/4.0/3.0 x16 slot
	AMD X670 Chipset
	1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
	1 x PCIe 3.0 x1 slot

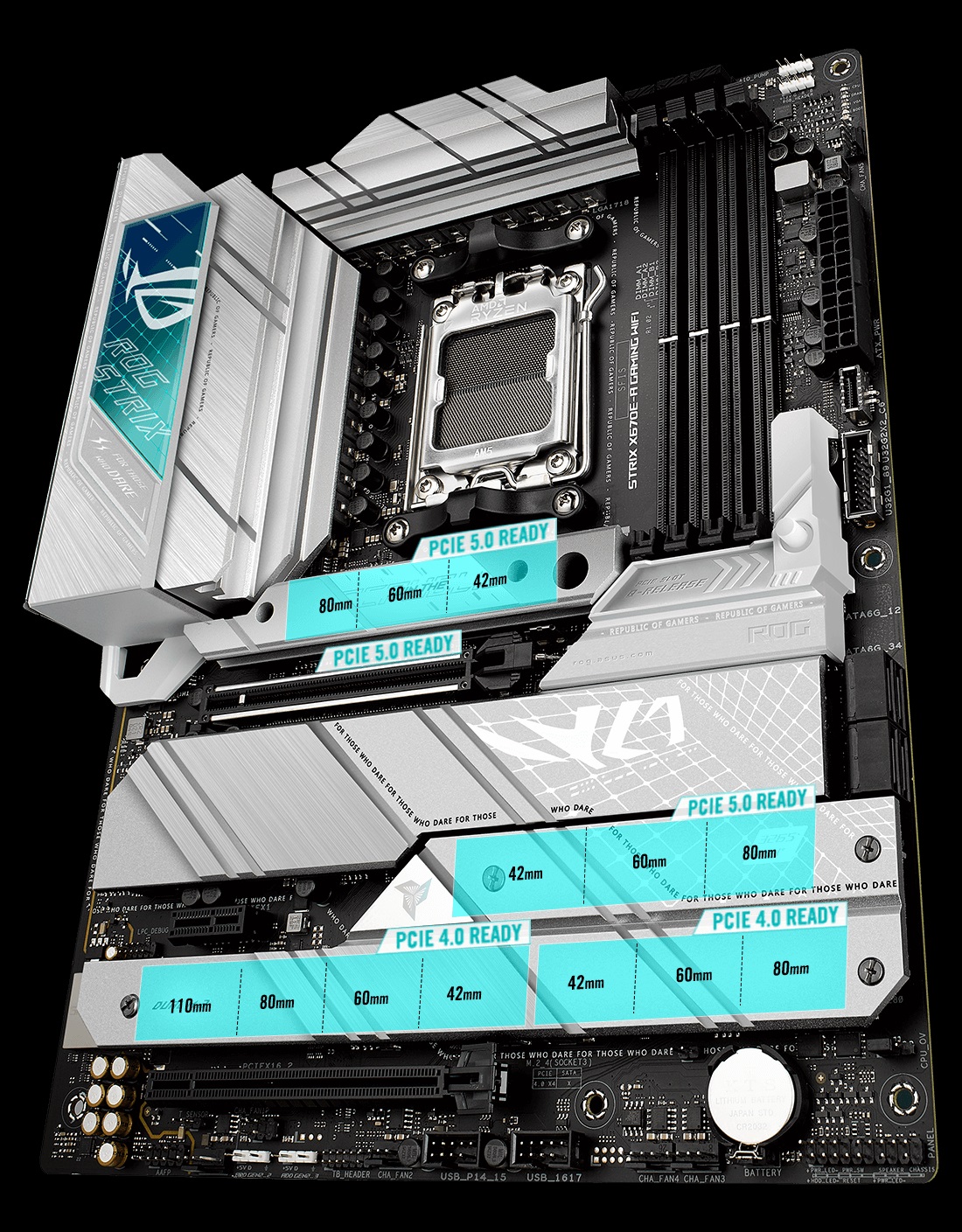

Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	AMD X670 Chipset
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Ethernet	1 x Intel 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E
	2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5/6GHz frequency band*
	Bluetooth v5.2
	* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB	Rear USB (Total 12 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
	8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback
	Audio Features
	- SupremeFX Shielding Technology
	- Savitech SV3H712 AMP
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Audio cover
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
	8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Intel I225-V 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector

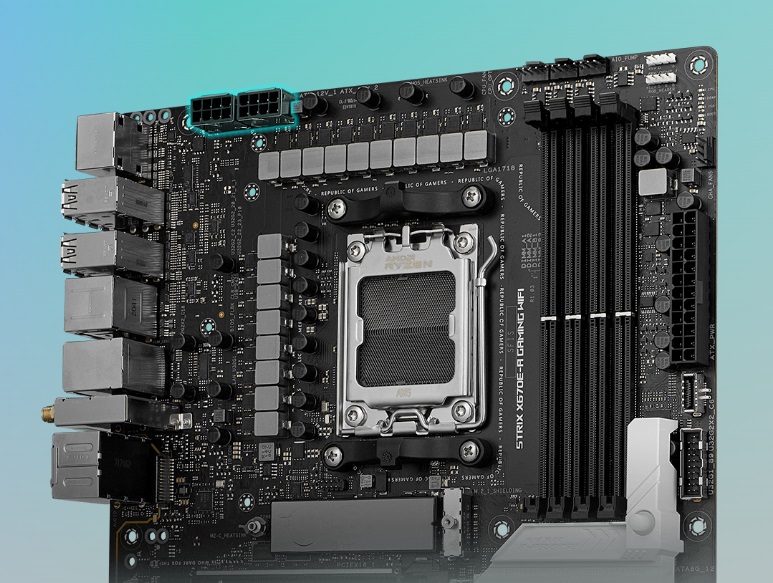

	2 x 8-pin +12V Power connector
	Storage related
	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Aura RGB header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal Sensor header
	1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+
	- 5K Black Metallic Capacitors
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- Clear CMOS button
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	AURA Sync
	- AURA RGB header
	- Addressable Gen 2 headers
Software Features	ROG Exclusive Software
	- GameFirst VI
	- ROG CPU-Z
	- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	- Sonic Radar III
	- DTS Sound Unbound
	- Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	- AIDA64 Extreme (60 days free trial)
	- AURA Creator
	- AURA Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	- Two-Way AI Noise Cancellation
	AI Suite 3
	- TPU
	- DIGI+ VRM
	- Turbo app
	- PC Cleaner
	MyAsus
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Q-Latch packages for M.2 backplate
	1 x M.2 Q-Latch package
	1 x ROG key chain
	1 x ROG Strix sticker
	1 x ROG Strix thank you card
	2 x Rubber Packages for M.2
	1 x Rubber Package for M.2 backplate
	Documentation
	1 x User guide
Operating System	Windows 11 64-bit
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS ROG STRIX X670E-A GAMING WIFI Chipset: AMD X670 Rozměrový formát: ATX 30,5x24,4cm Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: * 4x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje rozšířené profily AMD pro přetaktování (EXPO™) OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - podporuje: detekci jacků, Multi-streaming, změnu pořadí jacků na předním panelu - vysoce kvalitní 120dB SNR stereo přehrávání a 113dB SNR záznamový vstup - podporuje přehrávání až 32-bit/384kHz Ethernet: 1x Intel® 2,5Gb Ethernet, ASUS LANGuard WLAN + Bluetooth: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), podporuje frekvenční pásmo 2,4/5GHz + Bluetooth v5.2 Rozšiřující sloty: * 1x PCIe 5.0/4.0/3.0 x16 slot * 1x PCIe 4.0/3.0 x16 slot (podporuje režim x4) * 1x PCIe 3.0 x1 slot RAID řadič: technologie AMD RAIDXpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 4 sloty M.2 a 4 portů SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1x M.2_4 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6 Gb/s USB: Zadní USB (celkem 12 portů) * 1x USB 3.2 Gen 2x2 (1x USB Type-C®) * 8x USB 3.2 Gen 2 (7x Type-A + 1x USB Type-C®) * 1x USB 3.2 Gen 1 port (1x Type-A) * 2x USB 2.0 (2x Type-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 2x2 konektor (podporuje USB Type-C®) * 1x USB 3.2 Gen 1 header podporuje další 2 porty USB 3.2 Gen 1 * 2x headery USB 2.0 podporují další 4 porty USB 2.0 Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU header ventilátoru * 1x 4-pin CPU OPT header ventilátoru * 1x 4-pin AIO header čerpadla * 5x 4-pin header šasi ventilátoru Napájení * 1x 24-pin hlavní napájecí konektor * 2x 8-pin +12V napájecí konektor Související s úložištěm * 4x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 2x2 konektor (podporuje USB Type-C®) * 1x USB 3.2 Gen 1 header podporuje další 2 porty USB 3.2 Gen 1 * 2x USB 2.0 headery podporují další 4 USB 2.0 porty Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x CPU Over Voltage jumper * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header with Chassis intrude function * 1x header tepelného senzoru * 1x Thunderbolt™ header Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB Type-C®) * 8x USB 3.2 Gen 2 (7x Type-A, 1x USB Type-C®) * 1x USB 3.2 Gen 1 (1x Type- A) * 2x USB 2.0 (2x Type-A) * 1x DisplayPort * 1x HDMI® * 1x modul Wi-Fi * 1x ethernet Intel® I225-V 2,5Gb * 5x audio konektor * 1x optický výstup S/PDIF * 1x tlačítko BIOS FlashBack™ * 1x tlačítko Clear CMOS BIOS: 256Mb Flash ROM, UEFI AMI BIOS Příslušenství: * 2x SATA 6Gb/s kabel * 1x tepelná podložka pro M.2 * 1x ASUS Wi-Fi anténa * 1x sada stahovacích pásek * 1x M.2 Q-Latch balení pro M.2 backplate * 1x M.2 balení Q-Latch * 1x přívěšek na klíče ROG * 1x nálepka ROG Strix * 1x děkovná karta ROG Strix * 2x balení podložek pro M.2 * 1x balení podložek pro M.2 backplate * 1x uživatelská příručka Odkaz na stránku výrobce: https://rog.asus.com/motherboards/rog-strix/rog-strix-x670e-a-gaming-wifi-model/

ASUS ROG STRIX X670E-A GAMING WIFI

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen série 7000 (patice AM5)

Čipová sada AMD X670

Paměť 4× DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz Dvoukanálová architektura paměti Podpora ECC a non-ECC, bez vyrovnávací paměti Podpora On-Die ECC funkce Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora OptiMem II

Sloty AMD CPU 1× PCIe 5.0 x16 slot AMD X670 čipová sada 1× PCIe 4.0 x16 slot (podporuje x4 režim) 1× PCIe 3.0 x1 slot

Grafika 1× HDMI port, podporující max. rozlišení 4K při 60 Hz 1× DisplayPort port, podporující max. rozlišení 8K při 60 Hz

Úložiště AMD X670 čipová sada 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim) 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) 4× SATA 6 Gb/s AMD CPU 2× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 5.0 x4 režim) Podpora AMD RAIDXpert2 Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro PCIe jednotky

USB 2× USB-C 3.2 Gen2x2 port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 1× USB-C 3.2 Gen2 port na zadním panelu 7× USB 3.2 Gen2 typ A port na zadním panelu 3× USB 3.2 Gen1 (USB 3.0) port (1 port na zadním panelu, 2 porty dostupné přes interní USB konektor) 6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio ROG SupremeFX ALC4080 Codec 7.1kanálové High Definition Audio SupremeFX Shielding technologie Savitech SV3H712 AMP 120 dB SNR přehrávání, 113 dB SNR záznam Podpora S/PDIF výstupu

LAN 1× Intel 2,5Gigabit LAN řadič Podpora ASUS LANGuard

WLAN/ Bluetooth AMD Wi-Fi 6E RZ616 (MT7922A22M) Wi-Fi 802.11a/b/g/n/ac/ax Triple Band (2,4 GHz, 5 GHz, 6 GHz) Bluetooth 5.2

Interní konektory 1× 24pin ATX hlavní napájecí konektor 2× 8pin 12V napájecí konektor 4× SATA 6Gb/s konektor 4× M.2 slot, M Key 1× USB-C 3.2 Gen2×2 konektor předního panelu 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port) 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 1× 4pin konektor ventilátoru CPU 1× 4pin konektor volitelného ventilátoru CPU 1× 4pin konektor pumpy vodního chlazení 5× 4pin konektor ventilátoru skříně 3× konektor adresovatelného RGB LED pásku 1× konektor Aura RGB LED pásku 1× propojka CPU Over Voltage 1× audio konektor předního panelu 1× konektor systémového panelu (včetně detekce otevření skříně) 1× konektor teplotního čidla 1× Thunderbolt konektor

Porty na zadním panelu 1× USB-C 3.2 Gen2×2 1× USB-C 3.2 Gen2 7× USB 3.2 Gen2 (USB 3.1 Gen2) 1× USB 3.2 Gen1 (USB 3.0) 2× USB 2.0 1× DisplayPort 1× HDMI 2× konektor Wi-Fi antény 1× RJ-45 5× audio jack 1× optický S/PDIF výstup 1× tlačítko BIOS Flashback 1× tlačítko Clear CMOS

Rozměry 30,5 × 24,4 cm ATX formát

+ ASUS herní podložka Prispôsobte sa novej generácii so štýlovým ROG Strix X670E-A Gaming WiFi. Jeho čierne PCB a biele akcenty úhľadne kontrastujú strieborné chladiče, ktoré zdôrazňujú prémiové napájanie procesorov AMD Ryzen™ 7000 Series. Exkluzívne nástroje na pretaktovanie ROG, plné možnosti PCIe 5.0 a podpora DDR5 sú votkané popri tom, čo do vašej hernej zostavy pridáva jedinečne prispôsobený výkon a základné prvky AM5. CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD X670 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0/4.0/3.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch packages for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Parametr	Hodnota
Pro procesory	AMD
Socket (patice)	Socket AM5 (LGA 1718)
Chipset	AMD X670E
Počet paměťových slotů	4
Technologie paměti RAM	DDR5
Formát základní desky	ATX
PCI Express x16	1
PCI Express x1	1
SATA 3	4
M.2 slot	4
3.5mm Jack	Ano
HDMI	1
DisplayPort	1
Bezdrátové připojení	WiFi + Bluetooth
