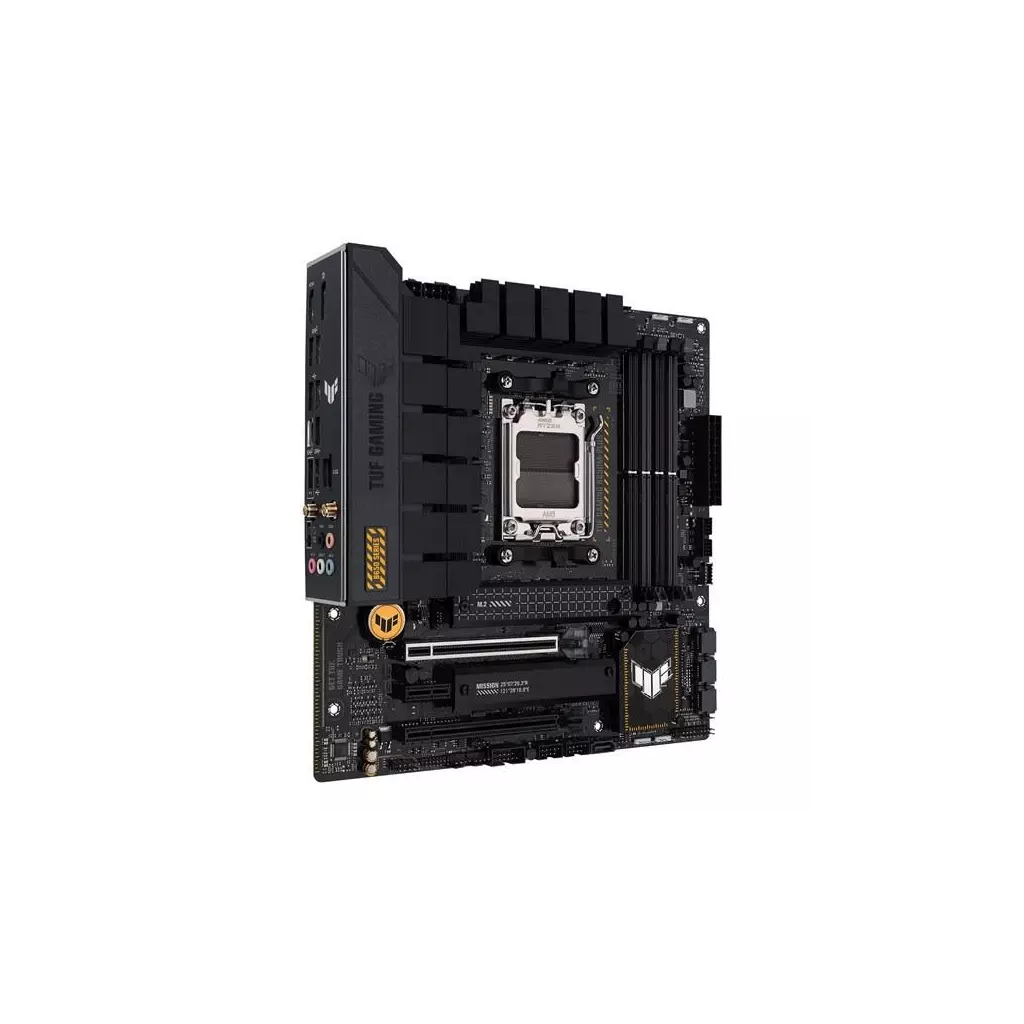

ASUS TUF GAMING B650M-PLUS WIFI, AM5, AMD B650, 4xDDR5, mATX

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI®port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Operating System Windows®11, Windows®10 64-bit Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI®port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Operating System Windows®11, Windows®10 64-bit Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

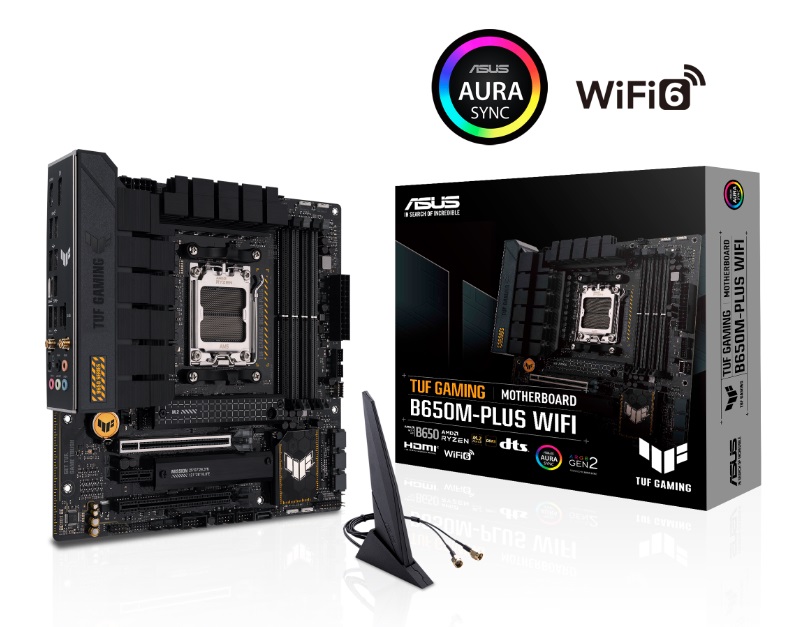

TUF GAMING B650M-PLUS WIFI

ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

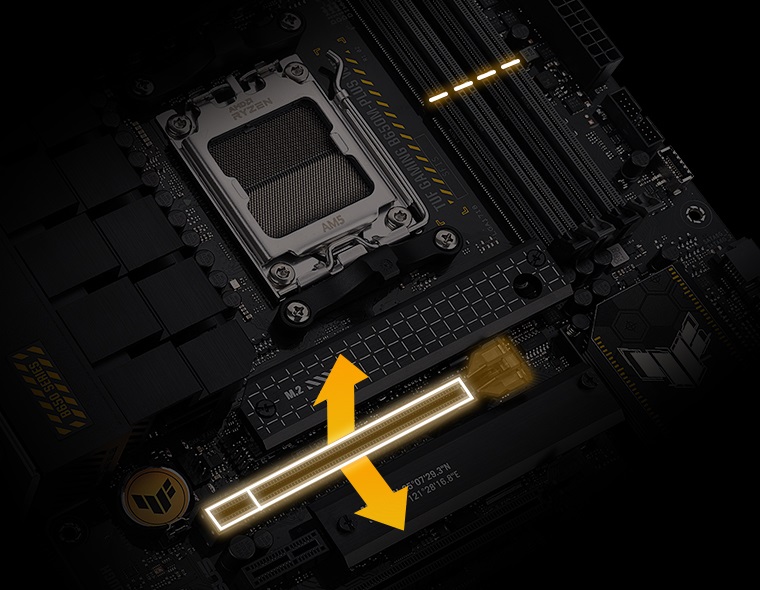

AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage

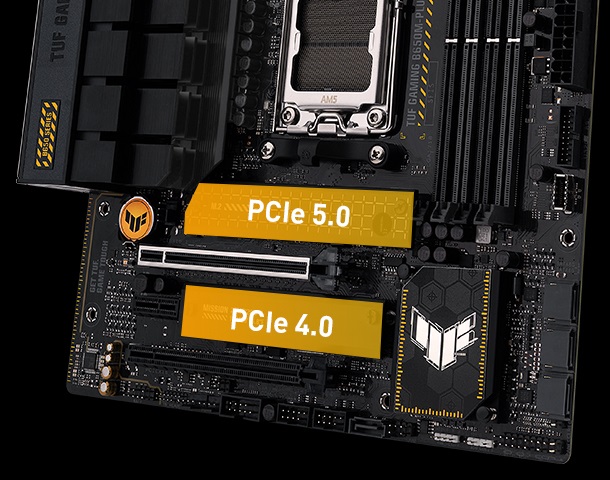

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMIport 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4) header

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows11, Windows10 64-bit

Form Factor

micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

ASUS TUF GAMING B650M-PLUS WIFI Chipset: AMD B650 Rozměrový formát: micro-ATX (24,4x24,4cm) Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: * 4x DIMM, max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1x Realtek 2,5Gb, TUF LANGuard WLAN + Bluetooth: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), podporuje frekvenční pásmo 2,4/5GHz + Bluetooth v5.2 Rozšiřující sloty: * 1x PCIe 4.0 x16 slot * 1x PCIe 4.0 x16 slot (podporuje x4 režim) * 2x PCIe 4.0 x1 slot RAID řadič: technologie AMD RAID Xpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 4x SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) * 2x USB 3.2 Gen 2 (2x Typ-A) * 1x USB 3.2 Gen 1 (1x Typ-A) * 4x USB 2.0 (4x Typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) * 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 * 2x USB 2.0 header - podporují další 4 porty USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) * 2x USB 3.2 Gen 2 (2x Typ-A) * 1x USB 3.2 Gen 1 (1x Typ-A) * 4x USB 2.0 (4x Typ-A) * 1x DisplayPort * 1x HDMI® * 1x modul Wi-Fi * 1x Realtek 2,5Gb ethernet * 5x audio konektor * 1x tlačítko BIOS FlashBack™ Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin AIO Pump header * 3x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) * 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 * 2x USB 2.0 header - podporují další 4 porty USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 256Mb Flash ROM, UEFI AMI BIOS Příslušenství: * 2x SATA 6Gb/s kabel * 1x ASUS Wi-Fi anténa * 1x balení podložek pro M.2 * 1x balení šroubů pro M.2 SSD * 1x instalační DVD * 1x certifikační karta TUF * 1x uživatelská příručka

ASUS TUF GAMING B650M-PLUS WIFI

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen série 7000 (patice AM5)

Čipová sada AMD B650

Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz Dvoukanálová architektura paměti Podpora ECC a non-ECC, bez vyrovnávací paměti Podpora On-Die ECC funkce Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora OptiMem II

Sloty AMD CPU 1x PCIe 4.0 x16 slot AMD B650 čipová sada 1x PCIe 4.0 x16 slot (podporuje x4 režim) 1x PCIe 4.0 x1 slot

Grafika 1x HDMI port, podporující max. rozlišení 4K při 60 Hz 1x DisplayPort port, podporující max. rozlišení 8K při 60 Hz

Úložiště AMD B650 čipová sada 4x SATA 6 Gb/s AMD CPU 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 5.0 x4 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) Podpora AMD RAIDXpert2 Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro PCIe jednotky

USB 1x USB 3.2 Gen2x2 typ C port na zadním panelu 2x USB 3.2 Gen2 typ A port na zadním panelu 1x USB 3.2 Gen1 typ C port dostupný přes interní USB konektor 3x USB 3.2 Gen1 (USB 3.0) port (1 port na zadním panelu, 2 porty dostupné přes interní USB konektor) 8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek Audio Codec 7.1kanálové High Definition Audio

LAN 1x Realtek 2,5Gigabit LAN řadič Podpora TUF LANGuard

WLAN/ Bluetooth Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Bluetooth 5.2

Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin 12V napájecí konektor 1x 4-pin 12V napájecí konektor 4x SATA 6Gb/s konektor 2x M.2 slot, M Key 1x USB 3.2 Gen1 typ C konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x 4-pin konektor ventilátoru CPU 1x 4-pin konektor volitelného ventilátoru CPU 1x 4-pin konektor pumpy vodního chlazení 3x 4-pin konektor ventilátoru skříně 3x konektor adresovatelného RGB LED pásku 1x konektor Aura RGB LED pásku 1x propojka Clear CMOS 1x konektor sériového portu 1x audio konektor předního panelu 1x konektor systémového panelu (včetně detekce otevření skříně) 1x Thunderbolt konektor

Porty na zadním panelu 2x konektor Wi-Fi antény 1x HDMI 1x DisplayPort 4x USB 2.0 1x USB 3.2 Gen1 (USB 3.0) 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x USB 3.2 Gen2x2 typ C 1x RJ-45 5x audio jack 1x tlačítko BIOS Flashback

Rozměry 24,4 x 24,4 cm Micro ATX formát

ASUS TUF GAMING B650M-PLUS WIFI preberá všetky základné prvky najnovších procesorov AMD Ryzen série 7000 a kombinuje ich s funkciami pripravenými na hru a overenou odolnosťou. Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie. Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať. Z estetického hľadiska tento model obsahuje robustné, tmavočierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING. Špecifikácia: Model TUF GAMING B650M-PLUS WIFI CPU AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Pamäť 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Grafika 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Rozširujúce sloty AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Úložisko Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Bezdrôtové pripojenie a Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Porty na zadnom paneli 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI®port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Vnútorné konektory Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Špeciálne funkcie ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Softvérové funkcie ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Operačný systém Windows®11, Windows®10 64-bit Formát ATX micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Základní deska, socket AMD AM5, čipset AMD B650, podpora procesorů AMD Ryzen řady 7000; podpora procesorů s integrovaným grafickým čipem, 4x DDR5 až 5200 MHz (6400+ MHz OC), maximálně 128 GB; sloty: 2x PCIe 4.0 x16 (x16, x4), 1x PCIe 4.0 x1; konektory: 4x SATA 6Gb/s, 2x M.2, 8x USB 2.0, 4x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, 1x 2,5G LAN, 1x DisplayPort, 1x HDMI, 5x 3,5 mm audio jack; Wi-Fi 6, Bluetooth 5.2; formát mATX

Parametr	Hodnota
Pro procesory	AMD
Socket (patice)	Socket AM5 (LGA 1718)
Chipset	AMD B650
Počet paměťových slotů	4
Technologie paměti RAM	DDR5
Formát základní desky	micro ATX
PCI Express x16	2
PCI Express x1	1
SATA 3	4
M.2 slot	2
3.5mm Jack	Ano
VGA	0
DVI	0
HDMI	1
DisplayPort	1
Bezdrátové připojení	WiFi + Bluetooth
COM port	Ano
LPT port	Ne

Specifikace:

TUF GAMING B650M-PLUS WIFI

ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMIport 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4) header

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows11, Windows10 64-bit

Form Factor

micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

ASUS TUF GAMING B650M-PLUS WIFI Chipset: AMD B650 Rozměrový formát: micro-ATX (24,4x24,4cm) Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: 4x DIMM, max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1x Realtek 2,5Gb, TUF LANGuard WLAN + Bluetooth: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), podporuje frekvenční pásmo 2,4/5GHz + Bluetooth v5.2 Rozšiřující sloty: 1x PCIe 4.0 x16 slot 1x PCIe 4.0 x16 slot (podporuje x4 režim) 2x PCIe 4.0 x1 slot RAID řadič: technologie AMD RAID Xpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x SATA 6Gb/s USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 2x USB 3.2 Gen 2 (2x Typ-A) 1x USB 3.2 Gen 1 (1x Typ-A) 4x USB 2.0 (4x Typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 2x USB 3.2 Gen 2 (2x Typ-A) 1x USB 3.2 Gen 1 (1x Typ-A) 4x USB 2.0 (4x Typ-A) 1x DisplayPort 1x HDMI® 1x modul Wi-Fi 1x Realtek 2,5Gb ethernet 5x audio konektor 1x tlačítko BIOS FlashBack™ Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan header Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header s funkcí Chassis intrude 1x Thunderbolt™ (USB4®) header BIOS: 256Mb Flash ROM, UEFI AMI BIOS Příslušenství: 2x SATA 6Gb/s kabel 1x ASUS Wi-Fi anténa 1x balení podložek pro M.2 1x balení šroubů pro M.2 SSD 1x instalační DVD 1x certifikační karta TUF 1x uživatelská příručka

ASUS TUF GAMING B650M-PLUS WIFI. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 10. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Standardy Wi-Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Komponent pro: PC, Typ základní desky: Micro ATX, Řada čipsetu základní desky: AMD

ASUS TUF GAMING B650M-PLUS WIFI Chipset: AMD B650 Rozměrový formát: micro-ATX (24,4x24,4cm) Podpora pro procesory: AMD Ryzen™ řady 7000 Patice procesoru: AM5 Paměť: 4x DIMM, max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC a bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II Grafická karta: 1x DisplayPort 1.4 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1x Realtek 2,5Gb, TUF LANGuard WLAN + Bluetooth: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), podporuje frekvenční pásmo 2,4/5GHz + Bluetooth v5.2 Rozšiřující sloty: 1x PCIe 4.0 x16 slot 1x PCIe 4.0 x16 slot (podporuje x4 režim) 2x PCIe 4.0 x1 slot RAID řadič: technologie AMD RAID Xpert2 podporuje NVMe RAID 0/1/10 i SATA RAID 0/1/10 Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 5.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 4x SATA 6Gb/s USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 2x USB 3.2 Gen 2 (2x Typ-A) 1x USB 3.2 Gen 1 (1x Typ-A) 4x USB 2.0 (4x Typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB Typ-C®) 2x USB 3.2 Gen 2 (2x Typ-A) 1x USB 3.2 Gen 1 (1x Typ-A) 4x USB 2.0 (4x Typ-A) 1x DisplayPort 1x HDMI® 1x modul Wi-Fi 1x Realtek 2,5Gb ethernet 5x audio konektor 1x tlačítko BIOS FlashBack™ Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan header Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor 1x 4-pin +12V napájecí konektor Související s úložištěm 2x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor (podporuje USB Typ-C®) 1x USB 3.2 Gen 1 header - podporuje další 2 porty USB 3.2 Gen 1 2x USB 2.0 header - podporují další 4 porty USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header s funkcí Chassis intrude 1x Thunderbolt™ (USB4®) header BIOS: 256Mb Flash ROM, UEFI AMI BIOS Příslušenství: 2x SATA 6Gb/s kabel 1x ASUS Wi-Fi anténa 1x balení podložek pro M.2 1x balení šroubů pro M.2 SSD 1x instalační DVD 1x certifikační karta TUF 1x uživatelská příručka

ASUS TUF GAMING B650M-PLUS WIFI. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 10. Typ rozhraní Ethernetu: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Standardy Wi-Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Komponent pro: PC, Typ základní desky: Micro ATX, Řada čipsetu základní desky: AMD
