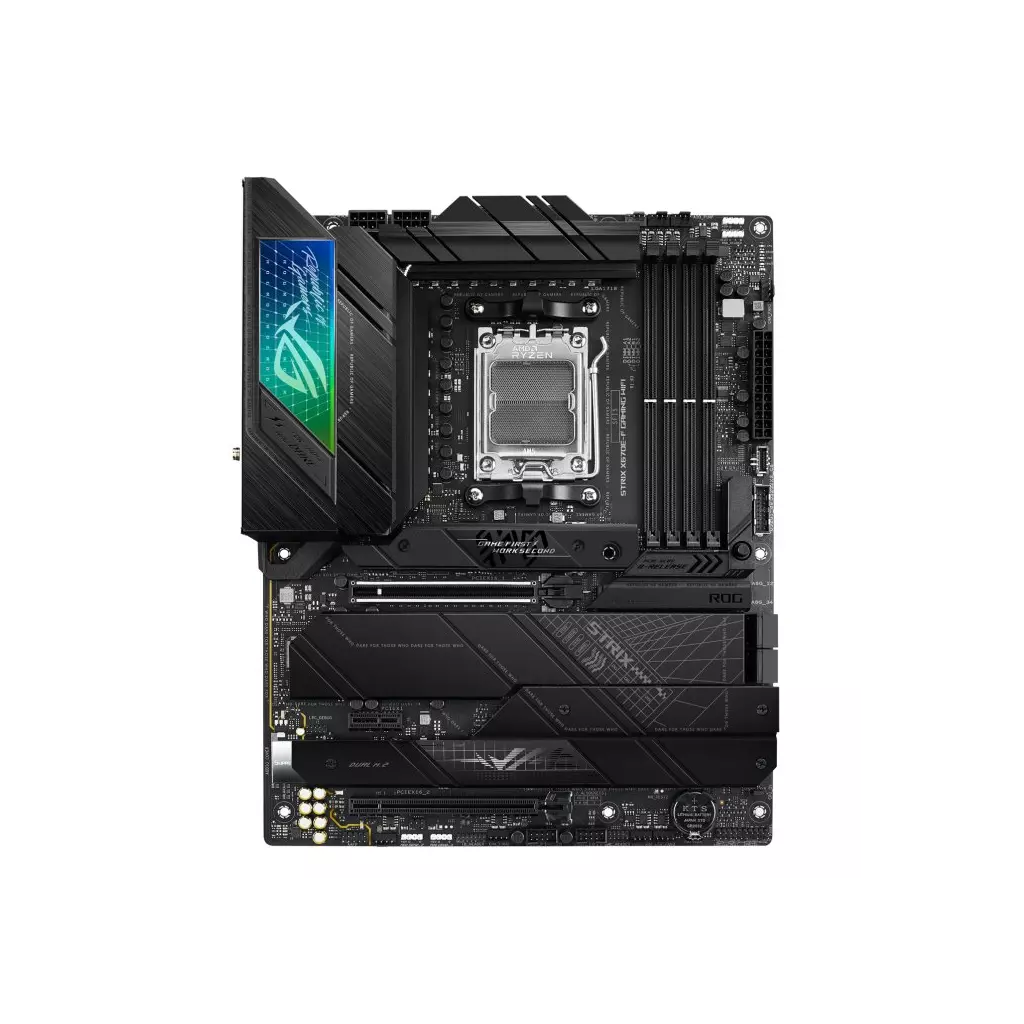

ASUS ROG Strix X670E-F GAMING WiFi

Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů AMD Ryzen série 7000 (patice AM5)
Čipová sada AMD X670
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz Dvoukanálová architektura paměti Podpora ECC a non-ECC, bez vyrovnávací paměti Podpora On-Die ECC funkce Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora OptiMem II
Sloty AMD CPU 1x PCIe 5.0 x16 slot AMD X670 čipová sada 1x PCIe 4.0 x16 slot (podporuje x4 režim) 1x PCIe 3.0 x1 slot
Grafika 1x HDMI port, podporující max. rozlišení 4K při 60 Hz 1x DisplayPort port, podporující max. rozlišení 8K při 60 Hz
Úložiště AMD X670 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) 4x SATA 6 Gb/s AMD CPU 2x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 5.0 x4 režim) Podpora AMD RAIDXpert2 Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro PCIe jednotky
USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 2x USB 3.2 Gen2 typ C port na zadním panelu 7x USB 3.2 Gen2 typ A port na zadním panelu 2x USB 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio ROG SupremeFX ALC4080 Codec 7.1kanálové High Definition Audio SupremeFX Shielding technologie Savitech SV3H712 AMP 120 dB SNR přehrávání, 113 dB SNR záznam Podpora S/PDIF výstupu
LAN 1x Intel 2,5Gigabit LAN řadič Podpora ASUS LANGuard
WLAN/ Bluetooth AMD Wi-Fi 6E RZ616 (MT7922A22M) Wi-Fi 802.11a/b/g/n/ac/ax Triple Band (2,4 GHz, 5 GHz, 6 GHz) Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin 12V napájecí konektor 4x SATA 6Gb/s konektor 4x M.2 slot, M Key 1x USB 3.2 Gen2x2 typ C konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x 4-pin konektor ventilátoru CPU 1x 4-pin konektor volitelného ventilátoru CPU 1x 4-pin konektor pumpy vodního chlazení 5x 4-pin konektor ventilátoru skříně 3x konektor adresovatelného RGB LED pásku 1x konektor Aura RGB LED pásku 1x propojka CPU Over Voltage 1x audio konektor předního panelu 1x konektor systémového panelu (včetně detekce otevření skříně) 1x konektor teplotního čidla 1x Thunderbolt konektor
Porty na zadním panelu 1x USB 3.2 Gen2x2 typ C 2x USB 3.2 Gen2 typ C 7x USB 3.2 Gen2 (USB 3.1 Gen2) typ A 2x USB 2.0 1x DisplayPort 1x HDMI 2x konektor Wi-Fi antény 1x RJ-45 5x audio jack 1x optický S/PDIF výstup 1x tlačítko BIOS Flashback 1x tlačítko Clear CMOS
Rozměry 30,5 x 24,4 cm ATX formát
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
Graphics | 1 x DisplayPort* |
1 x HDMI® port** | |
* Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
**Supports max. 4K@60Hz as specified in HDMI 2.1. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
1 x PCIe 5.0 x16 slots (supports x16 mode) | |
AMD X670 Chipset** | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 3.0 x1 slot | |
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
AMD X670 Chipset | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
Ethernet | 1 x Intel® 2.5Gb Ethernet |
ASUS LANGuard | |
Wireless & Bluetooth | Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band | |
Bluetooth v5.2 | |
USB | Rear USB (Total 12 ports) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) | |
2 x USB 2.0 ports | |
Front USB (Total 7 ports) | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
- Impedance sense for front and rear headphone outputs | |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
- Supports up to 32-Bit/384 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Savitech SV3H712 AMP | |
- Gold-plated audio jacks | |
- Rear optical S/PDIF out port | |
- Premium audio capacitors | |
- Audio cover | |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x Type-C®) |
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C®) | |
2 x USB 2.0 ports | |
1 x DisplayPort | |
1 x HDMI® port | |
1 x Wi-Fi Module | |
1 x Intel® I225-V 2.5Gb Ethernet port | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt™ header | |
Special Features | Extreme Engine Digi+ |
- 5K Black Metallic Capacitors | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- PCIe Slot Q-Release | |
- Q-DIMM | |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsinks | |
- M.2 heatsink backplate | |
- VRM heatsink design | |
ASUS EZ DIY | |
- BIOS FlashBack™ button | |
- BIOS FlashBack™ LED | |
- Clear CMOS button | |
- ProCool II | |
- Pre-mounted I/O shield | |
- SafeSlot | |
- SafeDIMM | |
Aura Sync | |
- Aura RGB header | |
- Addressable Gen 2 headers | |
Software Features | ROG Exclusive Software |
- GameFirst VI | |
- ROG CPU-Z | |
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
- Sonic Radar III | |
- DTS® Sound Unbound | |
- Anti-virus software | |
ASUS Exclusive Software | |
Armoury Crate | |
- AIDA64 Extreme (60 days free trial) | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 4 (with AI Cooling II) | |
- Power Saving | |
- Two-Way AI Noise Cancellation | |
AI Suite 3 | |
TPU | |
DIGI+ VRM | |
Turbo app | |
PC Cleaner | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
Dynamic OC Switcher | |
FlexKey | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
2 x SATA 6Gb/s cables | |
Additional Cooling Kit | |
1 x Thermal pad for M.2 | |
Miscellaneous | |
1 x ASUS Wi-Fi moving antennas | |
1 x Cable ties pack | |
1 x M.2 Q-Latch package for M.2 backplate | |
1 x M.2 Q-Latch package | |
1 x ROG key chain | |
1 x ROG Strix stickers | |
1 x ROG Strix thank you card | |
2 x Rubber Packages for M.2 | |
1 x Rubber Package for M.2 backplate | |
Documentation | |
1 x User guide | |
Operating System | Windows® 11 64-bit |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Parametr | Hodnota |
---|---|
Pro procesory | AMD |
Socket (patice) | Socket AM5 (LGA 1718) |
Chipset | AMD X670E |
Počet paměťových slotů | 4 |
Technologie paměti RAM | DDR5 |
Formát základní desky | ATX |
PCI Express x16 | 1 |
PCI Express x1 | 1 |
SATA 3 | 4 |
M.2 slot | 4 |
3.5mm Jack | Ano |
HDMI | 1 |
DisplayPort | 1 |
Bezdrátové připojení | WiFi + Bluetooth |
Specifikace:
ROG STRIX X670E-F GAMING WIFI
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
Graphics | 1 x DisplayPort* |
1 x HDMI port** | |
* Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
**Supports max. 4K@60Hz as specified in HDMI 2.1. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
1 x PCIe 5.0 x16 slots (supports x16 mode) | |
AMD X670 Chipset** | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 3.0 x1 slot | |
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
AMD X670 Chipset | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
Ethernet | 1 x Intel 2.5Gb Ethernet |
ASUS LANGuard | |
Wireless & Bluetooth | Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band | |
Bluetooth v5.2 | |
USB | Rear USB (Total 12 ports) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) | |
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C) | |
2 x USB 2.0 ports | |
Front USB (Total 7 ports) | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
- Impedance sense for front and rear headphone outputs | |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
- Supports up to 32-Bit/384 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Savitech SV3H712 AMP | |
- Gold-plated audio jacks | |
- Rear optical S/PDIF out port | |
- Premium audio capacitors | |
- Audio cover | |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x Type-C) |
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C) | |
2 x USB 2.0 ports | |
1 x DisplayPort | |
1 x HDMI port | |
1 x Wi-Fi Module | |
1 x Intel I225-V 2.5Gb Ethernet port | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt™ header | |
Special Features | Extreme Engine Digi+ |
- 5K Black Metallic Capacitors | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- PCIe Slot Q-Release | |
- Q-DIMM | |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsinks | |
- M.2 heatsink backplate | |
- VRM heatsink design | |
ASUS EZ DIY | |
- BIOS FlashBack™ button | |
- BIOS FlashBack™ LED | |
- Clear CMOS button | |
- ProCool II | |
- Pre-mounted I/O shield | |
- SafeSlot | |
- SafeDIMM | |
Aura Sync | |
- Aura RGB header | |
- Addressable Gen 2 headers | |
Software Features | ROG Exclusive Software |
- GameFirst VI | |
- ROG CPU-Z | |
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
- Sonic Radar III | |
- DTS Sound Unbound | |
- Anti-virus software | |
ASUS Exclusive Software | |
Armoury Crate | |
- AIDA64 Extreme (60 days free trial) | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 4 (with AI Cooling II) | |
- Power Saving | |
- Two-Way AI Noise Cancellation | |
AI Suite 3 | |
TPU | |
DIGI+ VRM | |
Turbo app | |
PC Cleaner | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
Dynamic OC Switcher | |
FlexKey | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
2 x SATA 6Gb/s cables | |
Additional Cooling Kit | |
1 x Thermal pad for M.2 | |
Miscellaneous | |
1 x ASUS Wi-Fi moving antennas | |
1 x Cable ties pack | |
1 x M.2 Q-Latch package for M.2 backplate | |
1 x M.2 Q-Latch package | |
1 x ROG key chain | |
1 x ROG Strix stickers | |
1 x ROG Strix thank you card | |
2 x Rubber Packages for M.2 | |
1 x Rubber Package for M.2 backplate | |
Documentation | |
1 x User guide | |
Operating System | Windows 11 64-bit |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ROG STRIX X670E-F GAMING WIFI
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
Graphics | 1 x DisplayPort* |
1 x HDMI port** | |
* Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
**Supports max. 4K@60Hz as specified in HDMI 2.1. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
1 x PCIe 5.0 x16 slots (supports x16 mode) | |
AMD X670 Chipset** | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 3.0 x1 slot | |
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
AMD X670 Chipset | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
Ethernet | 1 x Intel 2.5Gb Ethernet |
ASUS LANGuard | |
Wireless & Bluetooth | Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band | |
Bluetooth v5.2 | |
USB | Rear USB (Total 12 ports) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) | |
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C) | |
2 x USB 2.0 ports | |
Front USB (Total 7 ports) | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
- Impedance sense for front and rear headphone outputs | |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
- Supports up to 32-Bit/384 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Savitech SV3H712 AMP | |
- Gold-plated audio jacks | |
- Rear optical S/PDIF out port | |
- Premium audio capacitors | |
- Audio cover | |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x Type-C) |
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C) | |
2 x USB 2.0 ports | |
1 x DisplayPort | |
1 x HDMI port | |
1 x Wi-Fi Module | |
1 x Intel I225-V 2.5Gb Ethernet port | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt™ header | |
Special Features | Extreme Engine Digi+ |
- 5K Black Metallic Capacitors | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- PCIe Slot Q-Release | |
- Q-DIMM | |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsinks | |
- M.2 heatsink backplate | |
- VRM heatsink design | |
ASUS EZ DIY | |
- BIOS FlashBack™ button | |
- BIOS FlashBack™ LED | |
- Clear CMOS button | |
- ProCool II | |
- Pre-mounted I/O shield | |
- SafeSlot | |
- SafeDIMM | |
Aura Sync | |
- Aura RGB header | |
- Addressable Gen 2 headers | |
Software Features | ROG Exclusive Software |
- GameFirst VI | |
- ROG CPU-Z | |
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
- Sonic Radar III | |
- DTS Sound Unbound | |
- Anti-virus software | |
ASUS Exclusive Software | |
Armoury Crate | |
- AIDA64 Extreme (60 days free trial) | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 4 (with AI Cooling II) | |
- Power Saving | |
- Two-Way AI Noise Cancellation | |
AI Suite 3 | |
TPU | |
DIGI+ VRM | |
Turbo app | |
PC Cleaner | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
Dynamic OC Switcher | |
FlexKey | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
2 x SATA 6Gb/s cables | |
Additional Cooling Kit | |
1 x Thermal pad for M.2 | |
Miscellaneous | |
1 x ASUS Wi-Fi moving antennas | |
1 x Cable ties pack | |
1 x M.2 Q-Latch package for M.2 backplate | |
1 x M.2 Q-Latch package | |
1 x ROG key chain | |
1 x ROG Strix stickers | |
1 x ROG Strix thank you card | |
2 x Rubber Packages for M.2 | |
1 x Rubber Package for M.2 backplate | |
Documentation | |
1 x User guide | |
Operating System | Windows 11 64-bit |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
