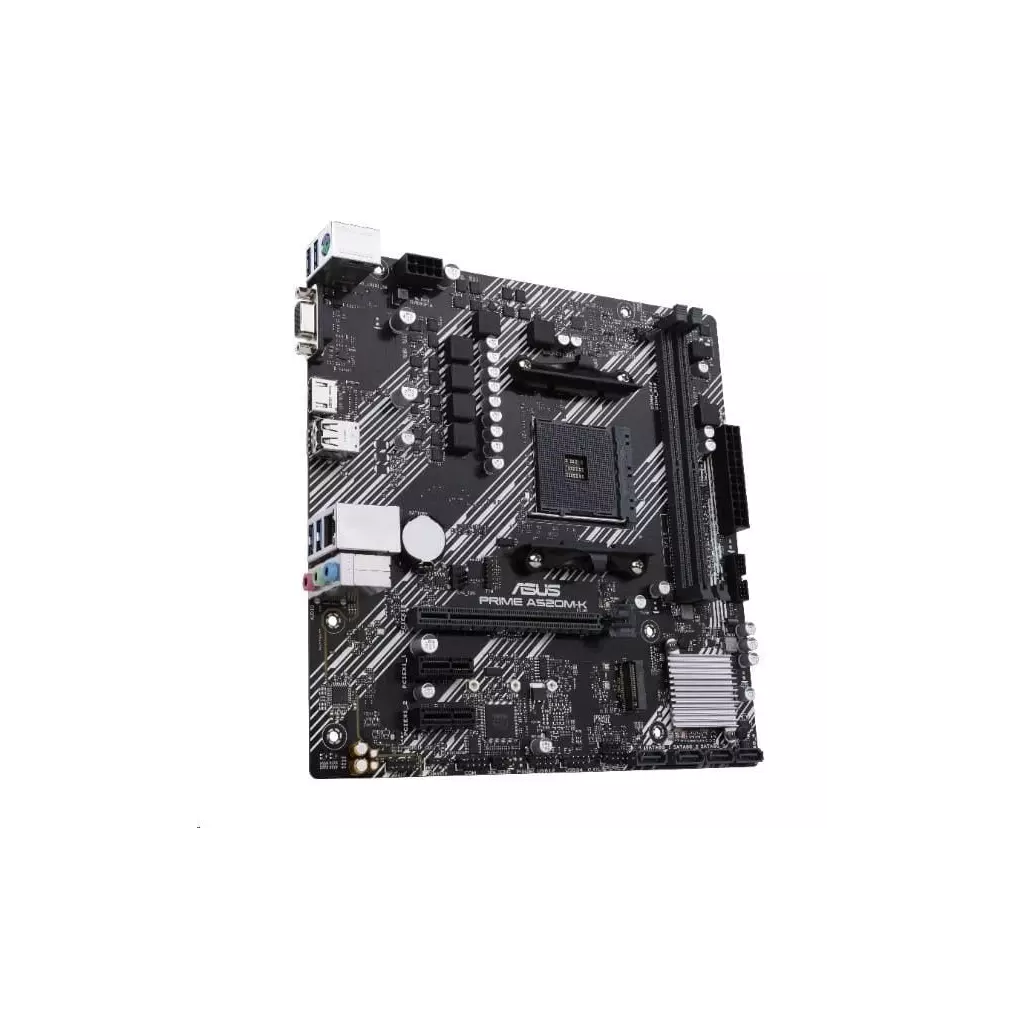

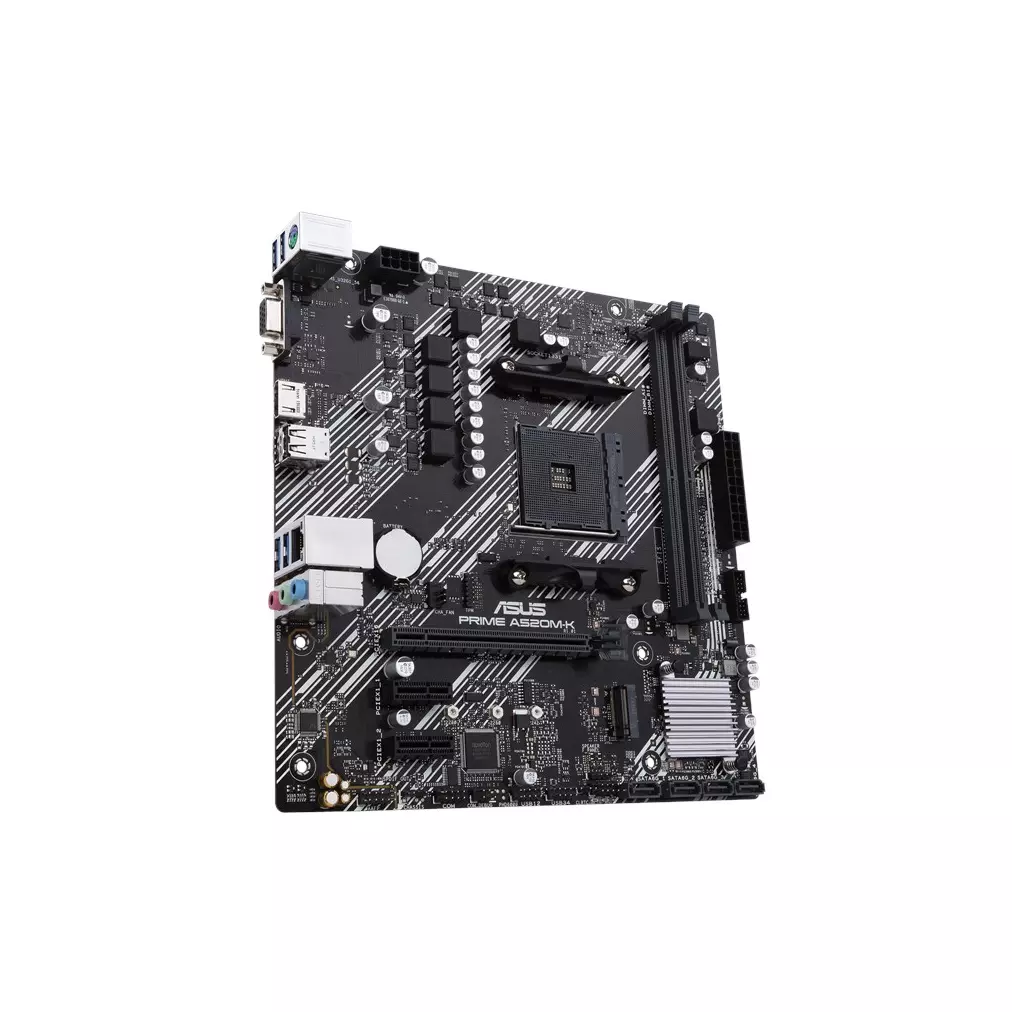

ASUS Prime A520M-K

Základní deska AMD A520 (s paticí Ryzen AM4) velikosti microATX s podporou rozhraní M.2, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A Patice AMD AM4: připravena na procesory Ryzen™ řady 5000/4000G/3000 pro stolní počítače Komplexní chlazení: chladič čipsetu (PCH) a nástroj Fan Xpert Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A 5X Protection III: Vícenásobné hardwarové zabezpečení pro ochranu celého systému Procesor AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * * Refer to www.asus.com for CPU support list Čipová sada AMD A520 Operační paměť 2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Grafická karta 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) Rozšiřující sloty AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Úložný prostor Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Zvuk Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Porty Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Softwarových funkcí ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Speciální funkce ASUS ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design Zadní vstupy a výstupy 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) Vnitřní vstupy a výstupy 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Příslušenství User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operační systém Windows® 10 64-bit Formát mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

PRIME A520M-K

Základná doska AMD A520 (Ryzen AM4) micro ATX s M.2, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gb/s, USB 3.2 Gen 1 Type-A

• Socket AMD AM4: Pripravený na procesory AMD Ryzen™ 3. generácie a AMD Ryzen™ 3. generácie s grafickými procesormi Radeon™
• Komplexné chladenie: chladič PCH a Fan Xpert
• Ultrarýchle pripojenie.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• 5X Protection III: Viacnásobná hardvérová ochrana na všestrannú ochranu systému

TECHNICKÉ ŠPECIFIKÁCIE

CPU	Socket AMD AM4 pre stolové procesory AMD Ryzen™ série 5000/ 4000 G/ 3000 * * Pozri www.asus.com pre zoznam podpory CPU
Čipová súprava	AMD A520
Pamäť	2 x DIMM, max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Nevyrovnaná pamäť * Dvojkanálová pamäťová architektúra Podpora pamäte ECC (režim ECC) sa líši podľa procesora. * Pozrite si stránku www.asus.com pre zoznamy kvalifikovaných predajcov pamäte (Qualified Vendors Lists). * Maximálna podporovaná frekvencia pamäte sa líši podľa procesora.
Grafika	1 x D-Sub 1 x HDMI 2.1(4K@60HZ)
Rozširujúce sloty	Stolové procesory AMD Ryzen™ série 5000/ 4000 G/ 3000 1 x PCIe 3.0 x16 (režim x16) Čipová sada AMD A520 2 x PCIe 3.0 x1
Úložisko	Spolu podporuje 1 x M.2 sloty a 4 x porty SATA 6 Gb/s Stolné procesory AMD Ryzen™ série 5000/ 4000 série G/ 3000: 1 x M.2 Zásuvka 3, s kľúčom M, typ 2242/2260/2280 (PCIE 3.0 x4 a režimy SATA) podpora úložných zariadení Čipová sada AMD A520: 4 x SATA 6Gb/s port(y), Podpora Raid 0, 1, 10
LAN	Realtek RTL8111H 1Gb Ethernet ASUS LANGuard
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Podporuje: Jack-detection, Multi-streaming, Front Panel Jack-retasking, až 24-Bit/192kHz playback Audio Feature: - Audio Shielding - Dedicated audio PCB layers * Vyberte si šasi s HD audio modulom v prednom paneli, ktorý podporuje 8-kanálový audio výstup.
Porty USB	Zadný port USB (spolu 6) 4 x USB 3.2 porty Gen 1 (4 x Type-A) 2 x USB 2.0 portov (2 x typ A)
	Predný port USB (spolu 6) 2x USB 3.2 porty Gen 1 (2 x Type-A) 4 x USB 2.0 portov (4 x typ A)
Funkcie softvéru	Exkluzívny softvér ASUS Armoury Crate AI Suite 3 - Nástroj na úsporu výkonu a energie TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Antivírusový softvér Norton (bezplatná skúšobná verzia na 60 dní) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Špeciálne funkcie ASUS	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Hliníkový dizajn chladiča
Zadné I/O porty	1 x kombinovaný(é) port(y) klávesnica/myš PS/2 1 x D-Sub 1 x HDMI 1 x port(y) LAN (RJ45) 4 x USB 3.2 Gen 1 (modrý) Type-A 2 x USB 2.0 3 x audio konektor(y)
Interné porty I/O	1 x konektor(y) ventilátora CPU 1 x konektor(y) ventilátora šasi 1 x USB 3.2 konektory Gen 1 (do 5 Gb/s) podporujú ďalšie 2 USB 3.2 porty Gen 1 2 x USB 2.0 konektor(y) podporuje(ú) ďalšie 4 USB 2.0 portov 1 x M.2 Socket 3 s kľúčom M, podpora pamäťových zariadení typu 2242/2260/2280 (SATA a PCIE 3.0 x 4 režimy) 1 x SPI TPM header 4 x SATA 6Gb/s konektor(y) 1 x S/PDIF out header(y) 1 x 24-pinový EATX Power connector(y) 1 x 8-pinový EATX 12V Power connectors 1 x Front panel audio connector(y) (AAFP) 1 x Clear CMOS jumper(y) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Príslušenstvo	Používateľská príručka I/O Shield 2 x SATA 6Gb/s kábel(y) 1 x podporné DVD 1 x M.2 balíky skrutiek SSD
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Spravovateľnosť	WOL podľa PME, PXE
Operačný systém	Windows 10 64-bit
Faktor formy	formát mATX 8.9 palcov x 8.7 palcov (22.6 cm x 22.1 cm)

.

Chipset: AMD A520 Rozměrový formát: mATX Form Factor (226 mm x 221 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Patice procesoru: AM4 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: *4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 (Dual Channel Memory Architecture) *ECC Memory (ECC mode) support varies by CPU. Grafické výstupy: (na základě CPU) Zvuková karta: *Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: *1x PCIe 3.0 x16 (x16 mode) *2x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: *4x SATA 6Gb/s port(s) M.2: *1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support USB: *zadní USB porty (celkem 6) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *přední USB porty (celkem 6) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A) Interní porty: *1x CPU Fan connector(s) *1x Chassis Fan connector(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *4x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *3x Audio jack(s) Příslušenství: *uživatelská příručka *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/PRIME-A520M-K https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors with Radeon™ Graphics Processors Comprehensive cooling: PCH heatsink and Fan Xpert Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection CPU Build in AMD AM4 Socket Processors * * Refer to www.asus.com for CPU support list Chipset AMD A520 Memory 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) Expansion Slots 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Accessories User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Výkonná základní deska, socket AMD AM4, čipset AMD A520, podpora procesorů AMD Ryzen 3. generace; 2x DDR4 až 3200 MHz (až 4600 MHz OC), maximálně 64 GB; sloty: 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x1; konektory: 4x SATA 6Gb/s, 1x M.2, 6x USB 2.0, 6x USB 3.2 Gen1, 1x PS/2, 1x GLAN, 1x VGA, 1x HDMI, 3x 3,5 mm audio jack; formát mATX Zadní vstupy a výstupy 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) Vnitřní vstupy a výstupy 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector mATX ( 22.6 cm x 22.1 cm )

Parametr	Hodnota
Socket (patice)	Socket AM4
Formát	micro ATX
Integrovaná grafická karta	Ano (CPU)
Chipset	AMD
Technologie paměti RAM	DDR4
PCI express 16x	1
Integrovaná LAN karta	1
Podpora RAID	1
Podpora RAID	10
Rozhraní	HDMI
Rozhraní	USB 2.0
Rozhraní	USB 3.2
Rozhraní	3.5mm Jack
Rozhraní	LAN

Specifikace:

PRIME A520M-K

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection

TECHNICAL SPECIFICATIONS

CPU	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors * * Refer to www.asus.com for CPU support list
Chipset	AMD A520
Memory	2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Graphic	1 x D-Sub 1 x HDMI 2.1(4K@60HZ)
Expansion Slots	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1
Storage	Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset: 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN	Realtek RTL8111H 1Gb Ethernet ASUS LANGuard
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports	Rear USB Port (Total 6) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A)
	Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 10 64-bit
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)

Chipset: AMD A520 Rozměrový formát: mATX Form Factor (226 mm x 221 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Patice procesoru: AM4 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 (Dual Channel Memory Architecture) ECC Memory (ECC mode) support varies by CPU. Grafická karta: (na základě CPU) Zvuková karta: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: 1x PCIe 3.0 x16 (x16 mode) 2x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: 4x SATA 6Gb/s port(s) M.2: 1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support USB: zadní USB porty (celkem 6) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) 2x USB 2.0 port(s)(2 x Type-A) přední USB porty (celkem 6) 2x USB 3.2 Gen 1 port(s)(2 x Type-A) 4x USB 2.0 port(s)(4 x Type-A) Interní porty: 1x CPU Fan connector(s) 1x Chassis Fan connector(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x SPI TPM header 4x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Clear CMOS jumper(s) 1x System panel connector 1x COM port header 1x Speaker connector Externí porty: 1x PS/2 keyboard/mouse combo port(s) 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 4x USB 3.2 Gen 1 (blue) Type-A 2x USB 2.0 3x Audio jack(s) Příslušenství: uživatelská příručka I/O Shield 2x SATA 6Gb/s cable(s) 1x Supporting DVD 1x M.2 SSD screw package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

ASUS PRIME A520M-K

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen 3. generace a AMD Ryzen 3. generace s Radeon Vega grafickou kartou (patice AM4)

Čipová sada AMD A520

Paměť 2× DDR4 paměťový slot, podpora až 64 GB Podpora DDR4 4600 (OC)/ 4400 (OC)/ 4000 (OC)/ 3866 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3333 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MT/s Dvoukanálová architektura paměti Podpora ECC DIMM, bez vyrovnávací paměti

Grafika Grafické výstupy na desce jsou funkční pouze při použití s procesory AMD Ryzen s integrovanou grafickou kartou Radeon Vega. 1× VGA port 1× HDMI port, podporující max. rozlišení 4K při 60 Hz

Sloty AMD CPU 1× PCIe 3.0 x16 slot AMD A520 čipová sada 2× PCIe 3.0 x1 slot

Úložiště AMD CPU 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (SATA a PCIe 3.0 x4 režim) AMD A520 čipová sada 4× SATA 6 Gb/s Podpora RAID 0, RAID 1 a RAID 10

USB 6× USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek ALC887 Codec 7.1kanálové High Definition Audio Podpora přehrávání až 24-bit/192 kHz

LAN 1× Realtek RTL8111H Gigabit LAN řadič

Interní konektory 1× 24pin hlavní napájecí konektor 1× 8pin 12V napájecí konektor 1× 4pin konektor ventilátoru CPU 1× 4pin konektor ventilátoru skříně 1× M.2 slot, M Key 4× SATA 6Gb/s konektor 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2 x USB 3.2 Gen1 port) 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 1× 14-1pin SPI TPM konektor 1× konektor S/PDIF výstupu 1× audio konektor předního panelu 1× konektor Clear CMOS 1× 10-1pin konektor systémového panelu 1× konektor sériového portu 1× konektor reproduktoru

Porty na zadním panelu 1× PS/2 combo port klávesnice a myši 1× VGA 1× HDMI 1× RJ-45 2× USB 2.0 4× USB 3.2 Gen1 (USB 3.0) 3× audio jack

Rozměry 22,6 × 22,1 cm Micro ATX formát
