Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: •4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory •Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 •Dual Channel Memory Architecture Grafická karta: (na základě procesoru) •1x DisplayPort 1.2 •1x HDMI 2.1(4K@60HZ) Multi GPU: •AMD 2-Way CrossFireX Technology Zvuková karta: •Realtek ALC887 7.1-Channel High Definition Audio CODEC Síťová karta: •Realtek® RTL8111H(ASUS LANGuard) Rozšiřující sloty: •1x PCIe 4.0 x16 (x16 mode) •1x PCIe 3.0 x16 (x4 mode) •3x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: •6x SATA 6Gb/s port(s) M.2: •1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) •1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: •zadní USB porty ( celkem 8 ) •2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) •4x USB 3.2 Gen 1 port(s)(4 x Type-A) •2x USB 2.0 port(s)(2 x Type-A) •přední USB porty ( celkem 6 ) •2x USB 3.2 Gen 1 port(s)(2 x Type-A) •4x USB 2.0 port(s)(4 x Type-A) Interní porty: •1x CPU Fan connector(s) •1x CPU OPT Fan connector(s) •3x Chassis Fan connector(s) •1x AIO_PUMP connector •2x Aura RGB Strip Headers •1x Addressable Gen 2 header(s) •1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) •2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) •1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) •1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) •1x SPI TPM header •6x SATA 6Gb/s connector(s) •1x Thunderbolt header(s) •1x 24-pin EATX Power connector(s) •1x 8-pin EATX 12V Power connectors •1x Front panel audio connector(s) (AAFP) •1x Thermal sensor connector(s) •1x Clear CMOS jumper(s) •1x System panel connector •1x COM port header Externí porty: •1x DisplayPort •1x HDMI •1x LAN (RJ45) port(s) •2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) •4x USB 3.2 Gen 1 (blue) Type-A •2x USB 2.0 •1x Optical S/PDIF out •5x Audio jack(s) Obsah balení: •User's manual •I/O Shield •2x SATA 6Gb/s cable(s) •1x Supporting DVD •1x M.2 SSD screw package(s)

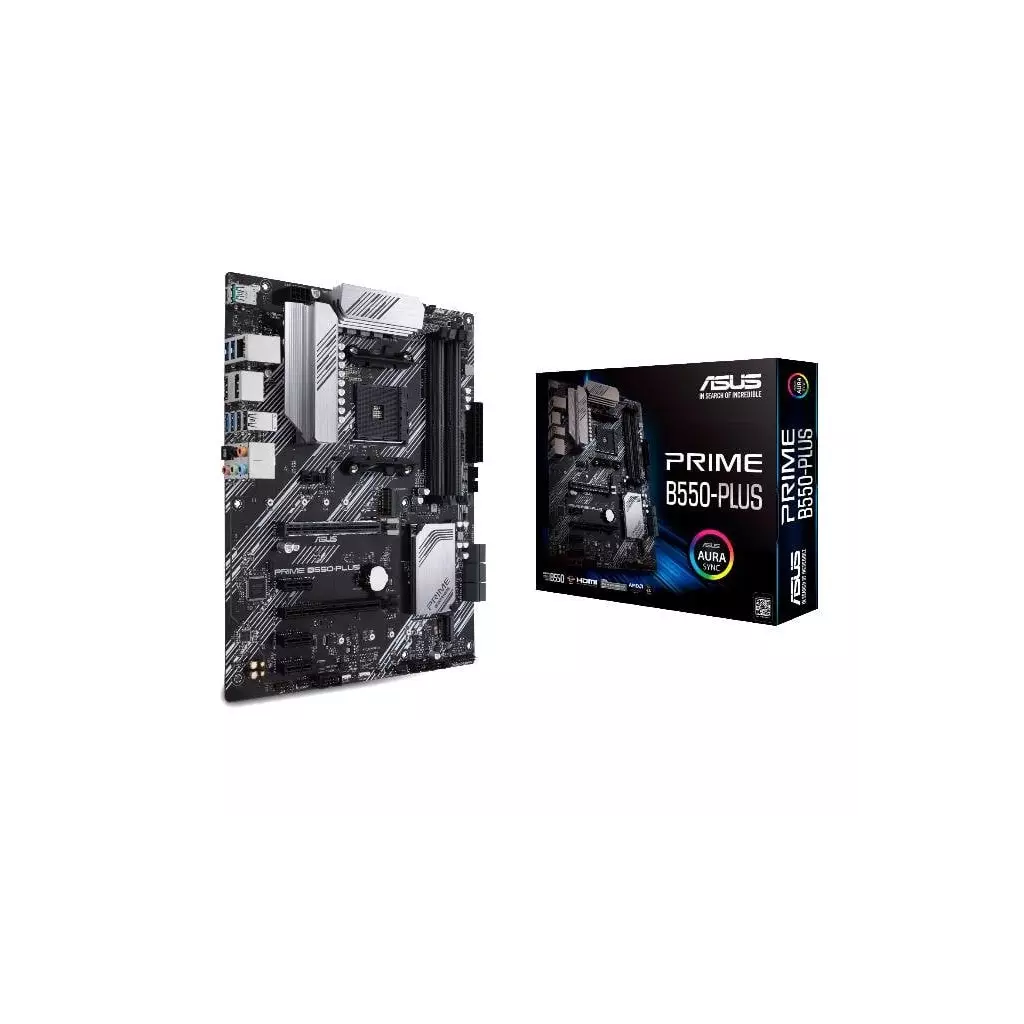

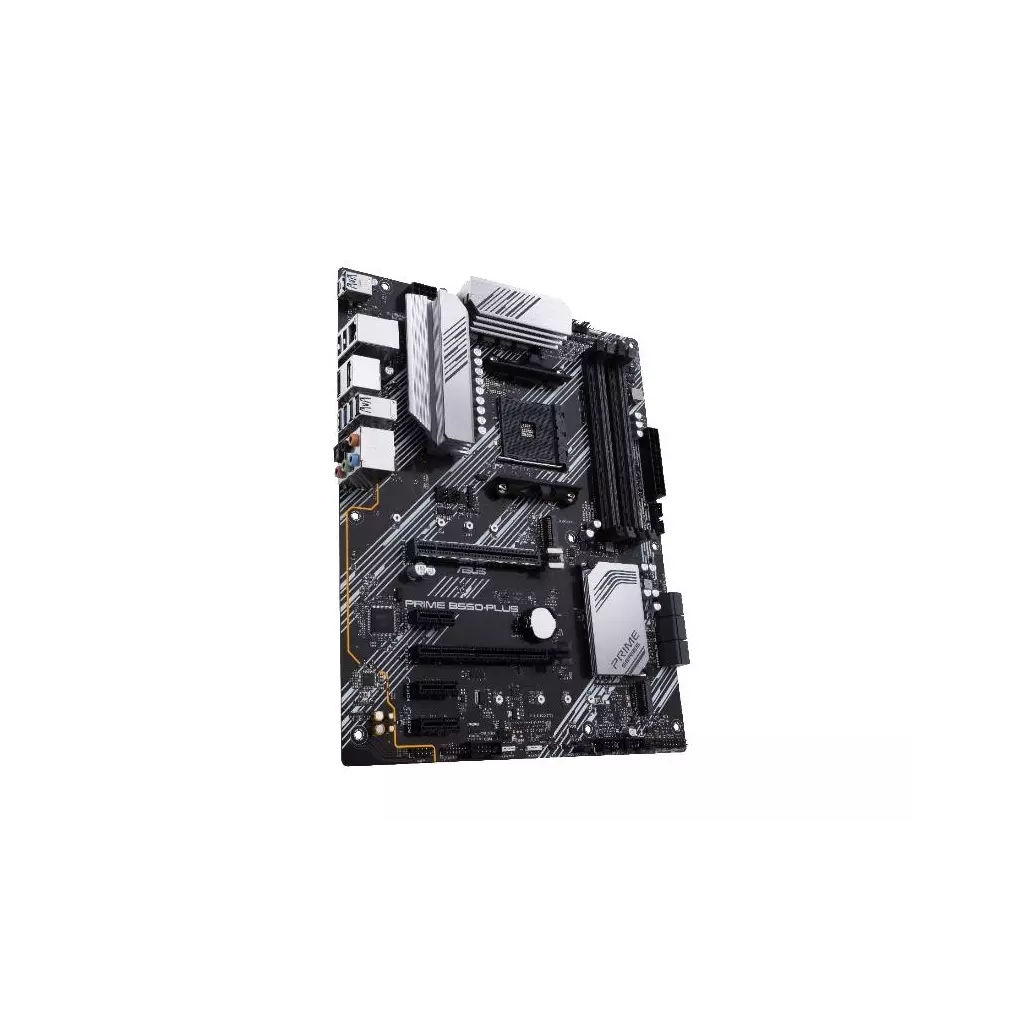

PRIME B550-PLUS

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
• Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
• Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

TECHNICAL SPECIFICATIONS

CPU	Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list
Chipset	AMD B550
Memory	4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	1 x DisplayPort 1.2 * 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types.
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 * Support PCIe bifurcation for RAID on CPU function.
Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s), *2 Support Raid 0, 1, 10
LAN	Realtek RTL8111H ASUS LANGuard
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit
USB Ports	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Note	*1 PCIE 3.0 X16_2 runs x2 mode when PCIEX1_2 or PCIEX1_3 slots is populated. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture Grafické výstupy: (na základě procesoru) *1x DisplayPort 1.2 *1x HDMI 2.1(4K@60HZ) Multi GPU: *AMD 2-Way CrossFireX Technology Zvuková karta: *Realtek ALC887 7.1-Channel High Definition Audio CODEC Síťová karta: *Realtek® RTL8111H(ASUS LANGuard) Rozšiřující sloty: *1x PCIe 4.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x4 mode) *3x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: *6x SATA 6Gb/s port(s) M.2: *1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: *zadní USB porty ( celkem 8 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header Externí porty: *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *1x Optical S/PDIF out *5x Audio jack(s) Obsah balení: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/PRIME-B550-PLUS https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

ASUS PRIME B550-PLUS

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen 3. a vyšší generace (patice AM4) Nepodporuje procesory Ryzen 5 3400G a Ryzen 3 3200G

Čipová sada AMD B550

Paměť 4 x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 4800 (OC)/ 4600 (OC)/ 4466 (OC)/ 4400 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz CPU Ryzen 3. gen. podporuje DDR4 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3333 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Podpora non-ECC DIMM, bez vyrovnávací paměti Podpora ECC DIMM, bez vyrovnávací paměti Dvoukanálová architektura paměti

Grafika Grafické výstupy na desce jsou funkční pouze při použití s procesory AMD Ryzen s integrovanou grafickou kartou Radeon Vega 1 x DisplayPort port 1 x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz

Multi-GPU Podpora AMD 2-Way CrossFire technologie

Sloty 1 x PCIe 3.0 x16 slot CPU Ryzen 3. gen. podporuje PCIe 4.0 1 x PCIe 3.0 x16 slot (podporuje x4 režim) 3 x PCIe 3.0 x1 slot

Úložiště AMD CPU 1 x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (SATA a PCIe 3.0 x4 režim) CPU Ryzen 3. gen podporuje SATA a PCIe 4.0 x4 režim AMD B550 čipová sada 1 x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (SATA a PCIe 3.0 x4 režim) 6 x SATA 6 Gb/s Podpora RAID 0, RAID 1 a RAID 10

USB 1 x USB 3.2 Gen2 (USB 3.1) typ C port na zadním panelu 1 x USB 3.2 Gen2 (USB 3.1) port na zadním panelu 6 x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6 x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek ALC887 Codec 7.1kanálové High Definition Audio Podpora digitálního S/PDIF výstupu

LAN 1 x Realtek RTL8111H Gigabit LAN řadič

Interní konektory 1 x 24-pin ATX hlavní napájecí konektor 1 x 8-pin ATX 12V napájecí konektor 2 x M.2 slot, M Key 6 x SATA 6Gb/s konektor 1 x konektor ventilátoru CPU 1 x konektor volitelného ventilátoru CPU 1 x konektor vodní pumpy AIO_PUMP 3 x konektor systémového ventilátoru 2 x konektor Aura RGB LED pásku 1 x konektor Aura adresovatelného RGB LED pásku 1 x konektor předního panelu 1 x audio konektor předního panelu 1 x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2 x USB 3.2 Gen1 port) 2 x USB 2.0 konektor (podporuje 4 x USB 2.0 port) 1 x TPM konektor 1 x konektor teplotního čidla 1 x konektor pro sériový port 1 x konektor Thunderbolt přídavné karty 1 x propojka Clear CMOS

Konektory na zadním panelu 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen2 (USB 3.1) typ C 1 x USB 3.2 Gen2 (USB 3.1) 4 x USB 3.2 Gen1 (USB 3.0) 2 x USB 2.0 1 x RJ-45 1 x optický S/PDIF výstup 5 x audio jack

Rozměry 30,5 x 24,4 cm ATX formát

Chipset: AMD B550 Výkonná základní deska, socket AMD AM4, čipset AMD B550, podpora procesorů AMD Ryzen 3. generace; 4x DDR4 až 3200 MHz (až 4800 MHz OC), maximálně 128 GB; sloty: 1x PCI-E 4.0 x16, 1x PCI-E 3.0 x16 (x4), 3x PCI-E 3.0 x1; konektory: 6x SATA 6Gb/s, 2x M.2, 6x USB 2.0, 6x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x GLAN, 1x HDMI, 1x DisplayPort, 1x optický S/PDIF out, 5x 3,5 mm audio jack; AMD Crossfire, formát ATX. Zadní vstupy a výstupy 1 x DisplayPort 1 x port LAN (RJ45) 1 x HDMI 1 x optický výstup S/PDIF 5 x jack audia 2 x USB 3.2 Gen 2 (teal blue) (1 x typu A+1 x USB typu CTM) 4 x USB 3.2 Gen 1 (modrý ) typu A 2 x USB 2.0 Vnitřní vstupy a výstupy 2 × port USB 2.0, podpora dalších 4 portů USB 2.0 6 x konektor SATA 6 Gb/s 1 x konektor AIO_PUMP 1 x konektor ventilátoru procesoru 3 x konektor ventilátoru skříně 1 x USB 3.2 Gen 1(až 5Gbps) konektor(y) podporuje(podporují) další 2 USB 3.2 Gen 1 port(y) 2 x Aura RGB Strip Headers 1 x 24pinový napájecí konektor EATX 1 x Addressable Gen 2 header(s) 1 × konektor volitelného ventilátoru procesoru 1 x konektor audia předního panelu (AAFP) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 s klávesou M, typ 2242/2260/2280/22110 podpora paměťových zařízení (režim SATA i PCIE 3.0 x 4) 1 × konektor Thunderbolt 1 x konektor tepelných senzorů 1 x SPI TPM header 1 × propojka Clear CMOS 1 x 8-pinové EATX 12V síťové konektory 1 x Konektor systémového panelu 1 x COM port header

Parametr	Hodnota
Socket (patice)	Socket AM4
Formát	ATX
Integrovaná grafická karta	Ne
Chipset	AMD
Technologie paměti RAM	DDR4
PCI express 16x	Více než 1
Integrovaná LAN karta	1
Podpora RAID	1
Podpora RAID	10
Rozhraní	HDMI
Rozhraní	USB 2.0
Rozhraní	USB 3.2
Rozhraní	3.5mm Jack
Rozhraní	LAN
Rozhraní	DisplayPort
Další rozhraní	S/PDIF
Další rozhraní	M.2

Specifikace:

PRIME B550-PLUS

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
• Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
• Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

TECHNICAL SPECIFICATIONS

CPU	Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list
Chipset	AMD B550
Memory	4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	1 x DisplayPort 1.2 * 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types.
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 * Support PCIe bifurcation for RAID on CPU function.
Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s), *2 Support Raid 0, 1, 10
LAN	Realtek RTL8111H ASUS LANGuard
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit
USB Ports	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Note	*1 PCIE 3.0 X16_2 runs x2 mode when PCIEX1_2 or PCIEX1_3 slots is populated. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture Grafická karta: (na základě procesoru) 1x DisplayPort 1.2 1x HDMI 2.1(4K@60HZ) Multi GPU: AMD 2-Way CrossFireX Technology Zvuková karta: Realtek ALC887 7.1-Channel High Definition Audio CODEC Síťová karta: Realtek® RTL8111H(ASUS LANGuard) Rozšiřující sloty: 1x PCIe 4.0 x16 (x16 mode) 1x PCIe 3.0 x16 (x4 mode) 3x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: 6x SATA 6Gb/s port(s) M.2: 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: zadní USB porty ( celkem 8 ) 2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) 2x USB 2.0 port(s)(2 x Type-A) přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s)(2 x Type-A) 4x USB 2.0 port(s)(4 x Type-A) Interní porty: 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 3x Chassis Fan connector(s) 1x AIO_PUMP connector 2x Aura RGB Strip Headers 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x SPI TPM header 6x SATA 6Gb/s connector(s) 1x Thunderbolt header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s) 1x System panel connector 1x COM port header Externí porty: 1x DisplayPort 1x HDMI 1x LAN (RJ45) port(s) 2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) 4x USB 3.2 Gen 1 (blue) Type-A 2x USB 2.0 1x Optical S/PDIF out 5x Audio jack(s) Obsah balení: User's manual I/O Shield 2x SATA 6Gb/s cable(s) 1x Supporting DVD 1x M.2 SSD screw package(s)

ASUS PRIME B550-PLUS. Výrobce procesoru: AMD, Patice procesoru: Socket AM4, Kompatibilní procesory: AMD Ryzen 3000 Series. Podporované typy paměti: DDR4-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA, Úrovně RAID: 0, 1, 10. Podpora technologie paralelního zpracování: 2-Way CrossFireX. Typ rozhraní Ethernetu: Gigabit Ethernet, Řadič LAN: Realtek RTL8111H
