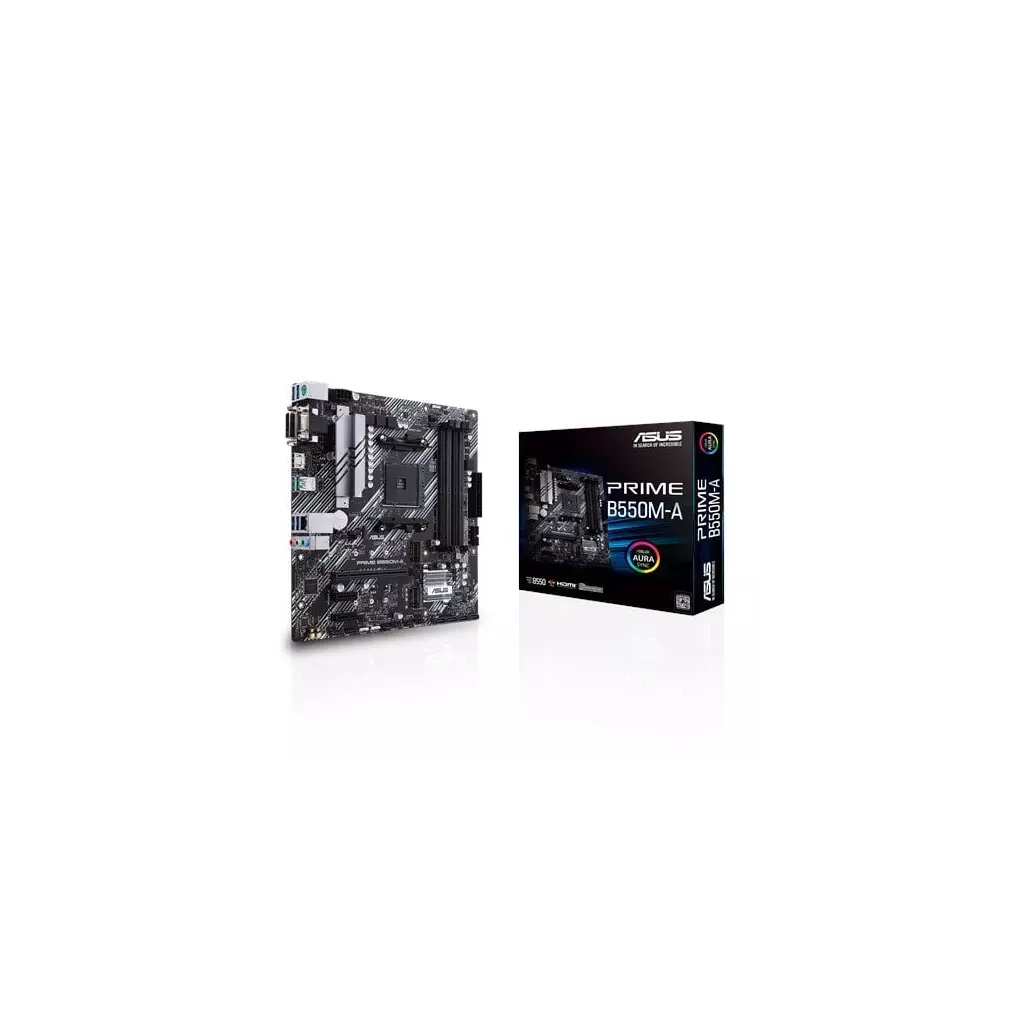

ASUS PRIME B550M-A/AM4/mATX

Chipset: AMD B550 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU Grafické výstupy: (na základě procesoru) *1x D-Sub *1x DVI-D *1x HDMI 2.1(4K@60HZ) Zvuková karta: *Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: *1x PCIe 4.0 x16 (x16 mode) *2x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: *4x SATA 6Gb/s ports M.2: *1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support *1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support USB: *zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 2 port(s)(2 x Type-A) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *2x Chassis Fan connector(s) *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *4x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x DVI-D *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) (2 x Type-A) *4x USB 3.2 Gen 1 (blue) Type-A *3x Audio jack(s) Obsah balení: *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *User manual *1x M.2 SSD screw package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/PRIME-B550M-A https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

ASUS PRIME B550M-A

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen 3. generace (patice AM4)

Čipová sada AMD B550

Paměť 4x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 4133 (OC)/ 4000 (OC)/ 4600 (OC)/ 3866 (OC)/ 4400 (OC)/ 3733 (OC)/ 3600 (OC)/ 4266 (OC)/ 3466 (OC)/ 3333 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz CPU Ryzen 3. gen. s integrovanou grafickou kartou podporuje DDR4 4800 (OC)/ 4133 (OC)/ 4000 (OC)/ 4600 (OC)/ 3866 (OC)/ 4400 (OC)/ 3733 (OC)/ 3600 (OC)/ 4266 (OC)/ 3466 (OC)/ 3333 (OC)/ 4466 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Podpora ECC a non-ECC, bez vyrovnávací paměti Dvoukanálová architektura paměti

Grafika Grafické výstupy na desce jsou funkční pouze při použití s procesory AMD Ryzen s integrovanou grafickou kartou. 1x HDMI port, podporující rozlišení 4K při 60Hz 1x VGA port 1x DVI-D port

Sloty AMD CPU 1x PCIe 4.0 x16 slot CPU Ryzen 3. gen. s integrovanou grafickou kartou podporuje 1x PCIe 3.0 x16 slot AMD B550 čipová sada 2x PCIe 3.0 x1 slot

Úložiště AMD CPU 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (SATA a PCIe 4.0 x4 režim) CPU Ryzen 3. gen. s integrovanou grafickou kartou podporuje SATA a PCIe 3.0 x4 režim AMD B550 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (SATA a PCIe 3.0 x4 režim) 4x SATA 6 Gb/s Podpora RAID 0, RAID 1 a RAID 10

USB 2x USB 3.2 Gen2 (USB 3.1 Gen2) port na zadním panelu 6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 4x USB 2.0 port dostupný přes interní USB konektory

Audio Realtek ALC887 Codec 7.1kanálové High Definition Audio

LAN 1x Realtek RTL8111H Gigabit LAN řadič

Interní konektory 1x 24-pin EATX hlavní napájecí konektor 1x 8-pin EATX 12V napájecí konektor 2x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor ventilátoru CPU 1x konektor volitelného ventilátoru CPU 2x konektor ventilátoru skříně 1x konektor systémového panelu 1x audio konektor předního panelu 2x konektor Aura RGB LED pásku 1x konektor adresovatelného LED pásku 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x TPM konektor 1x konektor pro sériový port 1x konektor S/PDIF výstupu 1x konektor reproduktoru 1x propojka Clear CMOS

Konektory na zadním panelu 1 x PS/2 combo port klávesnice a myši 1x HDMI 1x DVI-D 1x VGA 4x USB 3.2 Gen1 (USB 3.0) 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x RJ-45 3x audio jack

Rozměry 24,4 x 24,4 cm Micro ATX formát

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ Ultrafast connectivity: Dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) Expansion Slots 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet Bluetooth Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors USB Ports Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Accessories I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 1 x Wi-Fi moving antenna 1 x M.2 SSD screw package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Výkonná základní deska, socket AMD AM4, čipset AMD B550, podpora procesorů AMD Ryzen 3. generace; 4x DDR4 až 3200 MHz (až 4800 MHz OC), maximálně 128 GB; sloty: 1x PCI-E 4.0 x16, 2x PCI-E 3.0 x1; konektory: 4x SATA 6Gb/s, 2x M.2, 4x USB 2.0, 6x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x PS/2, 1x GLAN, 1x VGA, 1x DVI-D, 1x HDMI, 3x 3,5 mm audio jack; formát mATX Zadní vstupy a výstupy 1 x kombinovaný konektor PS/2 pro klávesnici/myš 1 x DVI-D 1 x D-Sub 1 x port LAN (RJ45) 1 x HDMI 3 x jack audia 2 x USB 3.2 Gen 2 (teal blue) (2 x typu A) 4 x USB 3.2 Gen 1 (modrý ) typu A Vnitřní vstupy a výstupy 2 × port USB 2.0, podpora dalších 4 portů USB 2.0 4 x konektor SATA 6 Gb/s 1 x konektor ventilátoru procesoru 2 x konektor ventilátoru skříně 1 x USB 3.2 Gen 1(až 5Gbps) konektor(y) podporuje(podporují) další 2 USB 3.2 Gen 1 port(y) 1 x konektor výstupu S/PDIF 2 x Aura RGB Strip Headers 1 x 24pinový napájecí konektor EATX 1 x Addressable Gen 2 header(s) 1 × konektor volitelného ventilátoru procesoru 1 x konektor audia předního panelu (AAFP) 1 x M.2 Socket 3 s klávesou M, typ 2242/2260/2280/22110 paměťových zařízení (režim SATA i X4 PCIE) 1 x M.2 Socket 3 s klávesou M, typ 2242/2260/2280 podpora paměťových zařízení (režim SATA & X4 PCIE) 1 x SPI TPM header 1 × propojka Clear CMOS 1 x 8-pinové EATX 12V síťové konektory 1 x Konektor systémového panelu 1 x COM port header 1 x konektor reproduktoru

Parametr	Hodnota
Socket (patice)	Socket AM4
Formát	micro ATX
Integrovaná grafická karta	Ne
Chipset	AMD
Technologie paměti RAM	DDR4
PCI express 16x	1
Integrovaná LAN karta	1
Podpora RAID	1
Podpora RAID	10
Rozhraní	HDMI
Rozhraní	USB 2.0
Rozhraní	USB 3.2
Rozhraní	3.5mm Jack
Rozhraní	LAN
Rozhraní	DisplayPort
Další rozhraní	S/PDIF
Další rozhraní	M.2

Specifikace:

PRIME B550M-A

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
• Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

TECHNICAL SPECIFICATIONS

CPU	Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list
Chipset	AMD B550
Memory	3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Expansion Slots	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN	Realtek RTL8111H 1Gb Ethernet
Audio	Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB Ports	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Accessories	I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 1 x M.2 SSD screw package(s)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PXE
Operating System	Windows 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Chipset: AMD B550 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4266(O.C.) /4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.) /3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C) /4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU Grafická karta: (na základě procesoru) 1x D-Sub 1x DVI-D 1x HDMI 2.1(4K@60HZ) Zvuková karta: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: 1x PCIe 4.0 x16 (x16 mode) 2x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: 4x SATA 6Gb/s ports M.2: 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support USB: zadní USB porty ( celkem 6 ) 2x USB 3.2 Gen 2 port(s)(2 x Type-A) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s)(2 x Type-A) 4x USB 2.0 port(s)(4 x Type-A) Interní porty: 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 2x Chassis Fan connector(s) 2x Aura RGB Strip Headers 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x SPI TPM header 4x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Clear CMOS jumper(s) 1x System panel connector 1x COM port header 1x Speaker connector Externí porty: 1x PS/2 keyboard/mouse combo port(s) 1x DVI-D 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 2x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4x USB 3.2 Gen 1 (blue) Type-A 3x Audio jack(s) Obsah balení: I/O Shield 2x SATA 6Gb/s cable(s) 1x Supporting DVD User manual 1x M.2 SSD screw package(s)

ASUS PRIME B550M-A. Výrobce procesoru: AMD, Patice procesoru: Socket AM4, Kompatibilní procesory: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Podporované typy paměti: DDR4-SDRAM, Maximální vnitřní paměť: 128 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA. Řadič LAN: Realtek 8111H. Typ základní desky: Micro ATX, Řada čipsetu základní desky: AMD, Čipset základní desky: AMD B550
