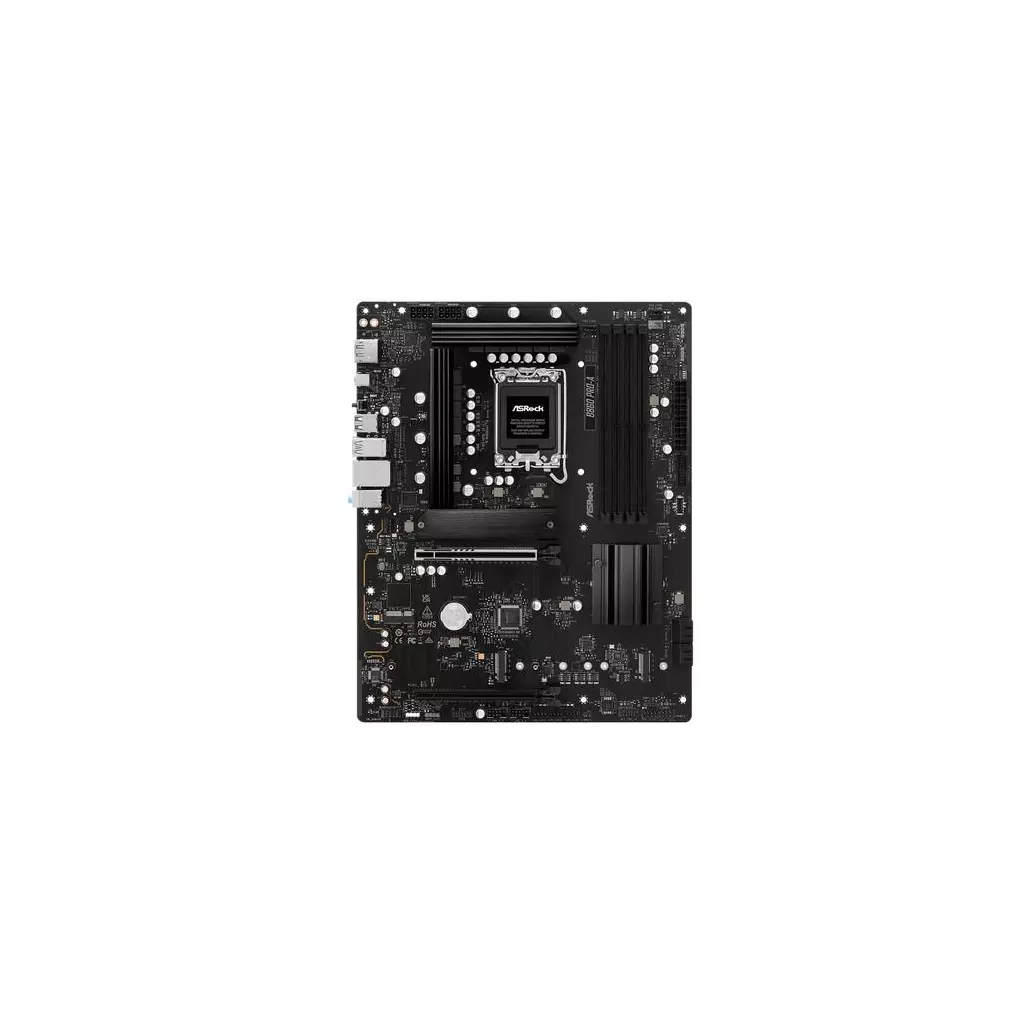

ASRock B860 Pro-A / Intel B860 / LGA1851 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / ATX

Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů Intel Core Ultra série 2 Patice LGA1851
Čipová sada Intel B860
Paměť 4× DDR5 paměťový slot, podpora až 256 GB Podpora DDR5 až 8666+(OC) MT/s Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti Podpora Intel Extreme Memory Profile (XMP) 3.0x
Sloty Intel CPU 1× PCIe 5.0 x16 slot Intel B860 čipová sada 1× PCIe 4.0 x16 slot (podporuje x4 režim)
Grafika 1× HDMI 2.1 port, podporující max. rozlišení 4K při 120 Hz 1× DisplayPort 1.4, podporující max. rozlišení 8K při 60 Hz / 5K při 120 Hz Intel Xe LPG architektura
Úložiště Intel CPU 1× Blazing M.2 slot, M Key, pro jednotky typu 2280 (PCIe 5.0 x4 režim) Intel B860 čipová sada 1× Hyper M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim) 1× Hyper M.2 slot, M Key, pro jednotky typu 2230/2242/2260/2280 (PCIe 4.0 x4 režim) 4× SATA 6Gb/s port Podpora Intel Volume Management Device (VMD) Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
USB 1× USB-C 3.2 Gen2×2 port na zadním panelu 1× USB-C 3.2 Gen1 port dostupný přes interní USB konektor 8× USB 3.2 Gen1 port (6 portů na zadním panelu, 2 porty dostupné přes interní USB konektory) 6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek ALC897 Codec 7.1kanálové High Definition Audio
LAN 1× Dragon RTL8125BG 2,5Gigabit LAN řadič
Interní konektory 1× konektor SPI TPM 1× konektor reproduktoru a Power LED 1× konektor RGB LED pásku 3× konektor adresovatelného LED pásku 2× 4pin konektor ventilátoru CPU 4× 4pin konektor ventilátoru skříně 1× 4pin konektor ventilátoru čerpadla AIO 1× 24pin ATX hlavní napájecí konektor 2× 8pin 12V napájecí konektor 1× audio konektor předního panelu 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port) 1× USB-C 3.2 Gen1 konektor předního panelu 1× M.2 slot, E key pro Wi-Fi modul (není součástí)
Porty na zadním panelu 1× HDMI 1× DisplayPort 1× USB-C 3.2 Gen2×2 6× USB 3.2 Gen1 (USB 3.0) 2× USB 2.0 1× tlačítko BIOS Flashback 1× RJ-45 3× audio jack
Rozměry 30,5 × 24,4 cm ATX formát

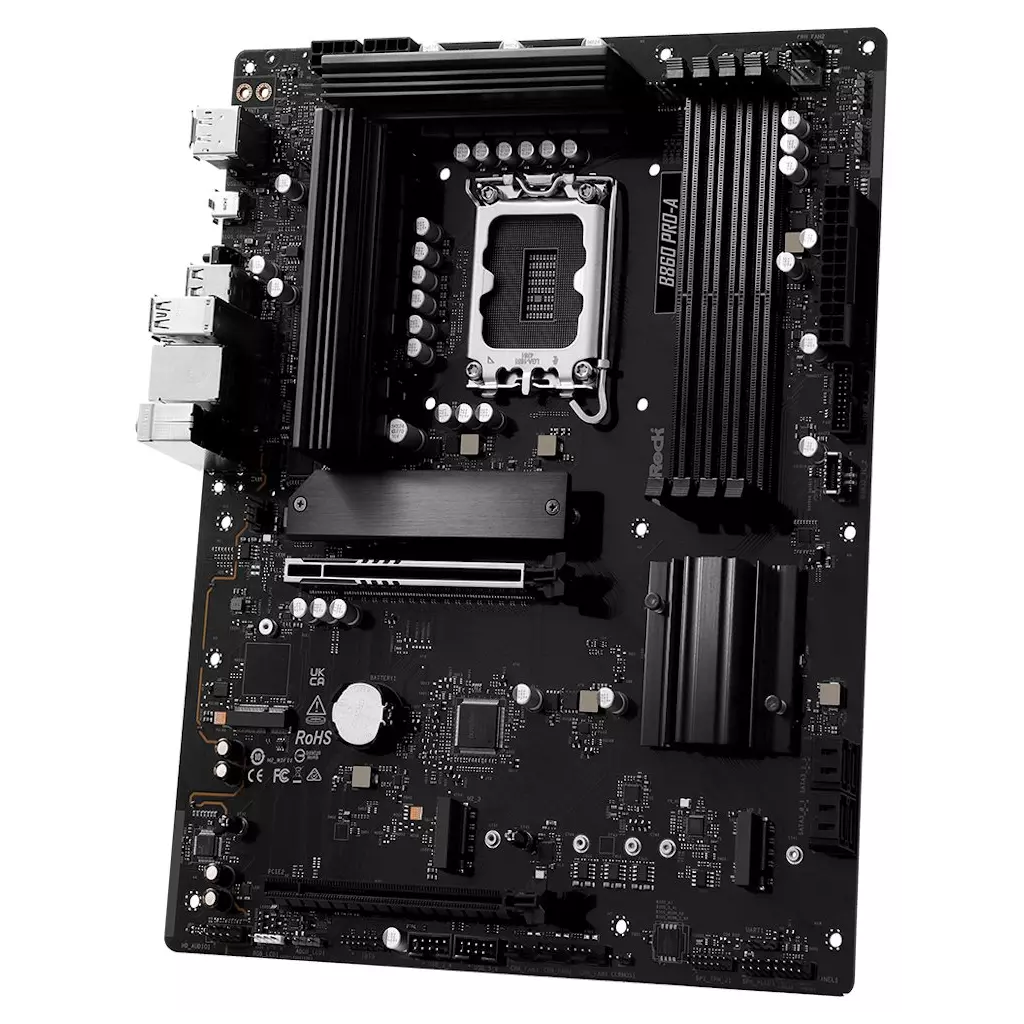

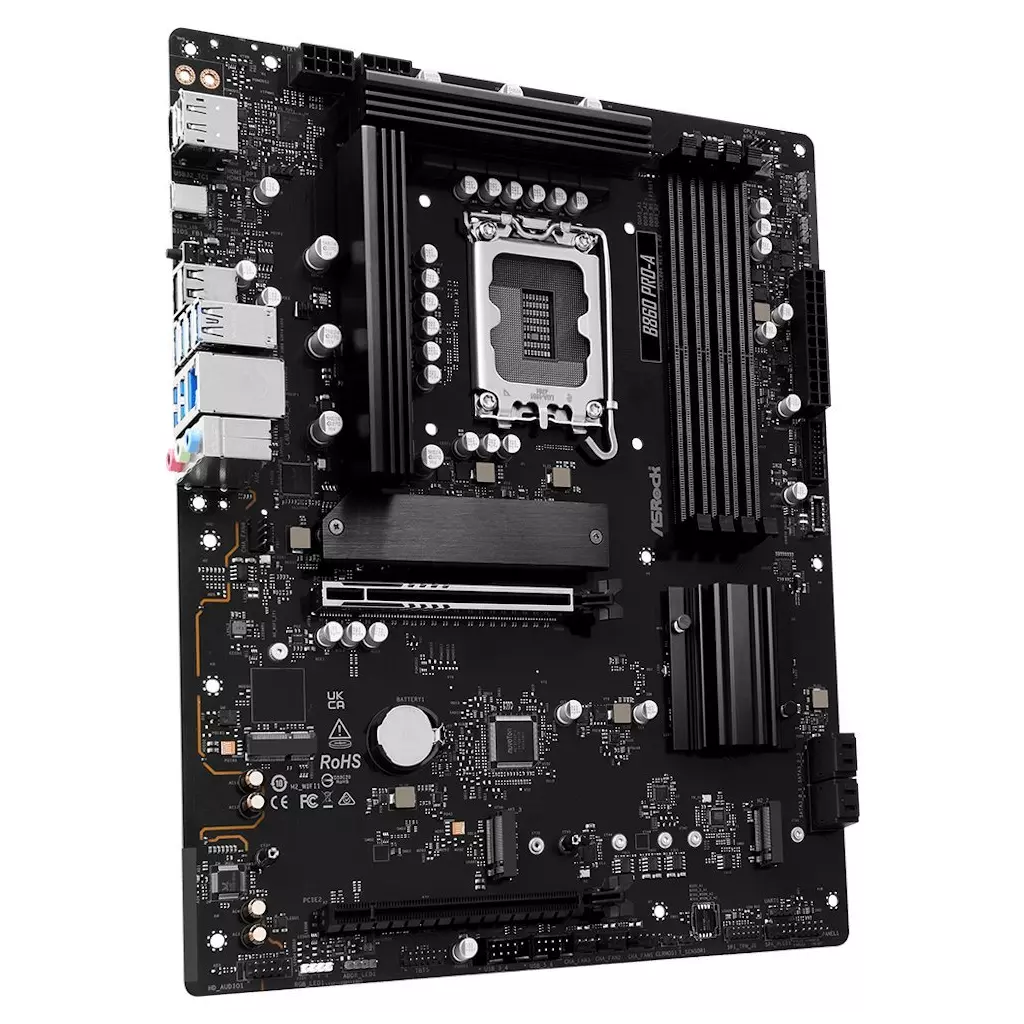

ASRock B860 Pro-A
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Unique Feature
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU
- Supports Intel Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration
Chipset
- Intel B860
Memory
- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel Extreme Memory Profile (XMP) 3.0x * 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks
Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 8 x USB 3.2 Gen1 (6 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 6 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS
- Microsoft Windows 11 64-bit
Certifications
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
