AMD FirePro S400 - Sync module

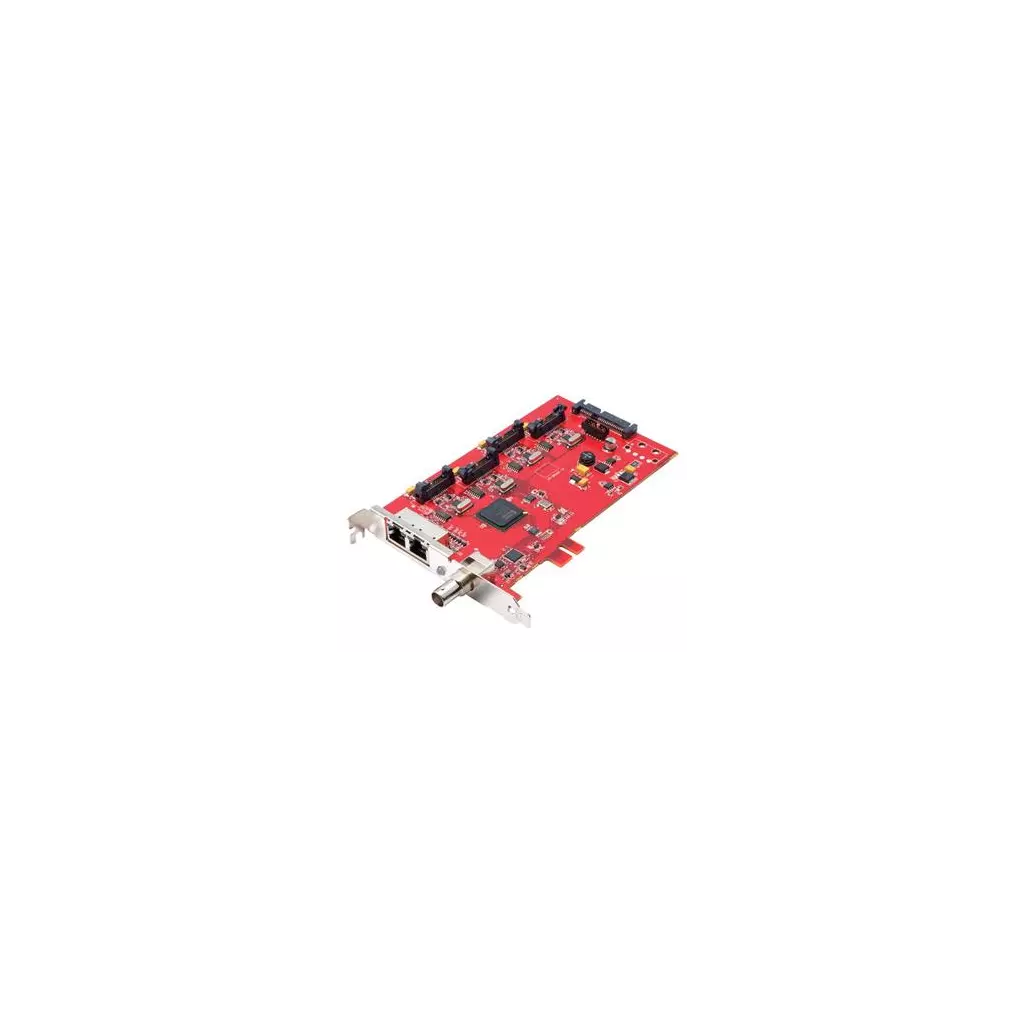

AMD FirePro S400

Synchronizační modul AMD FirePro S400 umožňuje použití vybraných profesionálních grafických karet AMD FirePro v náročných aplikacích, které vyžadují synchronizaci s externími zdroji (Genlock), nebo synchronizaci 3D vykreslování více GPU v různých systémech (Framelock). Podpora až 4 GPU zároveň. Kombinace těchto schopností umožňuje široké využítí v pokročilém designu, vizualizaci a digitálních řešeních pro zobrazování médií.

ZÁKLADNÍ SPECIFIKACE

Rozhraní: PCIe 2.0 x1 Konektory: 2× RJ-45, 1× BNC Napájení: SATA 15pin Kompatibilita: AMD FirePro W7000, W8000, W9000, V7900, 7900 SDI

The new ATI FirePro™ S400 synchronization module allows AMD FirePro™ 3D workstation graphics cards to be used in demanding applications that require synchronization to external sources (Genlock) or synchronization of 3D rendering of multiple GPUs in different systems (Framelock). The combination of these capabilities with AMD FirePro graphics accelerators means that an even wider set of applications can benefit from the award-winning AMD FirePro line. Based on a full hardware, dedicated processor design, the ATI FirePro S400 helps ensure clock-accurate synchronization in virtually all scenarios. The dedicated processor allows up to four attached GPUs to work in the rendering needs of the user without compromising sync. Features and Benefits Support for up to 4 GPUs per module Field upgradeable firmware Full hardware synchronization Support for connecting multiple computers and their GPUs together Sync to virtually any video source Serial ATA power connector Support for OpenGL and DirectX® ATI FirePro™ S400 Framelock for simulation, visualization and power walls The ATI FirePro™ S400 delivers Framelock by combining Output lock (synchronized display output) and 3D swap lock (simultaneous 3D buffer swapping), helping ensure that the GPUs in connected systems present their output in lock-step. The two RJ-45 connectors on the module allow for connection of multiple daisy-chained systems (each with up to 4 ATI FirePro GPUs inside). The BNC connector on the module optionally allows systems to be synchronized (Genlocked) to an external signal, a capability essential for use in powerwalls used in live television broadcasts. ATI FirePro™ S400 Genlock for broadcast, NLE and other video workflows The ATI FirePro™ S400 permits Genlocking by delivering Output lock ((synchronized display output) that is driven by an external reference signal (typically ‘house sync’). This allows the output of attached GPUs to be fed into video-centric devices (e.g. monitors used in broadcast applications, or Non-Linear Editing suites). The BNC connector on the ATI FirePro S400 allows for receiving and synchronizing to virtually any video input source, including: PAL & NTSC SD video blackburst HDTV tri-level sync TTL Sync signals on SDI Innovation and Reliability from a Technology Leader ATI FirePro™ accelerators, including the ATI FirePro S400, have been engineered to deliver innovation and reliability for a wide range of professional operating environments, including Windows® XP, Windows Vista®, Windows® 71 and Linux®. The unified driver, which supports all ATI FirePro workstation products, helps reduce the total cost of ownership by simplifying installation, deployment and maintenance.

AMD FirePro S400. Rozhraní: PCIe. Barva: Červená. Podporované operační systémy Windows: Windows 7, Windows 8, Windows Vista, Windows XP
